Description
- Supports UHF CH2 - 69 & Cable Channels
- Operates within 420 - 918 MHz Bands
- Compatible with Any UHF TV Transmitter
- Digitally Controlled Channel Switching
- -86 dBm Sensitivity
- Standard Negative Sync Output Mode
- Two Separate Antenna Inputs

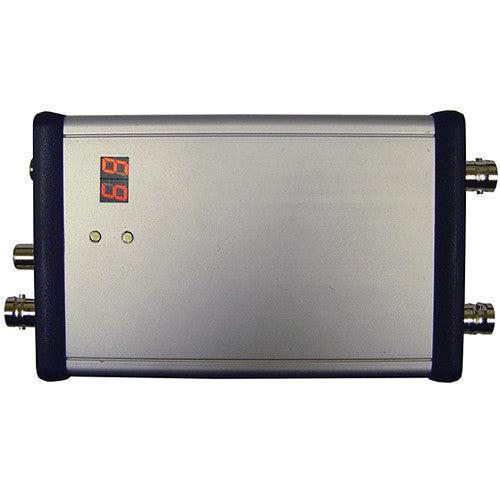

The RF-Video M-1000LED is a digitally controlled diversity audio/video receiver compatible with any UHF TV transmitter. It can pick-up any TV channel in UHF AIR BAND from CH2 to CH69 as well as cable channels. It operates within the 420 - 918 MHz frequency bands over long range distances.
A 9 - 12 VDC power supply (sold separately) is required. This receiver has a special diversity circuit to boost signal reception and offers two separate antenna inputs.
In the Box
RF-Video M-1000LED Special Diversity Audio/Video Receiver
- Limited 1-Year Warranty
| Input Frequency | 420 - 918 MHz, off air channels 2-69 |
| Sensitivity | -86 dBm |
| Noise Figure | VHF: 7 dB UHF: 10 dB |
| Image Rejection | VHF: 63 dB UHF: 50 dB |
| Input Impedance | 75 ohms |
| Video | Output Level: 1.0 Vp-p, NTSC Output Mode: Standard negative sync Panel Control: � 10 dB Output Impedance: 75 ohms Differential Gain: Less than 5% Differential Phase: Less than 5° L/C Delay: �50 nSec max |
| Audio | Output Level: 300 mV rms nominal Panel Control: � 10 dB Output Impedance: < 500 ohms Frequency Response: 25 Hz - 16 kHz |
| Power Input | 12 VDC @ 120 mA, 5 VDC @ 100 mA |
| Temperature | 32 to 122°F (0 to 50�C) |
| Dimensions | 4.1 x 4.9 x 1.1" (10.4 x 12.4 x 2.8 cm) |
| Weight | 12 oz (340 g) |
