Description
- 12-24 VDC Power
- PAL, NTSC, SECAM Compatible
- 300 ft Transmission
- 40 - 928 MHz Adjustable Frequency
- LCD Frequency and Carrier Display
- Push Button Selection
- Antenna Included
- Built-In Audio Portion
- Built-In Video Filters

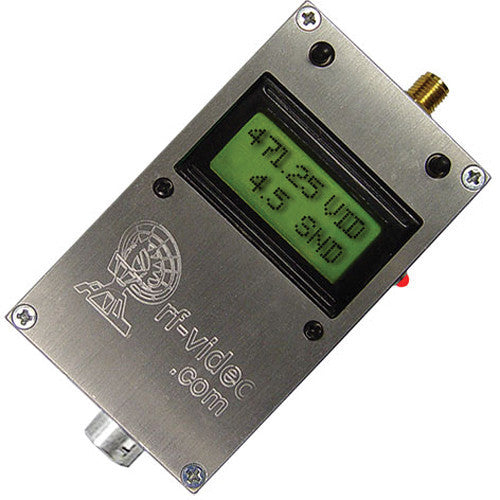

The RF-Video IGX-1000 is designed for professionals in the film and TV production industries but is suitable for all relevant industries. It operates within the 40 to 928 MHz frequencies and offers a transmission range of up to 300 ft.
An LCD displays the UHF and carrier frequencies particular to the TV system/country of choice (PAL, NTSC, and SECAM supported). The RF section allows you to cover all channels without any re-tuning. Channels are selectable by simple push buttons.
RF-Video recommends using their M-806 receiver. A matching antenna that covers the entire UHF TV band is included. Recommended DC voltage is 12V.
-
- Uses 12-24 VDC power
- 50-100 mW RF power
- Built-in audio portion (audio adjustable on back panel)
- Built-in video filters
- 230 mA current consumption
In the Box
RF-Video IGX-1000 Video Sender for All UHF Frequencies
- Rubber Ducky Antenna
- Limited 1-Year Warranty
| Operating Frequencies | 40 - 928 MHz continuous operation, no gaps, step 250 kHz |
| Channel | All TV channels 14-69 UHF AIR, cable UHF channels, 900 MHz band |
| DC Voltage | 12-24 VDC |
| Transmission Range | 300 ft (91 m) (line-of-sight) |
| RF Power | 50 - 100 mW |
| Minimum Required Voltage | 12.6 V |
| Battery Power | 12.6-32 V |
| Frequency Stability | +/-20 ppm |
| Video Distortion | 2% |
| Video Format | PAL, NTSC, SECAM |
| Current Consumption | 230 mA |
| Antenna Connector | BNC / SMA |
| Impedance | 50 ohms |
| Video Connector | Hirose |
| Video Impedance | 75 ohms |
| Audio | 4.5/5/5.5/6 MHz (adjustable on back panel) |
| Video Level | 1 V |
| Modulation | Negative AM |
| Temperature Range | 5 to 149°F (-15 to 65°C) |
| Dimensions | 2.8 x 1.5 x 0.75" (7.1 x 3.8 x 1.9 cm) |
| Weight | Approx. 3.2 oz (90 g) |
