Description
- 433.25 MHz Frequency (1 Ch)
- Up to 9 Mile Transmissions
- 10W RF / 50 ohms Output Power
- 12V, 4A Current Consumption
- RCA Video Connector
- Polarity Protected
- NTSC and PAL Compatible

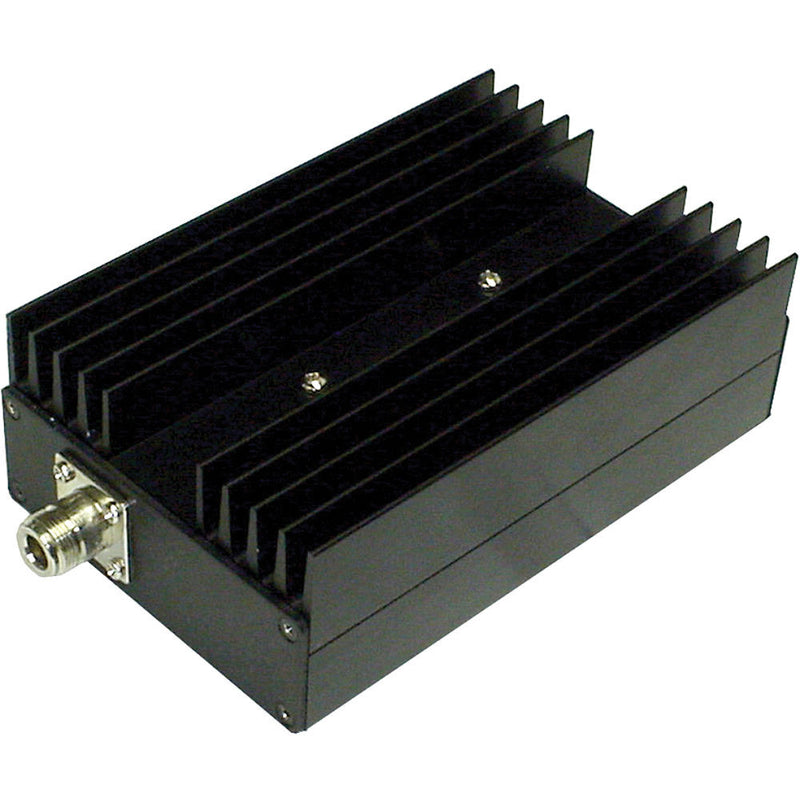

The RF-Video LX-430 is a 10W RF high power video transmitter offering up to 9 mile transmissions when using a directional 10dB antenna, sold separately.
-
- 433.25 MHz frequency (1 channel)
- 12V, 4A current consumption
- RCA video connector
- Polarity protected
- NTSC and PAL compatible
In the Box
RF-Video LX-430 UHF High Power Video Transmitter 434 MHz
- Limited 1-Year Warranty
| Frequency | 433.25 MHz |
| Channels | 1 |
| RF Output Power | 10 W / 50 ohms |
| Transmission Range | 9.3 miles (15 km) if using directional 10 dB antenna (sold separately) |
| DC Voltage | 12 V |
| Minimum Required Voltage | 12 V |
| Battery Power | 12 - 14.4 V (not included) |
| Current Consumption | 12 V, 4 A |
| Video Connector | RCA F |
| Video Format | NTSC, PAL |
| Temperature Range | -40 to 167°F (-40 to 75°C) |
| Dimensions | 8 x 6 x 3.5" (20.3 x 15.2 x 8.9 cm) |
| Weight | 2 lb (0.9 kg) |
