Description

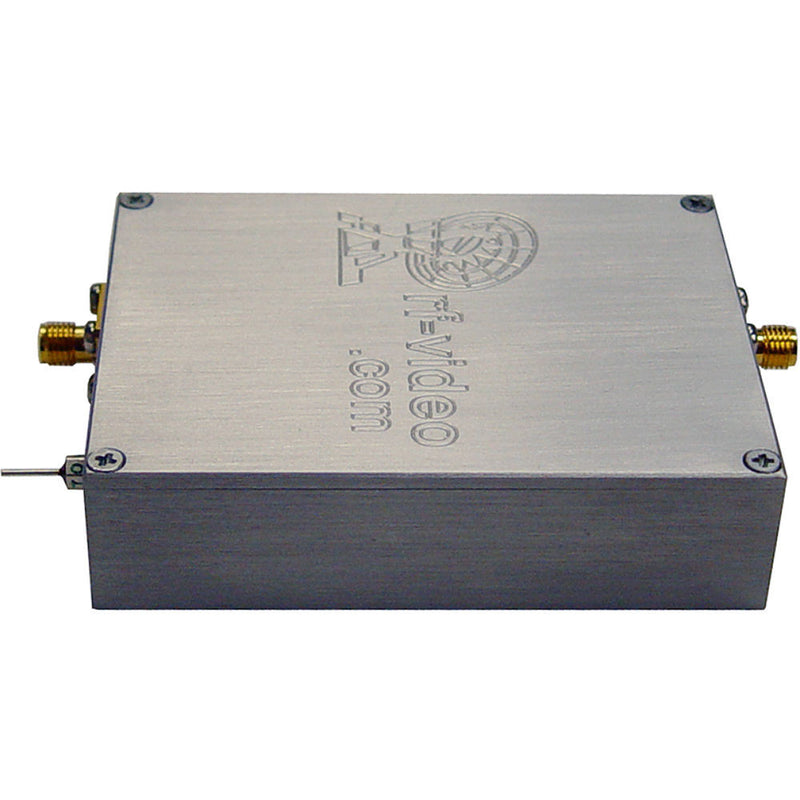

The AMP10-100 Wideband Linear Amplifier from RF Video covers the entire VHF-UHF band and operates from 10 MHz to 1 GHz. It requires 12-24 VDC / 1.2A supply and a minimum driving input of 10mW. This amplifier can be used for applications like lab testing, digital and analog RF and TV broadcasting.
In the Box
RF-Video AMP10-100 Wideband Linear Amplifier
- Limited 1-Year Warranty
| Operating Frequency | 10 to 1 GHz |
| Gain | 28 dBi (depends on frequency; maximum 31.5 dB) |
| Impedance | Input/Output: 50 ohms |
| Input Power | Maximum 30 mW (28 dB) |
| Output Power | @1 dB: From 50 to 500 MHz: Minimum 6 W (37.8 dBm) (CW) From 500 to 900 MHz: Minimum 4 W (36 dBm) (CW) @3 dB: From 50 to 500 MHz: Minimum 8 W (39 dBm) (CW) From 500 to 900 MHz: Minimum 6 W (37.8 dBm) (CW) COFDM: Minimum 1 W (30 dBm) |
| Gain | 31.5 dB Flatness: Typical �2.5 dB |
| Harmonics | Rejections: Minimum 20 dB @ 37 dBm |
| Modulation | IM3: Typical 30 dBc, minimum 22 dBc @ 37 dBm PEP |
| Efficiency | Minimum 20% @ 37 dBm (CW) |
| VSWR | Maximum 1.8:1 |
| Input Return Loss | Minimum 13 dB |
| Current | Quiescent: Typical 700 mA |
| Current Consumption | Maximum 1.2 A |
| Compliance | RoHS |
| Operating Temperature | -40 to 185�F (-40 to 85�C) |
| Dimensions | 3.25 x 2.5 x 0.80" (8.26 x 6.35 x 2.03 cm) |
| Weight | 2.1 oz (60.0 g) |
