Description

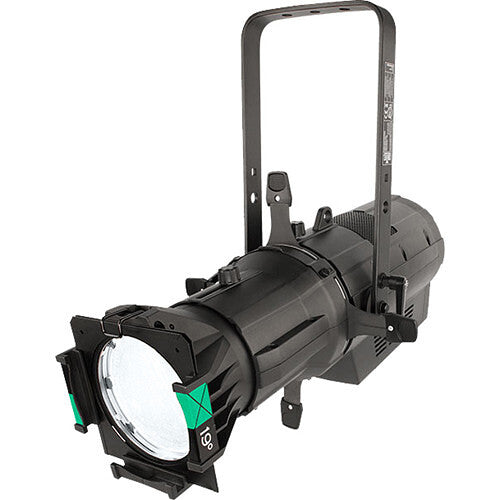

CHAUVET Professional E-260 CW Overview
The black Ovation E-260CW-2 from CHAUVET PROFESSIONAL is an ellipsoidal 5452K LED fixture with a built-in dimmer and DMX control. It is primarily designed for use in a theatrical lighting grid, but it can also be used in film and video productions. Dimming is controllable locally or via DMX with either 1, 2, 3, or 6 channels of control. Manual zoom and focus adjustments let you tune your light's coverage, which can be further refined with the integrated framing shutters. A built-in info screen aids you in navigating the menu system.
The fixture does not include a lens tube, but it does work with industry standard lens tubes allowing you to customize the fixture as you need. Featuring Pulse Width Modulation (PWM) dimming, the fixture is suitable for theatrical as well as video use. It is compatible with both 8- and 16-bit dimming controllers, and although fan cooled it is very quiet in use.
Items Included
- CHAUVET Professional Ovation E-260CW-2 (Engine Only, 5452K, Black)

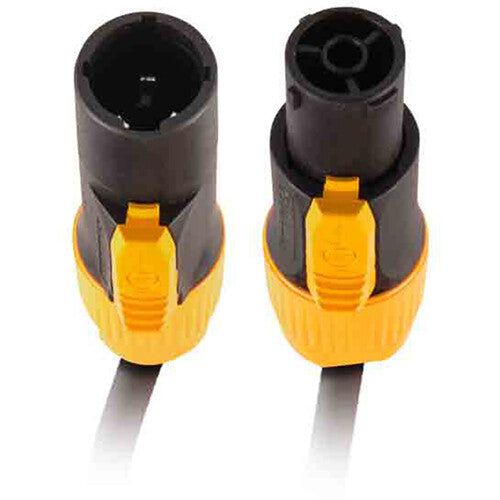

- Seetronic Powerkon IP65 Power Cord
- Limited 2-Year Manufacturer Warranty
Not Included
- Essential Lens & Lens Tubes
Additional Resources
CHAUVET Professional E-260 CW Specs
| Fixture Type |
Ellipsoidal
|
| Light Source |
White LED - 230 W / 3.5 A
|
| Colors |
Cool White
|
| Control Protocols |
DMX512, RDM
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
208 VAC, 60 Hz: 230 W / 1.1 A
230 VAC, 50 Hz: 231 W / 1 A |
| Mounting |
Single Yoke Only
|
| Fixture Type |
Ellipsoidal
|
| Light Source |
White LED - 230 W / 3.5 A
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Cool White
|
| Photometrics |
6°:
4570 fc / 49,200 Lux at 16.4' / 5 m 13°: 991 fc / 10,674 Lux at 16.4' / 5 m 28°: 202 fc / 2181 Lux at 16.4' / 5 m |
| Color Temperature |
5452K
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Focus |
Manual
|
| Zoom Adjustment |
Manual
|
| Dimming |
0 to 100% with 4 Dimmer Modes
|
| Operating Modes |
Automatic, DMX, Primary/Secondary
|
| Macros / Programs |
Auto-Program
|
| Effects |
Strobe
Framing |
| Strobe Rate |
0 to 30 Hz
|
| Gobos |
1x Gobo
|
| Gobo Size |
Outer Diameter: 3.9" / 100 mm
Max Image Size: 3" / 75 mm Max Thickness: 0.1" / 2.5 mm Outer Diameter: 3.4" / 86 mm Max Image Size: 2.5" / 64.5 mm Max Thickness: 0.1" / 2.5 mm |
| Color Accuracy Index |
CRI: 96
|
| Control Protocols |
DMX512, RDM
|
| DMX Channel Modes |
4 Mode(s):
1 / 2 / 3 / 6-Channel |
| Remote Control |
No
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| Wireless |
No
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated |
| Fuse |
T 3.15 A 250 V
|
| Power / Current Consumption |
208 VAC, 60 Hz: 230 W / 1.1 A
230 VAC, 50 Hz: 231 W / 1 A |
| Power Linking |
6 Units at 120 VAC
10 Units at 208 VAC 12 Units at 230 VAC |
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Mounting |
Single Yoke Only
|
| Included Accessories |
1x Power Cable
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Fan
|
| Certifications |
CE, MET, FCC, UKCA
|
| Dimensions |
19.49 x 19.17 x 11.22" / 49.5 x 48.69 x 28.5 cm
|
| Weight |
15.4 lb / 7 kg
|
| Package Weight |
19.41 lb
|
| Box Dimensions (LxWxH) |
25.6 x 13.6 x 12.6"
|
