Description
CHAUVET Professional E-160WW Overview

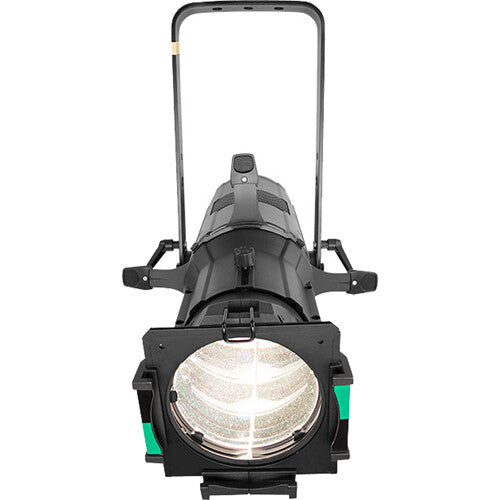

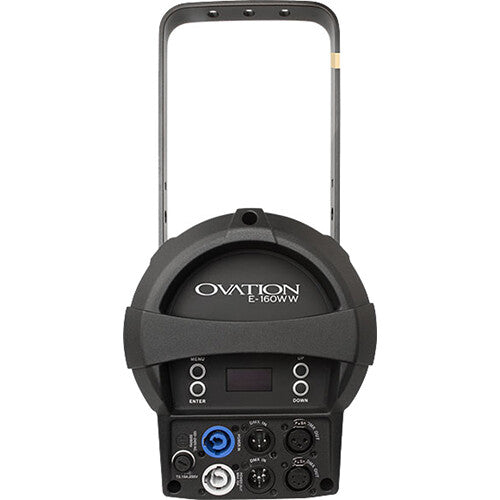

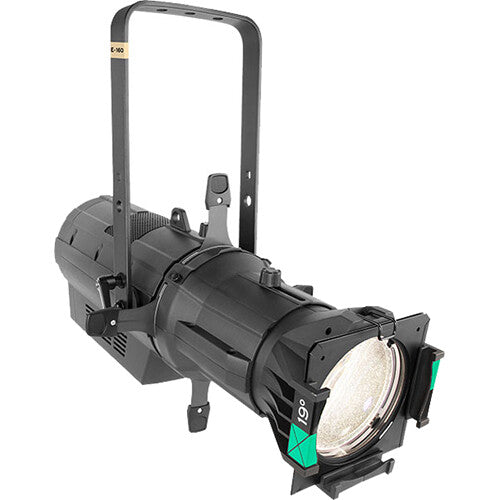

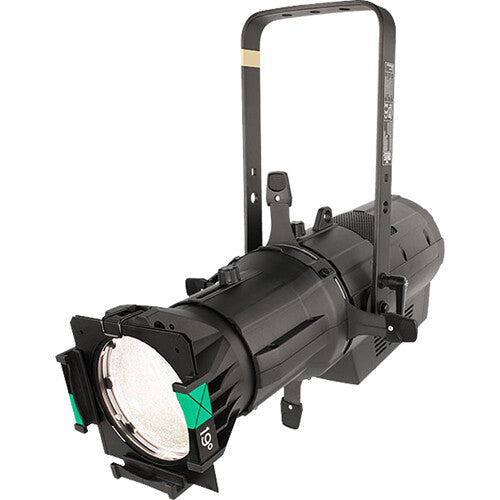

The black Ovation E-160WW-2 from CHAUVET PROFESSIONAL is an ellipsoidal 3031K LED fixture with a built-in dimmer and DMX control. It is designed for use in studio and theater applications. Dimming is controllable locally or via DMX with either 1, 2, 3, or 6 channels of control. RDM (Remote Device Management) allows for added flexibility, and adjustable PWM (Pulse Width Modulation) helps avoid flickering on the camera. Lens tubes must be purchased separately.
Details
- Warm white ERS style fixture with output similar to a tungsten 575W source
- Draws less than 100W of power, a true electrical bill-reducing fixture
- Ultrasmooth 16-bit dimming and 8-bit dimming curves to complement any lighting scheme
- Flat, even field of light for superior gobo projection
- RDM (Remote Device Management) for added flexibility
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- Virtually silent operation for use in studio and theater applications
Convenient Upgraded Cable
CHAUVET PROFESSIONAL upgraded the Ovation E-160WW-2 to include a more convenient Seetronic Powerkon IP65 (TRUE1-style) power cable that facilitates your extension/connection requirements.
Items Included
- CHAUVET Professional Ovation E-160WW-2 (Engine Only, 3031K, Black)
- Seetronic Powerkon IP65 Power Cord
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
CHAUVET Professional E-160WW Specs
Key Specs
| Fixture Type |
Ellipsoidal
|
| Light Source |
White LED - 86 W / 2.3 A
|
| Colors |
Warm White
|
| Control Protocols |
DMX512, RDM
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
120 VAC, 60 Hz: 101 W / 0.86 A
208 VAC, 60 Hz: 100 W / 0.51 A 230 VAC, 50 Hz: 99 W / 0.47 A |
| Mounting |
Single Yoke Only
|
Light
| Fixture Type |
Ellipsoidal
|
| Light Source |
White LED - 86 W / 2.3 A
|
| Expected Lamp Life |
50,000 Hours
|
| Colors |
Warm White
|
| Photometrics |
4°:
3771 fc / 40,600 Lux at 16.4' / 5 m 12°: 1858 fc / 20,000 Lux at 16.4' / 5 m 31°: 69 fc / 743 Lux at 16.4' / 5 m |
| Color Temperature |
3031K
|
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Focus |
Manual
|
| Zoom Adjustment |
Manual
|
| Dimming |
16-Bit Electronic, 0 to 100% with 4 Dimmer Modes
|
Performance
| Operating Modes |
Automatic, DMX, Primary/Secondary
|
| Macros / Programs |
Auto-Program
|
| Effects |
Strobe
Framing |
| Strobe Rate |
0 to 29 Hz
|
| Gobos |
1x Gobo
|
| Gobo Size |
Outer Diameter: 3.9" / 100 mm
Max Image Size: 3" / 75 mm Max Thickness: 0.1" / 2.5 mm Outer Diameter: 3.4" / 86 mm Max Image Size: 2.5" / 64.5 mm Max Thickness: 0.1" / 2.5 mm |
| Color Accuracy Index |
CRI: 90
|
Control
| Control Protocols |
DMX512, RDM
|
| DMX Channel Modes |
4 Mode(s):
1 / 2 / 3 / 6-Channel |
| Remote Control |
No
|
| Mobile App Compatible |
No
|
Connectivity
| Inputs/Outputs |
1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| Wireless |
No
|
Power
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated |
| Fuse |
T 3.15 A 250 V
|
| Power / Current Consumption |
120 VAC, 60 Hz: 101 W / 0.86 A
208 VAC, 60 Hz: 100 W / 0.51 A 230 VAC, 50 Hz: 99 W / 0.47 A |
| Power Linking |
13 Units at 120 VAC
23 Units at 208 VAC 25 Units at 230 VAC 26 Units at 240 VAC |
Physical
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Mounting |
Single Yoke Only
|
| Included Accessories |
1x Power Cable
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Fan
|
| Certifications |
CE, MET, FCC, UKCA
|
| Dimensions |
19.49 x 19.17 x 11.22" / 49.5 x 48.69 x 28.5 cm
|
| Weight |
14.2 lb / 6.4 kg
|
Packaging Info
| Package Weight |
18.025 lb
|
| Box Dimensions (LxWxH) |
25.6 x 13.3 x 13"
|
