STMICROELECTRONICS AEKD-STEREOAVAS Evaluation Kit, SPC582B60E1, FDA903D, SPC58EC80E5, Acoustic Vehicle Alerting System, Audio

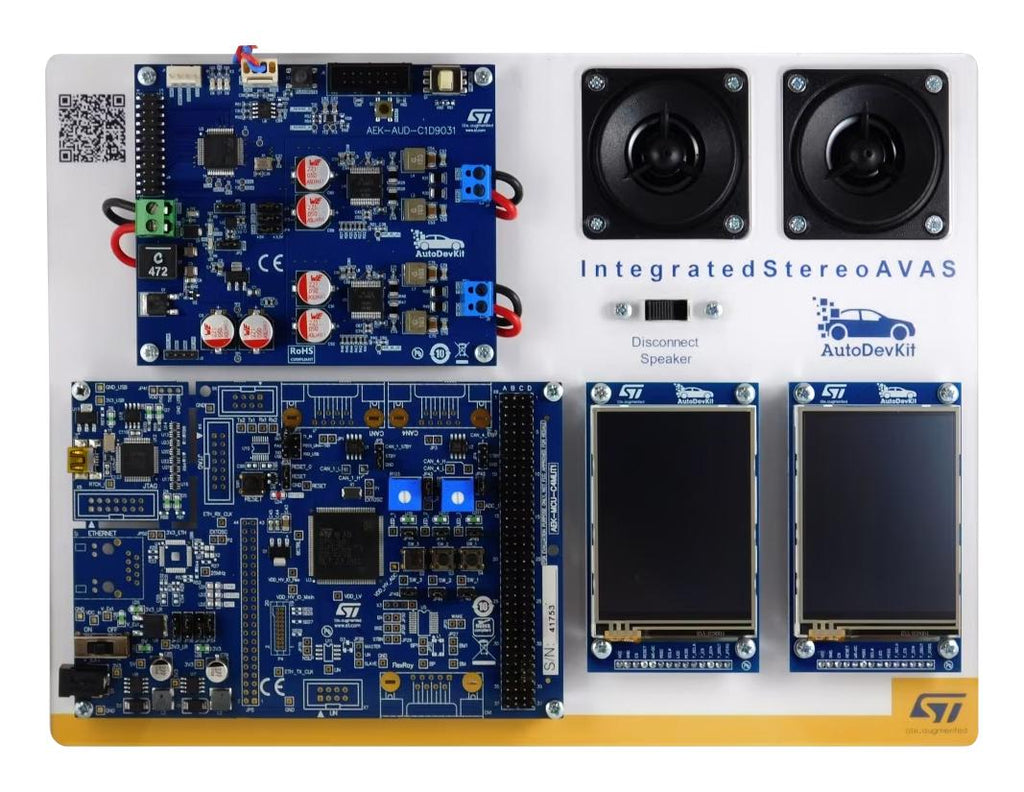

AEKD-STEREOAVAS is an AutoDevKit acoustic vehicle alerting system (AVAS) demo. It consists of an AEK-AUD-C1D9031 compact AVAS board, an AEK-MCU-C4MLIT1 domain zone controller, and two AEK-LCD-DT028V1 display expansion boards, plus two loudspeakers and a switching button. The AEK-AUD-C1D9031 communicates with the AEK-MCU-C4MLIT1 via CAN protocol, exchanging commands like start/stop to simulate alerting sounds used in e-vehicles. The sound is reproduced by the AEK-AUD-C1D9031 ECU through a pair of integrated class D audio amps connected to the loudspeakers. Two AEK-LCD-DT028V1 boards with resistive touch allow the user to interact with the demo. The first screen shows a graphic simulation of the electric motor rpms, while the second allows starting/stopping the demo and regulating the sound volume and the engine rpms. An important system safety feature reproposed in our demo consists in the open-load detection in play or mute state.

• AEK-AUD-C1D9031 compact AVAS solution
• AEK-MCU-C4MLIT1 domain zone controller
• Two AEK-LCD-DT028V1 display expansion boards and two integrated loudspeakers
• Current sensing for open-load detection in play or mute state
• Speaker disconnection switch and hardware mute button
• Plays a preloaded wave file (car key on, neutral and drive modes)
• Size is 290 x 210 x 70mm
• Included in the AutoDevKit ecosystem

Contents

AEK-AUD-C1D9031 compact AVAS board, an AEK-MCU-C4MLIT1 domain zone controller, Two AEK-LCD-DT028V1 display expansion boards, plus two loudspeakers and a switching button.
