INFINEON EVALAUDIOMA2304PNSBTOBO1 Evaluation Kit, MA2304PNS, Class D Audio Power Amplifier, Audio

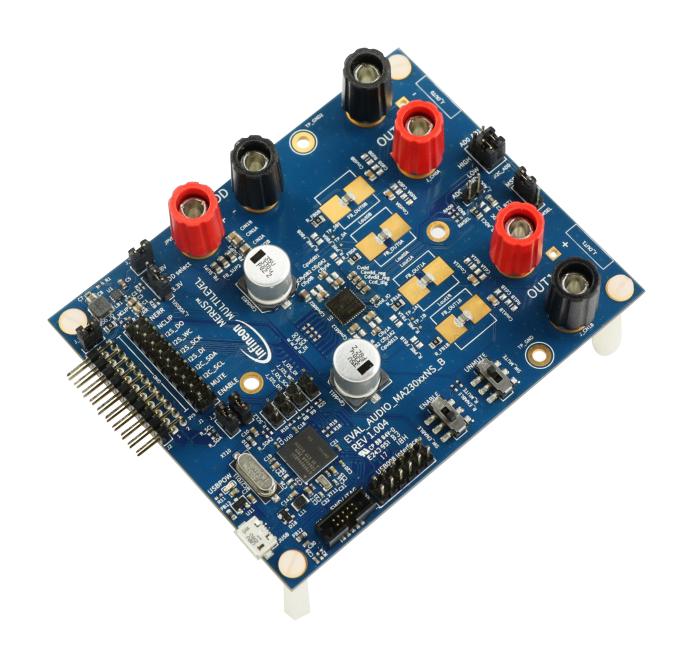

EVALAUDIOMA2304PNSBTOBO1 is an evaluation board - audio board using ultra-low idle power and inductor-less multilevel MERUS� class D amplifier IC MA2304PNS. The EVAL_AUDIO_MA2304PNS_B is the new version of MERUS� multilevel class D amplifier MA2304PNSevaluation board with a PSoC� controller. It features ultralow idle power consumption, the highest efficiency in the market at typical listening levels, and reduced EMI in comparison to traditional 2/3-level class D amplifiers. Typical applications include audio amplifiers, portable audio, battery-powered speakers and conferencing systems.

• MERUSâ�¢ multilevel switching technology
• Extended battery life and reduced EMI
• 2 x 37W output power and 52mW ultralow idle power consumption
• Configurable switching edge steepness
• PWM sync for reduced EMI in multichannel systems
• 79% efficiency at 1W, 8ohm and digital I2S/TDM inputs
• 52µVrms A-weighted output noise
• Lower system cost and simple implementation without need for dynamic rail tracking power supplies
• Inductor less and ferrite bead operation without compromising audio performance
• Reduced footprint size and PCB area

Contents

EVAL-AUDIO-MA2304PNS board, Three interface boards (analogue in, S/PDIF coax, and S/PDIF optical), Micro USB cable, 22µH power inductor for performance measurements.
