ANALOG DEVICES EV-21569-SOM Evaluation Board, ADSP-21569WCBCZ10, Audio Processor, 1 GHz

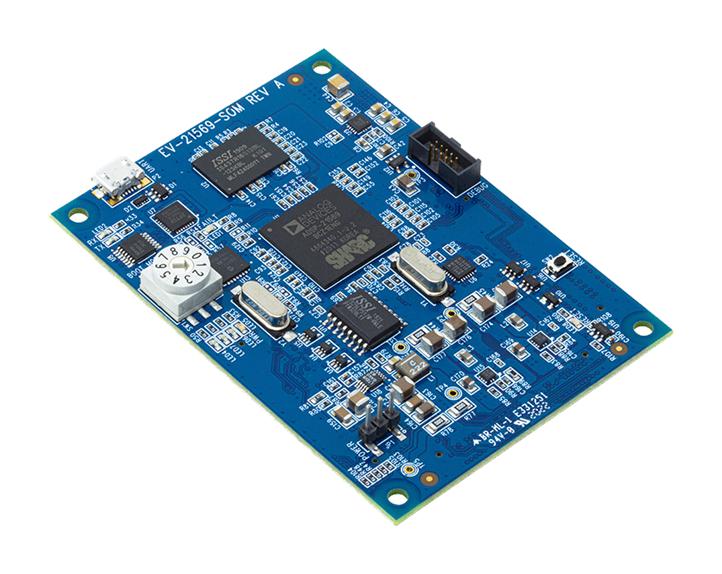

EV-21569-SOM is a System-on-Module (SOM) Board used to evaluate the 1GHz ADSP-2156x Family (ADSP-21562/21563/21565/21566/21567/21569) of SHARC+ audio processors. It features the processor, memory, and power portions of the design and provides an easy-to-use plug-n-play reference design with all the key interfaces made available on three connectors for combining to either the EV-SOMCRR-EZKIT carrier board or a custom carrier board. The EV-21569-SOM and EV-SOMCRR-EZKIT boards may be purchased as a bundle (EV-21569-EZKIT), providing fast and easy evaluation of the processor core and system peripherals/interfaces. EV-21569-SOM module requires the CrossCore® Embedded Studio (CCES) development tools to enable developers to achieve faster time to market.

• ADSP-21569 SHARC+ audio processor, 8Gb DDR3 (1.35V) memory, 512Mb SPI flash quad memory
• Power solution based on LT components
• FTDI USB-to-UART interface
• Debug interface (JTAG)
• SOM interface connector
• CrossCore Embedded Studio EZ-KIT license

Warnings

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party

Notes

When used without the EV-SOMCRR-EZKIT carrier board, the EV-21569-SOM board requires an external in-circuit emulator (ICE-2000) be connected to the JTAG header.
