Description
Product Overview

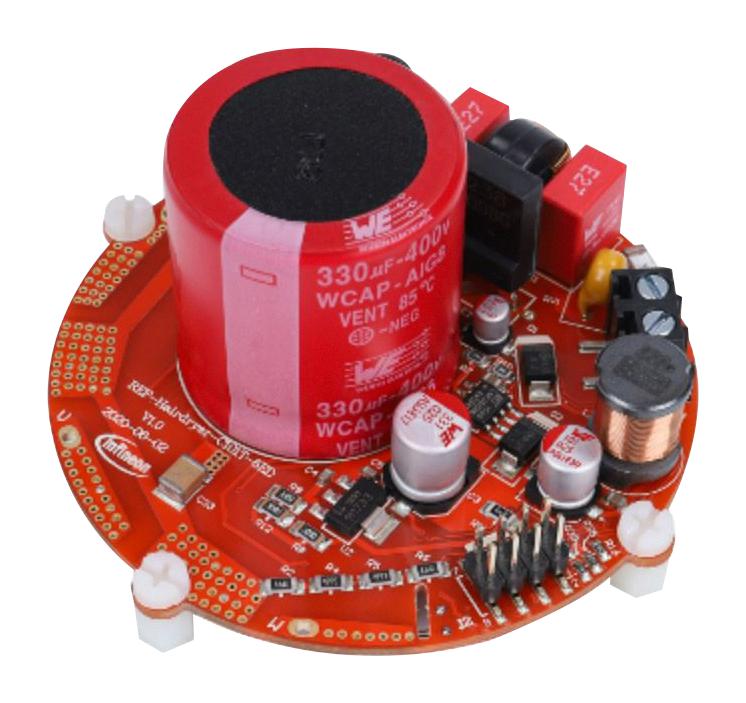

REFHAIRDRYERC1016EDTOBO1 is a Turn-key reference design kit for high-performance, high-efficiency PMSM/BLDC motor drive applications. The REF-Hairdryer-C101-6ED is a reference design kit featuring IMC101T iMOTION� controller, 6EDL04I06PT SOI three-phase gate driver and IKD06N60RF IGBT. This reference design kit demonstrates our thin-film-SOI and Advanced Motion Control Engine (MCE 2.0) technologies for low power PMSM/BLDC motor drivers up to 100 kRPM and inverters rated up to 400W. It is optimized for small home appliances like hairdryers, fans, pumps and other low-power motor drive applications.
- Input voltage 85 to 265VAC, 400W at 220VAC input with wind cooling
- VSP speed command potentiometer
- Turnkey version sensor less & sensor FOC control
- User UART for script function
- Over-current and over-temperature protection
- Fault diagnostic LED output
- Low noise single shunt current sample
- Auxiliary power supply with 15V, 3.3V
- Round PCB in diameter of 70mm, 2 layers, 1 oz copper
Product details
Other details
| Brand | INFINEON |
| Part Number | REFHAIRDRYERC1016EDTOBO1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
