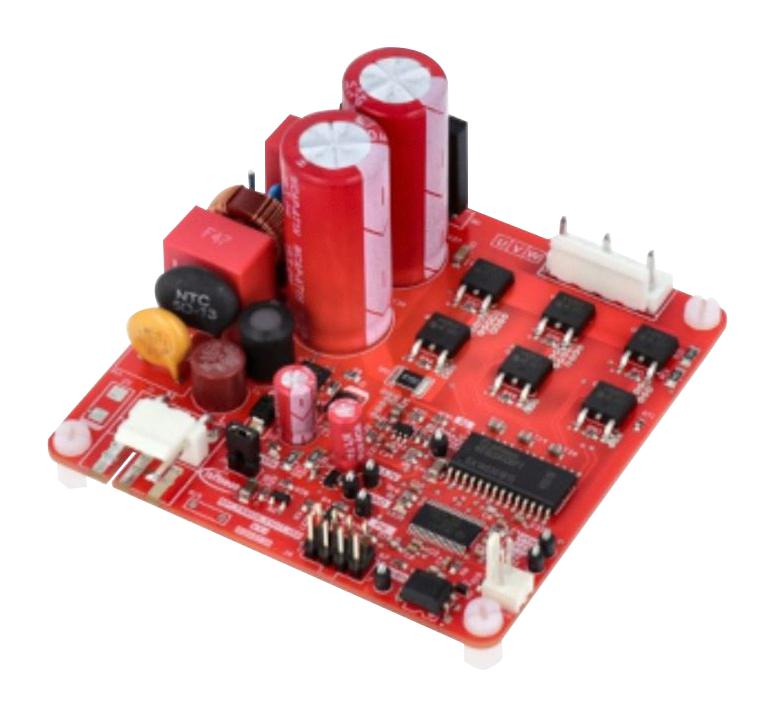

INFINEON REFFRIDGEC101T6EDTOBO1 Reference Design Board, IMC101T-T038, iMOTION IMC100 Family, Refrigerator Compressors SP005446496

REFFRIDGEC101T6EDTOBO1 is a reference board for efficient control of rotary fridge compressor drives powered by motor control ICs, SOI three-phase and RC-D2 IGBT. This is a ready-to-use reference board designed for refrigerator compressors. It demonstrates a one-stop shop Infineon solution, including 600 V three-phase gate driver IC 6EDL04I06PT, 600V RC-D2 IGBT IKD04N60RC2, digital motor control IC iMOTION� IMC101T-T038 and linear voltage regulators IFX54211MB V33. This discrete solution with combination of our gate driver, IGBT and motor control IC offers maximum layout and design flexibility, e.g. for multi-platform use for different power levels. The design can easily be to a final mass-production application board, and therefore has a fast time to market. It can be interfaced through iMOTION� Link. This tool is designed to program and debug different series of iMOTION� motor control ICs. It is essential for tuning your motor control system.

• EiceDRIVER� compact - 600V full-bridge 3-phase gate driver IC in PG-DSO-28 with LS-SOI technology
• iMOTION� IMC101T-T038 : motion control engine as ready-to-use controller solution
• IKD04N60RC2: 600 V, 4 A IGBT Discrete with reverse conducting drive 2-diode in TO-252 package
• Field-proven turnkey iMOTION� sensorless FOC solution, plus optional PFC control
• Optimized for full load operation & EMI performance
• Ease of use with graphical user interface (GUI)
• Pre-tested reference design can be fully re-used for customization
• Thin-film SOI technology, max blocking voltage +600V, separate control circuits for all six drivers
• CMOS and LSTTL-compatible input (positive logic), detection of overcurrent and undervoltage supply
