Description
Product Overview

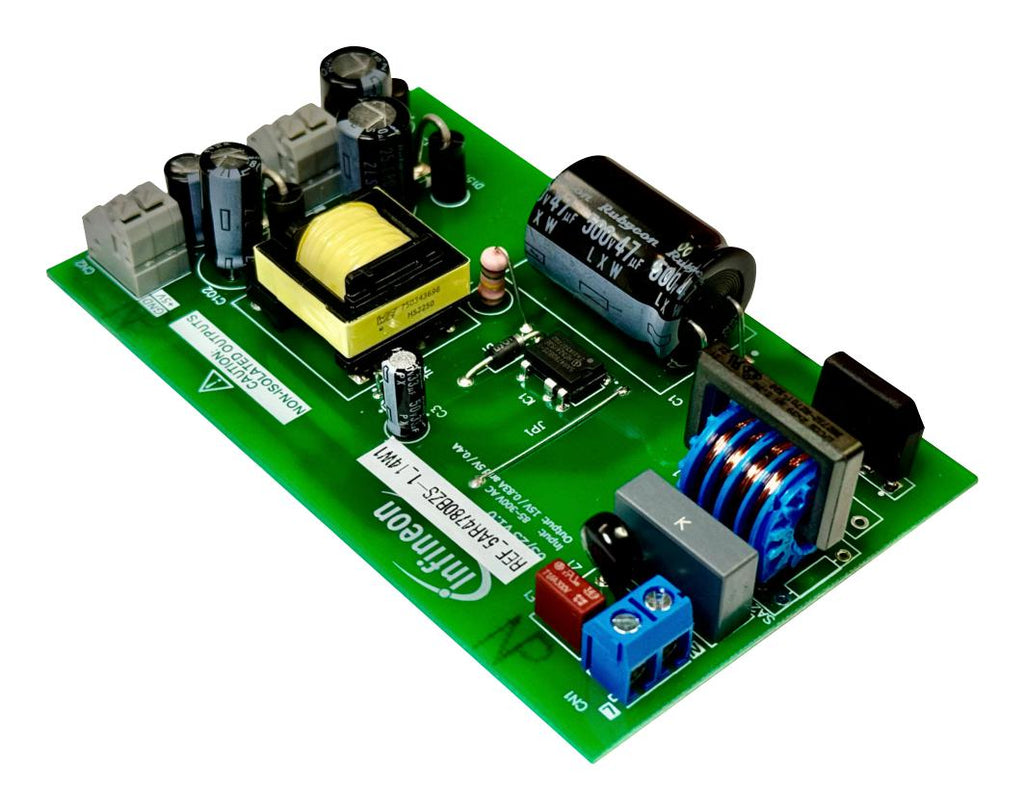

REF5AR4780BZS114W1TOBO1 is a reference board using the latest CoolSET� 5th generation fixed frequency Plus ICE5AR4780BZS-1 switching controller. This 14W auxiliary SMPS reference design operates under a wide range input developed with indoor residential aircon application in mind. Suitable for AC-DC power conversion for telecom infrastructure and home appliances.
- Universal input range from 85 to 300VAC, 50/60Hz
- Output 1 is 15V (non isolated)
- Output current 1 is 830mA (for 15V)
- Output 2 is 5V (non isolated)
- Output current 2 is 400mA (for 5V)
- Robust operation
- Frequency reduction at light loads
- Programmable burst mode
- Integrated error amplifier and integrated 800V MOSFET
- Either primary/secondary side regulation
Product details
Other details
| Brand | INFINEON |
| Part Number | REF5AR4780BZS114W1TOBO1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 17836.49 |
| 3-5 | ₹ 17654.49 |
| 5-10 | ₹ 17290.48 |
| 10+ | ₹ 16926.47 |
Bulk discount will be automatically applied during checkout based on quantity.
