Description
Product Overview

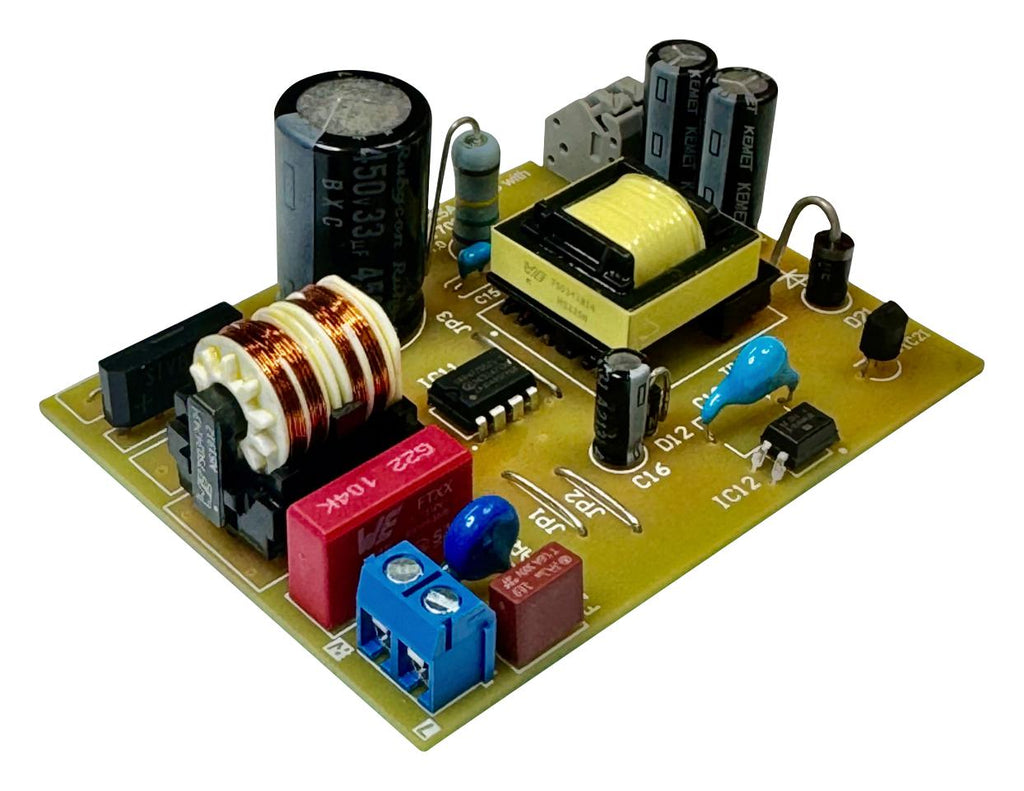

REF5AR4770BZS115W1TOBO1 is a reference board using the latest CoolSET� 5th Generation Fixed Frequency Plus ICE5AR4770BZS-1 switching controller with 700V integrated MOSFET in DIP-7 package. This 15W auxiliary SMPS reference design operates under a wide range input developed with indoor residential air conditioning application in mind. Suitable for AC-DC power conversion for telecom infrastructure and home appliances applications.
- Universal input range from 90 to 264VAC, 50/60Hz
- 12V (isolated) output
- 1.25A output current
- Robust operation
- Frequency reduction at light loads
- Programmable burst mode
- Integrated error amplifier
- Integrated 700V MOSFET
- Either primary/secondary side regulation
Product details
Other details
| Brand | INFINEON |
| Part Number | REF5AR4770BZS115W1TOBO1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
