| ₹ 22527.94 includes GST and import duties. | |
| B2B customers can avail ₹ 3435.51 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

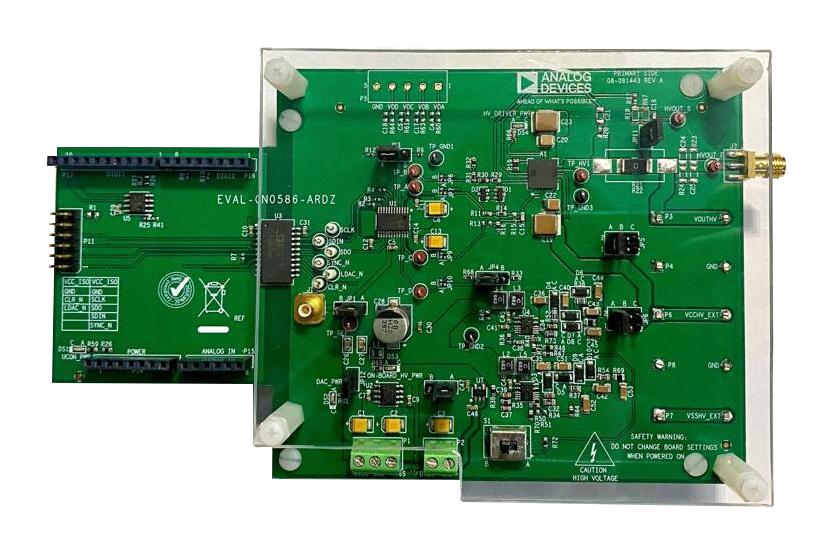

EVAL-CN0586-ARDZ is an evaluation board that contains the full signal chain of CN0586 which is a precision bipolar high voltage output drive solution, with up to 200V output span and digital interface isolation. The evaluation board operates from +/-15V external dual supply and has an on-board low drop-out (LDO), precision reference and High Voltage (HV) power solution for the various parts of the signal chain. The EVAL-CN0586-ARDZ utilizes the AD5754R, 4-channel voltage output DAC, and the ADHV4702-1, low noise HV amplifier, in a configuration shown in the figure below capable of producing up to 200V span and 20mA current drive at the outputs. CN0586 includes safety features such as digital interface isolation, temperature or software-controlled shutdown.
- Full featured evaluation board for CN0586
- Up to 200V software selectable output span
- (+/-)100V and +200V power solution from 15V input
- On-board precision voltage reference
- Arduino Uno form-factor
- Open-source firmware example
- Various safety features for High Voltage (HV)
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | EVAL-CN0586-ARDZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 22077.38 |
| 3-5 | ₹ 21852.1 |
| 5-10 | ₹ 21401.54 |
| 10+ | ₹ 20950.98 |
Bulk discount will be automatically applied during checkout based on quantity.
