Description
Product Overview

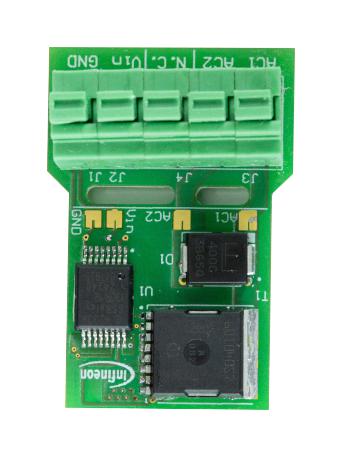

REFSSRACDC2ATOBO1 is a solid-state relay reference design board. It allows the evaluation AC and DC-type solid-state relays supporting 250V AC or 350V DC operation and 2A nominal current in a compact form factor. The board is compact and features integrated overcurrent and overtemperature protection mechanisms thanks to the innovative isolated EiceDRIVER� iSSI gate driver with coreless transformer (CT) technology and a CoolMOS� S7T SJ MOSFET with integrated temperature sensor. Suitable for industrial automation and solid-state relay applications.
- Bidirectional MOSFET switch
- Back-to-back (B2B) CoolMOS� configuration for bidirectional current blocking capability
- Adjustable input supply voltage
- External TVS clamping diode
- SJ MOSFET w. embedded temperature sensor
- Shunt based overcurrent protection
- Isolated gate driver
- Small form factor with enhanced reliability and safety
- Galvanic isolation up to 5.7KV RMS, fast switch off (<10µs)
- Arc-free switching and no separate output bias supply needed
Product details
Other details
| Brand | INFINEON |
| Part Number | REFSSRACDC2ATOBO1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
