STMICROELECTRONICS TSZ181H1YLT Operational Amplifier, Rail to Rail, 3 MHz, 4.7 V/µs, 2.2V to 5.5V, SOT-23, 5 Pins

TSZ181H1YLT is a single very high accuracy, high bandwidth, high temperature, zero-drift operational amplifier. It features very low offset voltages with virtually zero drift versus temperature changes. It offers rail-to-rail input and output, excellent speed/power consumption ratio, and 3MHz gain bandwidth product, while consuming just 1mA at 5V. The device operates over an extended range and features an ultra-low input bias current. It ideal for high-accuracy high-bandwidth sensor interfaces for automotive environment. Application includes high accuracy signal conditioning, current measurement, sensor signal conditioning, automotive.

• AEC-Q100 automotive qualified, rail-to-rail input and output
• 3.5µV typical input offset voltage (T = 25°C, Vcc+ = 2.2V, Vcc- = 0V)
• Supply voltage range from 2.2 to 5.5V
• Maximum low power consumption is 1mA (at 5V)
• 2.3MHz typical gain bandwidth product (T = 25°C, RL = 10Kohm, CL = 100pF)
• Higher accuracy without calibration
• Accuracy virtually unaffected by temperature change
• 4.6V/µs typical slew rate (T = 25°C, Vcc+ = 2.2V, Vcc- = 0V)
• 0.26µV/°C maximum input offset voltage drift (Tmin <lt/> T <lt/> Tmax, Vcc+ = 2.2V, Vcc- = 0V, T = 25°C)

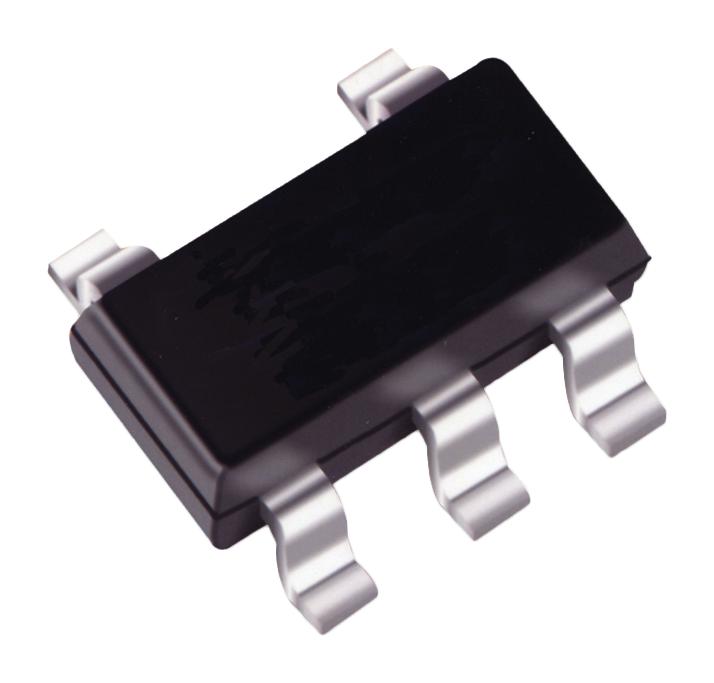

• 5 lead SOT23 package, extended operating temperature range from -40 to 175°C
