Description
Product Overview
TSB624IYPT is a low-power, 1.7MHz, rail-to-rail output, 36V operational amplifier. It is a general-purpose operational amplifier featuring an extended supply voltage operating range and rail-to-rail output. This also offers an excellent speed/power consumption ratio with 1.7MHz gain bandwidth product while consuming less than 375?A per operator at 36V supply voltage. Due to the small package size, this can be used in applications where space on the board is limited. It can thus reduce the overall cost of the PCB. Typical applications are industrial, power supplies, automotive.
- Low offset voltage is 1mV maximum at 25°C
- Low current consumption is 375?A maximum/operator at 36V
- Wide supply voltage range from 2.7 to 36V
- Gain bandwidth product is 1.7MHz
- Unity gain stable, rail-to-rail output
- Input common mode voltage incudes ground
- High ESD tolerance is 4KV HBM, EMI hardened
- Extended temperature range from -40 to 125°C

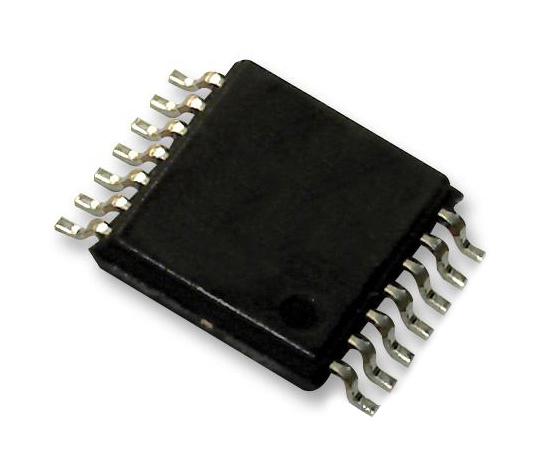

- TSSOP14 package
- Automotive qualification
Product details
Other details
| Brand | STMICROELECTRONICS |
| Part Number | TSB624IYPT |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
