Tuned to deliver a robust vocal tone with smooth highs and tight lows, the Zoom ZDM-1 is an affordable dynamic microphone that's ideal for podcasters, radio show announcers, rappers, and singers. Thanks to its high SPL handling and broad frequency response, this end-address mic makes it easy to capture your voice with mix-ready broadcast quality.
The large-diaphragm dynamic capsule utilizes a supercardioid pickup pattern to effectively reduce ambient sound such as room noise at the sides of the mic. To isolate the pickup element from handling noise, vibrations, and rumble, the ZDM-1 employs an integrated shock-absorbing mechanism. The ZDM-1's integral humbucking circuit improves the signal-to-noise ratio by inhibiting electromagnetic interference from common sources such as wireless devices, power lines, computer displays, and more.
The all-metal body and grille afford ruggedness and durability for reliable use session after session. The ZDM-1 includes a pivoting mic stand mount for easy positioning and a custom windscreen for attenuation of plosives and breath noise.
- Large-diaphragm dynamic design captures smooth, broadcast-quality sound
- Classic end-address style
- Supercardioid polar pattern provides focused pickup and excellent isolation
- High 135 dB SPL handling ensures clean recordings every time
- 50 Hz to 18 kHz frequency response with tight bass and smooth highs enhances vocal tone for radio, podcasting, and more
- Internal shockmount provides isolation from bumps and handling noise
- Built-in humbucking circuit rejects electromagnetic interference
- Balanced XLR output connector
- All-metal body and grille stands up to daily use
- Includes pivoting mic stand mount, threaded adapter, and custom windscreen
UPC: 884354023928
In the Box
- Zoom ZDM-1 Dynamic Microphone

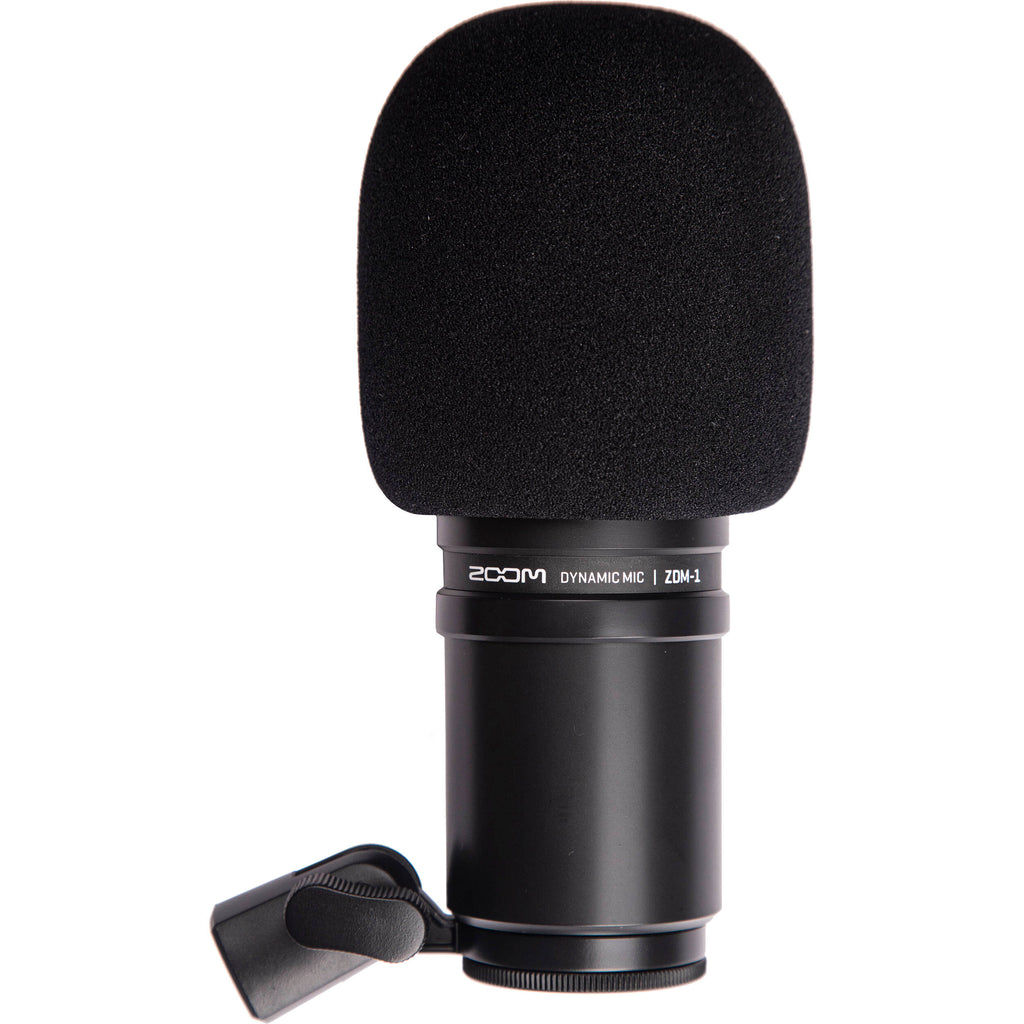

- Custom ZDM-1 Windscreen
- Pivoting Mic Stand Mount
- Threaded European Mic Stand Adapter
- Limited 1-Year Warranty
Zoom ZDM-1 Specs
Microphone
Primary Applications |
Studio Recording, Broadcast |
Form Factor |
Stand/Boom Mount |
Sound Field |
Mono |
Operating Principle |
Pressure Gradient |
Capsule |
1 x Dynamic |
Polar Pattern |
Supercardioid |
Orientation |
End Address |
Circuitry |
Solid-State |
Pad |
None |
High-Pass Filter |
None |
Tone Adjustment |
None |
Indicators |
None |
On-Board Controls |
None |
Windscreen |
Foam (Included) |
Performance
Frequency Range |
50 Hz to 18 kHz |
Maximum SPL |
135 dB SPL |
Impedance |
200 Ohms |
Load Impedance |
200 Ohms (Minimum) |
Sensitivity |
-54 dBV/Pa |
Connectivity
Output Connectors (Analog) |
1 x XLR 3-Pin Male |
Headphone Connector |
None |
Physical
Color |
Black |
Mounting |
3/8"-16 Female, 5/8"-27 Female (with Included Hardware) |
Included Case |
None |
Included Filters |
None |
Construction Material |
Metal |
Dimensions |
ø: 2.12 x L: 5.19" / ø: 5.38 x L: 13.18 cm |
Weight |
14.11 oz / 400 g |
Packaging Info
Package Weight |
1.31 lb |
Box Dimensions (LxWxH) |
8.4 x 5.1 x 3.5" |
