Description
Zoom ZR20 Overview
- 1Description
- 2Multitracking Made Easy
- 3Bring the Whole Band
- 4Just a Gesture Away
- 5Color-Coded for Clarity
- 6Put the Pieces Together
- 7Add Pro-Level Effects
- 8Drop the Beat
- 9Synth Sounds on Tap
- 10Backing Tracks
- 11Record to SD Cards
- 12Monitor and Playback
- 13App-Based Wireless Control
- 14Accessibility for the Visually Impaired
- 15Attention to Detail

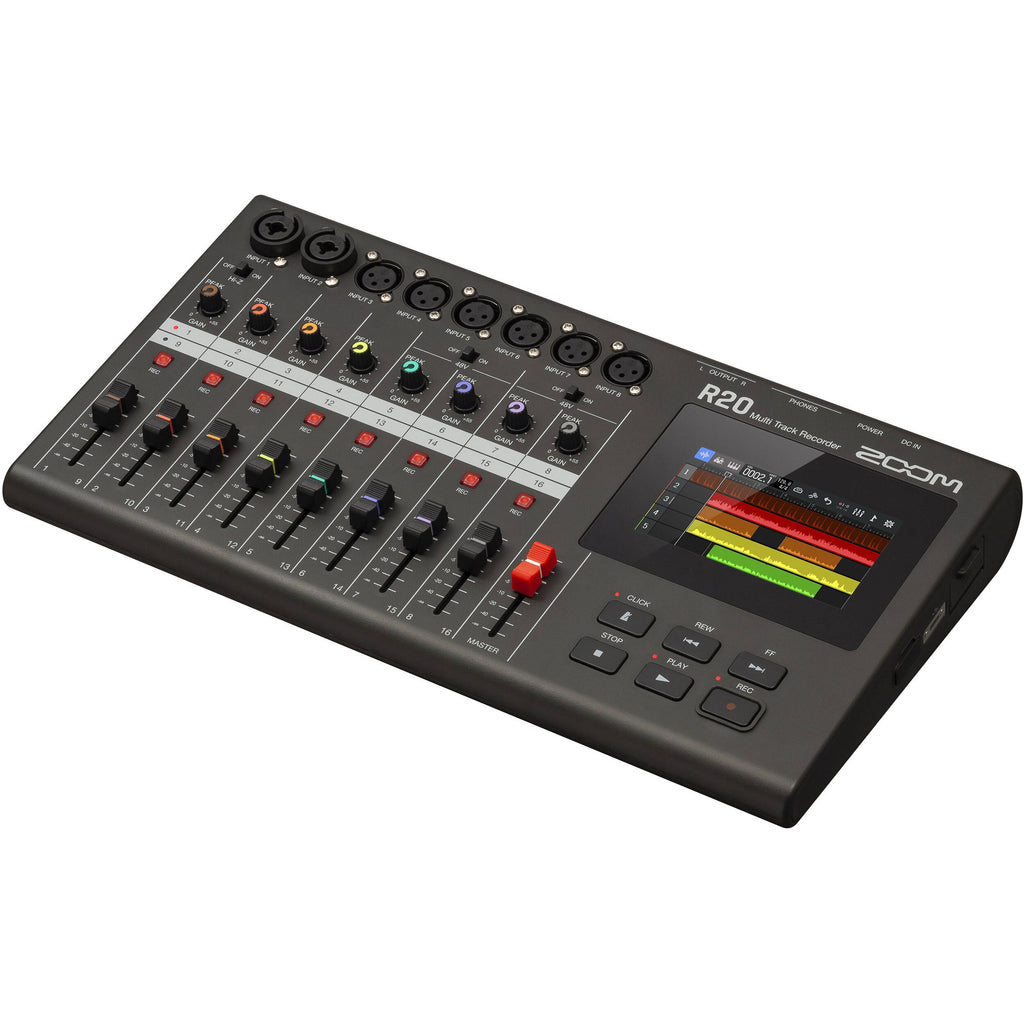

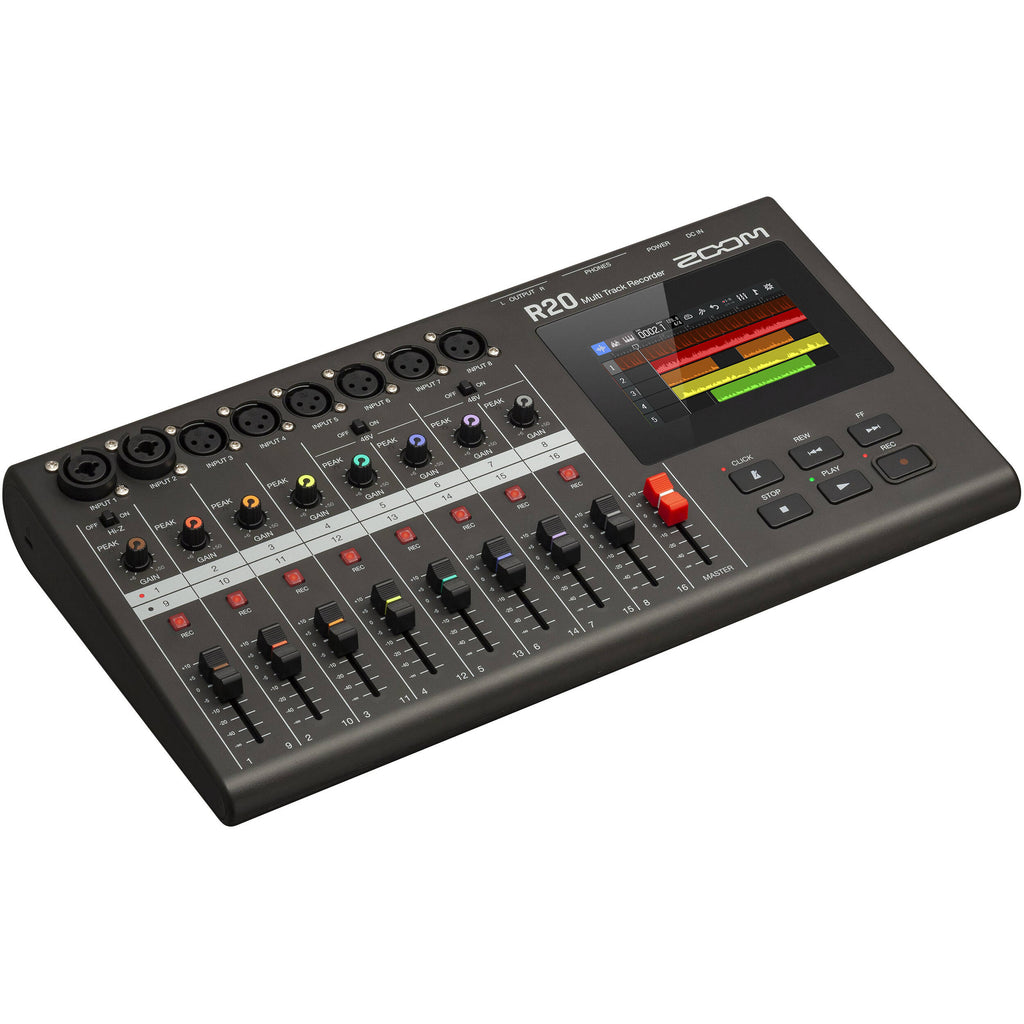

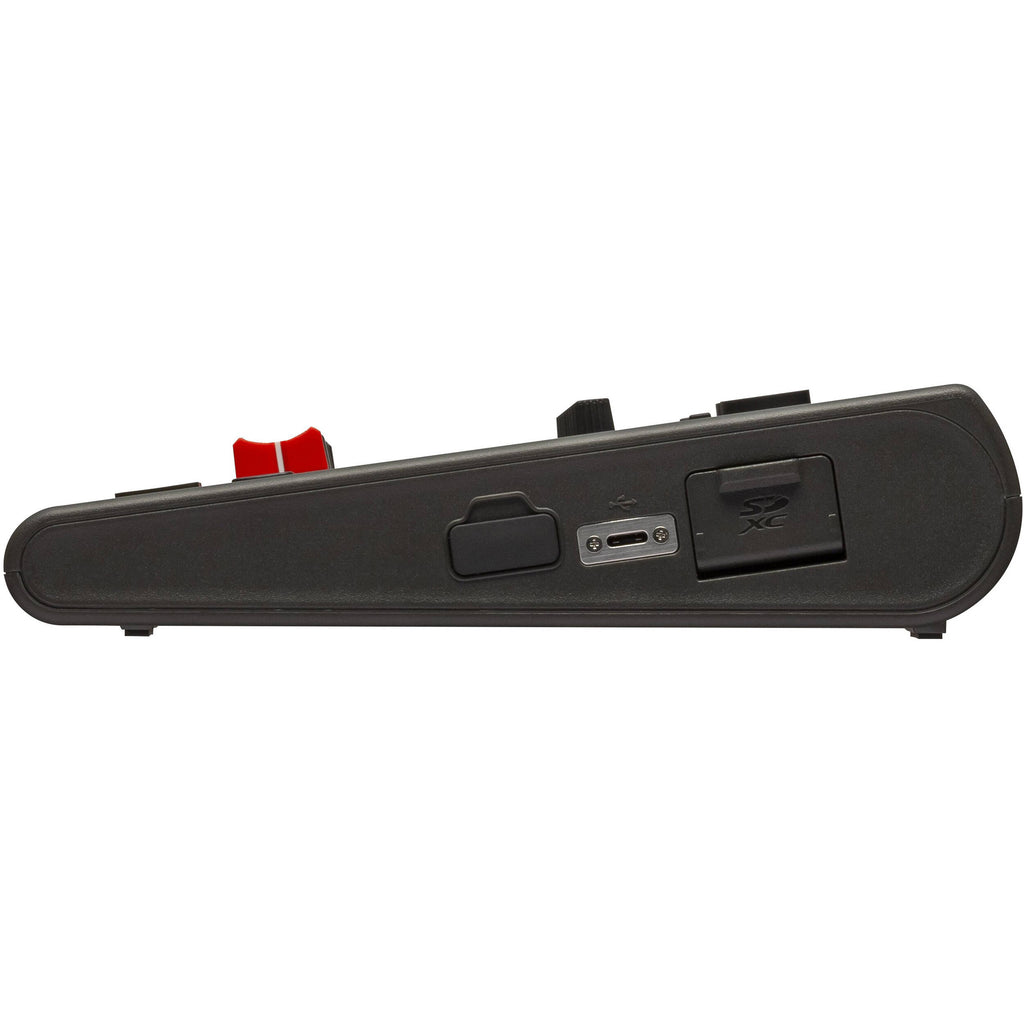

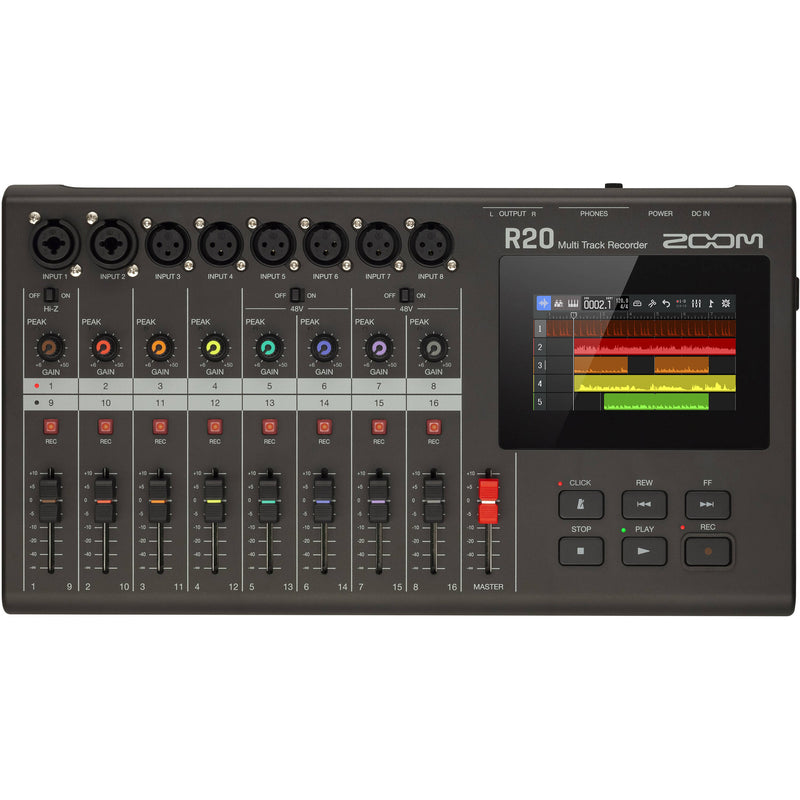

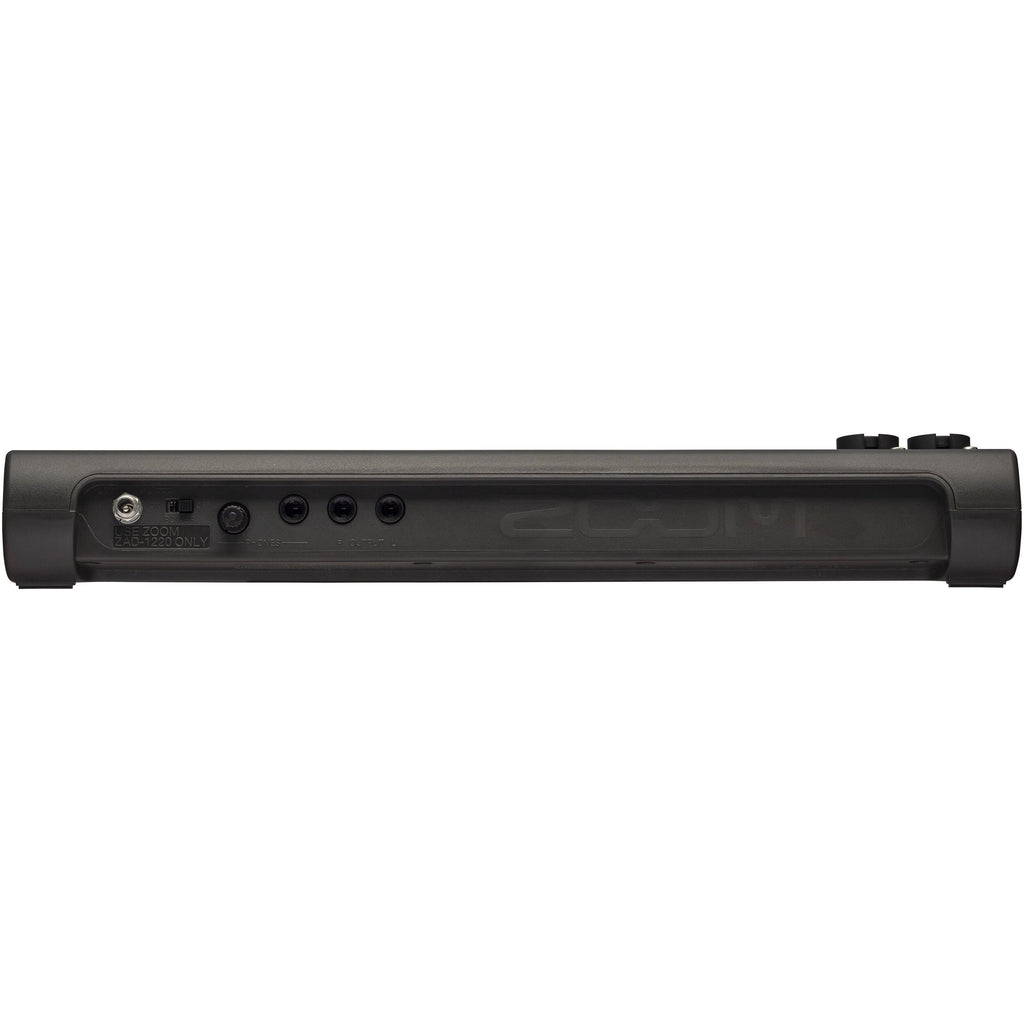

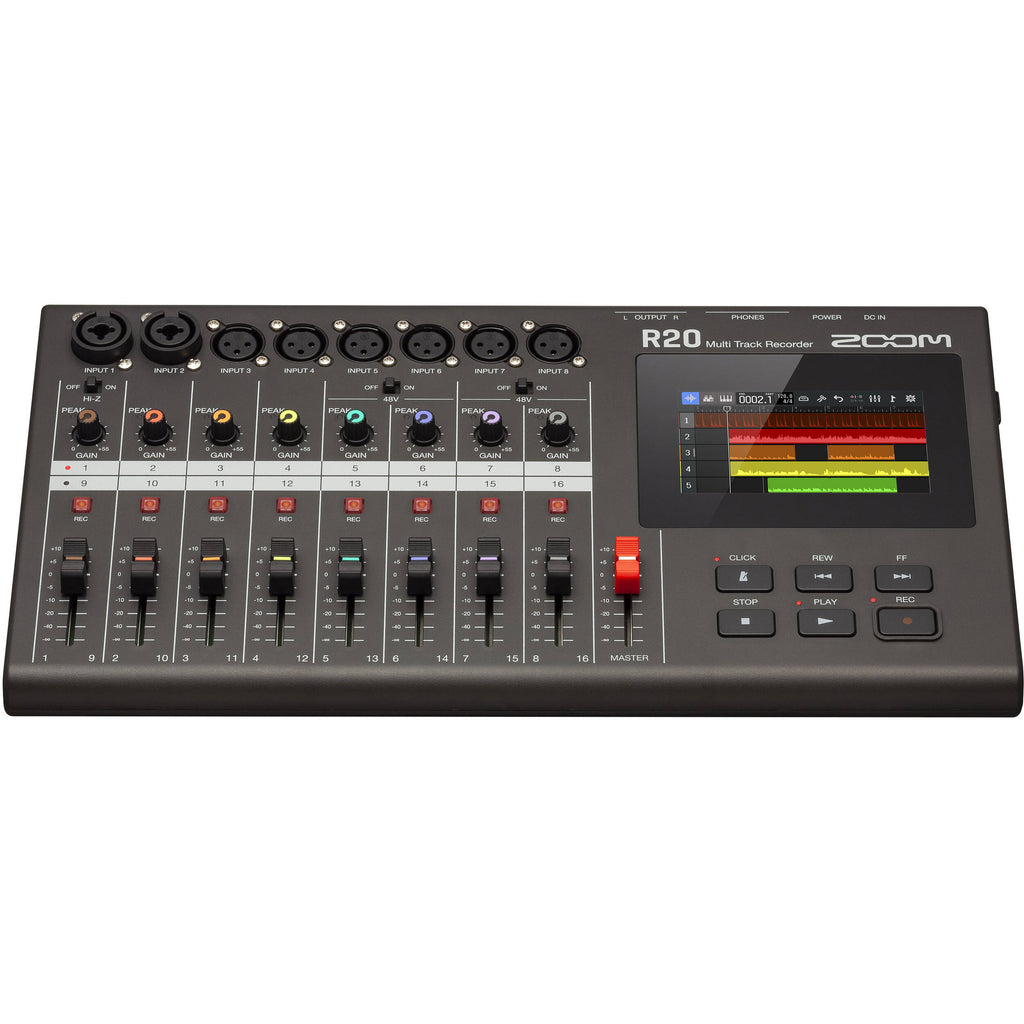

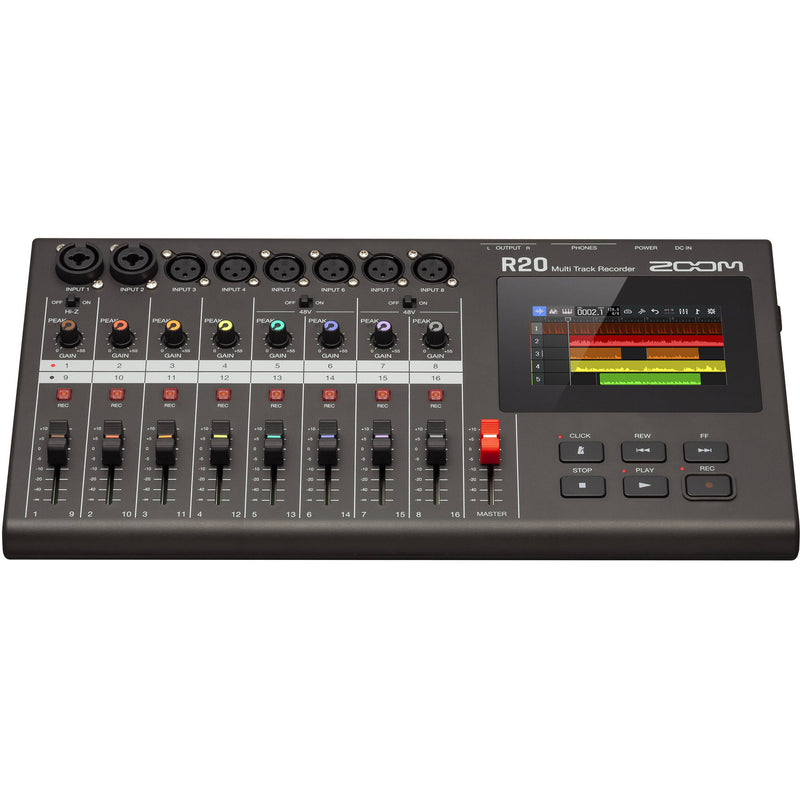

An intuitive, all-in-one tabletop solution for recording, editing, and mixing music, the Zoom R20 Portable Multitrack Recorder merges a DAW-inspired touchscreen interface, color-coded tactile controls, and up to 16 total tracks so that solo artists and full bands alike can produce songs and let their creativity flow without relying on a computer. If a DAW-based workflow is needed, the R20 can serve as an 8x4 USB audio interface for virtually any audio production software.
The R20 is part recording console, part virtual instrument, and part effects unit; it comes loaded with eight preamps, channel strips, drum loops, synth sounds, and digital processing such as compression, EQ, gating, and more. Multiple mics, an electric guitar, headphones, speakers, and even a MIDI keyboard can be hooked up to the R20, making it a capable centerpiece for any home studio or mobile production rig.
- Hi-Z is available on input 1 for electric guitar and bass
- 48V phantom power is available on inputs 5-8, switchable on pairs of channels
- The locking power adapter ensures security against accidental unplugging
- Access a fully adjustable click track at the press of a button
- Record audio in up to 24-bit / 44.1 kHz resolution in BWF-compliant WAV format
- The R20 also functions as an 8-input / 4-output USB Type-C audio interface
In the Box
- Zoom R20 Portable Multitrack Recorder
- ZAD-1220 AC Adapter
- Description
- Multitracking Made Easy
- Bring the Whole Band
- Just a Gesture Away
- Color-Coded for Clarity
- Put the Pieces Together
- Add Pro-Level Effects
- Drop the Beat
- Synth Sounds on Tap
- Backing Tracks
- Record to SD Cards
- Monitor and Playback
- App-Based Wireless Control
- Accessibility for the Visually Impaired
- Attention to Detail
Zoom ZR20 Specs
Form Factor | Desktop |
Number of Tracks | WAV: 8 |
Maximum Simultaneous Tracks | 8 x Recording / 16 x Playback (at 44.1 kHz) |
Display | 4.3" Color LCD Touchscreen |
Maximum Sampling Rate | 44.1 kHz / 24-Bit |
Number of Microphone Preamps | 8 Preamps |
Built-In Microphone | None |
Input Level Adjustment | 8 x Knob |
Number of Headphone Mixes | 1 x Master |
Sample Pads | None |
Pad | None |
Gain/Trim Range | +6 to +50 dB |
High-Pass Filter | None |
EQ | Input Channels: 3-Band EQ |
EQ Parameters | High: ±12 dB at 10 kHz Mid: ±12 dB at 2.5 kHz Low: ±12 dB at 100 Hz |
Dynamic Processing | Input Channels: Compressor, Limiter, Gate |
Built-In Effects | Distortion Auto-Wah Chorus Chorus+Reverb ADT Delay Reverb |
Analog Audio I/O | 1 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 1 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input 6 x XLR 3-Pin Balanced Mic/Line Input 2 x 1/4" TRS Balanced Line Output 1 x 1/4" TRS Unbalanced Headphone Output |
Phantom Power | 48 V, Selectable On/Off (on 4 Channels) |
Digital Audio I/O | None |
Host Connection Protocol | USB 2.0 |
USB (Non-Host) | 1 x USB Type-A (Remote) |
Sync I/O | None |
Network I/O | None |
MIDI I/O | None |
Wireless Connectivity | None |
Frequency Response | Mic, Line Inputs: 20 Hz to 20 kHz -1 dB |
Maximum Input Level | Mic/Line Inputs: +4 dBu for 0 dBFS |
Maximum Output Level | Line Outputs: +14 dBu |
Headphone Output Power | 20 mW per Channel into 32 Ohms |
Impedance | XLR Mic Inputs: 3.9 Kilohms 1/4" Line Inputs: 5.3 Kilohms Hi-Z Inputs: 1 Megohm Line Outputs: 200 Ohms Headphone Outputs: 33 Ohms |
EIN | Mic Inputs: ? -121 dBu A-Weighted (150-Ohm Source, +40 dB Gain) |
Audio File Formats | BWF |
Sample Rates | 44.1 kHz (BWF) |
Bit Depths | 16 / 24-Bit |
Sync Sources | Internal |
Supported Media | SDHC Card, SDXC Card |
Memory Card Slot | 1 x SDXC |
Supported Media Capacity | SDHC: 4 GB Minimum to 32 GB Maximum SDXC: 64 GB Minimum to 1 TB Maximum |
OS Compatibility | macOS Windows *As of November, 2021: Check with manufacturer for the most up-to-date compatibility |
Supported Drivers/API & Plug-Ins | macOS Class-Compliant (No Driver Needed) Windows Driver Downloadable from Manufacturer |
Required Hardware | Available USB Port |
Power Requirements | AC/DC Power Adapter (Included) |
AC Input Power | Not Specified by Manufacturer |
AC/DC Power Adapter | 12 VDC at 2 A, Center-Positive (Included) |
Power Consumption |
