Description
Zoom AMS-24 Overview
- 1Description
- 22 TRS/XLR Inputs, 2 TRS Outputs, and 2 Headphone Jacks
- 3Switch Between Music and Streaming Modes
- 4Quick Control
- 5Onboard Monitoring
- 6Loopback

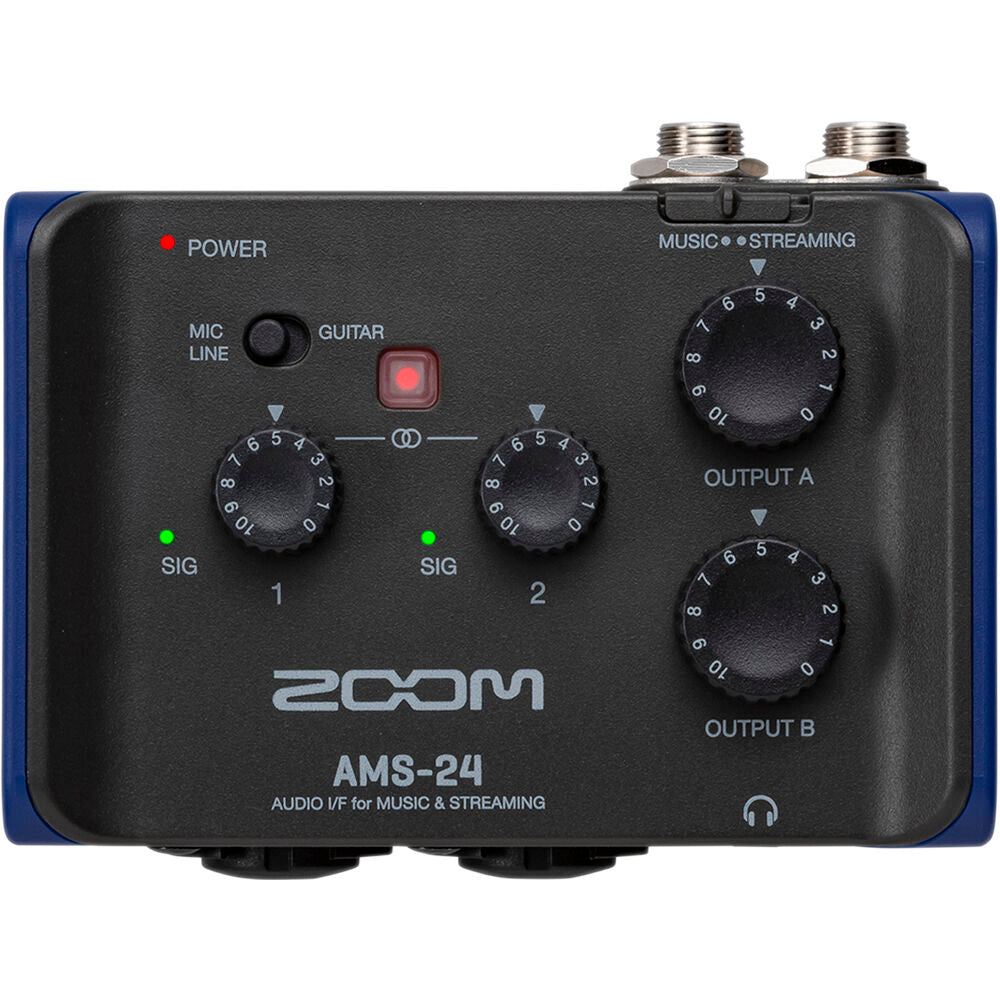

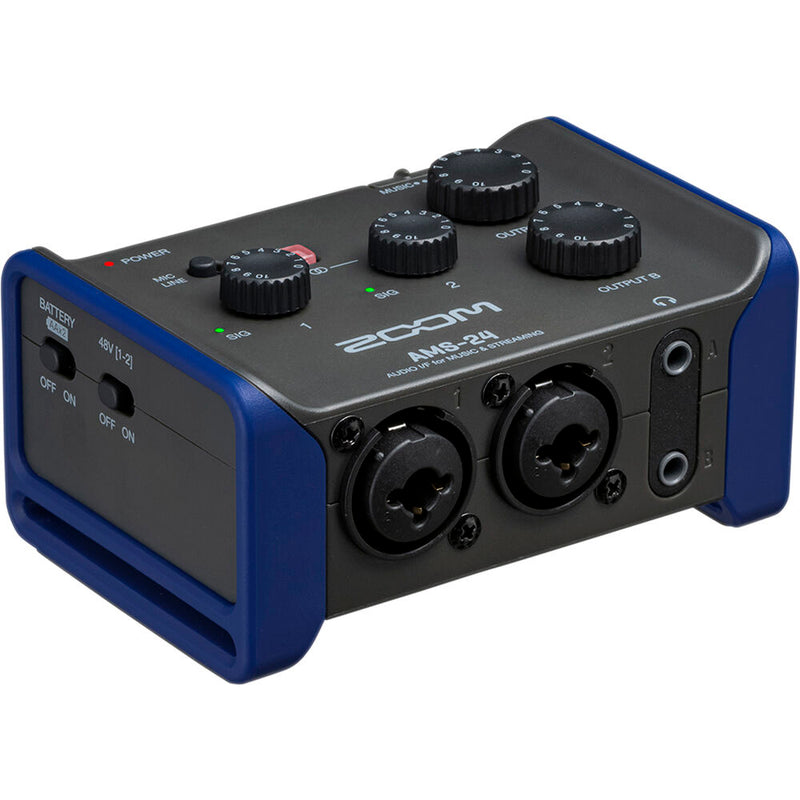

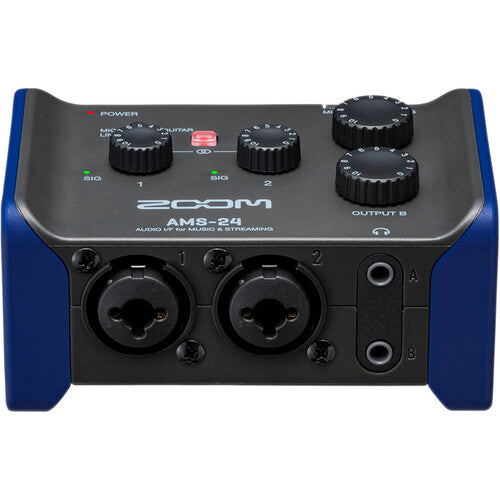

On-the-go musicians looking for a compact and versatile audio interface will appreciate the streamlined and easy-to-use feature set on the Zoom AMS-24, an ultraportable solution with two TRS/XLR inputs, two TRS outputs, two headphone jacks, a USB Type-C connector, and modes for both streaming and recording applications.

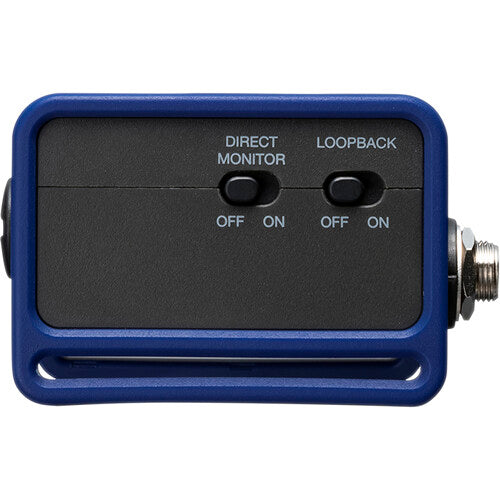

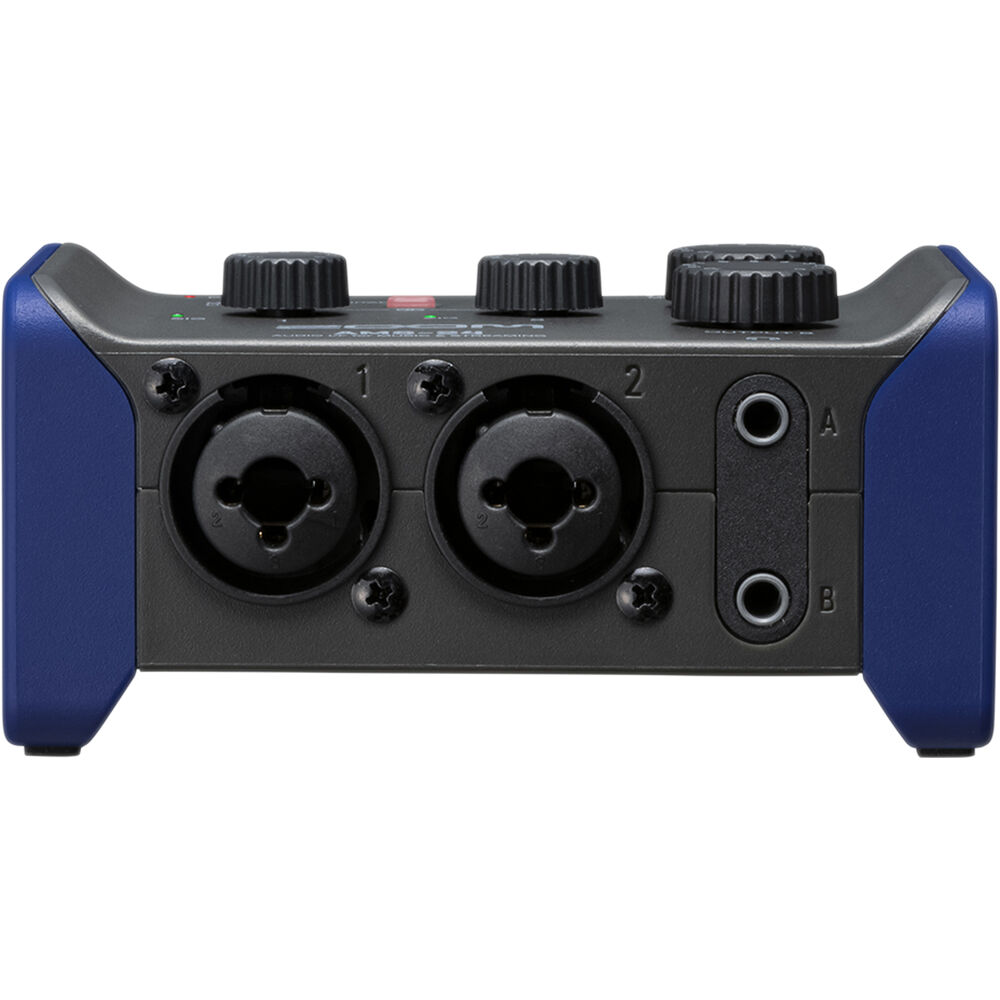

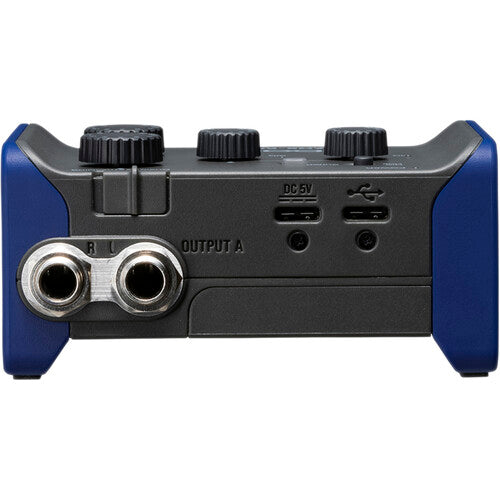

Plug your instruments or microphones into the two TRS/XLR inputs, and power condenser mics by engaging the 48V phantom-power switch. Input 1 features a Hi-Z switch for guitar players. Monitor via the two 3.5mm headphone jacks, or connect monitor speakers to the stereo TRS output. The AMS-24 supports 24-bit resolution recordings at sampling rates up to 96 kHz. The interface operates on bus power from your computer, but can also be powered by two AA batteries or an AC power adapter (available separately) if you're using it with a smartphone or tablet. Direct monitoring and loopback functions make recording overdubs and adding music to your streams simple and easy.
In the Box
- Zoom AMS-24 2x4 USB Audio Interface for Music and Streaming
- USB Type-C Cable
- Description
- 2 TRS/XLR Inputs, 2 TRS Outputs, and 2 Headphone Jacks
- Switch Between Music and Streaming Modes
- Quick Control
- Onboard Monitoring
- Loopback
Zoom AMS-24 Specs
| Form Factor | Desktop |
| Display | None |
| Channels of I/O | Analog: 2 Inputs / 2 Outputs |
| Maximum Sampling Rate | 96 kHz / 24-Bit |
| Number of Microphone Preamps | 2 Preamps |
| Built-In Microphone | None |
| Input Level Adjustment | 2 x Knob |
| Expansion Slots | None |
| Pad | None |
| Gain/Trim Range | +8 to +54 dB |
| High-Pass Filter | None |
| Analog Audio I/O | 1 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 1 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input 2 x 1/4" TRS Balanced Line Output |
| Phantom Power | 48 V, Selectable On/Off |
| Digital Audio I/O | None |
| Host Connection / USB | 1 x USB-C |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | None |
| Wireless Connectivity | None |
| Frequency Response | 20 Hz to 20 kHz +0/-2 dB (at 44.1 kHz) 20 Hz to 40 kHz +0/-3 dB (at 96 kHz) |
| Maximum Input Level | Combo XLR-1/4" Mic Inputs: +6 dBu Combo XLR-1/4" Line Inputs: +22 dBu Hi-Z: +8.5 dBu |
| Maximum Output Level | 1/4" Line Outputs: +10 dBu at 0 dBFS |
| Headphone Output Power | 1/8" / 3.5 mm: 30 mW per Channel into 32 Ohms |
| Impedance | Mic Inputs: 2.7 Kilohms Line Inputs: 18 Kilohms Hi-Z Inputs: 330 Kilohms Line Outputs: 100 Ohms Headphone Outputs: 10 Ohms |
| EIN | ? -120 dBu (150-Ohm Source) |
| Sample Rates | 44.1 / 48 / 88.2 / 96 kHz |
| Sample Rate Conversion | None |
| Bit Depths | 24-Bit |
| Memory Card Slot | None |
| OS Compatibility | Windows macOS *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
| Included Software | None |
| Power Requirements | AC/DC Power Adapter (Not Included), USB Bus Power |
| AC/DC Power Adapter | 5 VDC (Not Included) |
| Current Consumption | 380 mA |
| Battery Type | 2 x AA |
| Approximate Battery Life | 4 Hours (Alkaline, 32-Ohm Load, Phantom Off) |
| Dimensions | 3.7 x 2.9 x 1.8" / 94.5 x 74 x 46 mm |
| Weight | 4.7 oz / 134.0 g |
| Package Weight | 0.695 lb |
| Box Dimensions (LxWxH) | 6.9 x 6.1 x 2.4" |
Zoom AMS-24 Reviews
Incredible piece of convenience!
I bought this to upgrade the audio of my stream, but also to practice guitar on the go. The interface is very efficient and can draw power straight from a phone, without using batteries. I have only tried it with instrument cables, so can't know for sure if it'd draw enough to feed a condenser microphone with a phone alone, but it does have the option to use batteries, or use an additional usb-c connector to feed it more power from an external battery bank if you need. I used it to process the guitar signal with deplike and it worked like a charm. Very satisfied
