Description
Zoom AMS-22 Overview
- 1Description
- 2Two Inputs and Two Outputs
- 3Use for Recording and Streaming
- 4Quick Control
- 5Onboard Monitoring
- 6Loopback

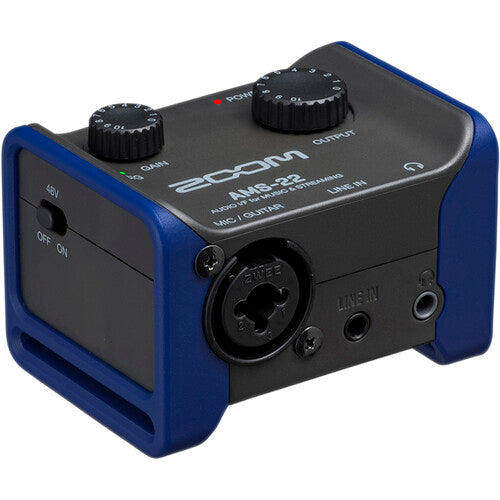

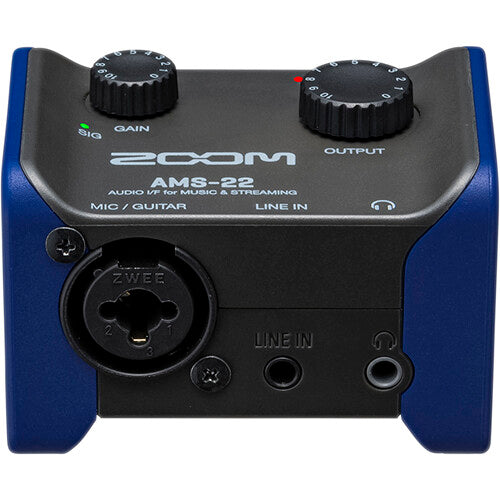

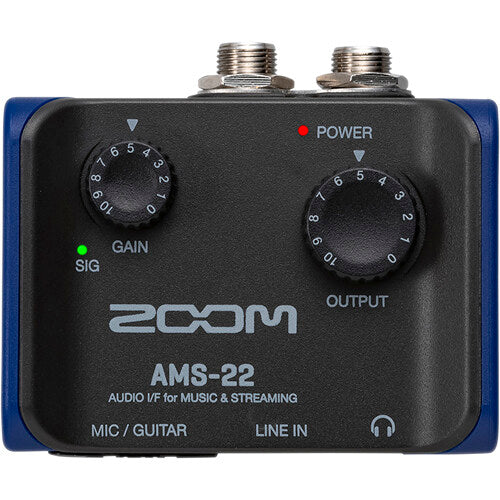

On-the-go solo musicians looking for a compact audio interface will appreciate the streamlined and easy-to-use feature set on the Zoom AMS-22, an ultraportable solution for recording and streaming with a TRS/XLR input, two TRS outputs, a 3.5mm headphone jack, and a USB Type-C connector.

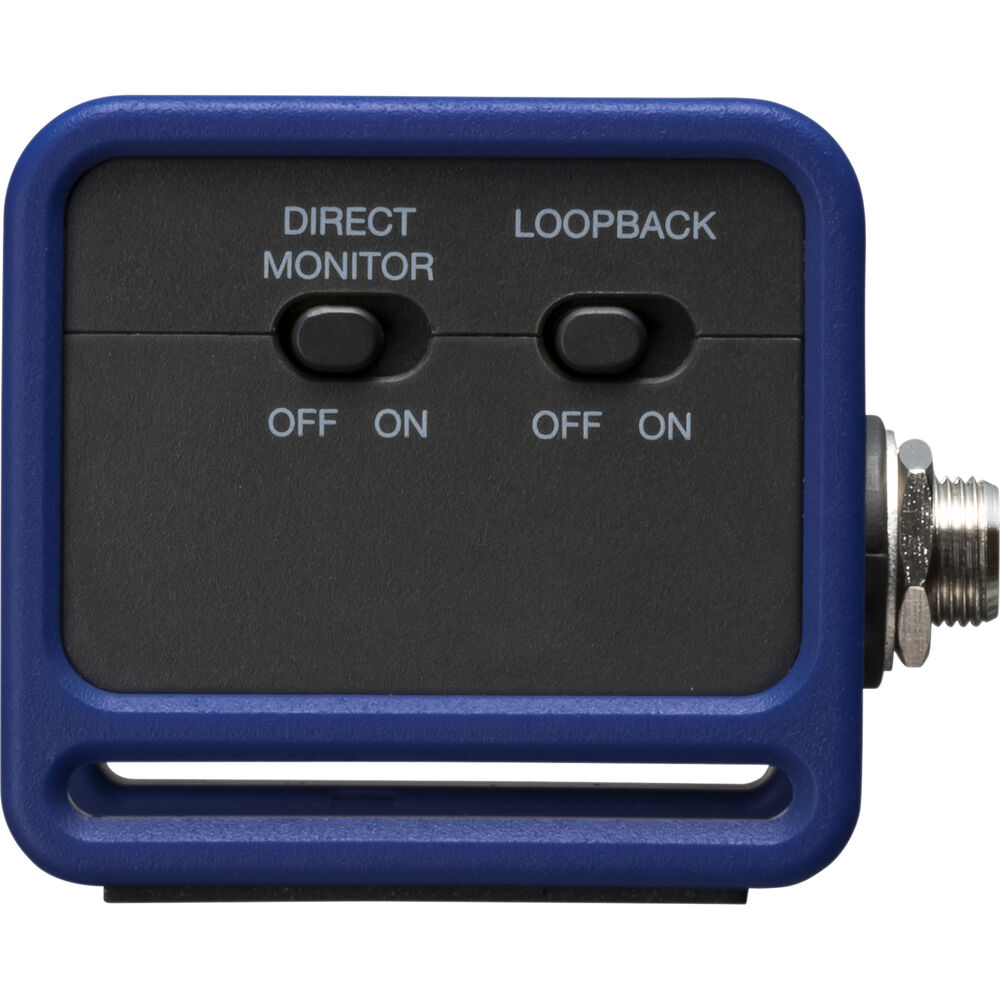

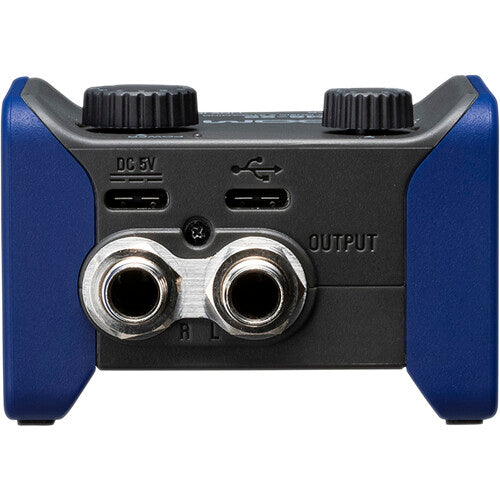

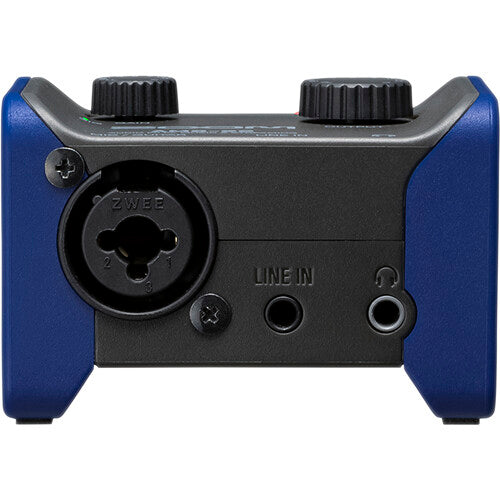

Plug your guitar or microphone into the TRS/XLR input, and power condenser mics by engaging the 48V phantom power switch. Plug stereo music sources into the 3.5mm input jack and monitor via the 3.5mm headphone jack, or connect monitor speakers to the stereo TRS output. The AMS-22 supports 24-bit resolution recordings at a sampling rate up to 96 kHz. The interface operates on bus power from your computer, but can also be powered by an AC power adapter (available separately) if you're using it with a smartphone or tablet. Direct monitoring and loopback functions make overdubbing and adding music to your streams simple and easy.
In the Box
- Zoom AMS-22 2x2 USB Audio Interface for Music and Streaming
- USB Type-C Cable
- Description
- Two Inputs and Two Outputs
- Use for Recording and Streaming
- Quick Control
- Onboard Monitoring
- Loopback
Zoom AMS-22 Specs
| Form Factor | Desktop |
| Display | None |
| Channels of I/O | Analog: 2 Inputs / 2 Outputs |
| Maximum Sampling Rate | 96 kHz / 24-Bit |
| Number of Microphone Preamps | 1 Preamp |
| Built-In Microphone | None |
| Input Level Adjustment | 1 x Knob |
| Expansion Slots | None |
| Pad | None |
| Gain/Trim Range | +8 to +54 dB |
| High-Pass Filter | None |
| Analog Audio I/O | 1 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Hi-Z Input 1 x 1/8" / 3.5 mm TRS Unbalanced Line/Stereo Input 1 x 1/8" / 3.5 mm TRS Headphone Output 2 x 1/4" TRS Balanced Line Output |
| Phantom Power | 48 V, Selectable On/Off |
| Digital Audio I/O | None |
| Host Connection / USB | 1 x USB-C |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | None |
| Wireless Connectivity | None |
| Frequency Response | 20 Hz to 20 kHz +0/-2 dB (at 44.1 kHz) 20 Hz to 40 kHz +0/-3 dB (at 96 kHz) |
| Maximum Input Level | Combo XLR-1/4" Mic Inputs: +0.6 dBu Combo XLR-1/4" Hi-Z Inputs: +11 dBu 1/8" / 3.5 mm Line: +1.5 dBu |
| Maximum Output Level | 1/4" Line Outputs: -2 dBu |
| Headphone Output Power | 1/8" / 3.5 mm: 20 mW per Channel into 32 Ohms |
| Impedance | Mic Inputs: 2 Kilohms Hi-Z Inputs: 1 Megohm 1/8" / 3.5 mm Headphone Outputs: 10 Ohm |
| EIN | -120 dBu (+54 dB Gain) |
| Sample Rates | 44.1 / 48 / 88.2 / 96 kHz |
| Sample Rate Conversion | None |
| Bit Depths | 24-Bit |
| Memory Card Slot | None |
| OS Compatibility | Windows macOS *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
| Included Software | None |
| Power Requirements | AC/DC Power Adapter (Not Included), USB Bus Power |
| AC/DC Power Adapter | 5 VDC (Not Included) |
| Current Consumption | 170 mA |
| Power Consumption | 1.8 W (Maximum) |
| Dimensions | 2.7 x 2.27 x 1.8" / 6.8 x 5.77 x 4.6 cm |
| Weight | 3.0 oz / 85.0 g |
| Package Weight | 0.58 lb |
| Box Dimensions (LxWxH) | 7.7 x 6 x 2.3" |
Zoom AMS-22 Reviews
This thing rocks!
This is way smaller and lighter than I anticipated. It's insanely easy to setup and use. the size is perfect for traveling or individual recording scenarios. Overall, very happy with the purchase.
