Description
- Restores Acoustic Tone to DI'ed Signal
- 16 Source Guitar Presets
- 15 Target Guitar Presets
- Low-Noise Preamps
- 3-Knob EQ, Boost & Anti-Feedback Button
- Built-In FX & Single-Band Compressor
- Magnetic/Piezo Pickup Selector Switch
- Stereo 1/4" & XLR Outputs
- Runs on 2 AA Batteries, AC Power, or USB
- Includes AD-16 AC Power Supply

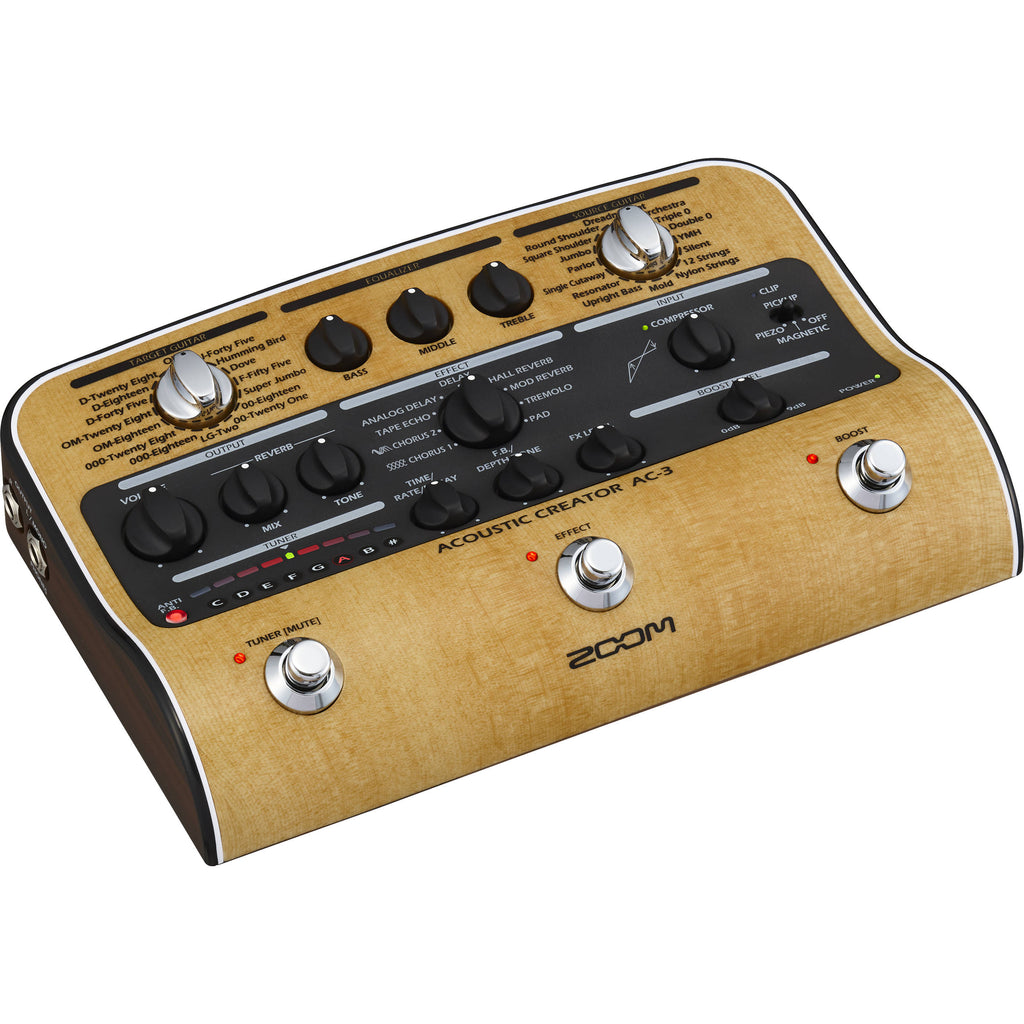

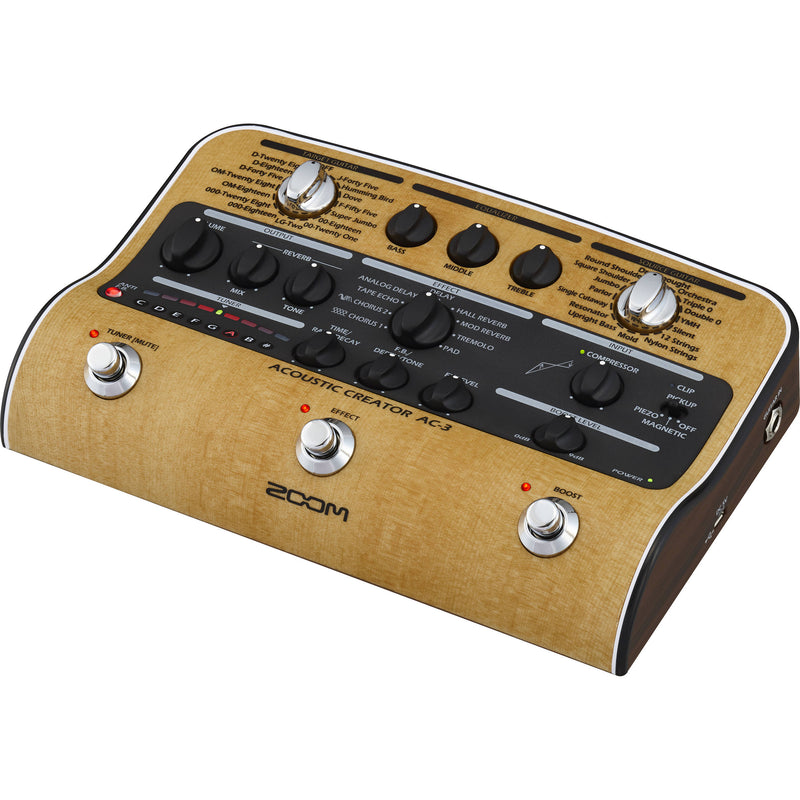

Geared for acoustic guitar players and singer/songwriters, the Zoom AC-3 is a DI which aims to recreate the natural sound of your guitar, restoring the tone that�s inevitably lost when using conventional acoustic pickups. The pedal features 16 Source presets, so whether your axe is a dreadnought or a parlor guitar, this device has the right sonic signature for you. Furthermore, you�ll find a Target knob housing 12 additional sonic signatures for additional tweaking. Say you were playing a Martin D-18 dreadnought guitar. With these two knobs, you could select �dreadnought� with the Source knob and �D-18� with the Target knob to hone in on your exact tone.
An onboard pickup selector switch lets you choose between magnetic and piezo, thereby tailoring the pedal�s mechanics for each type of system. A three-band equalizer helps you balance the tone of your instrument, while reverb, adjustable volume, anti-feedback control, a single-band compressor, and a built-in tuner are boons as well. In fact, you get two independent reverbs: One that can be dialed in at all times, and another within the effects section; so, if you�d like to apply a slap to your already-reverberated guitar sound, that is not only possible�it�s encouraged. The Zoom AC-3 also includes a boost switch to give you up to 9 dB of gain during lead breaks or solos. Moreover, whichever tone you choose, the high-quality, low-noise preamp will help you achieve a lush and resonant sound. The prominent volume knob controls both input gain and output level, eliminating the guesswork in matching sound levels.

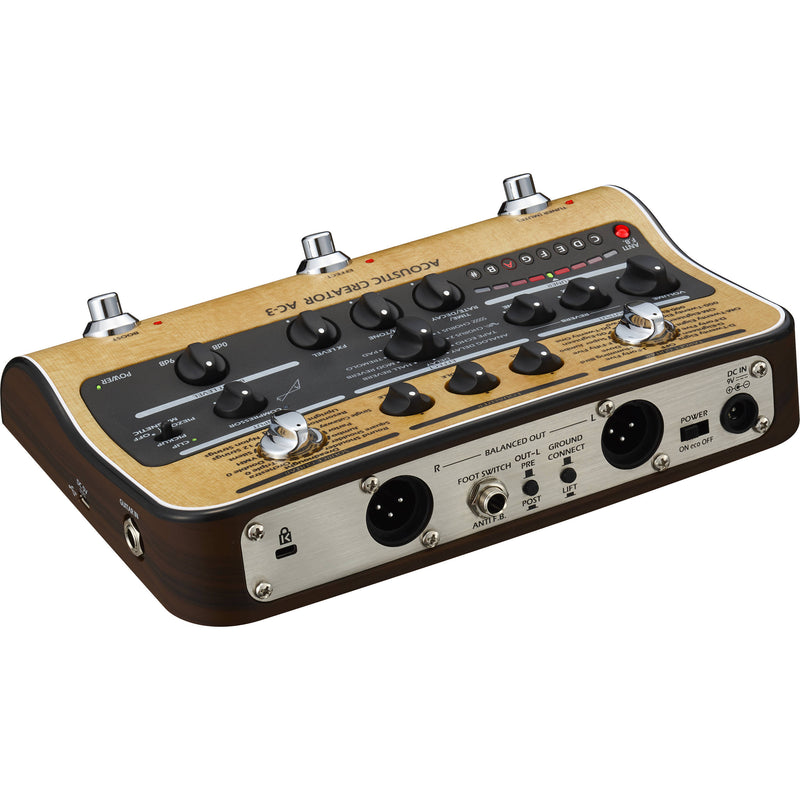

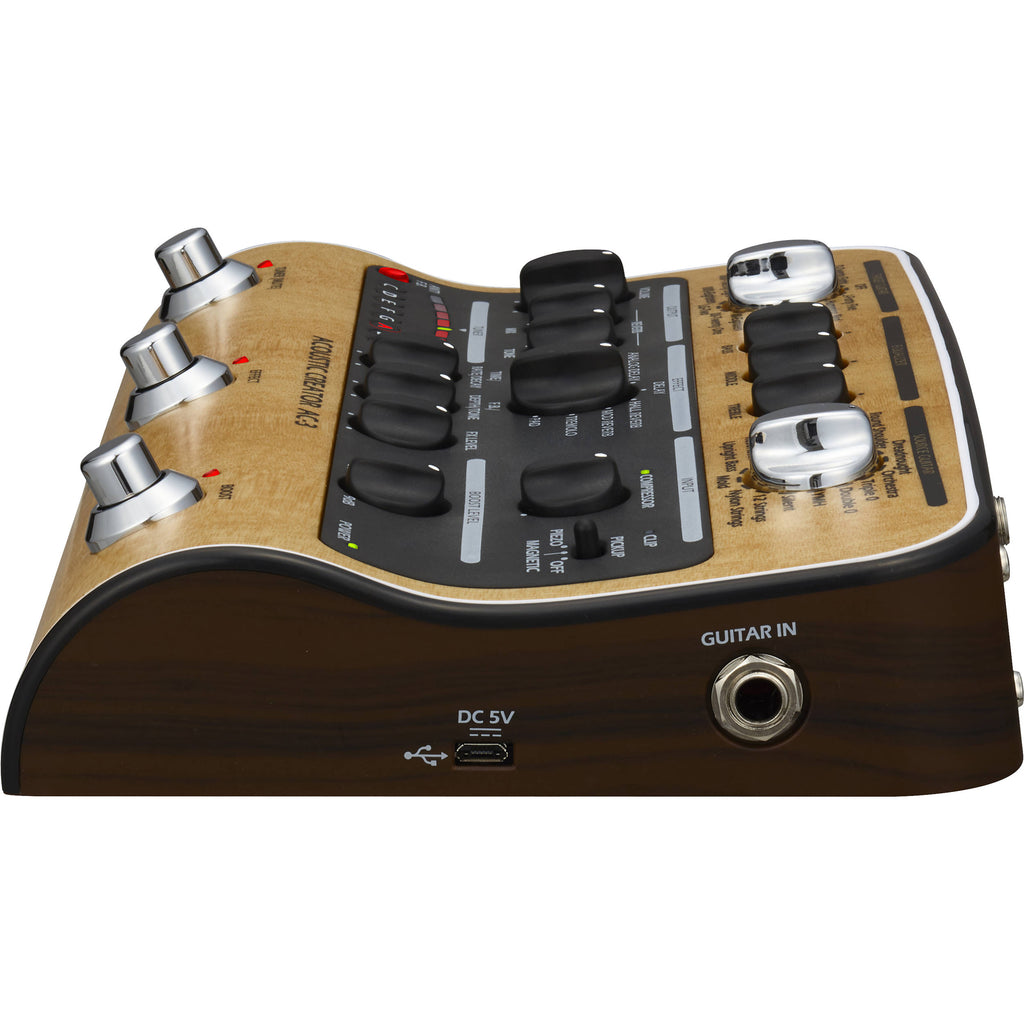

A standard instrument input is provided for connecting to the pedal. For outputs, you�re given a choice: stereo 1/4" jacks (one of which functions as a headphone output), or two balanced XLR connections. This flexible setup facilitates routing to amplifiers, mixers, PAs, and audio interfaces. Moreover, a pre/post switch on the XLR section allows you to send straight, unprocessed signal to the house, if that�s your wish. Also, a USB port facilitates MIDI control, while allowing you to plug/record directly into computers. A Zoom FS01 footswitch, available separately, can be looped into the pedal to provide momentary control over effects parameters. You can power the Zoom AC-3 via the included power supply, with two AA batteries, or over USB.
- Key Features at a Glance
-
- 16 source guitar-type/body presets for accurate tone re-creation
- 15 target guitar-type/body presets for tonal refinement
- 1 x 1/4� input
- 2 x XLR balanced DI outputs for connections to mixers, PAs, audio interfaces, and more

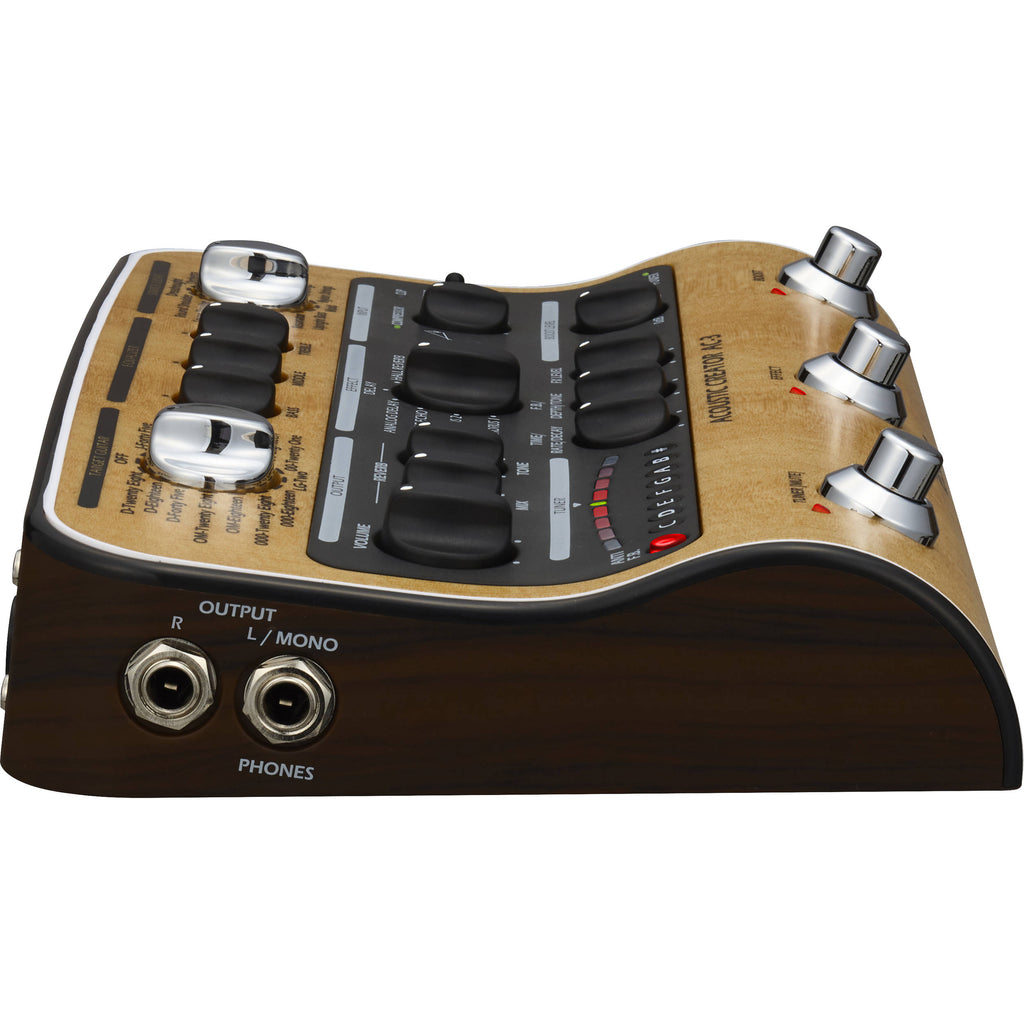

- 2 x 1/4� outputs for mono or stereo connection to guitar amps, headphones, and audio interfaces
- Low-noise preamp
- 9 effects with adjustable parameters
- Piezo/magnetic input pickup select
- Built-in compressor
- Easily-implemented 3-band equalizer
- Input and output gain/sensitivity adjustable via single volume knob (patent pending)
- Clipping indicator
- Anti-feedback control
- Boost switch for up to 9 dB of additional gain
- Built-in chromatic visual-LED tuner
- USB connection for firmware updates
- Three power options: 2 x AA batteries, the included Zoom AD-16 power adapter (9V DC in), or bus-power via micro-USB port
- 9V Power Supply Adapter For Zoom Effects Pedals
- Limited 1-Year Warranty
| Guitar Style | Source guitars: 16 types Target guitars: 15 types Effect types: 9x |
| Sampling Frequencies | 44.1 kHz |
| A/D and D/A Conversion | 24-bit with 128x oversampling |
| Signal Processing | 32-bit |
| Frequency Characteristics | 20 Hz to 20 kHz, +1 dB/-3 dB, 10-kOhm load |
| I/O | 1 x 1/4" TS input, phone type 1 x 1/4" Footswitch input, phone type 2 x 1/4" TS outputs, phone type 2 x XLR DI outputs, balanced |
| Impedance | Input: 10 MOhms Output, unbalanced: 10 kOhms or greater Output, balanced: 100 Ohms (hot-gnd, cold-gnd), 200 Ohms (hot-cold) |
| Maximum Level | Input: -20 dBu Output: +7 dBu Headphones: 8 mW + 8 mW into 32-Ohm load |
| EIN | 120 dBu |
| Noise Floor | -100 dBu |
| Remote Control | Zoom FS01 (optional) |
| Power Supply | Zoom AD-16 AC adapter: 9 VDC 500 mA center negative Batteries: 2 x AA (approximately 3 hours of continuous operation time) |
| USB | Micro-USB, type B, for MIDI |
| Dimensions (D x W x H) | 6.2 x 4.2 x 2.0" / 15.8 x 10.7 x 5.2 cm |
| Weight | 2.5 lb / 1.2 kg |
| Packaging Info | |
|---|---|
| Package Weight | 3.45 lb |
| Box Dimensions (LxWxH) | 12.6 x 7.1 x 3.1" |
