Description

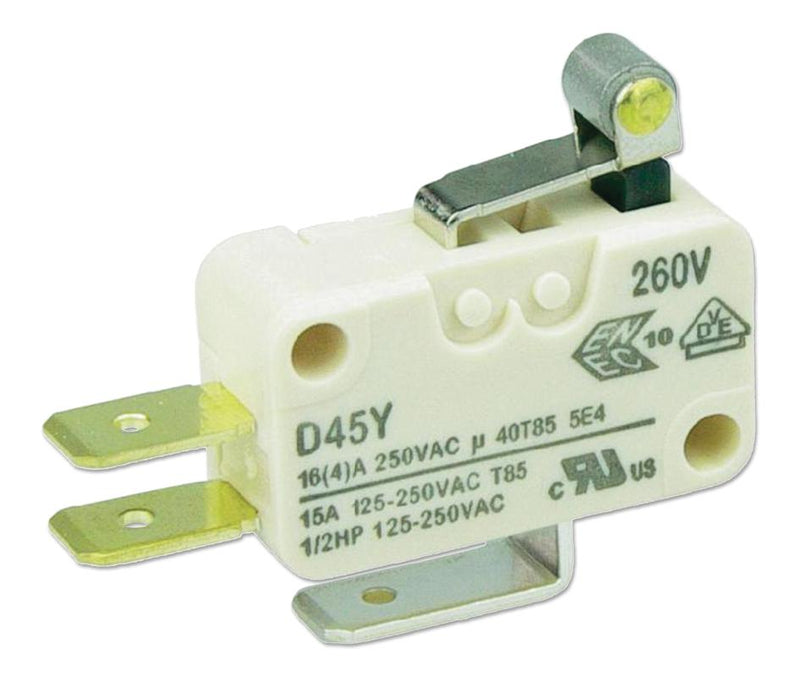

The D4 series miniature Snap-action Switch features a long life coil spring mechanism and PET case/cover.
- High level of repeat accuracy & contact stability
- Wide variety of auxiliary actuators and terminal options
- Housing material PA 6 & PET
- Fulfils requirements of IEC 603351 - GWFI at 850°C, GWIT at 775°C & GWT 750°C
- -40 to150°C Ambient temperature range
- Approved to IEC 61058-1/UL 61058-1 (T85 versions) & IEC 61058 and UL 1054 (T125 & T150 versions)
- Cadmium-free contact materials
- Halogen-free plastic material (T85 versions)
- IP40 Degree of protection
Applications
Industrial
Product details
| Microswitch Type: Snap Action |
| Microswitch Actuator: Roller Lever |
| Contact Configuration: SPDT |
| Switch Terminals: Quick Connect, Solder |
| Contact Current Max: 16A |
| Contact Voltage DC Nom: - |
| Product Range: D4 |
| Contact Voltage AC Nom: 250VAC |
| Operating Force Max: 100gf |
Other details
| Brand | ZF |
| Part Number | D45U-V3RA |
| Quantity | Each |
| Technical Data Sheet EN |  |
