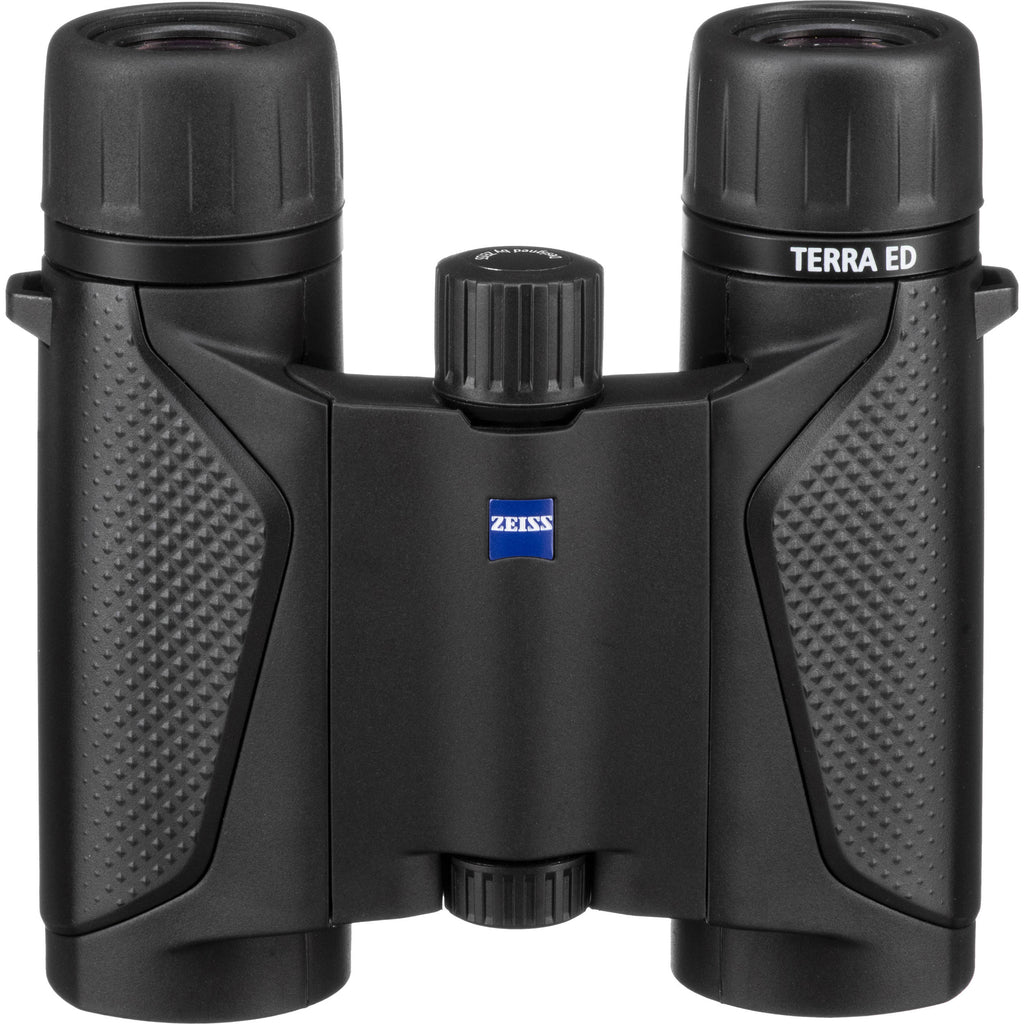

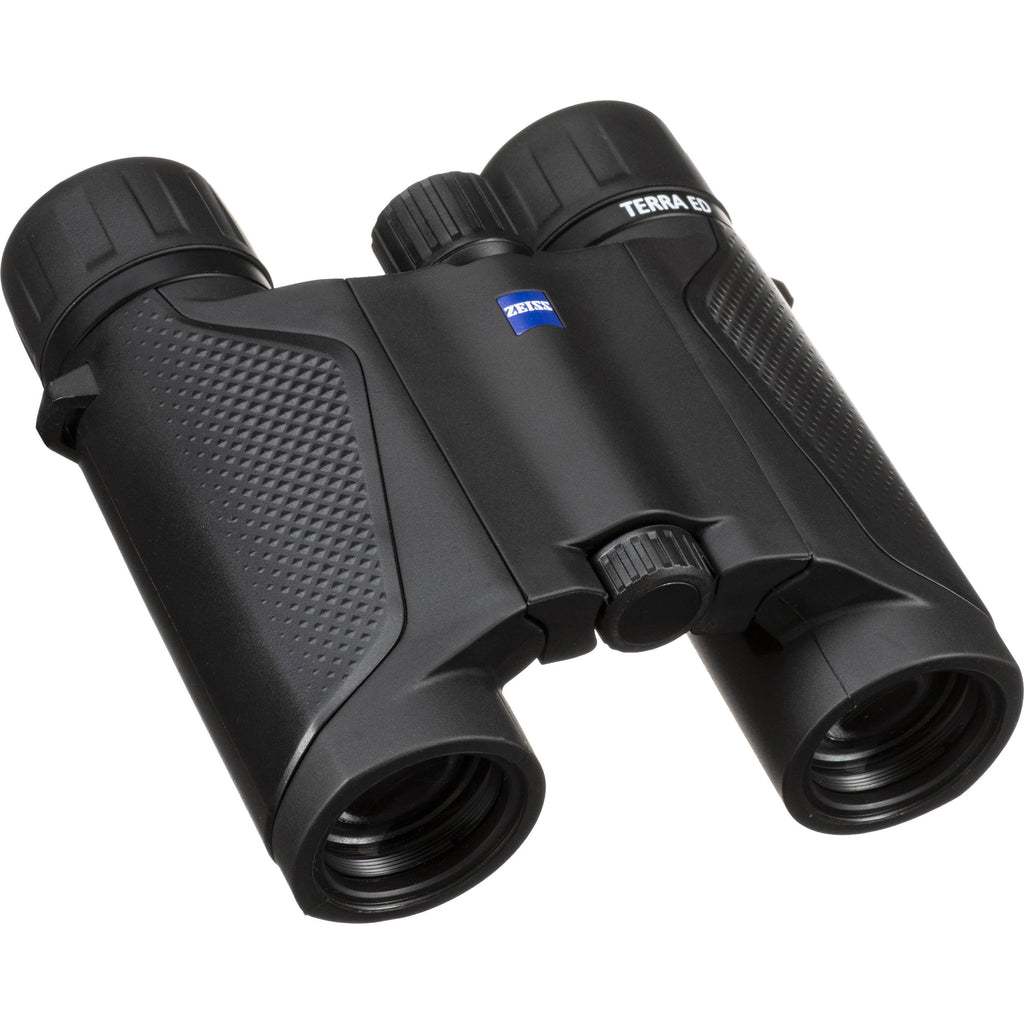

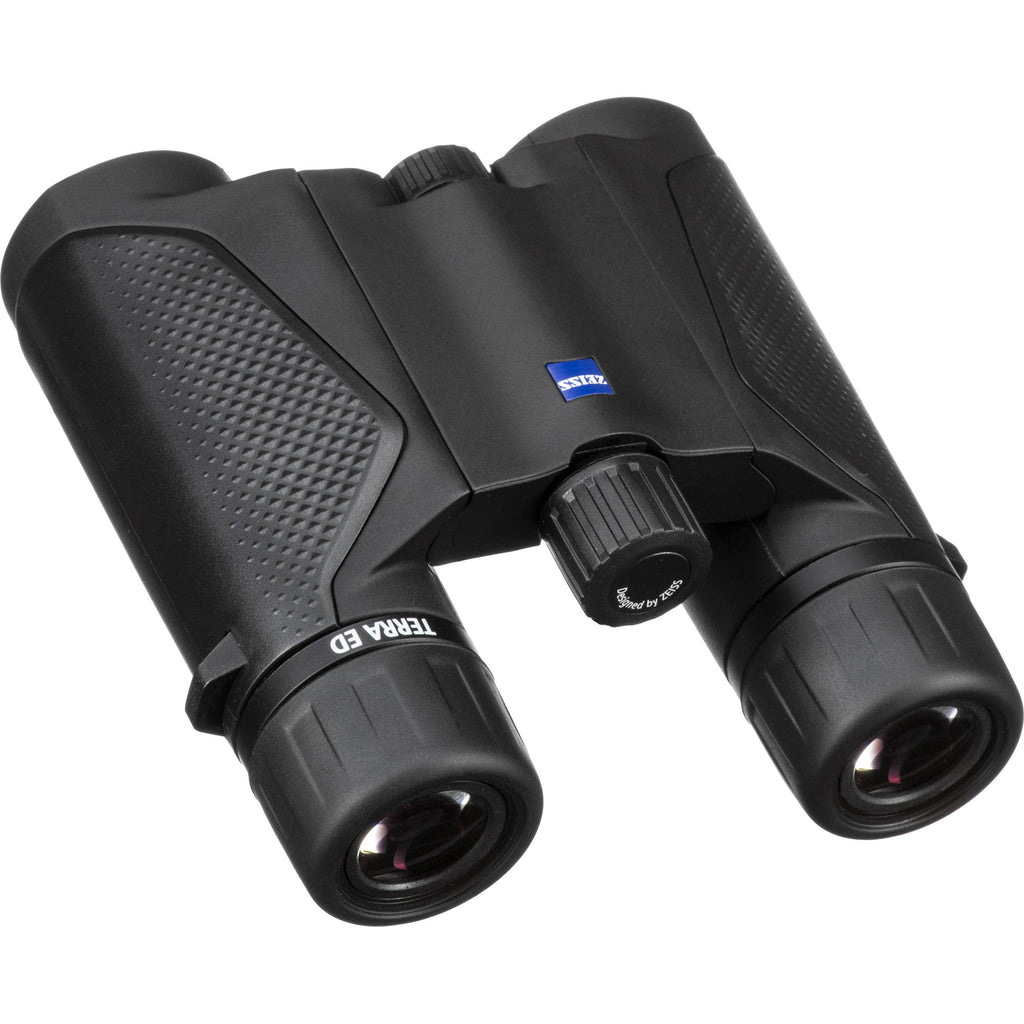

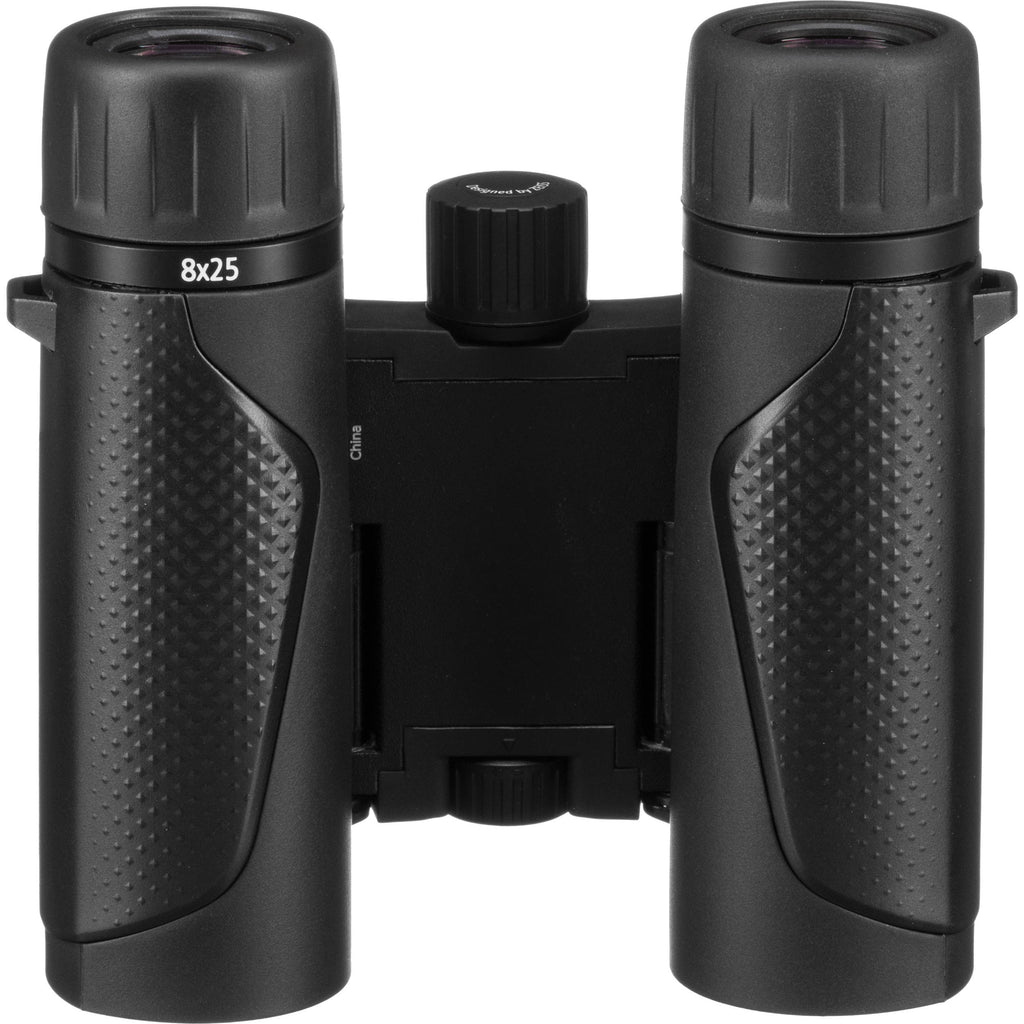

Extra-Low Dispersion Glass ObjectivesSchmidt-Pechan Roof PrismsZEISS Hydrophobic Multicoated Optics52° Apparent Angle of View Sleek and stylish with a black body and black accents, ZEISS 's 8x25 Terra ED Compact Binoculars give you a competent and compact optic that fits easily in the palm of your hand and looks good while they are there. A combination of technologies work together to produce bright and clear images with increased contrast and true-color rendition. They include Schmidt-Pechan roof prisms, SCHOTT extra-low dispersion (ED) glass, and anti-reflection fully multi-coated optics. The Terra ED is offered here in an 8x power, which provides a nice general-purpose magnification with a generous field of view.
The lightweight housing is nitrogen filled and O-ring sealed, enabling them to withstand use in wet and snowy weather, and the rubberized armor offers protection from impacts while providing a slip-resistant grip. The Terra's double-hinge closed-bridge design allows them to fold compactly for an easy fit in most pockets or packs, while the knurled center focus wheel enables fast focusing. Twist-up eyecups make them comfortable to use with or without eyewear.
Optical Performance
- 8x magnification
- 25mm objective lenses
- Schmidt-Pechan roof prisms
- Extra-low dispersion (ED) glass: Corrects chromatic aberration for true-color rendition and improved contrast
- Proprietary ZEISS hydrophobic and anti-reflection fully multi-coated optics
- Apparent angle of view: 52°
- 357' field of view at 1000 yd
Use and Handling
- Closed-bridge configuration
- Knurled center focus wheel
- Twist-up rubber eyecups
- +3/-3 right eye dioptric correction, center adjustment wheel
- Interpupillary adjustment range: 35-72mm
- 16mm long eye relief
- 3.1mm exit pupil
Construction Details
- Sleek & stylish with a black body and black accents
- Protective rubber-armored grips
- Nitrogen filled for water and fogproof performance
- Test to 100mbar of pressure against ingress of water
- Functional temperature range: 4 to 145°F (-15 to 62°C)
- Weight: 10.9 oz
UPC: 740031000685
| Prism Type | Schmidt-Pechan |
| Magnification | 8x |
| Objective Lens Diameter | 25 mm |
| Angle of View | 52° (Apparent) |
| Field of View | 357' @ 1000 yd / 118.52 m @ 1000 m |
| Minimum Focus Distance | 5.7' / 1.74 m |
| Exit Pupil Diameter | 3.1 mm |
| Eye Relief | 16 mm |
| Interpupillary Adjustment | 35 to 72 mm / 1.4 to 2.8" |
| Diopter Adjustment | -3 to +3 |
| Focus Type | Center |
| Fogproof | Yes, Nitrogen Filled |
| Water Resistance | Waterproof |
| Dimensions | 4.5 x 4.4" / 11.4 x 11.2 cm |
| Weight | 10.9 oz / 309 g |
| Package Weight | 1.565 lb |
| Box Dimensions (LxWxH) | 7.3 x 5.7 x 3.4" |
In the Box
- ZEISS 8x25 Terra ED Compact Binoculars (Black)

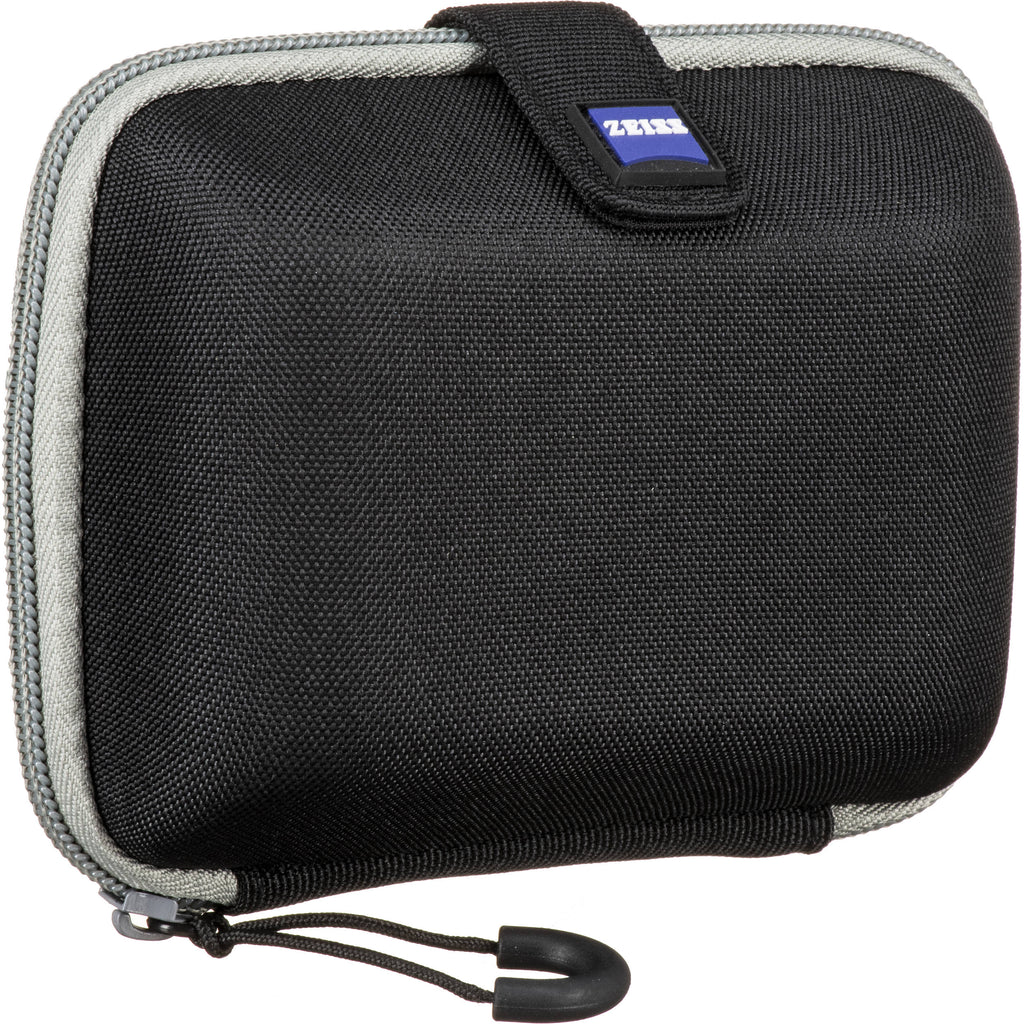

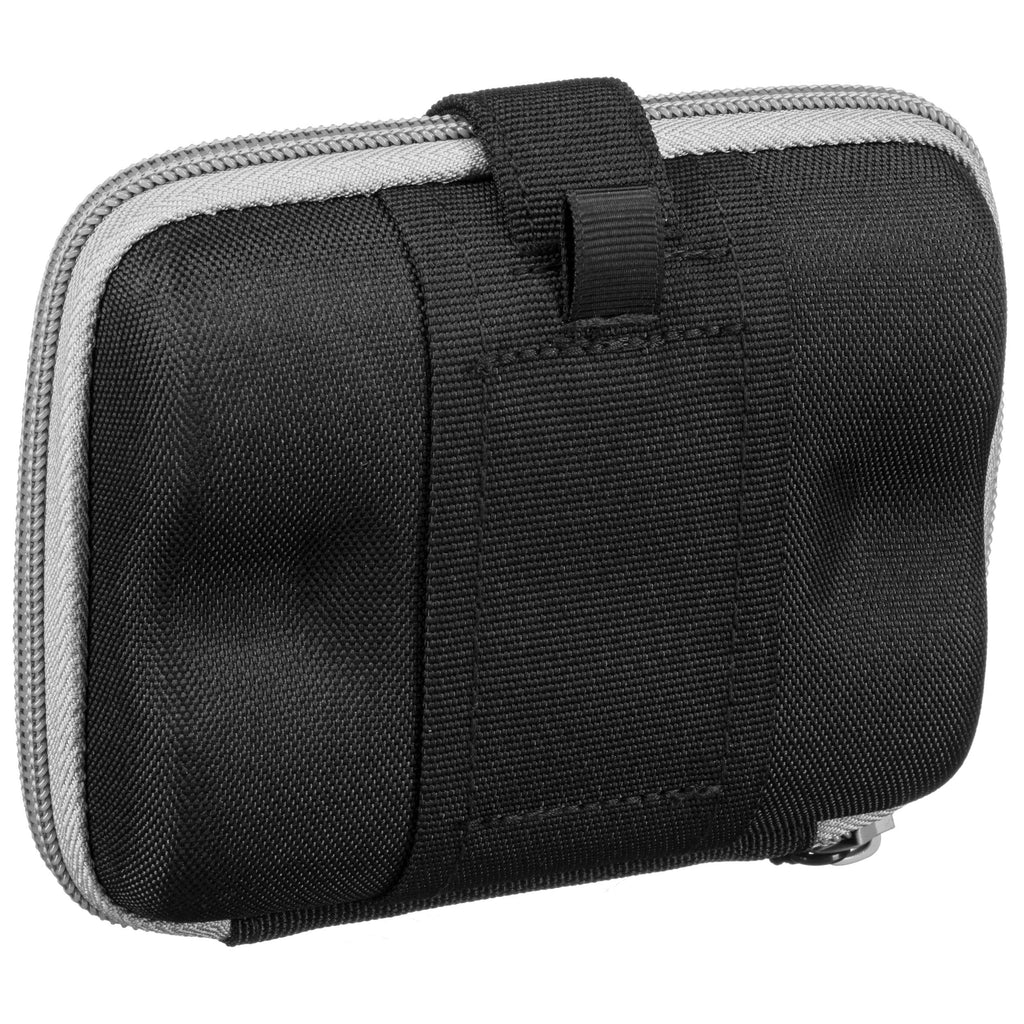

- Case
- Neck Strap
- Cleaning Cloth
- Limited Lifetime Warranty
