ZeeVee ZvPro 820 Dual Channel HDMI Encoder / QAM Modulator

Click on picture to view larger

ZeeVee ZvPro 820 Dual Channel HDMI Encoder / QAM Modulator

HD Video Distribution over Coax Dual Channel Unencrypted HDMI Inputs 1080p/i, 720p, 480p/i Output HDTV Compatible Front-panel Color LCD Analog and Digital Audio Integrated Closed Caption Support Web-based Management Software...

Regular price Rs. 261,190.00 Sale price

Actual Price Rs. 326,490.00

Share
  • HD Video Distribution over Coax
  • Dual Channel Unencrypted HDMI Inputs
  • 1080p/i, 720p, 480p/i Output
  • HDTV Compatible
  • Front-panel Color LCD
  • Analog and Digital Audio
  • Integrated Closed Caption Support
  • Web-based Management Software
  • High Power 45dBmV Output
  • Made in the USA

The ZvPro 820 Dual Channel HDMI Encoder / QAM Modulator from ZeeVee lets you convert HDMI video input signals into digital cable channels and distribute them to an unlimited number of HDTVs over your existing coaxial cabling. The ZvPro 820 outputs 1080p/i, 720p, and 480p/i video signals, and features dual unencrypted HDMI input channels, with 3.5mm analog audio inputs, and composite video inputs for closed captioning support.

The ZvPro 820 uses QAM RF modulation to turn an A/V source into a digital TV channel that is read by the digital tuner found in most HDTVs. To send the signal to additional TVs, you simply split your coax output by means of a splitter. You can send one coaxial output to hundreds, or even thousands of HDTVs by use of additional splitters. This eliminates the need for having a receiver box, signage player, or other video device at each TV in your facility.

The chassis is constructed from metal and is rack mountable with an optional 1U rack mount kit. The ZvPro 820 is ideal for use in sports bars, corporate offices, commercial spaces, or other venues with existing coaxial cabling.

Simple Integration and Expansion
The ZvPro 820 allows you to use your existing coaxial cables to send HD channels to TVs with built-in digital QAM tuners. To connect to more TVs, simply use a splitter to send the signal to hundreds or even thousands of TVs. Because coaxial cables support up to 134 HD channels, you can feed the output from additional ZvPro boxes into a splitter to simultaneously send multiple HD channels over a single coaxial cable.
Analog and Digital Audio with Integrated Closed Caption Support
Supports digital audio from the HDMI 1.3 inputs as well as analog audio through 3.5mm stereo inputs. EIA/CEA-608 closed captions are supported through composite video inputs.
Delayed Matched Audio Output
A 3.5mm delayed matched audio output allows for compensation for the encoding time of the ZvPro 820 and the decoding time of a television. This is particularly useful when using a separate audio system. Audio delay calibration defaults to 400ms, and can be set from 0 to 2000ms, and is controlled from either the front panel menu or by using Maestro, ZeeVee's web-based management software.

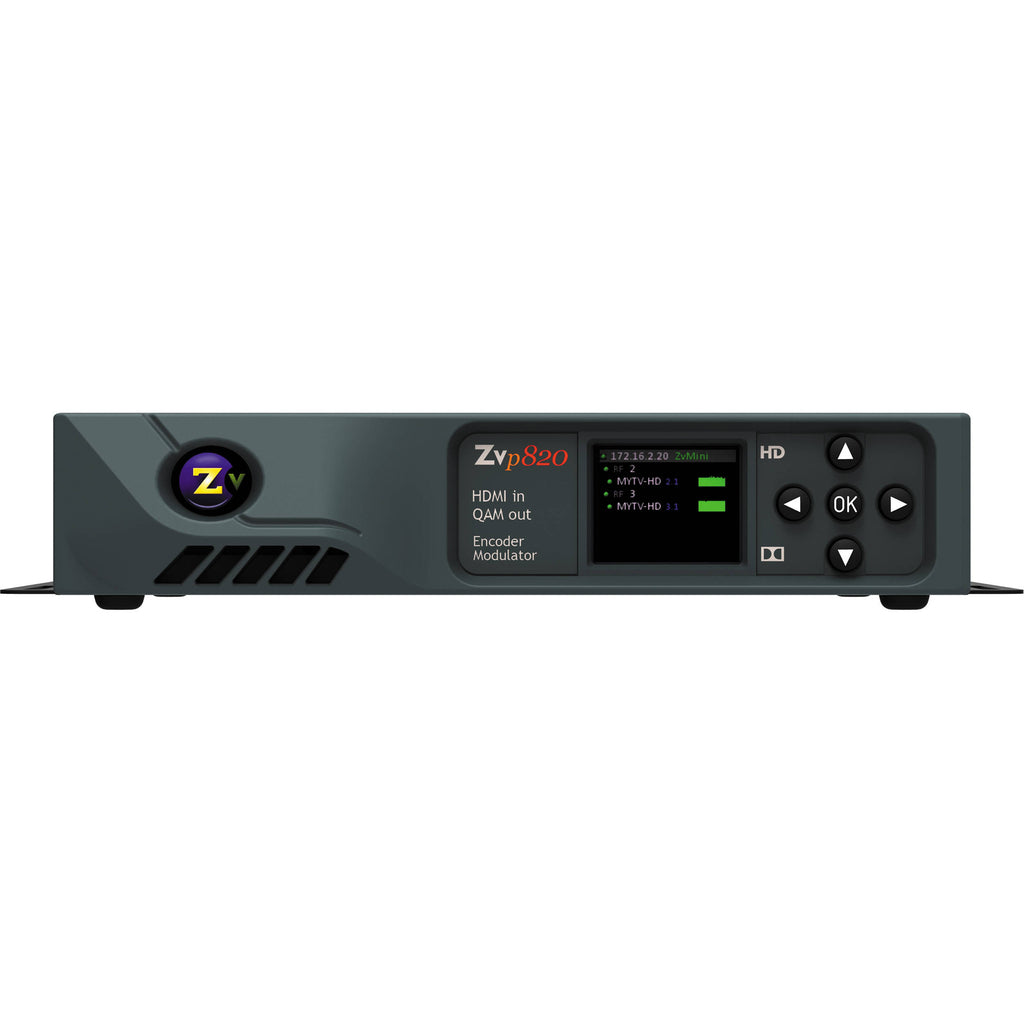

Front LCD Menu Panel
A color LCD panel with navigation buttons lets you easily view device status, including IP address, data rate graph of encoded audio/video per channel, and configured RF and digital channels. You can also navigate the menu to view other details such as uptime, serial number, temp status, firmware version and firmware upgrade option (if connected to the internet).
Web-based Management System
ZeeVee's web-based Maestro management software lets you configure and manage your individual ZvPro unit, or the headend of an entire stack, locally or remotely through a single Ethernet LAN connection. Maestro allows you to see all of your channels at a glance, set channel names, manage firmware updates, RF output, and IP/network information.
Additional Features
  • High power 45dBmV RF output
  • Fan-cooled
  • 1U Rack mountable with optional mounting kit
  • Designed and built in the USA
UPC: 812254010403

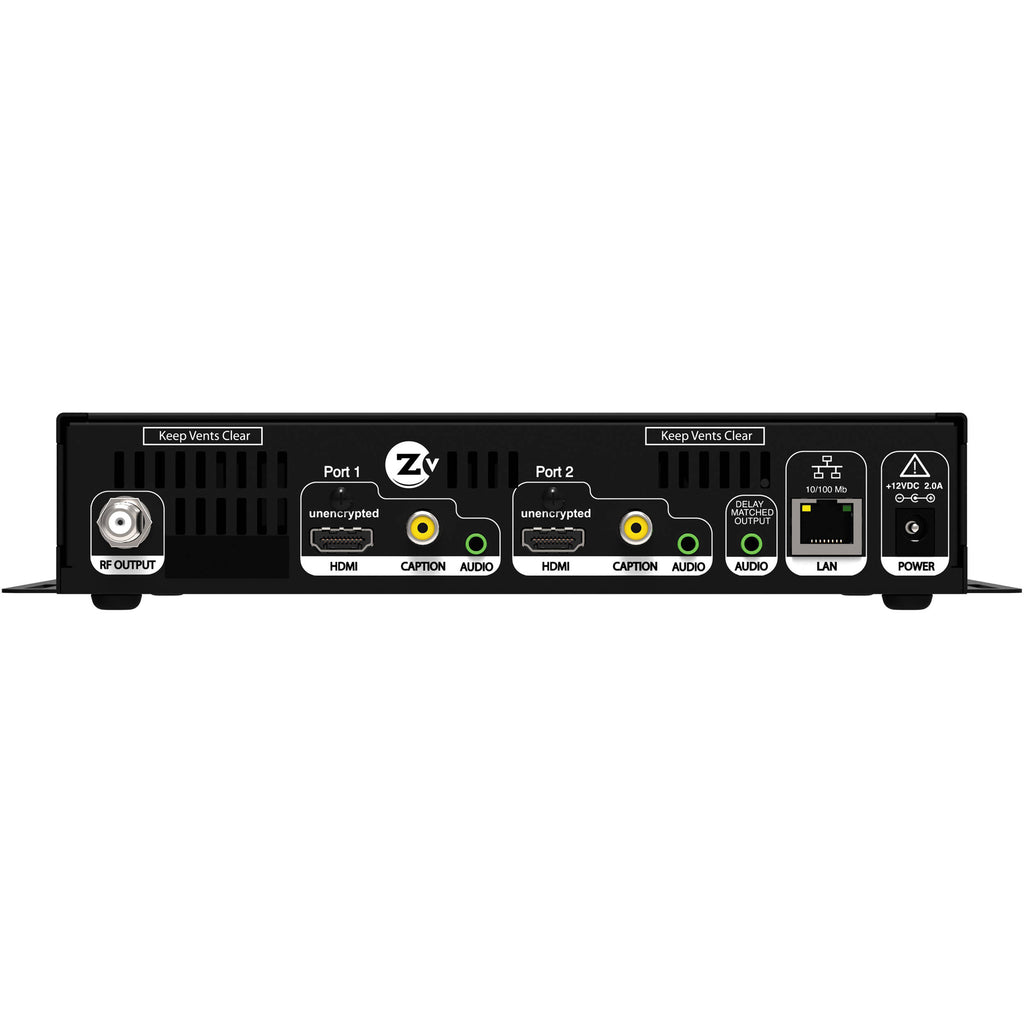

Inputs & Outputs
HDMI Video Input 2 x HDMI 1.3
HDMI Compliance HDMI 1.3 Compliant, backwards compatible to DVI 1.0 specifications
Output 2 x 45 dBmV RF coaxial
Closed Captions 2 x Composite video input
EIA/CEA-608 captions accepted
Analog Audio Input 75 Ohm, 0 to 0.7 V at Line-level output
2 x 3.5 mm stereo
Audio Output 1 x 3.5mm delayed matched audio output, 0 to 2000 ms
Encoding Internally encoded into Dolby Digital AC-3 or MPEG1 Layer 2 (varies by region)
Video Encoder
Encoder Video Profile MPEG2 HD Profile 2: ISO13818-2 MP@HL
Traffic Shaping Variable bit rate
Video Transport Bit Rate 49.76 Mbps
Video Encoding Data Rates: Variable, 10 to 24 Mbs per channel Average Data Rate: 18 Mbs per channel
Latency Programmable 100 to 400 msec
Color Profile 4:2:0
GOP Size 24
Video, Audio PID Programmable
Program Information Programmable
Audio Encoder
Encoder Audio Profile ATSC A/52, Dolby(r) Digital (AC-3) or MPEG-2 Layer 1 (varies by region)
Modulator
Modulation Type QAM 256 (ITU-T J83 Annex B) Interleaving modes: (64,2) only OR DVB-C, QAM 256 (ITU-T J83 Annex A) (varies by region)
Cable Standard HRC, IRC, STD, or User defined (varies by region)
Frequency Range Frequency Agile from 54 to 864 MHz
  • 2 kHz resolution
  • +/- 30 ppm accuracy
  • +/- 35 ppm stability
Output Power +45 dBmV typical
Output Level Adjustment 25 - 45 dBmV in 1dBmV steps
Modulation Error Ratio 38 dB typical
I/Q Amplitude Imbalance < 1% typical
Spectral Tilt Less than or equal to 1 dB over 6 MHz typical
Control/Setup
Network Interface 10/100 Mbps Ethernet via RJ45 connection
IP address via DHCP or set by user
HTML/Javascript served web interface
Telnet connection for CLI scripting
Display & Indicators Front panel color display
General
Mounting Shelf mount flange or rack ears (ordered separately), 1RU high
Enclosure Type Metal
Cooling Internal cooling fan with front inlet and rear exhaust
Power 100-240 VAC 50/60 Hz, 36 W max rated
18 W Typical consumption
IEC 60320-C14
Temperature Operating: 32 to 113°F (0 to 45°C)
Humidity 10 to 80%, non-condensing
Vibration NSTA 1A in carton
MTBF 45,000 hours
Compliance FCC Class A, IEC60065, EN61000, CE, RoHS
Dimensions 8.00 x 10.00 x 1.75" (20.32 x 25.40 x 4.45 cm)
Weight 5.0 lb (2.3 kg)
Packaging Info
Package Weight 5.05 lb
Box Dimensions (LxWxH) 15.3 x 12.4 x 3.0"
In the Box
ZeeVee ZvPro 820 Dual Channel HDMI Encoder / QAM Modulator
  • Power Supply
  • Limited 5-Year Warranty
