Description
ZeeVee HDB 2620 Overview
- 1Description
- 2Key Features
- 3Supported Resolutions
- 4MPEG-2 & AC-3 Encoding
- 5RF Modulation / Channel Upconversion
- 6Included Hydra AV Breakout Cables

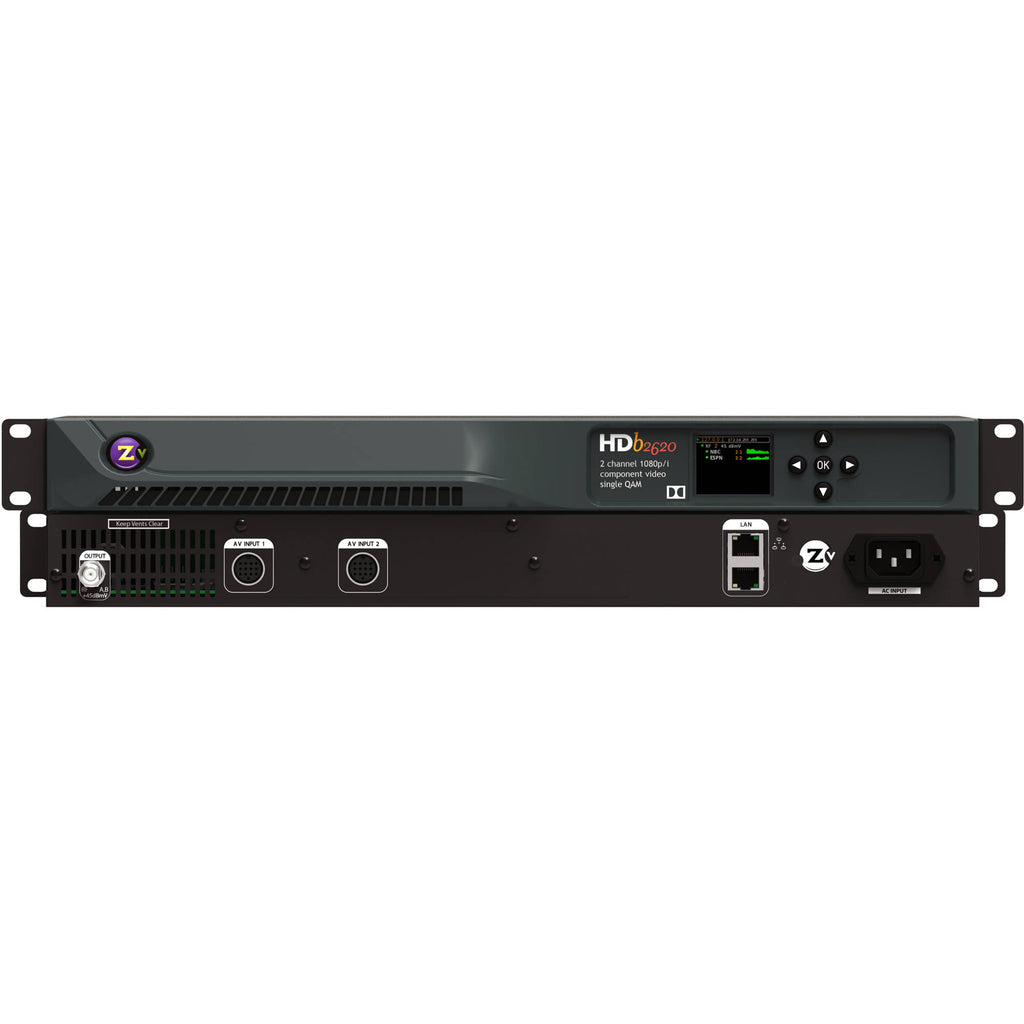

The ZeeVee HDBridge 2620 2-Ch 1080p Encoder & Modulator converts two Component or VGA sources into cable channels and broadcasts them over existing coax cabling to an unlimited number of tuner-equipped displays.

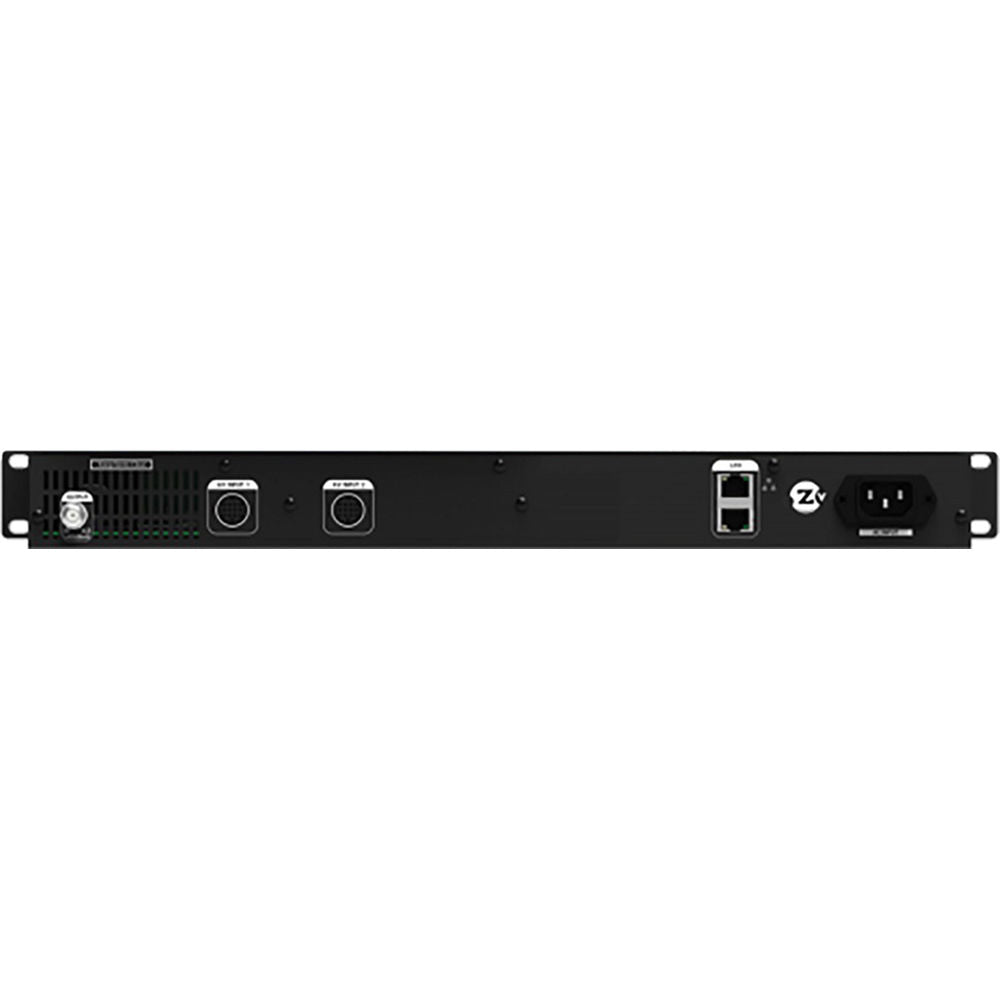

The 2620 features two full-sized DIN inputs and includes two 3 ft DIN to multi-RCA breakout cables that enable connecting Component video, Composite closed captions, and digital and analog audio. Optional ZeeVee DIN to VGA cables are required for connecting VGA sources. Component and VGA inputs are ideal for connecting satellite receivers and digital signage players.
Video is encoded into MPEG-2 and audio into AC-3. VGA input supports a wide range of resolutions from 640 x 480p/i to 1920 x 1080p/i, and Component input supports 1080p/i30, 720p60, and 480p/i. 1RU rack ears are integrated. Linking up to built-in tuners eliminates the need for matrix switches or receivers. Output to an unlimited number of displays is possible by using optional splitters.
Key Features
- Broadcasts two Component or VGA sources over existing coax cabling
- Features two full DIN inputs
- Includes two DIN to multi-RCA breakout cables
- Optional DIN to VGA cables required for connecting VGA sources
- Supports an unlimited number of tuner-equipped displays via optional splitters
- Free access to web-based Maestro management software for local/remote configuration and management
- Color front-panel LCD provides operating status
- Integrated closed caption support
- Integrated 1RU rack ears
Supported Resolutions
- VGA input supports a wide range of resolutions from 480p/i to 1080p/i
- Component input supports 1080p/i30, 720p60, and 480p/i resolutions
MPEG-2 & AC-3 Encoding
- Encodes video into MPEG-2 and audio into AC-3
- Up to 36 Mbps sustained average MPEG-2 encoding rate
- User-settable program information
RF Modulation / Channel Upconversion
- Well-formed QAM 256 6 Mhz channel, inserted onto any blank channel
- Frequency agile from 50 to 858 Mhz (channels 2-135)
- Supports STD, HRC or IRC cable standards
Included Hydra AV Breakout Cables
DIN to:
- Component video on RCA
- Composite on RCA for closed captions
- Digital audio (Coax) on RCA, 75 Ohm 0 to 0.7v
- Analog audio on RCA, 75 Ohm 0 to 0.7v
UPC: 812254010212
In the Box
- ZeeVee HDBridge 2620 2-Ch 1080p Encoder & Modulator
- 2 x Hydra AV Cable, 3 ft (91 cm)
- Limited 5-Year Warranty
Table of Contents
- Description
- Key Features
- Supported Resolutions
- MPEG-2 & AC-3 Encoding
- RF Modulation / Channel Upconversion
- Included Hydra AV Breakout Cables
ZeeVee HDB 2620 Specs
Input
| Inputs | 2x full DIN connectors Included breakout cables feature DIN to: Component video on RCA Composite on RCA for closed captions Digital audio (Coax) on RCA, 75 Ohm 0 to 0.7v Analog audio on RCA, 75 Ohm 0 to 0.7v |
| Audio | Audio is internally encoded into Dolby Digital AC-3 |
| Supported Resolutions | Component: 1080p/i30, 720p60, 480p/i VGA: 1920 x 1080p/i @ 60 Hz, 1680 x 1050, 1440 x 900 @ 60/70/72/75/85 Hz, 1360 x 768, 1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 768, 1280 x 720p, 1176 x 664, 1152 x 864, 1024 x 768, 800 x 600, 720 x 480p/i, 640 x 480p/i *VGA resolutions are broadcast centered in the best vertical fit into 1920 x 1080p30 or 1280x720p60 |
| Closed Caption Support | EIA/CEA-608 captions accepted over Composite video input |
Video Encoder
| Encoder Video Profile | MPEG-2 HD Profile 2, ISO13818-2 MP@HL |
| Traffic Shaping | Variable bit rate |
| Video Transport Bit Rate | 38.78 Mbps |
| Encoding Data Rates | Variable, 10 - 24 Mbps per channel (Average encoding data rate: 18 Mbps per channel) |
| Encoding Latency | Programmable 100 to 400 msec |
| Color Profile | 4:2:0 |
| GOP Size | 16 |
| Video, Audio PID | Programmable |
| Program Information | Programmable |
Audio Encoder
| Encoder Audio Profile | ATSC A/52, Dolby(r) Digital (AC-3) |
Modulator/Upconverter
| Modulation Type | QAM 256 (ITU-T J83 Annex B) interleaving modes: (64,2) only |
| Cable Standard | HRC, IRC or STD or user defined (varies by region) |
| Frequency Range | 2 paired, frequency agile QAM RF CATV: 2 kHz resolution +/- 30 ppm accuracy +/- 35 ppm stability |
| Output Power | +45 dBmV typical |
| Output Level Adjustment | 25 - 45 dBmV in 1dBmV steps |
| MER | 38 dB typical |
| I/Q Amplitude Imbalance | < 1% typical |
| Spectral Tilt | <= 1dB over 6MHz typical |
General
| Network Interface | 10/100 MB Ethernet via RJ45 connection IP address via DHCP or set by user HTML/Javascript served web interface for easy configuration Telnet connection for CLI scripting Easy firmware updates All settings saved in NV storage |
| MTBF | 45,000 hours |
| Cooling | Dual internal cooling fans, front inlet, rear exhaust |
| Vibration | NSTA 1A in carton |
| Mounting | Integrated rack ears; 1RU rack height |
| Compliance | FCC Class A |
| Enclosure Type | Metal |
| Operating Temperature | 32 to +113°F (0 to +45°C) |
| Humidity | 10 to 80%, non-condensing |
| Dimensions | 1.72 x 17.33 x 9.9" (4.36 x 44 x 25.1 cm), without rack mount ears |
| Weight | 6.25 lb (2.84 kg) |
Packaging Info
| Package Weight | 9.4 lb |
| Box Dimensions (LxWxH) | 21 x 12.6 x 4.8" |
