Description
The HDB2520DT 2-Channel HD Digital Encoder/Modulator from ZeeVee converts 2 Component or VGA sources into cable channels and broadcasts them over existing coax cabling to an unlimited number of tuner-equipped displays. The video is encoded into MPEG-2 and audio into AC-3. VGA input supports a wide range of resolutions from 640 x 480 to 1440 x 900. It comes with an included crossover cable which can only be used with DirecTV H25 receivers.
- Superior Video Quality
-
- Full MPEG2 implementation
- I, P, and B Frames
- Low latency
- Full motion estimation with a wide search range
- Ease of Management
-
- Powerful, highly intuitive web interface
- On-site or remote management
- Web accessible instrumentation and management
- Single session configures and manages all connected units
- Front Panel Display for on-site status and management at a glance
- High Reliability
-
- Low-stress power system
- Full system instrumentation and monitoring
- Official international regulatory approval
- Forced air cooling for effective thermal control
- Extensible Architecture
-
- Easy downloadable firmware updates
- Future enhancements provided regularly
- Emergency Alert System (EAS)
- Bonus information channel for use with small video loops
- General Features
-
- QAM modulator
- Maestro multibox management software with local or remote configuration and management

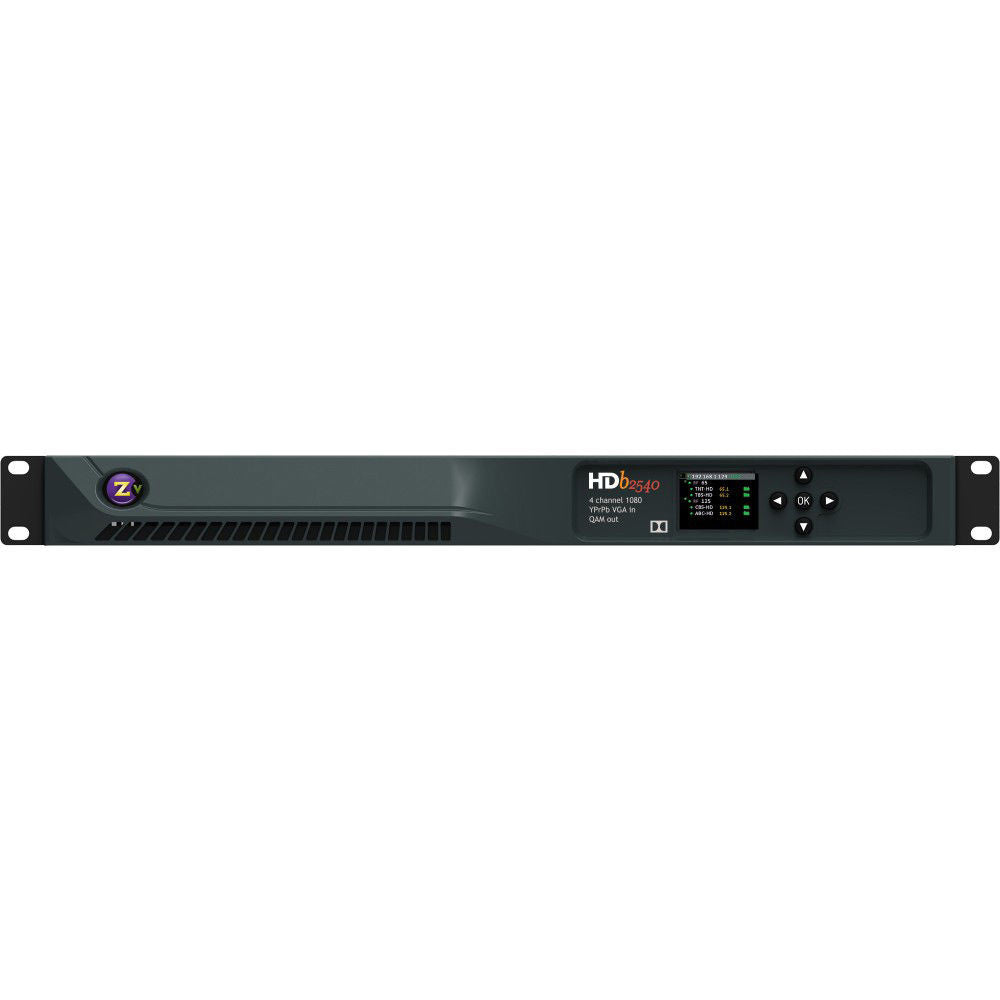

- Color LCD for front-panel configuration and at-a-glance monitoring and status
- Breakthrough Cable Management with each model utilizing a choice of hydra AV cables (extend from a full sized DIN connector to 7 inputs - component HD video, analog, and digital audio) or DIN VGA cables.Ethernet port for configuration and remote management
- Analog and digital audio which is internally encoded and broadcast as AC-3 or MPEG-1 Layer 2
- Integrated Closed Caption support which is required for ADA compliance in many applications
- Made in USA
UPC: 812254010502
In the Box
ZeeVee HDB2520DT 2-Channel HD Digital Encoder/Modulator
- AC Power Cord
- 2 x Hydra Audio/Video Cable
- Crossover Cable
- Limited 5-Year Warranty

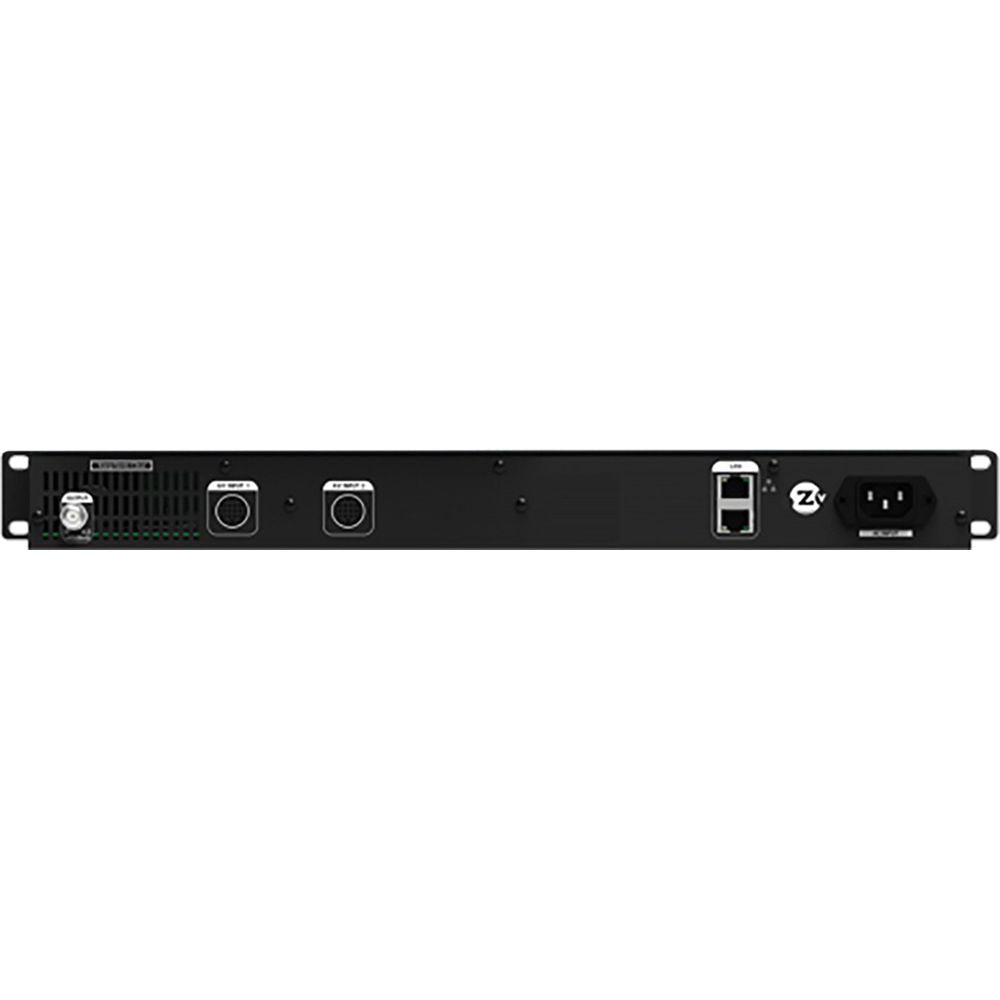

| Video Input | |
|---|---|
| Component Video | 2 x DIN connector HDbridge end, 2 x RCA connectors for HD source up to 720p |
| VGA | 2 x HD-15 connector, 2 x 75 Ohm RGB 0 to 0.7V, Separate H and V sync |
| VGA | Resolutions Supported: 640 x 480, 720 x 480, 800 x 600, 1024 x 768, 1152 x 864, 1176 x 664, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1440 x 900 at 60, 70, 72, 75, 85 Hz VGA resolutions are broadcast centered in the best vertical fit into 1920 x 1080p30 or 1280 x 720p60 |
| Closed Caption | EIA/CEA-608 captions accepted over composite video input |
| Channel | Extra Digital: MPEG2 Program stream file, up to 200 MB |
| Audio Input | |
|---|---|
| Audio | Stereo Analog and Digital Audio: 2 x Line level input per channel DIN connector HDbridge end 2 x RCA connector or digital 2 x SPDIF audio input. 3.5 mm pigtail connector with VGA |
| Video Encoder | |
|---|---|
| Encoder Video Profile | MPEG2 HD: ISO13818-2 main profile @ high level |
| Traffic Shaping | Variable bit rate |
| Encoding Data Rates | Variable, 10 to 24 Mb/s per channel Average Encoding Data Rate: 18 Mb/s per channel |
| Encoding Latency | Programmable 200 to 400 msec |
| Color Profile | 4:2:0 |
| GOP Size | 16 |
| Video, Audio PID | Programmable starting value |
| Program Information | Programmable program name, EIT |
| Audio Encoder | |
|---|---|
| Encoder Audio Profile | ATSC A/52, Dolby Digital (AC-3) |
| Modulator/Upconverter | |
|---|---|
| Modulation Type | QAM 256 (ITU-T J83 Annex B) interleaving modes: (64, 2) only |
| Cable Standard | HRC, IRC, or STD |
| Frequency Range | Up to 2 paired, frequency agile QAM RF CATV channels 2 to 135 2 kHz resolution +/- 30 ppm accuracy +/- 35 ppm stability |
| Output Power | +45 dBmV typical |
| Output Level Adjustment | 25 to 45 dBmV in 1 dBmV steps |
| MER | >38 dB typical |
| I/Q Amplitude Imbalance | <1% typical |
| Spectral Tilt | </=1dB over 6 MHz typical |
| Controls | |
|---|---|
| Network Interface | 10/100 MB Ethernet via RJ45 connection IP address via DHCP or set by user HTML/Javascript served web interface for easy configuration Telnet connection for CLI scripting Easy firmware updates All settings saved in NV storage |
| Display | Quickly obtain status at a glance, basic configurations, software revisions, and updates |
| General | |
|---|---|
| Power | 100 to 240 VAC 50/60 Hz, 60 W maximum, 30 W typical IEC 60320-C14 |
| Cooling | Dual internal cooling fans, front inlet, rear exhaust |
| Operating Conditions | Temperature: 32� to 113�F (0 to 45�C) Humidity: 10 to 80% (non-condensing) |
| Vibration | NSTA 1A in carton |
| MTBF | 62000 hours |
| Compliance | FCC Class A, IEC60065, EN61000 (see manual 70-00031-00), CE, RoHS, RCM C-Tick |
| Enclosure Type | Metal |
| Mounting | Rack ears shipped attached, 1 RU high |
| Dimensions | Without Rack-Mount Ears: 1.72 x 17.33 x 9.90" (4.36 x 44.0 x 25.10 cm) |
| Weight | 6.25 lb (2.83 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 9.7 lb |
| Box Dimensions (LxWxH) | 21.1 x 12.5 x 4.7" |
