| ₹ 153505.0 includes GST and import duties. | |
| B2B customers can avail ₹ 23409.51 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Zacuto Recoil Pro Overview
- 1 Description
- 2 Zacuto VCT Pro Baseplate
- 3 Zacuto Sony FX9 Trigger Grip
- 4 Zacuto Axis Mini EVF Mount
- 5 Zacuto Sony FS7 & FX9 Top Plate
- 6 Zacuto Sony FX9 LCD Axis Adapter
- 7 Zacuto LANC Extension Cable (13.8")

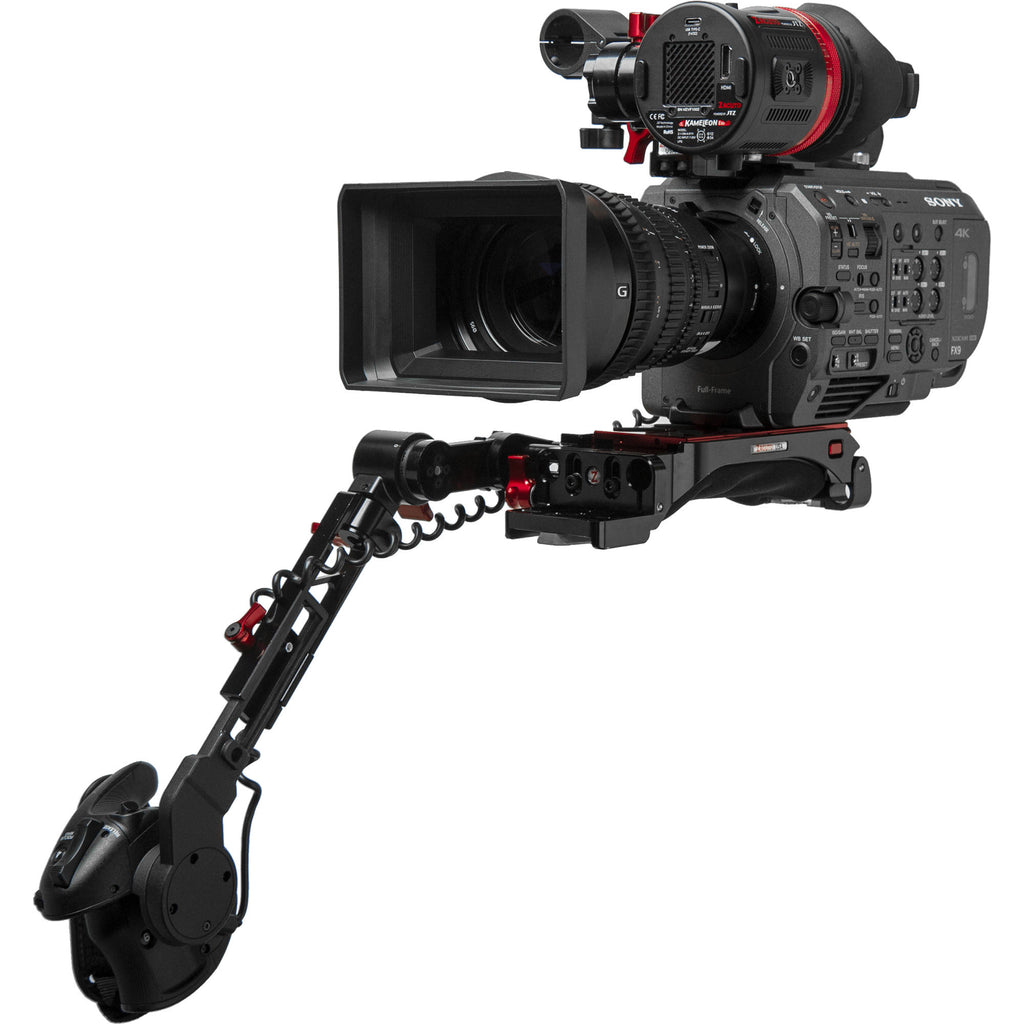

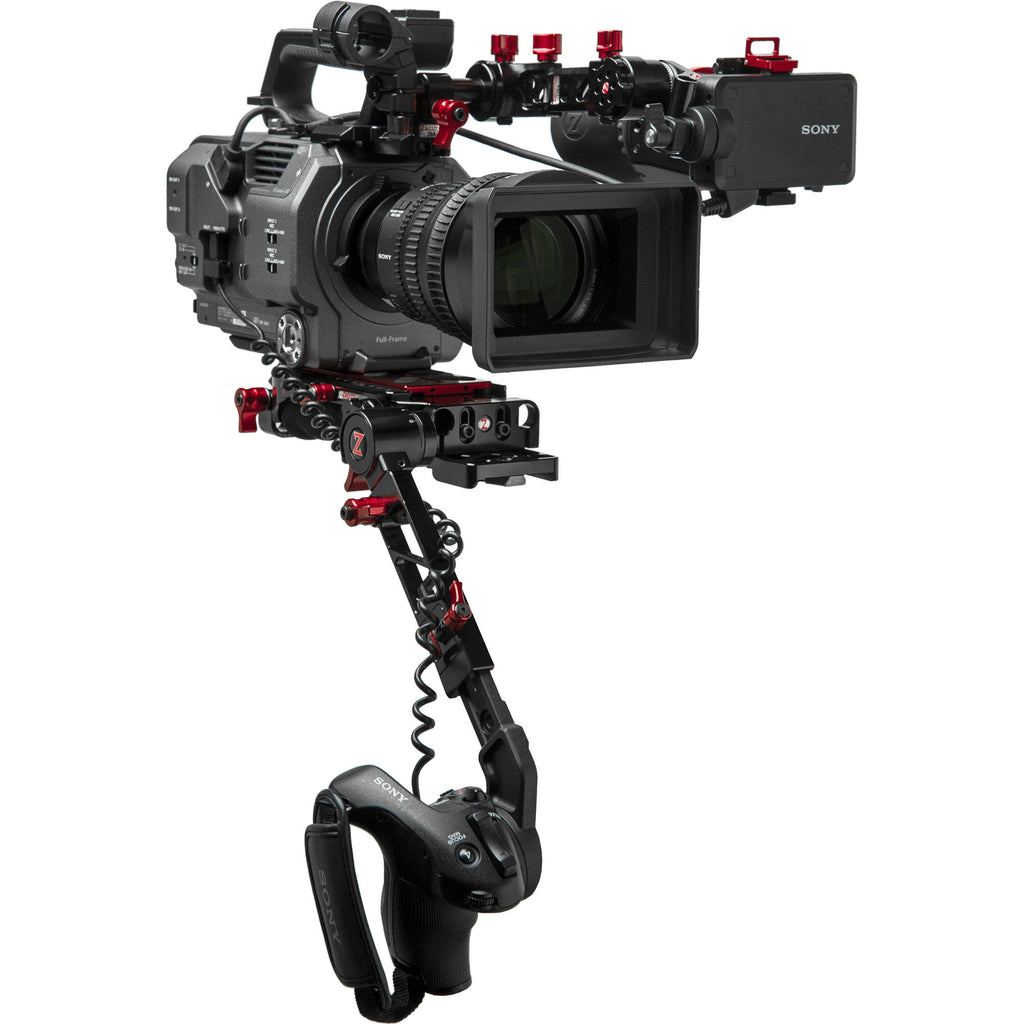

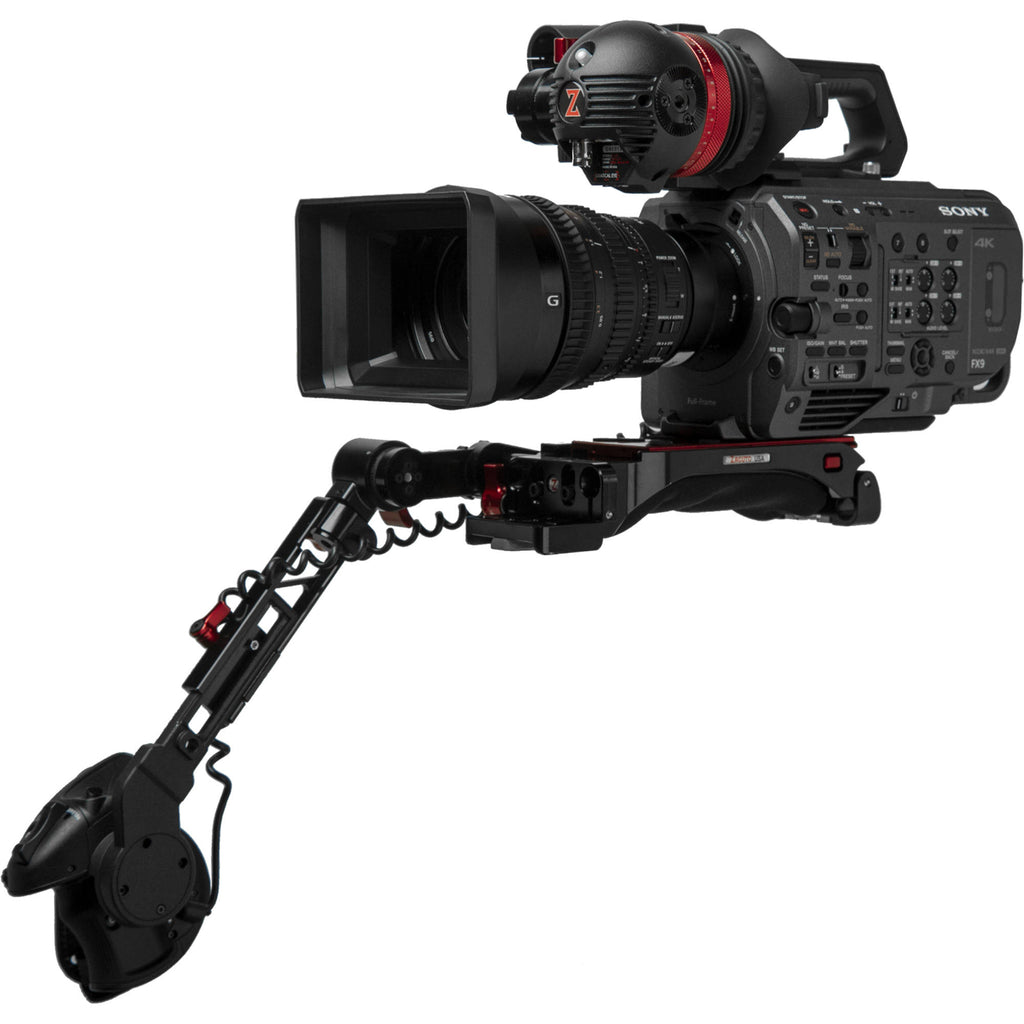

The Sony FX9 Recoil Pro V2 from Zacuto is a shoulder rig designed specifically for the Sony PWX-FX9 camera. It is comprised of the Zacuto VCT Pro Baseplate, FX9 Trigger Grip, Axis Mini EVF mount for the Sony FX9, and a LANC extension cable. This rig balances directly over your shoulder, putting the camera body behind your shoulder and relocating focus, monitoring, and camera controls forward to create a lighter, shorter, and properly balanced rig.
Zacuto VCT Pro Baseplate
With built-in ergonomic shoulder pad, 10" sliding track, extra space for accessories in front, VCT14-compatible V-wedge, red buttons and levers all around, and much more, this is the stylish VCT Pro Baseplate from Zacuto . Use it with all types of cameras, from DSLRs to larger models, like the Alexa.
A section of the baseplate extends out beyond the 15mm LWS rod adapter in front. With the rod adapter thus set back, you have additional space to mount accessories under the camera lens, allowing you to position the camera further back on the plate, keeping the balance point of your rig directly over your shoulder. (The rod adapter is vertically adjustable 1", and has to be in a raised position to allow for accessories to be mounted in the additional space. Also, a 1.8" riser for the rod adapter is optionally available for RED cameras by special order from Zacuto.) Also, on the bottom of the section that protrudes out is where the V-wedge is. There is also a 15mm LWS rod adapter on the rear.
The VCT Pro Baseplate features a 10" sliding track, providing the space to optimally adjust balance after every lens change. Moreover, the included red camera plate can be loosened by a spring-loaded lever instead of a screw, so you can make adjustments quickly and easily. To fully release and remove the plate (and camera), just press a red button on the side of the baseplate and slide the plate out. The rod ports also have spring-loaded levers.
An ARRI M6 rosette is available on the front for attaching accessories and grips, and there are also three 1/4"-20 threaded holes on the side providing additional mounting options. 1/4"-20 and 3/8"-16 tripod mount holes are available on the bottom to use instead of the V-wedge. The shoulder pad runs pretty much along the entire length as well as width of the baseplate, and is made of gel polymer. Two 6.5" 15mm rods are included. One 1/4"-20 and one 3/8"-16 screw are supplied for the camera plate. The VCT Pro Baseplate is made in the USA.
Key Features
- Front rod adapter is set far back, providing more space for accessories, and allowing the camera to be positioned further back for better balance
- 10" sliding track (with spring-loaded lever) for balance adjustment after lens changes
- VCT14-compatible V-wedge
- 1/4"-20 and 3/8"-16 tripod mount holes
- Ergonomic gel polymer shoulder pad
- 15mm LWS rod adapter on the rear
- Front rod adapter is vertically adjustable 1"; optional 1.8" riser available from Zacuto for RED cameras
- ARRI M6 rosette
- Three 1/4"-20 threaded holes for accessories
- Includes two 6.5" 15mm rods
- 1/4"-20 and 3/8"-16 screws supplied
- Made in the USA
Zacuto Sony FX9 Trigger Grip
The Sony FX9 Trigger Grip from Zacuto is a highly adjustable relocator for the Sony PXW-FX9 camera's handgrip. It enables full 360° rotation with the press of a trigger and mounts on your camera via an industry-standard M6 rosette.
This 11.5" grip provides 6" of length adjustment, and it can be flipped up completely when you want to rest your FX9 rig on the ground.
Compatibility
Zacuto Axis Mini EVF Mount
A versatile and adjustable means for attaching a rosette-mounted EVF to your camera, the Zacuto Axis Mini is an ENG-style mount that is designed to attach to the top of your camera setup and provide you with ample room for adjusting focus or working with large lenses. It attaches directly to rigs fitted with a 15mm rod port and then connects with EVFs, such as the Gratical HD, using a secure 1/4"-20 rosette mount, or can also be used with 1/4"-20 screw mount EVFs with the separate Quad Rail for mounting.
Once attached, the Axis Mini's adjustable design utilizes four main pivoting points, which can spin a full 360° and are controlled using independent tension levers. With all levers unlocked, you can freely position the EVF at will using a single hand, or specific sections can be tightened down for fine-tuned adjustments on a single axis. Additionally, the articulation can be configured to work seamlessly with both shoulder-mounted rigs as well as for tripod-based shooting.
Zacuto Sony FS7 & FX9 Top Plate
The Sony FS7 & FX9 Top Plate from Zacuto provides a single 15mm rod clamp for the top of your Sony FS7/FS7 II/FX9 camera. This plate mounts around your Sony top handle and is designed with a side-facing rod clamp.
Zacuto Sony FX9 LCD Axis Adapter
The Sony FX9 LCD Axis Adapter from Zacuto enables you to attach your FX9 LCD to an Axis Mini EVF mount. This rod adapter mounts onto the Axis Mini's rosette and is compatible only with the Sony PXW-FX9.
Zacuto LANC Extension Cable (13.8")
This 13.8" LANC Extension Cable from Zacuto features a right-angle male 2.5mm mini jack and a 2.5mm female plug. This heavy-duty, 24 AWG cable is UL approved and ideal for use with select Zacuto grip relocators.

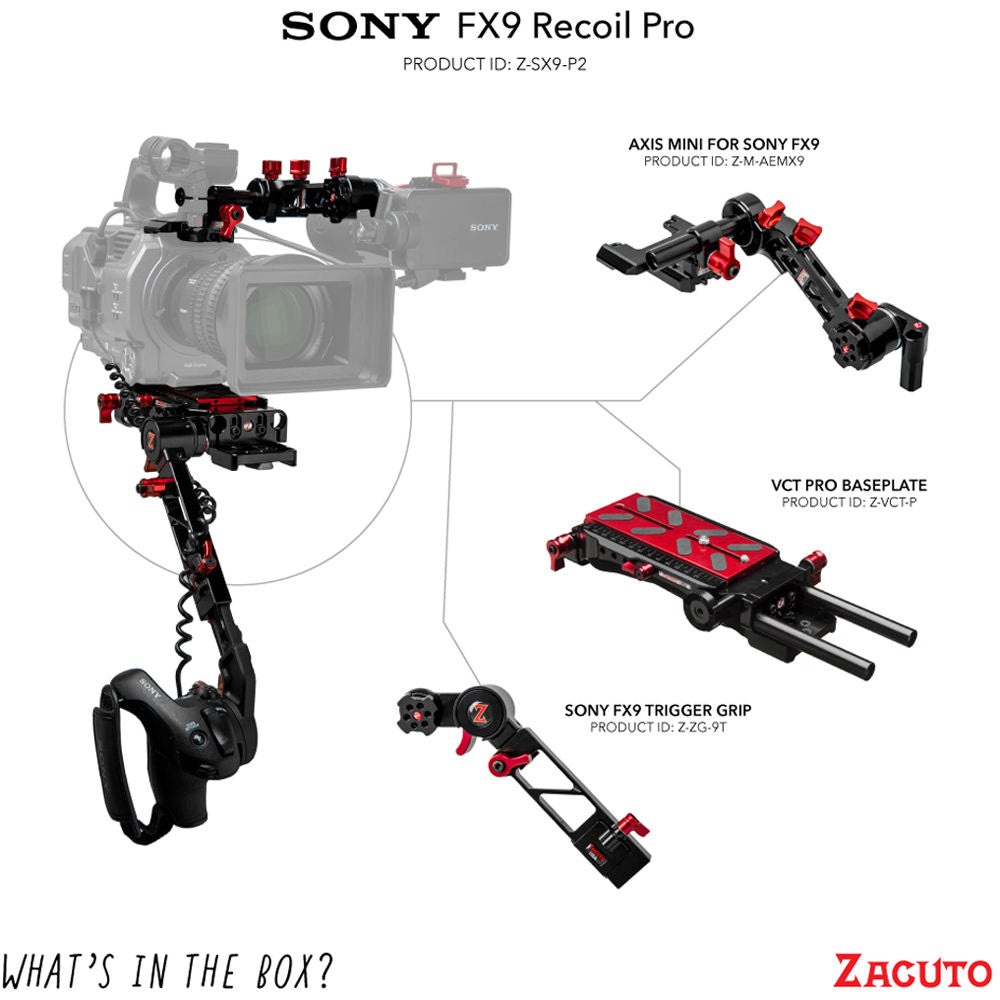

In the Box
- Zacuto VCT Pro Baseplate
- 2 x 6.5" 15mm Rods
- 1/4"-20 Camera Screw
- 3/8"-16 Camera Screw
- Limited Lifetime Warranty
- Zacuto Sony FX9 Trigger Grip
- Limited Lifetime Warranty
- Zacuto Axis Mini for Sony FX9
- Zacuto Axis Mini EVF Mount
- Zacuto Sony FS7 & FX9 Top Plate
- Zacuto Sony FX9 LCD Axis Adapter
- Limited Lifetime Warranty
- Zacuto LANC Extension Cable (13.8")
- Limited 1-Year Warranty
- Description
- Zacuto VCT Pro Baseplate
- Zacuto Sony FX9 Trigger Grip
- Zacuto Axis Mini EVF Mount
- Zacuto Sony FS7 & FX9 Top Plate
- Zacuto Sony FX9 LCD Axis Adapter
- Zacuto LANC Extension Cable (13.8")
Zacuto VCT Pro Baseplate Specs
| Mount Types | VCT14-compatible V-wedge 15 mm LWS rod ports in front and back 1/4"-20 and 3/8"-16 tripod mount holes 1/4"-20 and 3/8"-16 camera screws included 6.5" (16.5 cm) 15mm rods included ARRI M6 rosette Three 1/4"-20 threaded holes for accessories |
| Dimensions | 14.25 x 4.25 x 2" (36.2 x 10.8 x 5 cm) (with included 6.5"/16.5 cm rods) |
| Weight | 2.1 lb (0.96 kg) |
| Package Weight | 2.85 lb |
| Box Dimensions (LxWxH) | 11.7 x 10.4 x 7.8" |
Zacuto Sony FX9 Trigger Grip Specs
| Rosette Type | M6 |
| Rotation Range | 360° |
| Length | 11.5" / 29 cm |
| Adjustment Range | 6" / 15 cm |
| Weight | Not Specified by Manufacturer |
| Package Weight | 0.68 lb |
| Box Dimensions (LxWxH) | 7.85 x 4.2 x 2.85" |
Zacuto Axis Mini EVF Mount Specs
| Package Weight | 0.585 lb |
| Box Dimensions (LxWxH) | 8.4 x 5.45 x 2.5" |
Zacuto Sony FS7 & FX9 Top Plate Specs
| Compatible Rod Diameter | 15 mm |
| Dimensions and Weight | Not Specified by Manufacturer |
| Package Weight | 0.335 lb |
| Box Dimensions (LxWxH) | 6 x 3.95 x 1.95" |
Zacuto Sony FX9 LCD Axis Adapter Specs
| Rosette Type | 1/4"-20 Thread |
| Dimensions and Weight | Not Specified by Manufacturer |
| Package Weight | 0.09 lb |
| Box Dimensions (LxWxH) | 5.05 x 2.6 x 0.9" |
Zacuto LANC Extension Cable (13.8") Specs
| Connectors | 2.5 mm (male), 2.5 mm (female) |
| Cable Length | 13.8" / 35 cm |
| Package Weight | 0.055 lb |
| Box Dimensions (LxWxH) | 6.05 x 4.1 x 0.45" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 150434.9 |
| 3-5 | ₹ 148899.85 |
| 5-10 | ₹ 145829.75 |
| 10+ | ₹ 142759.65 |
Bulk discount will be automatically applied during checkout based on quantity.
