Zacuto Z-SX6-PDG Overview
-
1Description
-
2Zacuto VCT Pro Baseplate
-
3Zacuto Dual Trigger Grips for Sony FS5 / FS5 MK II / FX6
-
4Zacuto Sony FX6 Top Plate
-
5Zacuto Sony FX6 Handle Mount

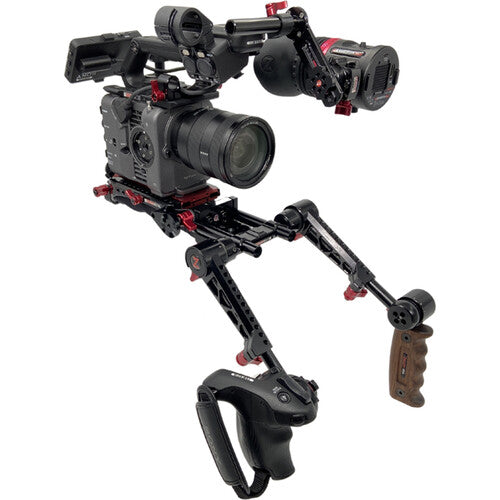

The Zacuto Sony FX6 Recoil Pro Rig with Dual Trigger Grips is designed to outfit your FX6 camera for comfortable handheld shooting by allowing you to set the balance point of your rig directly over your shoulder. The components work together providing support, control, adjustable balance, and accessory mounting that doesn't stress your camera's body. The Recoil Pro setup allows you to quickly rebalance for different lenses or accessories to help prevent fatigue while creating smooth handheld shots.
The VCT Pro is a padded shoulder support that mounts onto a VCT plate for quick tripod mounting and unmounting. It features a forward/back adjustable camera mounting plate, 15mm LWS rod clamps, rods, and an ARRI rosette. The included Dual Rosette Trigger grips attach to the r15mm bars of the VCT Pro, and it allows you to move the Sony handgrip that came with your camera forward and off the camera, for better balance, while maintaining the electronic control over your camera with the included 13.5" long LANC cable. The top plate and handle mount allow you to mount additional accessories on your camera via 1/4"-20, 3/8"-16, and ARRI-style accessory mounting holes, or via optional 15mm rods.
Zacuto VCT Pro Baseplate
With built-in ergonomic shoulder pad, 10" sliding track, extra space for accessories in front, VCT14-compatible V-wedge, red buttons and levers all around, and much more, this is the stylish VCT Pro Baseplate from Zacuto. Use it with all types of cameras, from DSLRs to larger models, like the Alexa.
A section of the baseplate extends out beyond the 15mm LWS rod adapter in front. With the rod adapter thus set back, you have additional space to mount accessories under the camera lens, allowing you to position the camera further back on the plate, keeping the balance point of your rig directly over your shoulder. (The rod adapter is vertically adjustable 1", and has to be in a raised position to allow for accessories to be mounted in the additional space. Also, a 1.8" riser for the rod adapter is optionally available for RED cameras by special order from Zacuto.) Also, on the bottom of the section that protrudes out is where the V-wedge is. There is also a 15mm LWS rod adapter on the rear.
The VCT Pro Baseplate features a 10" sliding track, providing the space to optimally adjust balance after every lens change. Moreover, the included red camera plate can be loosened by a spring-loaded lever instead of a screw, so you can make adjustments quickly and easily. To fully release and remove the plate (and camera), just press a red button on the side of the baseplate and slide the plate out. The rod ports also have spring-loaded levers.
An ARRI M6 rosette is available on the front for attaching accessories and grips, and there are also three 1/4"-20 threaded holes on the side providing additional mounting options. 1/4"-20 and 3/8"-16 tripod mount holes are available on the bottom to use instead of the V-wedge. The shoulder pad runs pretty much along the entire length as well as width of the baseplate, and is made of gel polymer. Two 6.5" 15mm rods are included. One 1/4"-20 and one 3/8"-16 screw are supplied for the camera plate. The VCT Pro Baseplate is made in the USA.
Key Features
- Front rod adapter is set far back, providing more space for accessories, and allowing the camera to be positioned further back for better balance
- 10" sliding track (with spring-loaded lever) for balance adjustment after lens changes
- VCT14-compatible V-wedge
- 1/4"-20 and 3/8"-16 tripod mount holes
- Ergonomic gel polymer shoulder pad
- 15mm LWS rod adapter on the rear
- Front rod adapter is vertically adjustable 1"; optional 1.8" riser available from Zacuto for RED cameras
- ARRI M6 rosette
- Three 1/4"-20 threaded holes for accessories
- Includes two 6.5" 15mm rods
- 1/4"-20 and 3/8"-16 screws supplied
- Made in the USA
Zacuto Dual Trigger Grips for Sony FS5 / FS5 MK II / FX6
The Dual Trigger Grips for Sony FS5 / FS5 MK II / FX6 from Zacuto is a 15mm LWS rod mount handgrip set featuring one wooden handgrip and one grip relocator for the Sony FS5, FS5 MK II, and FX6 camera grips. Each can be individually rotated a full 360° at the press a dedicated lever�there is no need to screw or unscrew any knob or lever but rather just press it on the fly. Furthermore, the wooden component of the wooden handgrip can also be adjusted forward and backward at the press of another lever, and the same goes for your camera grip once you attach it.
The handgrip and relocator are secured into sleeves and can be adjusted in length within the sleeves by loosening a corresponding lever for each one. They can be adjusted from 13 to 16" in length, measuring from the base to the bottom of the handgrip. Scale markings are available on top to allow you to easily match up the positions of the handgrips. The handgrips are fully removable and you can incorporate a second wooden handgrip at a later time to alternate with the relocator.
Key Features
- 15mm LWS rod mount handgrip set
- Includes a wooden handgrip and a grip relocator
- 360° rotation at the press of a lever�no screwing/unscrewing
- Forward/backward adjustment at the press of another lever
- Length adjustable
- Scale markings for easily matching the positions of the handgrips
Zacuto Sony FX6 Top Plate
Designed for attaching accessories, the cheese plate-style Sony FX6 Top Plate from Zacuto can be used with or without the original Sony handle mounted on your camera. It provides a NATO/Z-Rail, two 15mm rod supports, and multiple 1/4"-20 and 3/8"-16 ARRI-style accessory threads. Use the rail to attach accessories like a monitor arm and use the 15mm brackets to support rod-mounted lens motors.
Versatile Accessory Mounting
- Multiple 1/4"-20 threads
- Multiple 3/8"-16 anti-twist threads
- NATO/Z-Rail
Top Cheese Plate
Works with or without the original Sony top handle
Zacuto Sony FX6 Handle Mount
The Zacuto Sony FX6 Handle Mount screws into the handle unit of the camera and provides a 15mm rod port for attaching a 15mm EVF mount, such as the Zacuto Axis Micro or Mini. It screws into the handle tool-free and sturdy, and it positions at a 45° angle. The rod port is secured via a lever, also tool-free.
In the Box
- Zacuto VCT Pro Baseplate
- 2 x 6.5" 15mm Rods
- 1/4"-20 Camera Screw
- 3/8"-16 Camera Screw
- Limited Lifetime Warranty
- Zacuto Dual Trigger Grips for Sony FS5 / FS5 MK II / FX6
- Zacuto Dual Trigger Grip Base
- Zacuto Wooden Handgrip
- Zacuto Grip Relocator for Sony FS5 / FS5 Mark II / FX6
- Limited Lifetime Warranty
- Zacuto Sony FX6 Top Plate
- 2 x 15mm Rod Bracket
- Mounting Screw Set
- Limited 1-Year Warranty
- Zacuto Sony FX6 Handle Mount
- Limited Lifetime Warranty
- LANC Cable (13.5")
Table of Contents
- Description
- Zacuto VCT Pro Baseplate
- Zacuto Dual Trigger Grips for Sony FS5 / FS5 MK II / FX6
- Zacuto Sony FX6 Top Plate
- Zacuto Sony FX6 Handle Mount
Zacuto VCT Pro Baseplate Specs
Support Type |
Shoulder Support |
Grip Type |
None |
Camera Compatibility |
Universal |
Mounting
Rod Standard |
15 mm LWS / 60 mm Spacing |
Included Rods |
2 x 6.5" / 16.5 cm 15 mm Rod |
Accessory Mounting |
Side: 3 x 1/4"-20 Thread |
Camera Mounting |
Quick Release Plate with 1/4"-20 Screw, 3/8"-16 Screw |
Tripod Mounting |
1/4"-20 Thread, 3/8"-16 Thread, VCT-14 |
Rod Ports |
2 x 15 mm Rod Port |
Rosettes |
Side: 1 x ARRI Rosette w/ M6 Thread |
General
Dimensions |
14.25 x 4.25 x 2" / 36.2 x 10.8 x 5 cm (with Rods) |
Weight |
2.1 lb / 0.96 kg |
Packaging Info
Package Weight |
2.85 lb |
Box Dimensions (LxWxH) |
11.7 x 10.4 x 7.8" |
Zacuto Dual Trigger Grips for Sony FS5 / FS5 MK II / FX6 Specs
Grip Type |
Dual Handgrips |
Rotation |
Yes, 360° |
Built-In Controls |
None |
Mounting
Attachment Method |
Attaches via Rail Clamp |
Rod Standard |
15 mm LWS / 60 mm Spacing |
Rod Ports |
2 x 15 mm Rod Port |
Accessory Mounting |
None |
Shoe Mounting |
None |
Rosettes |
None |
Rail Mounting |
None |
General
Materials |
Aluminum, Wood |
Dimensions |
Not Specified by Manufacturer |
Weight |
Not Specified by Manufacturer |
Packaging Info
Package Weight |
2.265 lb |
Box Dimensions (LxWxH) |
11.35 x 9.4 x 3.05" |
Zacuto Sony FX6 Top Plate Specs
Accessory Mounting Threads |
Multiple 1/4"-20 Multiple Anti-Twist 3/8"-16 |
Rail Type |
1 x NATO/Zacuto Z-Rail |
Dimensions |
Not Specified by Manufacturer |
Weight |
Not Specified by Manufacturer |
Packaging Info
Package Weight |
0.415 lb |
Box Dimensions (LxWxH) |
6.4 x 4.15 x 2.1" |
Zacuto Sony FX6 Handle Mount Specs
Packaging Info
Package Weight |
0.115 lb |
Box Dimensions (LxWxH) |
4.4 x 2.9 x 1" |
