Description
Zacuto ACT Recoil Overview
- 1Description
- 2Zacuto Camera Cage for Panasonic GH6 Camera
- 3Zacuto Tactical Handle
- 4Zacuto Axis Micro EVF Mount
- 5Zacuto ACT EVF Pro
- 6Zacuto ACT Baseplate

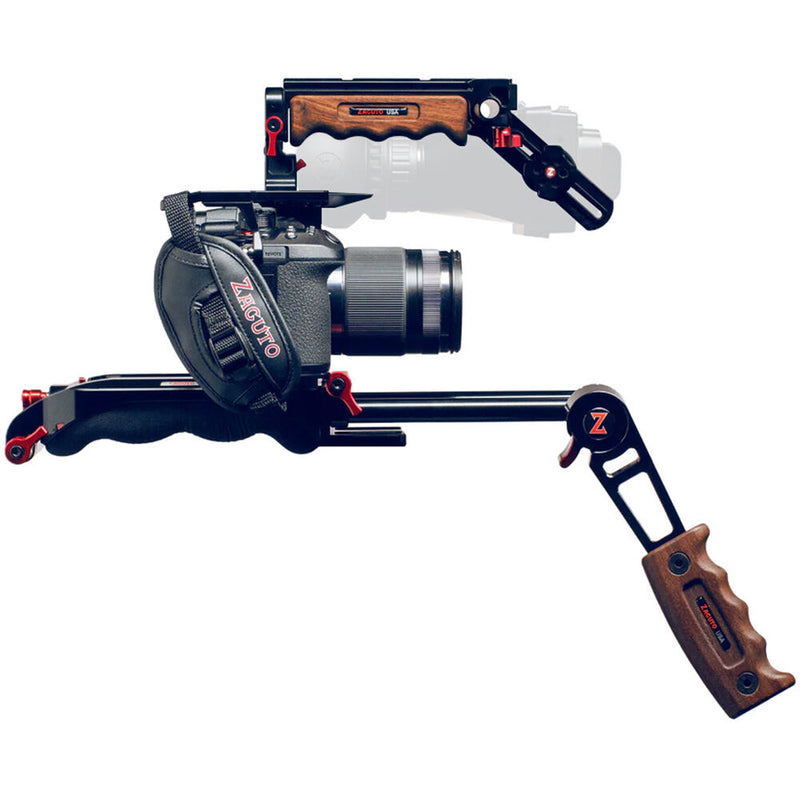

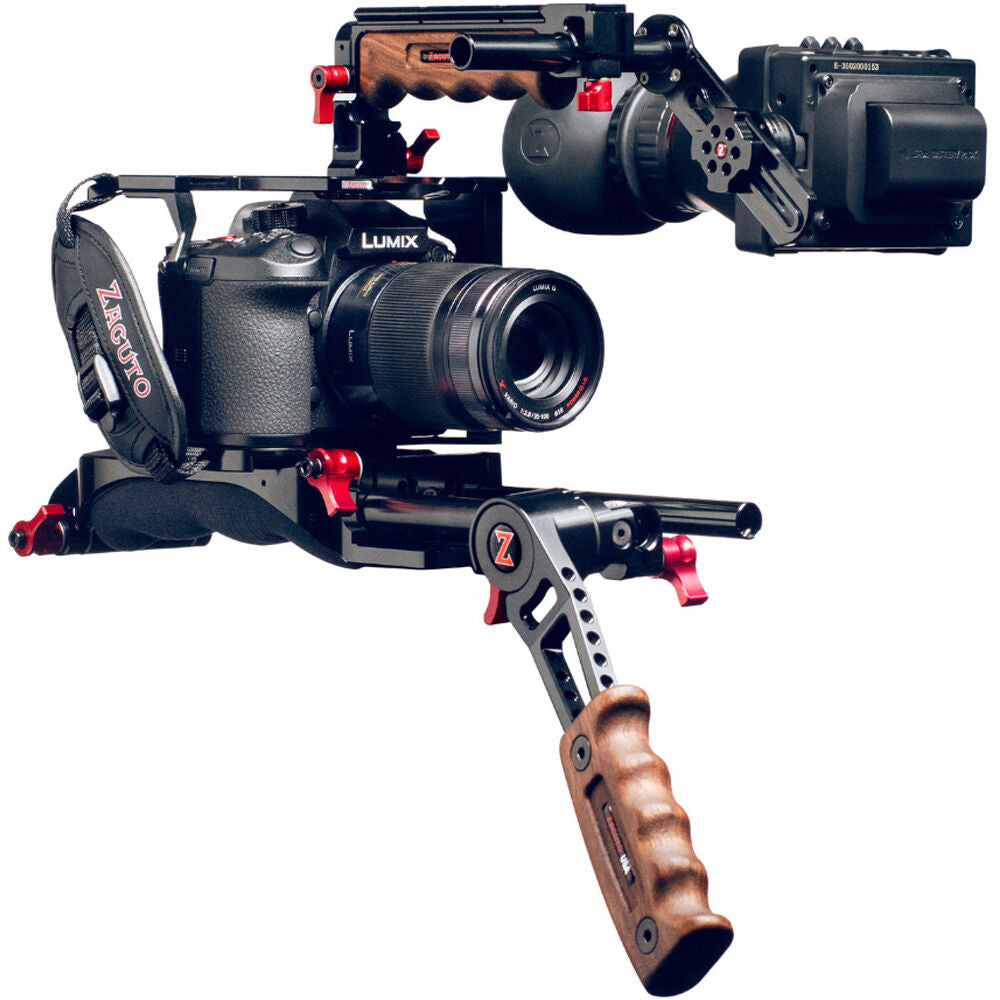

Support your GH6 camera and add a viewfinder with this adjustable ACT Recoil Rig for Panasonic GH6 from Zacuto. The modular rig is made up of the cage for the GH6, ACT Baseplate, the ACT EVF Pro, a right-hand wooden trigger grip, and the Axis Mini mounting arm. The ACT open design allows you to support your rig on your shoulder while remaining highly adjustable, allowing you to easily adjust the configuration to match your shooting style or the needs of the shot. Add more accessories and additional rig components if required, and quickly rebalance the rig so you can continue to shoot comfortably for smooth camera operation.
Protect your camera for peace of mind and flexibility when shooting in almost any shooting style with this Zacuto Camera Cage for Panasonic GH6 Camera. Featuring an open design so you can grip your camera with your right hand, the cage includes a hand strap that helps your securely hold your camera without griping it to death for longer, more relaxed handheld shooting. The cage protects your camera without blocking access to its functions or compartments, and numerous accessory mounting holes along the top and sides of the cage allow you to mount accessories without stressing your camera's body.
An ARRI-compatible rosette on the left side allows you to add additional accessories such as handgrips while providing rotation adjustment in small increments, so you can position your optional handle to be most comfortable. For mounting on a tripod, an Arca-Swiss dovetail is integrated into the bottom of the cage, providing compatibility with the Zacuto ACT recoil systems and ACT mounting plate.
- Arca-Swiss dovetail on the bottom
- Direct compatibility with the Zacuto ACT system
- Hand strap included
- Built-in NATO-compatible Z-Rail for top handles
- HDMI lock and HDMI right-angle adapter
- ARRI-compatible rosette on left side
- 1/4"-20 accessory mounting threads
- 1/4"-20 and 3/8"-16 tripod mount threads
- Your camera is secured with a 1/4"-20 screw and two side screws mounted in the camera's neck strap eyelets
Add a versatile handle to your camera rig or cage with the Tactical Handle from Zacuto, which features a slim, adjustable design that allows you to use it as a top handle or side handgrip. It features a built-in Z-Rail/NATO-type rail on top, a shoe mount, and multiple 1/4"-20 and 3/8"-16 mounting threads that enable you to mount a variety of accessories. Its grip features finger grooves and is lined with wood for a smooth, comfortable feel.
The Tactical Handle mounts onto any Z-Rail/NATO rail, and the Z-Rail jaw clamp can be twisted and oriented in multiple ways to work on horizontal or vertical Z-Rails. The spring-loaded locking lever enables tightening or loosening of the joint, so it can be reconfigured as a top or side handle. The handle is suitable for use with small cameras such as the Panasonic GH5 Mark II.
Also compatible with but not limited to:
Zacuto 3" Z-Rail
Zacuto 5" Z-Rail
Zacuto Universal Monitor Mount
Zacuto ACT Recoil Shoulder Rig
Zacuto DSLM or DSLM Cage
Zacuto Axis Mini Mount
Zacuto Axis Micro Mount
Zacuto EVF Mounts
Attach a rosette-mounted EVF to your camera or rig with the Axis Micro from Zacuto. This adjustable mounting arm, slightly more compact than its big sister the Axis Mini, is designed to attach to the top of your camera setup using its micro 15mm rod to provide you with ample room for adjusting focus or working with large lenses. It attaches directly to rigs fitted with a 15mm rod port and mounts EVFs, such as the ACT EVF Pro or Gratical HD, using its secure 1/4"-20 rosette.
Monitor high-resolution video from your camera with the ACT EVF Pro from Zacuto. The EVF features a 3.5" backlit LED display, 800 x 480 resolution, and a wide 160° viewing angle, and it supports video input up to 1080p. The compact, lightweight EVF weighs only 11.7 oz.
A single HDMI input allows you to monitor up to 1080p video, and it features an HDMI loop output that allows you to daisy-chain the EVF with other displays without losing image quality. The optics also feature Zacuto's anti-fog coatings, ensuring clear viewing in humid or extreme temperature conditions, and 1.8x magnification using +1 and +2 drop-in diopters. The display features numerous functions such as check field, markers, image flip, battery meter, image freeze, zoom, and color temperature.
You can mount the EVF Pro using the 1/4"-20 rosette or by using the 1/4"-20 threads on the top, sides, and bottom. You can monitor audio using the 3.5mm headphone jack, and it is powered using an LP-E6 battery.
Mount your DSLR or mirrorless camera such as a Panasonic GH5 Mark II and additional accessories such as a matte box, follow focus, or extension arms using the ACT Baseplate from Zacuto. The baseplate features a built-in shoulder pad, an Arca-type mounting plate, a quick release Arca-type camera plate, 15mm rod ports on the front and back, two 15mm rods, and stylish red locking levers all around.
The 15mm rods can be installed in the front or back of the plate, and they are secured with a quick release design. The Arca-type bottom plate can be mounted onto the ACT Mounting Plate or other Arca-compatible mounts. The red Arca-type camera plate features quick release functionality, pads to prevent twisting or slipping, and it's inset into the baseplate for a low-profile design. Scale markings along the top assist with balancing.
In the Box
- Zacuto Camera Cage for Panasonic GH6 Camera
- Camera Hand Strap
- HDMI Cable Clamp
- HDMI Right-Angle Adapter
- Zacuto Tactical Handle
- Zacuto Axis Micro EVF Mount
- Zacuto ACT EVF Pro
- Zacuto ACT Baseplate
- Zacuto ACT Camera Plate
- 2 x 15mm Rod
- Right Trigger Grip
- Description
- Zacuto Camera Cage for Panasonic GH6 Camera
- Zacuto Tactical Handle
- Zacuto Axis Micro EVF Mount
- Zacuto ACT EVF Pro
- Zacuto ACT Baseplate
Zacuto Camera Cage for Panasonic GH6 Camera Specs
| Support Type | Cage |
| Grip Type | None |
| Camera Compatibility | Panasonic DC-GH6 |
| Battery Plate Type | None |
| Accessory Mounting | Cage, Top: 25 x 1/4"-20 Thread, 1 x Anti-Twist 3/8"-16 Thread Cage, Side: 16 x 1/4"-20 Thread, 2 x Anti-Twist 3/8"-16 Thread Cage, Base: 1 x 1/4"-20 Thread, 1 x 3/8"-16 Thread |
| Camera Mounting | 1/4"-20 Screw |
| Tripod Mounting | 1/4"-20 Thread, 3/8"-16 Thread, Built-In Arca-Type Plate |
| Shoe Mounting | Top: 1 x Cold Shoe |
| Rosettes | Side: 1 x ARRI Rosette w/ M6 Thread |
| Rail Mounting | Cage, Top: 1 x NATO / Z-Rail Cage, Side: 1 x NATO / Z-Rail |
| Dimensions | Not Specified by Manufacturer |
| Weight | 0.6 lb / 272 g |
| Package Weight | 0.61 lb |
| Box Dimensions (LxWxH) | 8.8 x 7.5 x 4.95" |
Zacuto Tactical Handle Specs
| Attachment Method | Attaches via Rail Clamp |
| Rod Standard | 15 mm Single Rod |
| Rod Ports | 1 x 15 mm Rod Port |
| Accessory Mounting | Multiple x 1/4"-20 Thread Multiple x 3/8"-16 Thread |
| Shoe Mounting | 1 x Built-In Cold Shoe Slot |
| Rosettes | None |
| Rail Mounting | 1 x NATO / Z-Rail Clamp |
| Item Type | Topside Handle |
| Rotation | No |
| Built-In Controls | None |
| Materials | Metal, Wood |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
| Package Weight | 0.44 lb |
| Box Dimensions (LxWxH) | 8.05 x 5.4 x 2.35" |
Zacuto Axis Micro EVF Mount Specs
| Mounting | 1 x 1/4"-20 Rosette 1 x 15 mm Rod |
| Rod Standard | 15 mm LWS |
| Package Weight | 0.195 lb |
| Box Dimensions (LxWxH) | 6.3 x 3.85 x 1.5" |
Zacuto ACT EVF Pro Specs
