Description

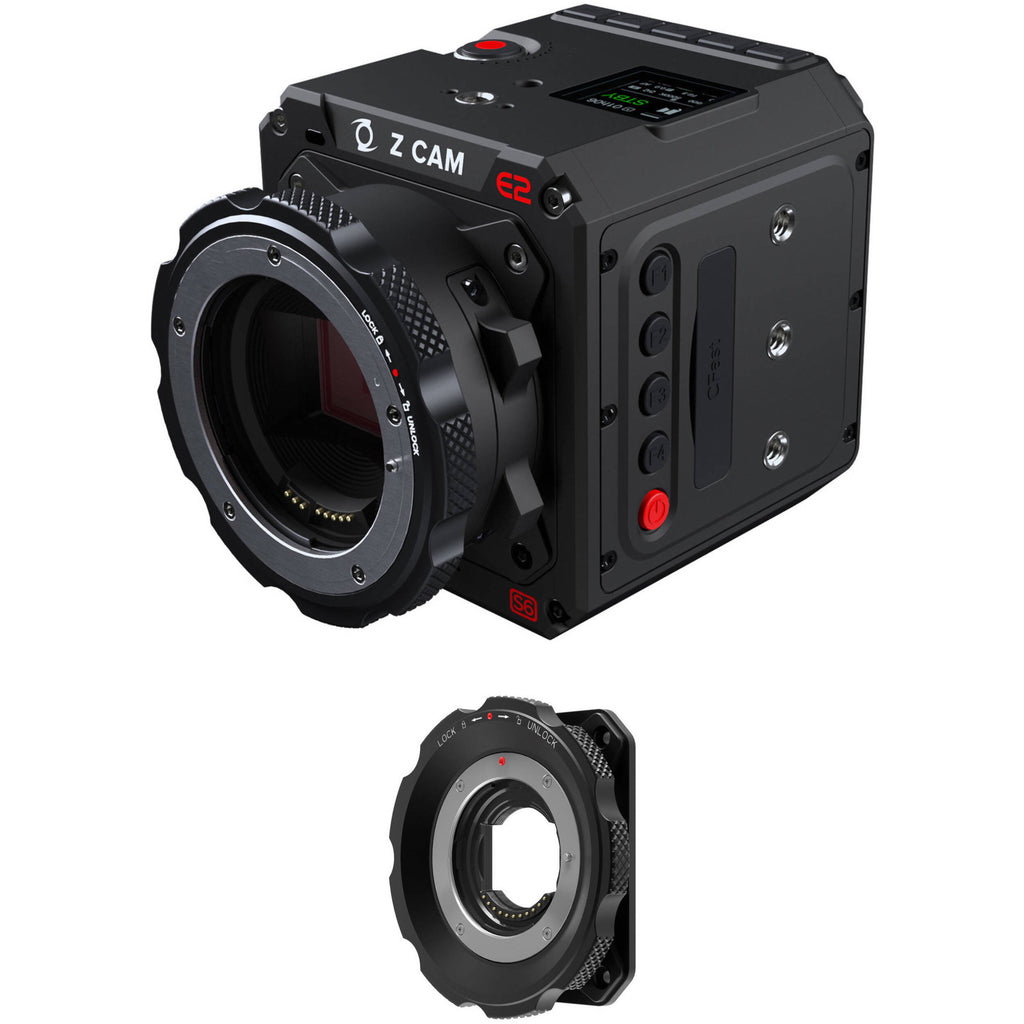

Z CAM E2-S6 MFT Mount Overview
Shoot professional high-definition cinema footage with the Z CAM E2-S6 Super 35 6K Cinema Camera with an interchangeable lens mount kit that includes an EF mount and MFT lens mount. The camera features a Super 35 sensor with 10-bit 4:2:2 color support and nominal 14 stops of dynamic range, supports timecode, shoots up to 6K at up to 75 fps, and records data up to 300 Mb/s onto CFast 2.0 media.
Supported recording formats include ZRAW and ProRes formats, MOV and MP4 using H.265 for 10-bit recording (H.264 supports 8-bit recording), and firmware update 0.98.0 that allows the camera to record in the ZRAW and ProRes 422 formats. Its HDMI 2.0 port supports 4K60, 10-bit 4:2:2 video output. Audio is recorded in 24-bit 48 kHz using AAC or PCM (PCM for MOV format only) through its 3.5mm stereo jack or via a separately available XLR connector using its 5-pin LEMO port.
The E2-S6 can be controlled via serial ports, a 2.5mm LANC connector, a USB Type-C port, an Ethernet port, or by the Z Camera iOS app to control the camera via Wi-Fi, view a live image preview, and configure settings. The camera can record time-lapse, slow motion, and can even live stream via its Gigabit Ethernet port. You can also control it locally by the buttons along the side of the camera.
The E2-S6 can be powered by a separately available battery using the built-in L-series battery mount, or you can power the camera using a separately available power adapter using its 2-pin LEMO port. The camera also features a 12 VDC 2-pin LEMO power output to provide power to separately available accessories. The EF mount comes pre-installed and can be swapped out with the included MFT mount.

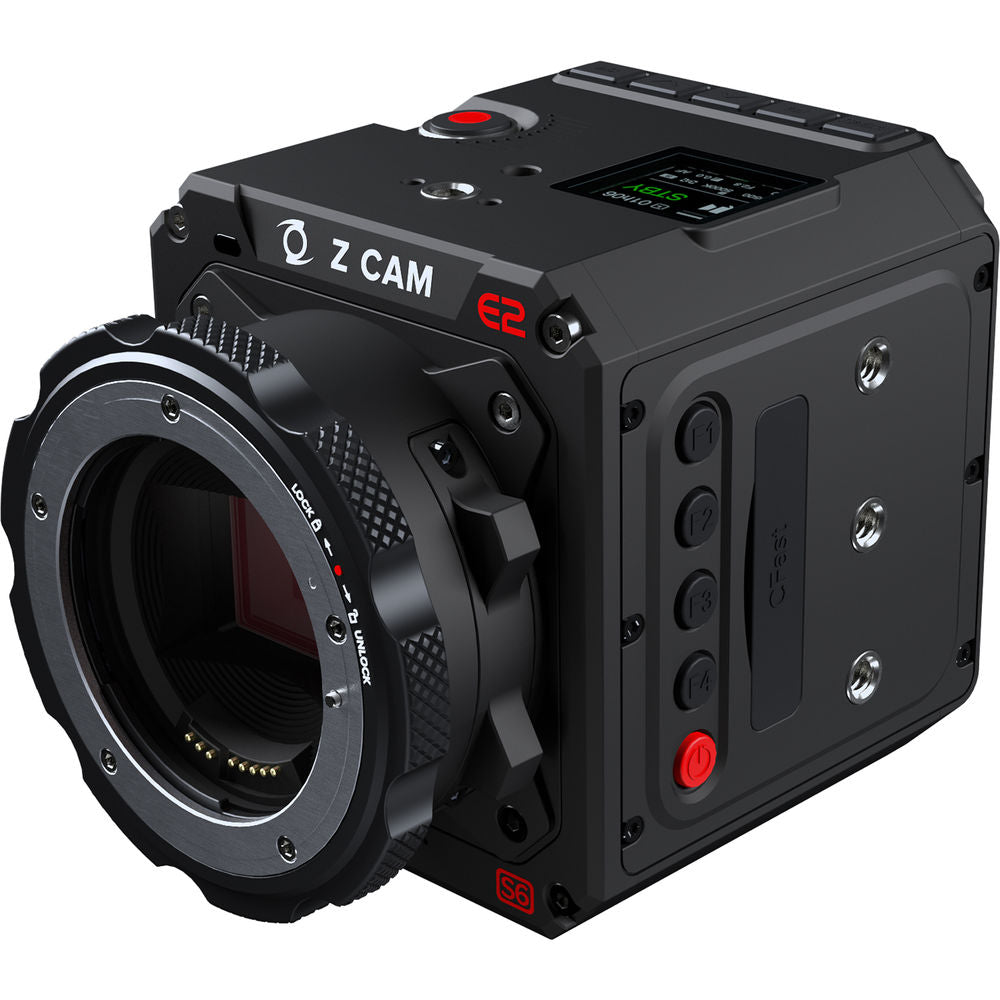

Z CAM E2-S6 Super 35 6K Cinema Camera (EF Mount)
Shoot professional high-definition cinema footage with the Z CAM E2-S6 Super 35 6K Cinema Camera with a Canon EF lens mount. The camera features a Super 35 sensor with 10-bit 4:2:2 color support and nominal 14 stops of dynamic range, supports timecode, shoots up to 6K at up to 60 fps, DCI 4K up to 75 fps, 1080p up to 120 fps, and records data up to 300 Mb/s onto CFast 2.0 media.
It supports recording formats MOV and MP4 using ProRes raw for 12-bit recording and H.265 for 10-bit recording (H.264 supports 8-bit recording) when using the latest firmware update that allows the camera to record in both ZRAW and ProRes formats. The HDMI 2.0 port supports 4K60, 10-bit 4:2:0 video output. Audio is recorded in 24-bit 48 kHz using AAC or PCM (PCM for MOV format only) through its 3.5mm stereo jack or via a separately available XLR connector using its 5-pin LEMO port.
The E2-S6 can be controlled via serial ports, a 2.5mm LANC connector, a USB Type-C port, an Ethernet port, or by the Z Camera iOS app to control the camera via Wi-Fi and to view a live image preview and to configure settings. The camera can record time-lapse, slow motion, and can even live stream via its Gigabit Ethernet port. You can also control it locally by the buttons along the side of the camera.
The E2-S6 can be powered by a separately available battery using the built-in L-series battery mount, or you can power the camera using a separately available power adapter using its 2-pin LEMO port. The camera also features a 12 VDC 2-pin LEMO power output to provide power to separately available accessories.
Firmware Update
4K Capture and Recording
- Unburdened by a recording time limit, you can record 6K at up to 60 fps for up to the limit of your recording media's capacity
- CMOS sensor with 14 stops of dynamic range
- The camera supports ZRAW, ProRes raw, REC. 709, Z-Log2, FLAT, and HLG
- H.265 (10-bit color) internal recording on CFast 2.0 cards
- 4K60, 10-bit 4:2:2 video output through HDMI 2.0 is supported
- Full-metal housing for efficient heat dissipation
Interfaces and Expandability
- USB 3.0 Type-C for camera control and data transformation only
- Two serial ports for camera control
- Ethernet port for live view, control, and file transfer to a browser or a computer running Z CAM software
- LANC port for remote control including power on/off
iOS App
Camera Settings
- White balance: Auto, preset, manual (2300 to 7500K)
- Focus modes: MF, AF, CAF
- Image: Brightness, contrast, saturation, sharpness
- LUT: REC. 709, Z-Log2, FLAT, HLG
- Timecode: Current time, manual input
Camera Body
- Made from aluminum for strength and heat dissipation
- 2-pin LEMO 12 VDC power output
- Powers from optional 2-pin LEMO 12 VDC adapter or optional L-series batteries

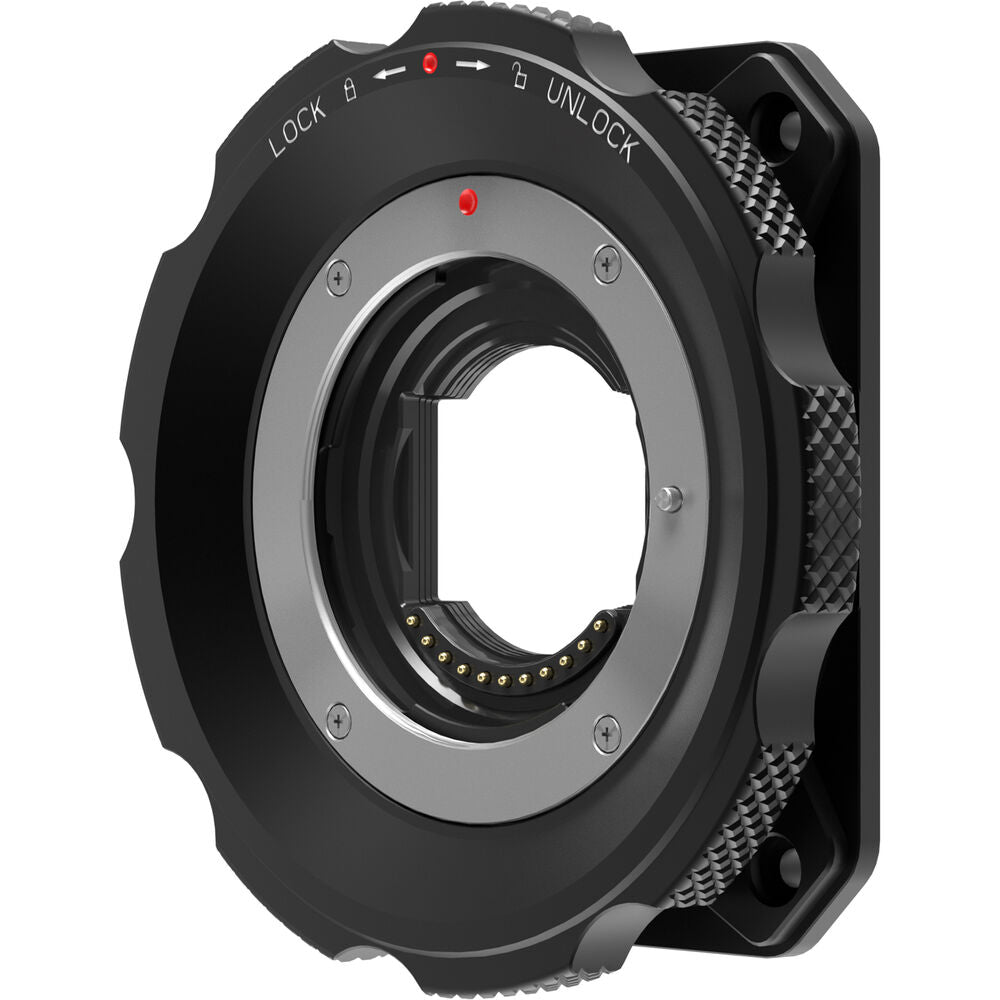

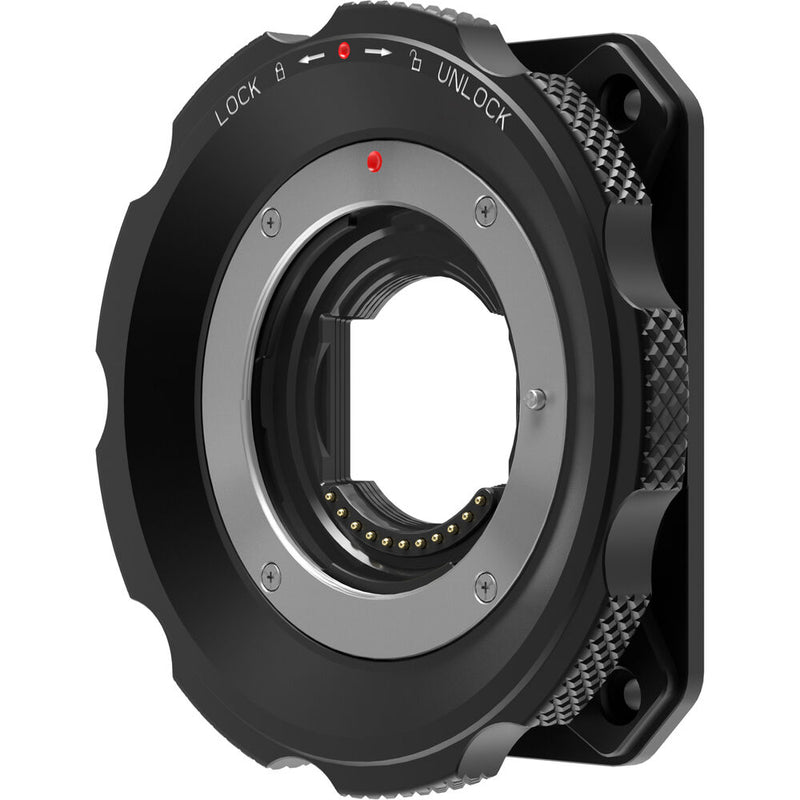

Z CAM Interchangeable Lens Mount with Active Lock for Z CAM E2-M4 (MFT Mount)
The MFT mount Interchangeable Lens Mount with Active Lock replaces the existing lens mount on your Z CAM E2-M4 camera and allows you to attach MFT lenses. Electronic contacts allow control of aperture, zoom, and other functions, and the active lock eliminates play by securely locking your lens into the mount. The adapter is designed with no end slot.
In the Box
- Z CAM E2-S6 Super 35 6K Cinema Camera (EF Mount)
- LEMO Power Cable
- Lens Mount Cap
- Limited 1-Year Warranty
- Z CAM Interchangeable Lens Mount with Active Lock for Z CAM E2-M4 (MFT Mount)
- Limited 1-Year Warranty
- LEMO Power Cable
- AC/DC Power Adapter
- Lens Mount Cap
- Limited 1-Year Warranty
Not in the Box
- Essential Recording Media (Not Included)
- Essential Cine Lenses (Not Included)
Firmware Updates
Z CAM E2-S6 Super 35 6K Cinema Camera (EF Mount) Specs
| Lens Mount | Canon EF |
| Sensor Resolution | Effective: 26 Megapixel |
| Sensor Type | 23.4 x 15.67 mm (Super35) CMOS |
| Built-In ND Filter | None |
| ISO Sensitivity | 400 to 125,000 (Expanded) 400 to 1250 (Native) |
| Shutter Type | Rolling Shutter |
| Shutter Speed | 1/1 to 1/8000 sec |
| Shutter Angle | 1 to 360° |
| Advertised Dynamic Range | 14 Stops |
| Raw Recording |
Raw 10-Bit: 6244 x 4168 at 30 fps (1.2 Gb/s) Raw 12-Bit: 6244 x 4168 (300 Mb/s) |
| Recording Modes | H.265/MOV/MP4 4:2:0 10-Bit: 6244 x 4168p up to 30 fps (300 Mb/s) 6144 x 3240p up to 48 fps (300 Mb/s) 6144 x 2592p at 60 fps (300 Mb/s) 5760 x 3240p up to 48 fps (300 Mb/s) 5552 x 4164p up to 30 fps (300 Mb/s) 4992 x 4160p up to 30 fps (300 Mb/s) 4096 x 2160p up to 75 fps (300 Mb/s) 4096 x 1728p up to 100 fps (300 Mb/s) 3840 x 2160p up to 75 fps (300 Mb/s) 1920 x 1080p up to 120 fps (300 Mb/s) H.264/MOV/MP4 4:2:0 8-Bit: 6244 x 4168p up to 30 fps (300 Mb/s) 6144 x 3240p up to 48 fps (300 Mb/s) 6144 x 2592p at 60 fps (300 Mb/s) 5760 x 3240p up to 48 fps (300 Mb/s) 5552 x 4164p up to 30 fps (300 Mb/s) 4992 x 4160p up to 30 fps (300 Mb/s) 4096 x 2160p up to 75 fps (300 Mb/s) 4096 x 1728p up to 120 fps (300 Mb/s) 3840 x 2160p up to 75 fps (300 Mb/s) 3840 x 1620p up to 90 fps (300 Mb/s) 1920 x 1080p up to 120 fps (300 Mb/s) |
| Variable Frame Rates | Up to 120 fps |
| Audio Recording | MOV: 2-Channel 24-Bit 48 kHz LPCM Audio MP4: 2-Channel 24-Bit 48 kHz AAC Audio MOV: 2-Channel 24-Bit 48 kHz AAC Audio |
| Video Output | 4:2:2 10-Bit via HDMI: 3840 x 2160p at 60 fps |
| IP Streaming | Yes |
| Media/Memory Card Slot | Single Slot: CFast (CFast 2.0) |
| Video Connectors | 1 x HDMI (HDMI 2.0) Output |
| Audio Connectors | 1 x 1/8" / 3.5 mm Stereo Input 1 x 5-Pin LEMO Input 1 x 1/8" / 3.5 mm Stereo Output |
| Built-In Microphone Type | Stereo |
| Other I/O | 1 x USB Type-C Camera Interface Data, Control Input/Output 1 x 2.5 mm LANC Control Input 1 x RJ45 Gigabit Ethernet, LAN Data, Control, Monitor Input/Output 2 x 4-Pin LEMO Camera Interface Control Input/Output |
| Wireless Interfaces | 2.4 GHz, 5 GHz Wi-Fi Control |
| Size | 1.3" |
| Display Type | Fixed LCD |
| EVF | Optional, Not Included |
| Battery Type | Sony L-Series |
| Power Connectors | 1 x 2-Pin LEMO (12 VDC) Input 1 x 2-Pin LEMO (12 VDC) Output |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Accessory Mount | 11 x 1/4"-20 Female |
| Material of Construction | Aluminum |
| Dimensions | 4.81 x 3.91 x 3.59" / 122.25 x 99.25 x 91.2 mm |
| Weight | 2.4 lb / 1090 g |
| Package Weight | 4.58 lb |
| Box Dimensions (LxWxH) | 10.4 x 8.7 x 5.2" |
Z CAM Interchangeable Lens Mount with Active Lock for Z CAM E2-M4 (MFT Mount) Specs
| Lens Mount | Micro Four Thirds |
| Package Weight | 0.525 lb |
| Box Dimensions (LxWxH) | 4.6 x 4.3 x 2.6" |
