Description

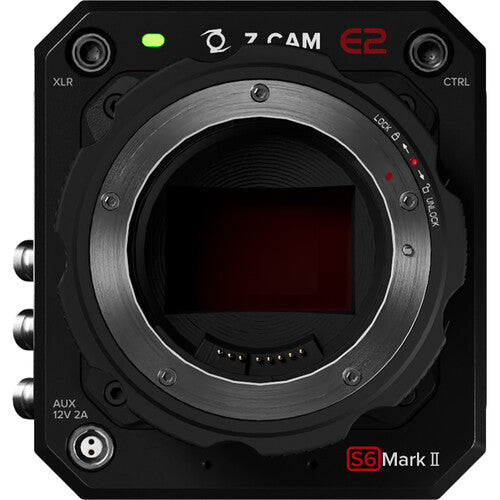

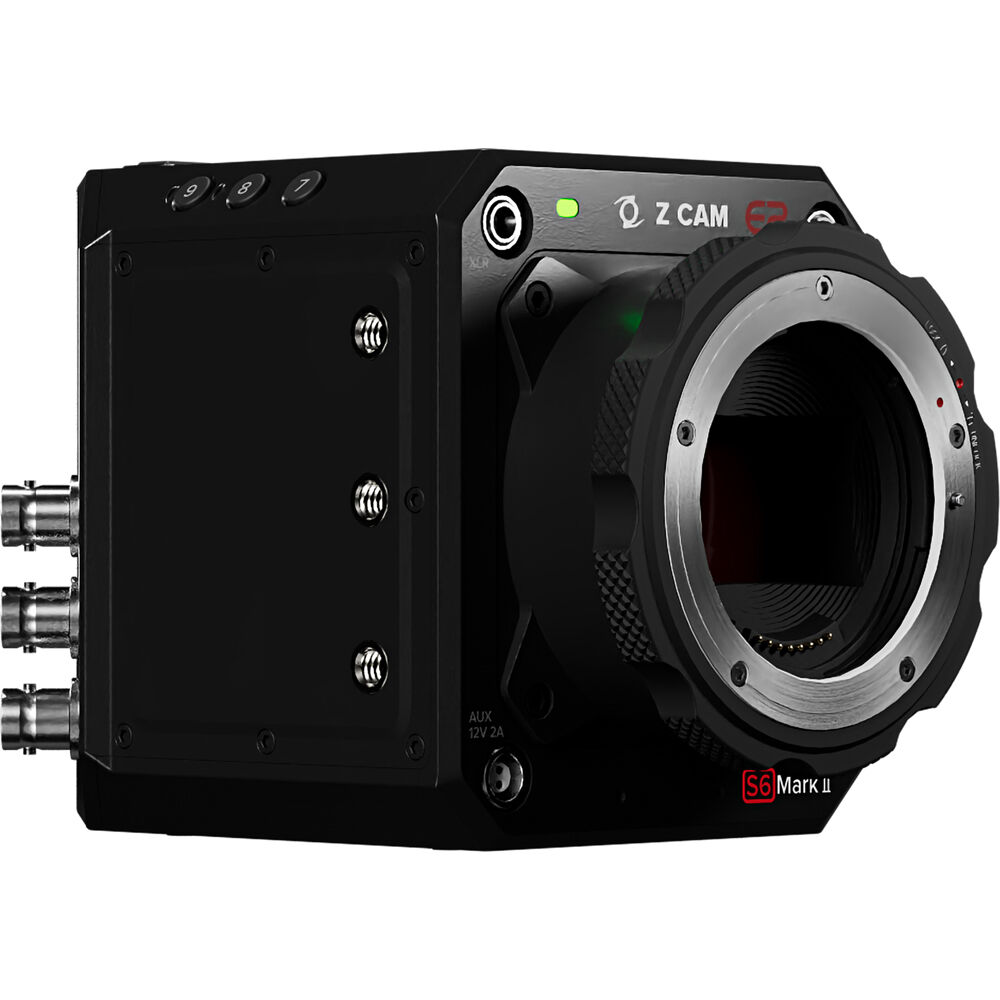

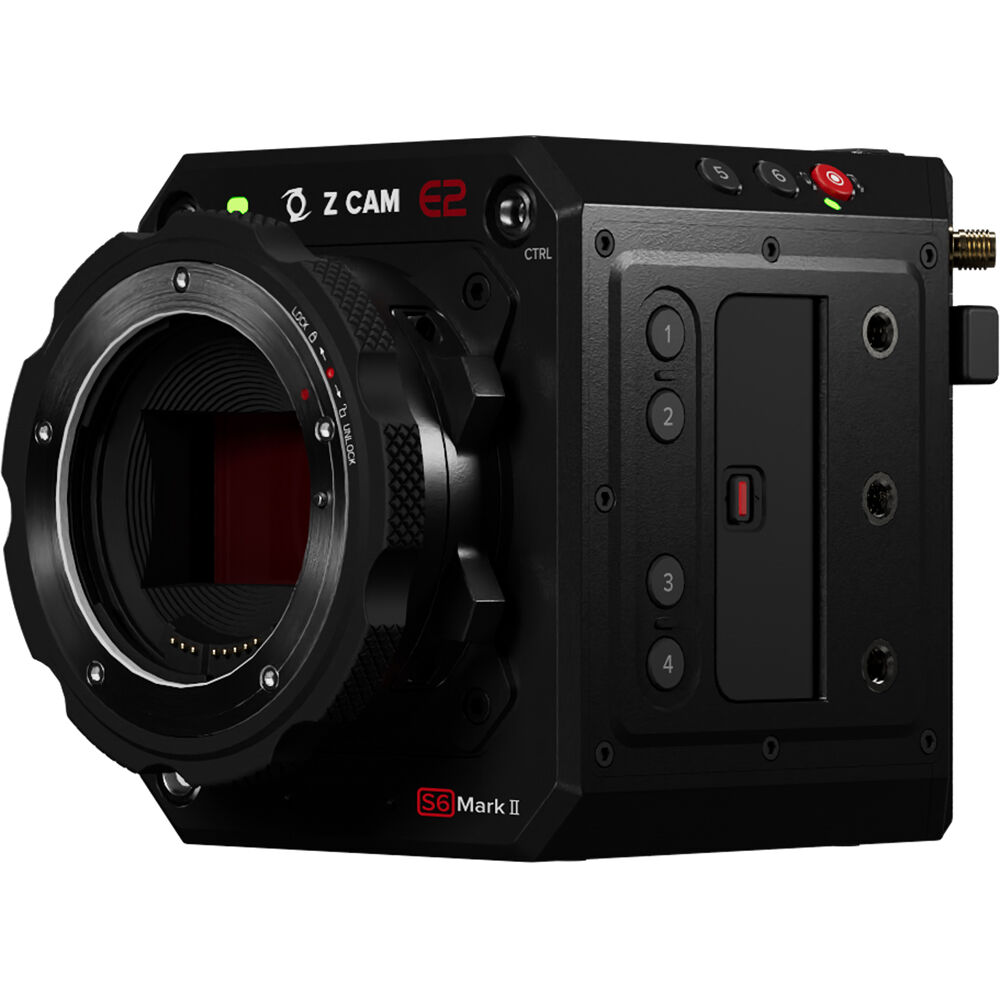

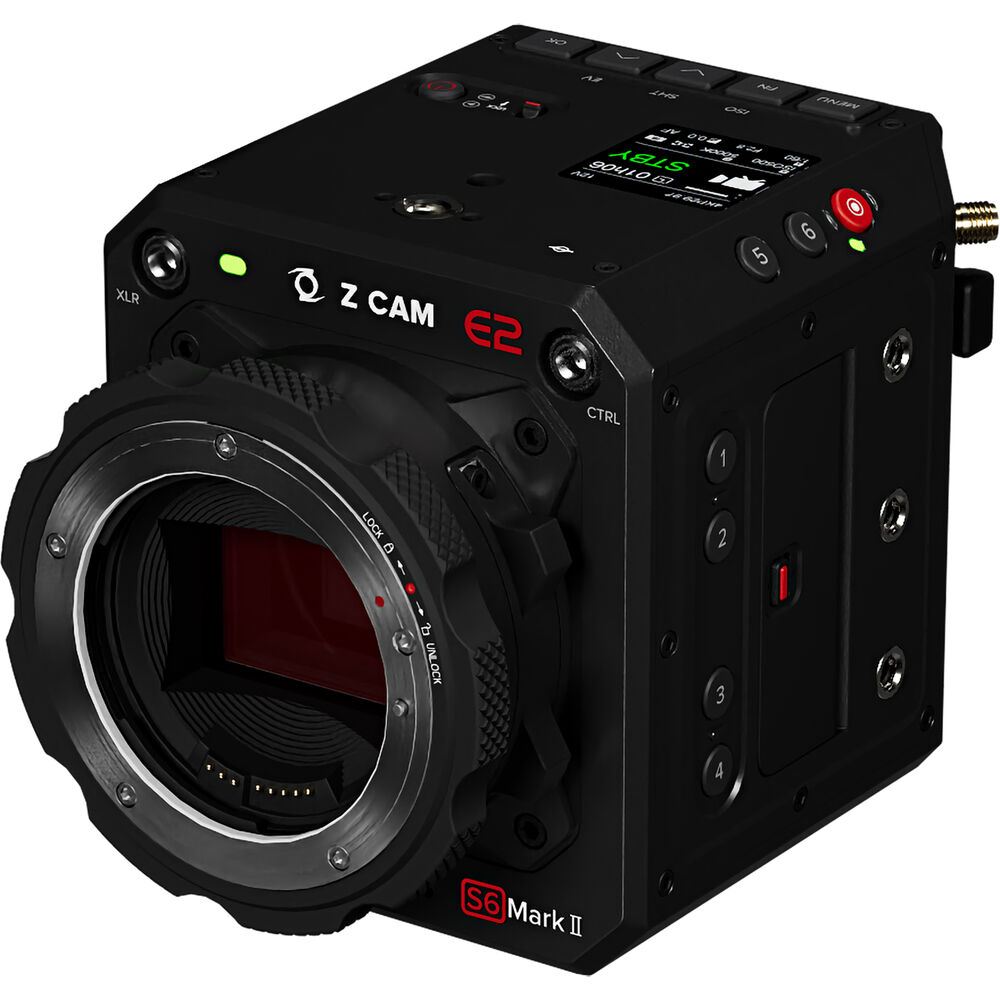

Z CAM E2-S6 MKII EF Mount Overview
The
Z CAM E2-S6 Mark II Super 35 6K Cinema Camera adds connectivity and stabilization improvements to the previous camera model while maintaining its interchangeable Canon EF lens mount and the ability to record ProRes RAW to select Atomos recorder/monitors. The camera records 6K video at up to 60 fps and HD to 120 fps, all to a CFexpress Type B card (not included). Live stream RTSP, RTMP, and SRT protocols directly from the camera via a Gigabit Ethernet connection. The camera features a Super 35 sensor with 10-bit color support and 14 stops of dynamic range. ISO settings include 400 and 1250 in native mode and a total manual range of 400 to 128,000.
Expanded Interfaces

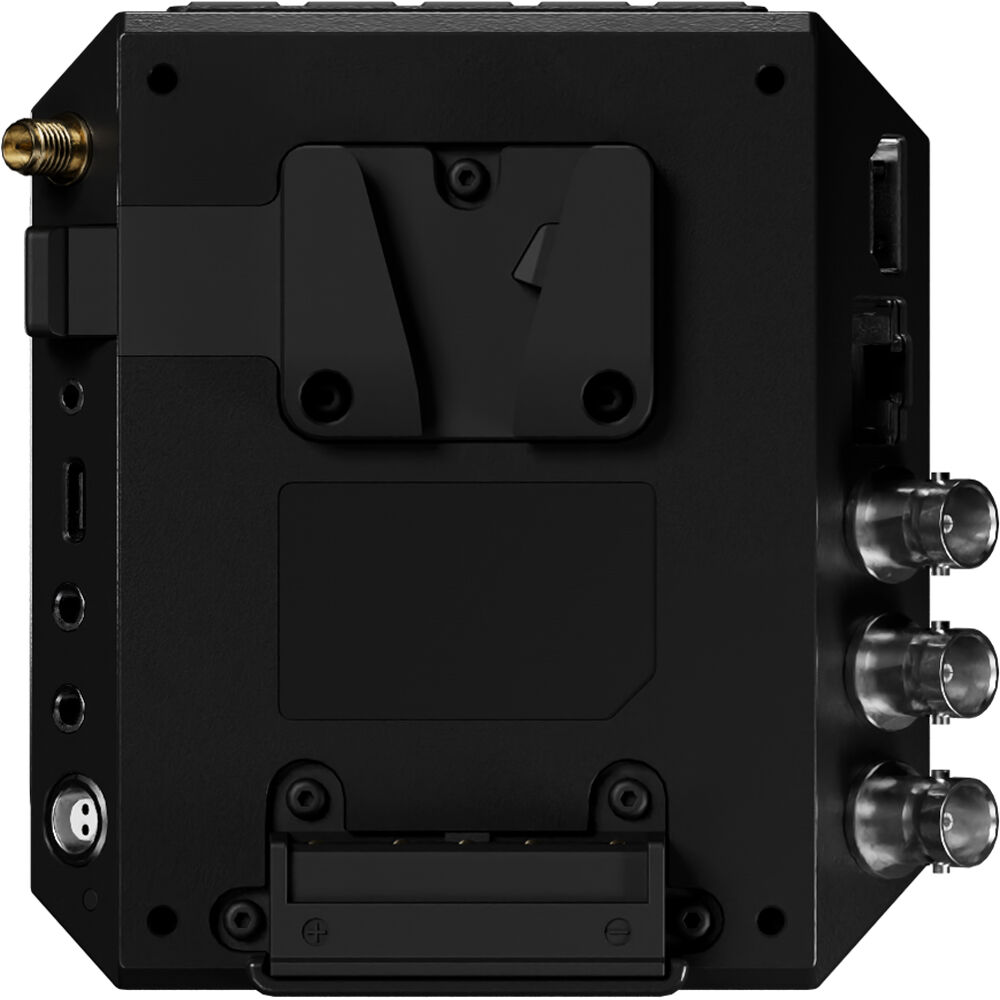

The E2-S6 Mark II features both HDMI and 3G-SDI output ports for expanded connectivity in comparison to its predecessor. On top of this, Timecode and Genlock BNC inputs are built-in, allowing you to forgo additional adapters. Use the USB-C, 2.5mm LANC, and Serial CTRL ports to facilitate camera control with compatible ecosystems. A Gigabit Ethernet port also helps control the camera and live stream, and it even supports PoE+. Audio connectivity includes a 3.5mm stereo jack input, 5-pin LEMO input, and 3.5mm stereo jack output.
Built-In Gyroscopic Sensor
New to the second-generation camera is a built-in gyroscopic sensor. This improves the stabilization of your footage.
6K Capture and Recording
- Unburdened by a recording time limit, you can record 6K at up to 60 fps and 120 fps at 4K fps for up to the limit of your recording media's capacity
- CMOS sensor with 14 stops of dynamic range
- Supports ZRAW, REC. 709, Z-Log2, FLAT, HLG, Vivid 0/1/2, and Gamma
- H.265 (10-bit color) internal recording on CFexpress Type-B card
- 4K60, 10-bit 4:2:2 video output through HDMI 2.0 is supported
- Aluminum alloy housing for efficient heat dissipation
Multicamera Synchronization
Using high sync precision and open API technology, multiple Z CAM units can sync together for live event applications. Connect the units to a network switch to activate EzLink Sync. Designate Master and Remote units by daisy-chaining the cameras via Z CAM sync cables. Cat 6 Ethernet cables interconnect the wireless signals for precise sync at a latency of 0.5 ms.
iOS App
Z Camera is a mobile application that allows camera live preview and control through a Wi-Fi/USB cable connection. It allows you to start/stop recording and adjust the camera settings remotely, and it has advanced features such as on-camera live preview. It can be downloaded from the Apple App Store.
Camera Body
- Made from aluminum for strength and heat dissipation
- Powers from separately available AC/DC adapter, PoE+, or mini V-mount batteries
- Active, interchangeable Canon EF mount
UPC: 841687100245
Items Included
- Z CAM E2-S6 Mark II Super 35 6K Cinema Camera (Canon EF)
- LEMO Power Cable
- Lens Mount Cap
- Limited 1-Year Manufacturer Warranty
Not Included
-
Recording MediaEssential
-
Cine LensesEssential
Additional Resources
No additional resources available
Z CAM E2-S6 MKII EF Mount Specs
Key Specs
| Lens Mount |
Canon EF
|
| Image Sensor |
Super35 CMOS
|
| Sensor Resolution |
Effective: 26 Megapixel
|
| Image Stabilization |
No
|
| ISO/Gain Sensitivity |
Native: 500 to 102,400
|
| Internal Recording |
MP4/MOV/ProRes 422LT/ProRes 422 Proxy/ProRes 422 HQ/ProRes 422 4:2:2 10-Bit
6064 x 4040 up to 30.00 fps 4848 x 4040 up to 30.00 fps 5376 x 4032 up to 30.00 fps 5760 x 3240 up to 48.00 fps 6064 x 3196 up to 48.00 fps 4096 x 3072 up to 50 fps 4064 x 2712 up to 60.00 fps 5120 x 2700 up to 60.00 fps 4800 x 2700 up to 60.00 fps 6064 x 2560 up to 60.00 fps 4096 x 2160 up to 90 fps 3840 x 2160 up to 90 fps 4096 x 1728 up to 120 fps 1920 x 1080 up to 120 fps |
| Video Output |
HDMI
4096 x 2160 at 60.00 fps |
| Media/Memory Card Slot |
Single Slot: CFast (CFast 2.0)
|
| Video I/O |
1x HDMI 2.0 Output
|
| Mobile App Compatible |
Yes: Android & iOS
|
| Battery |
Sony L-Series
|
Imaging
| Lens Mount |
Canon EF
|
| Image Sensor |
Super35 CMOS
|
| Sensor Resolution |
Effective: 26 Megapixel
|
| Image Stabilization |
No
|
Exposure Control
| Shutter Type |
Electronic Rolling Shutter
|
| ISO/Gain Sensitivity |
Native: 500 to 102,400
|
Video Capture
| Internal Recording |
MP4/MOV/ProRes 422LT/ProRes 422 Proxy/ProRes 422 HQ/ProRes 422 4:2:2 10-Bit
6064 x 4040 up to 30.00 fps 4848 x 4040 up to 30.00 fps 5376 x 4032 up to 30.00 fps 5760 x 3240 up to 48.00 fps 6064 x 3196 up to 48.00 fps 4096 x 3072 up to 50 fps 4064 x 2712 up to 60.00 fps 5120 x 2700 up to 60.00 fps 4800 x 2700 up to 60.00 fps 6064 x 2560 up to 60.00 fps 4096 x 2160 up to 90 fps 3840 x 2160 up to 90 fps 4096 x 1728 up to 120 fps 1920 x 1080 up to 120 fps |
| Video Output |
HDMI
4096 x 2160 at 60.00 fps |
Interface
| Media/Memory Card Slot |
Single Slot: CFast (CFast 2.0)
|
| Internal Storage |
No
|
| Video I/O |
1x HDMI 2.0 Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
1x 1/8" / 3.5 mm TRS Stereo Line Output |
| Power I/O |
1x LEMO 2-Pin (12 to 18VDC) Input
1x LEMO 2-Pin (12VDC up to 3 A) Output |
| Other I/O |
1x USB-C
1x RJ45 (NDI, LAN) |
| Wireless |
Wi-Fi 5 (802.11ac)
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Z CAM |
| Global Positioning (GPS, GLONASS, etc.) |
No
|
Power
| Battery |
Sony L-Series
|
General
| Dimensions (W x H x D) |
3.91 x 3.8 x 3.6" / 99.25 x 95.6 x 91.2 mm (Without Protrusions)
|
| Weight |
2.4 lb / 1090 g (Body Only)
|
Packaging Info
| Package Weight |
3.4 lb
|
| Box Dimensions (LxWxH) |
8.5 x 6.8 x 6"
|
