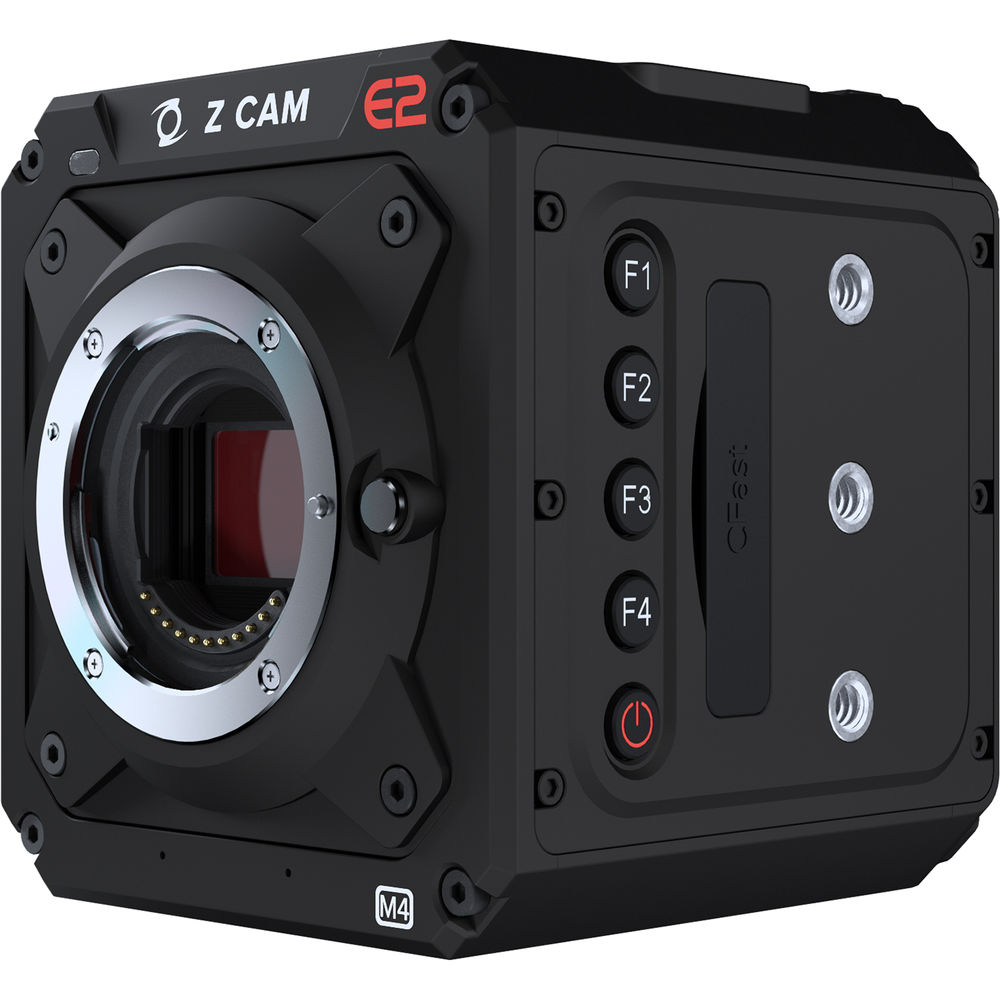

Z CAM E2-M4 Professional 4K Cinema Camera (Micro Four Thirds)

DCI & UHD 4K up to 160 fps

Interchangeable MFT Lens Mount

ProRes RAW & 12-Bit Color Support

4/3" WDR CMOS Sensor/Flagship Housing

The Z CAM E2-M4 Professional 4K Cinema Camera features an interchangeable Micro Four Thirds lens mount, a Flagship Series housing, and like all Z CAM E2s with the latest update, the ability to record ProRes RAW using select Atomos recorder/monitors. This compact camera records DCI and UHD 4K at up to 160 fps, as well as HD up to 240 fps, and records to a CFast 2.0 card (not included). A future update will enable the E2-M4 to will support RTMP, RTPS, and SRT live streaming directly from the camera without requiring a computer. The camera features a 4/3" sensor with 10/12-bit color support and nominal 13 stops of dynamic range with 16 stops when set to WDR. ISO settings include 500 and 2500 in native mode, 250 and 1250 with WDR activated, and a total manual range of 500 to 102,400. The E2-M4 supports recording in ProRes 422 in 10-bit, as well as H.265 and H.264 codecs for efficient compressing of your image.

The E2-M4 can be controlled via serial ports, a 2.5mm LANC connector, a USB Type-C port, an Ethernet port, or by the Z Camera iOS app to control the camera via Wi-Fi and to view a live image preview and to configure settings. The camera can record time-lapse, slow motion, and can even live stream via its Gigabit Ethernet port. Power the E2-M4 camera from a separately available L-series battery or AC adapter.

Note: An AC power supply or battery is not included. ProRes RAW Will support 12-bit ProRes RAW recording over HDMI when used with select Atomos recorder/monitors. Interchangeable Micro Four Thirds Mount The included MFT mount can be swapped out for separately available ARRI PL or Leica M lens mounts, giving you access to a wide array of lenses. Direct Streaming from Camera Will support RTMP, RTPS, and SRT live streaming directly from the camera without requiring a computer. 4K Capture and Recording

• Records DCI/UHD 4K up to 160 fps or 1080p up to 240 fps, to the limit of your recording media's capacity
• Native ISO: 500 and 2500, with WDR activated: 250 and 1250
• 13-15 stops of dynamic range using Z-Log2, and 16 stops of dynamic range in WDR mode
• Built-in multi-frame noise reduction technology to produce clean footage
• H.265 (10-bit color) internal recording on CFast 2.0 card
• 10-bit ProRes recording in 422 HQ, 422, 422 LT, and 422 Proxy is supported
• Video output through HDMI 2.0 is supported (up to DCI 4K at 60 fps, 10-bit color, YUV 422)
• Full metal housing for efficient heat dissipation

Interfaces and Expandability

• USB Type-C port for live view and control via iOS device with Z Camera app installed
• The USB Type-C port can also be used for external SSD recording
• Ethernet port for live view, control, and file transfer to browser or computer running Z CAM software
• HTTP API and SDK are also available
• COM (RS232) port supports UART protocol
• LANC port for remote control including power on/off

iOS App Z Camera is a mobile application for camera live preview and control through Wi-Fi/USB cable connection. It allows you to start/stop recording and adjust the camera settings remotely, and also has advanced features on-camera live preview. It can be downloaded from the Apple App Store. Camera Body

• Made from aluminum for strength and heat dissipation
• Nine threaded mounting holes around the outside chassis
• Sensor plane marking for accurate distance measurements
• Powers from separately available AC/DC adapter or L-series batteries
• Active, interchangeable MFT mount

UPC: 841687100016

Sensor Size	19 x 13 mm (4/3")
Sensor Type	CMOS
Sensor Resolution	Effective: 10.28 Megapixel
Color Filter	Bayer
Shutter Type	Rolling Shutter
ISO	500 to 2500 (Native) 500 to 102,400 (Expanded)
Advertised Dynamic Range	16 Stops

Lens Mount	Micro Four Thirds
Lens Communication	Yes
Interchangeable Lens Mount	Yes
Shutter Angle	1 to 360°
Built-In ND Filter	None
Built-In Microphone Type	Stereo
Media/Memory Card Slot	Single Slot: CFast (CFast 2.0)
Variable Frame Rates	Up to 120 fps

Recording Modes

ProRes 422HQ 4:2:2 10-Bit: 4096 x 2160p up to 30 fps  3840 x 2160p up to 30 fps  3696 x 2772p up to 30 fps  1920 x 1080p up to 100 fps  ProRes 422 4:2:2 10-Bit: 4096 x 2160p up to 48 fps  3840 x 2160p up to 60 fps  3696 x 2772p up to 48 fps  1920 x 1080p up to 120 fps  ProRes 422LT 4:2:2 10-Bit: 4096 x 2160p up to 60 fps  3840 x 2160p up to 60 fps  3696 x 2772p up to 60 fps  1920 x 1080p up to 120 fps  ProRes 422 Proxy 4:2:2: 4096 x 2160p up to 60 fps  3840 x 2160p up to 60 fps  3696 x 2772p up to 60 fps  1920 x 1080p up to 120 fps  H.265 10-Bit: 4096 x 2160p up to 23.98/24/25/29.97/50/59.94/120 fps (230 Mb/s)  3840 x 2160p up to 24/25/29.97/50/59.94/120 fps (230 Mb/s)  2696 x 2772p at 23.98/24/29.97/50/59.94 fps (230 Mb/s)  1920 x 1080p up to 23.98/24/25/29.97/50/59.94/240 fps (200 Mb/s)  H.264 8-Bit: 4096 x 2160p up to 23.98/24/25/29.97/50/59.94/120 fps (230 Mb/s)  3840 x 2160p up to 23.98/24/25/29.97/50/59.94/120 fps (230 Mb/s)  3696 x 2772p at 23.98/24/25/29.97/50/59.94 fps (230 Mb/s)  1920 x 1080p up to 23.98/24/25/29.97/50/59.94/240 fps (200 Mb/s)

Raw Output

HDMI In Raw Mode: 4128 x 2176

Video Connectors	1 x HDMI (HDMI 2.0) Output
Audio Connectors	1 x 1/8" / 3.5 mm Stereo Mic Level Input 1 x 1/8" / 3.5 mm Stereo Output 1 x 5-Pin LEMO Mic Level Input
Other I/O	1 x USB Type-C 1 x 10-Pin LEMO Sync 1 x 9-Pin D-Sub RS-232 1 x 2.5 mm LANC Control 1 x RJ45 LAN
Wireless Interfaces	2.4 GHz Wi-Fi

Display Type	Fixed LCD
Size	1.3"

EVF	Optional, Not Included

Battery Type	Sony L-Series
Power Connectors	1 x 4-Pin LEMO (12 VDC at5 A) Input

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C

Accessory Mount	8 x 1/4"-20 Female
Tripod Mounting Thread	1/4"-20 Female
Material of Construction	Aluminum
Dimensions	3.91 x 3.76 x 3.59" / 99.25 x 95.6 x 91.2 mm (Without Protrusions)
Weight	2.05 lb / 930 g

Package Weight	4.185 lb
Box Dimensions (LxWxH)	10 x 8.65 x 4.9"
