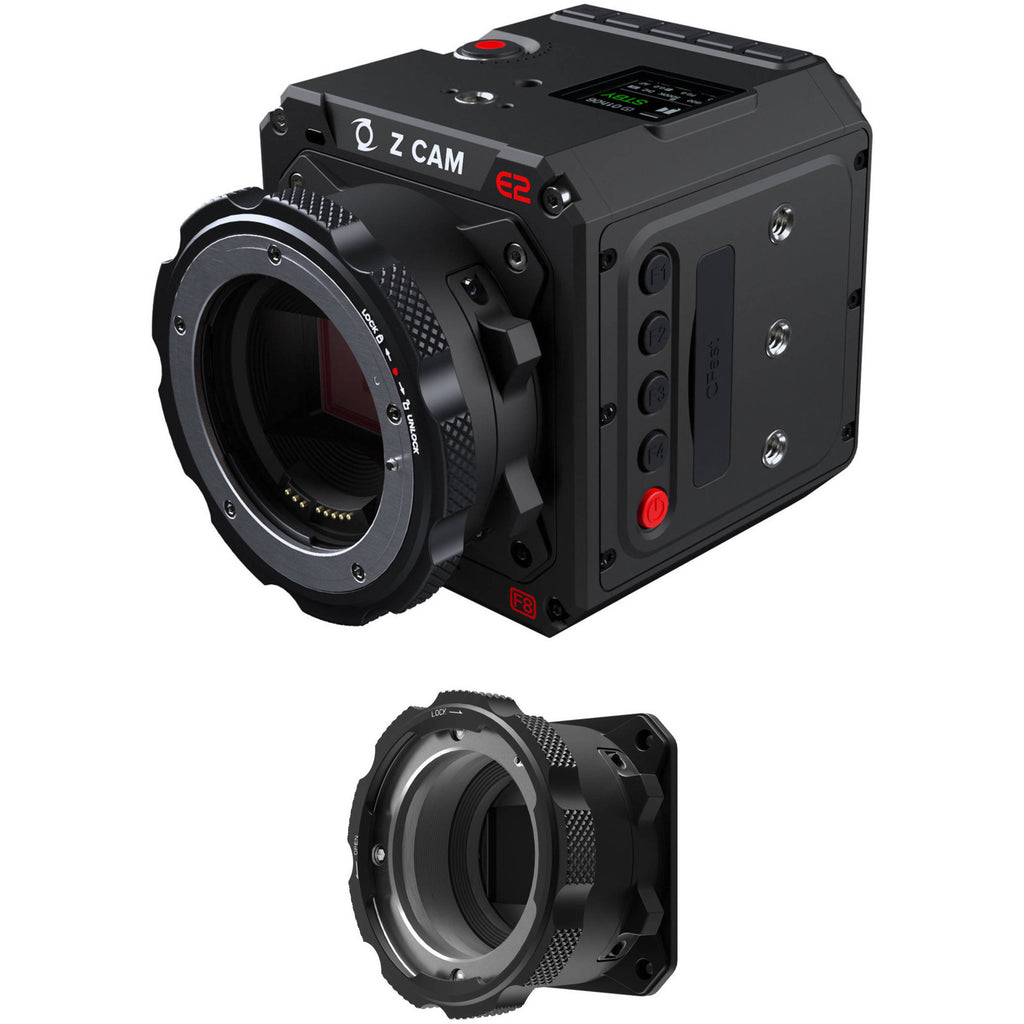

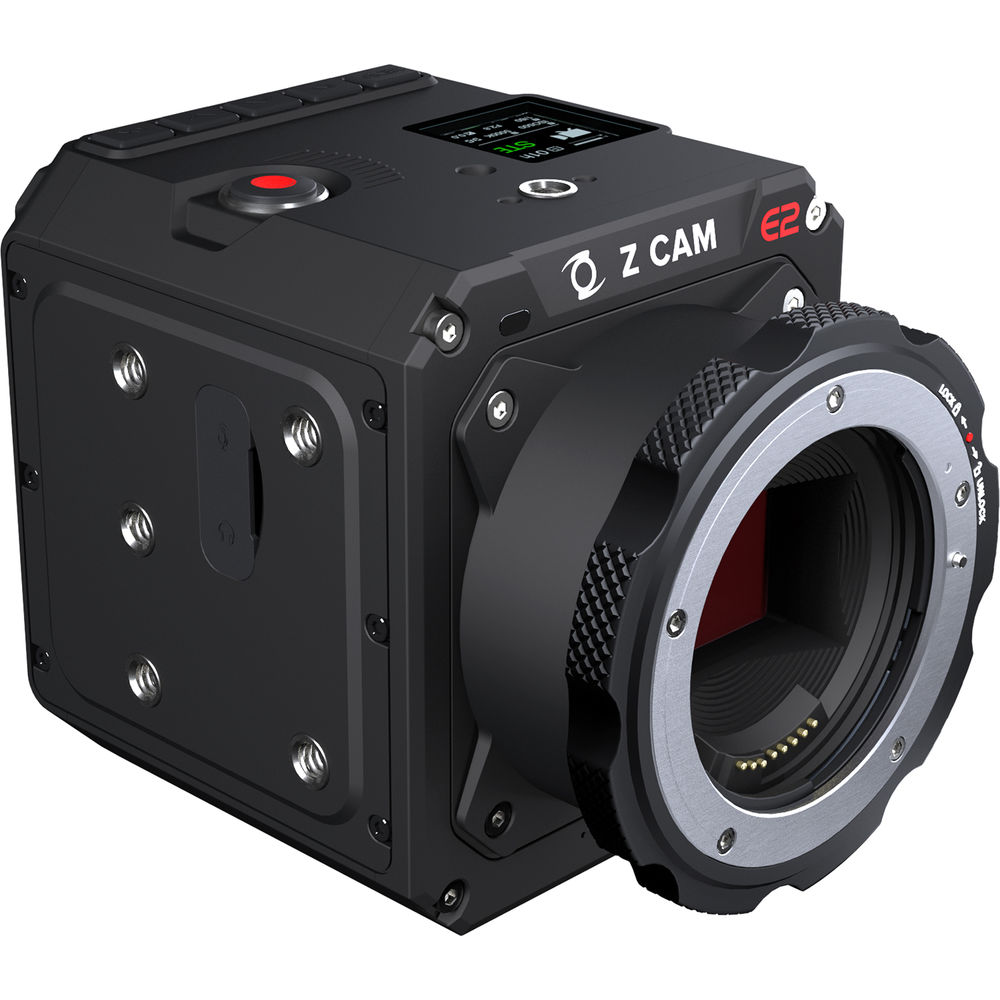

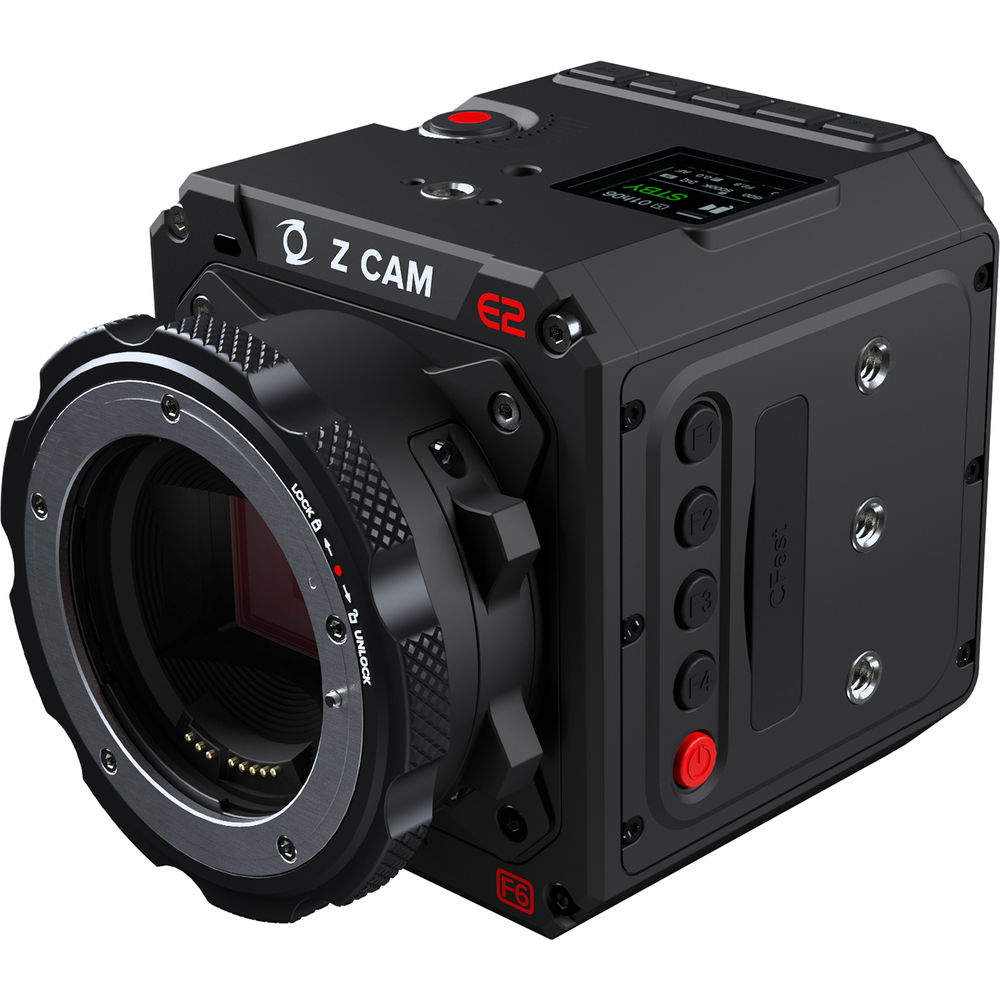

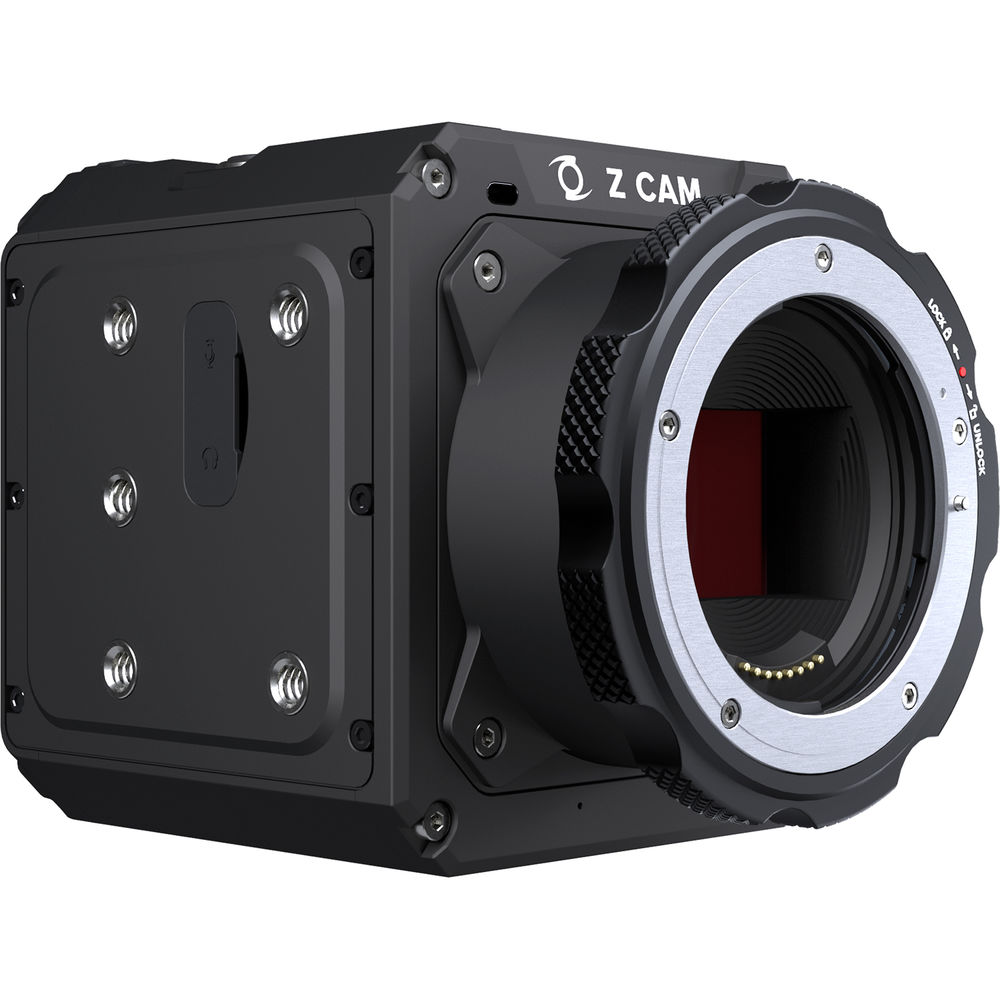

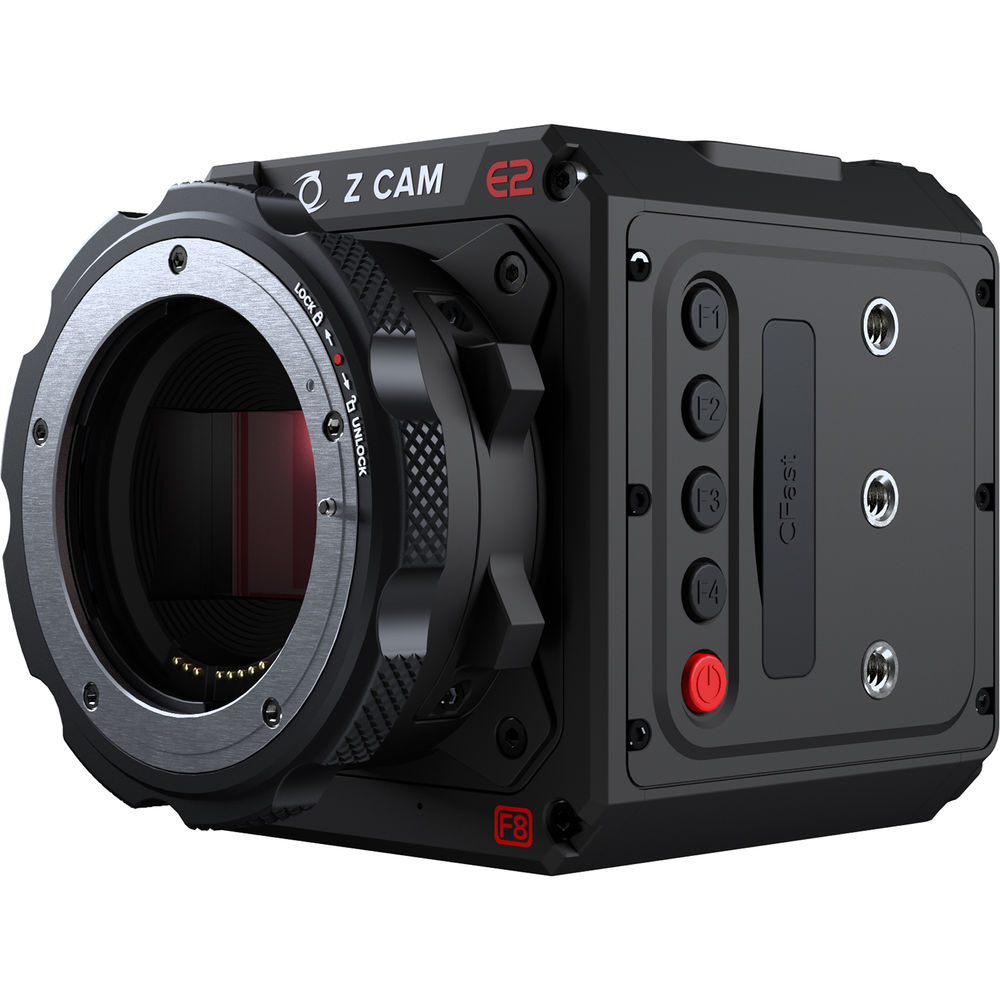

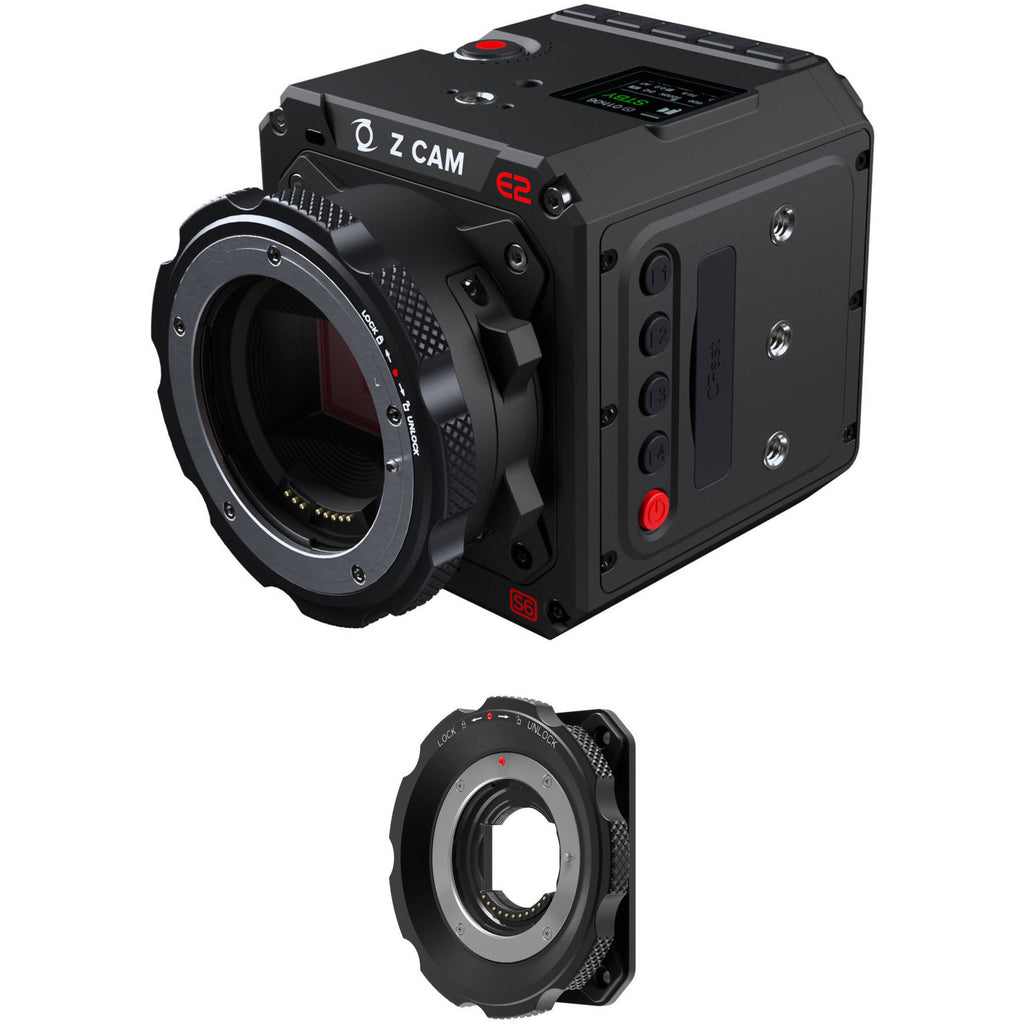

Z CAM E2-F8 Full-Frame 8K Cinema Camera (EF Mount)

Record up to 8K30 Video

12-Bit ZRAW Recording

14 Stops of Dynamic Range

Full-Frame CMOS Sensor

Shoot professional high-definition cinema footage with the Z CAM E2-F8 Full-Frame 8K Cinema Camera with a Canon EF lens mount. The camera features a full-frame sensor with 10-bit 4:2:2 color support and nominal 14 stops of dynamic range, supports timecode, shoots up to 8K at up to 30 fps, and records data up to 300 Mb/s onto CFast 2.0 media.

Supported recording formats include ZRAW format, which supports 12-bit, MOV and MP4 using H.265 for 10-bit recording, and H.264 which supports 8-bit recording. Its HDMI 2.0 port supports 4K60, 10-bit 4:2:2 video output. Audio is recorded in 24-bit 48 kHz using AAC or PCM (PCM for MOV format only) through its 3.5mm stereo jack or via a separately available XLR connector using its 5-pin LEMO port.

The E2-F8 can be controlled via serial ports, a 2.5mm LANC connector, a USB Type-C port, Ethernet port, or by the Z Camera iOS app to control the camera via Wi-Fi and to view a live image preview and to configure settings. The camera can record time-lapse, slow motion, and can even live stream via its Gigabit Ethernet port. You can also control it locally by the buttons along the side of the camera.

The E2-F8 can be powered by a separately available battery using the built-in L-series battery mount, or you can power the camera using a separately available power adapter using its 2-pin LEMO port. The camera also features a 12 VDC 2-pin LEMO power output to provide power to separately available accessories.

Firmware 0.88 Firmware 0.88 enables ZRAW recording to the camera. 8K Capture and Recording

• Unburdened by a recording time limit, you can record 8K at up to 30 fps for up to the limit of your recording media's capacity
• CMOS sensor with 14 stops of dynamic range
• The camera supports ZRAW, REC. 709, Z-Log2, FLAT, and HLG
• ZRAW supports 12-bit recording
• H.265 (10-bit color) internal recording on CFast 2.0 cards
• 4K60, 10-bit 4:2:2 video output through HDMI 2.0 is supported
• Full metal housing for efficient heat dissipation

Interfaces and Expandability

• USB 3.0 Type-C for camera control and data transformation only
• Two serial ports for camera control
• Ethernet port for live view, control, and file transfer to browser or a computer running Z CAM software
• LANC port for remote control including power on/off

iOS App Z Camera is a mobile application for camera live preview and control through 5G or 802.11n Wi-Fi. It allows you to start/stop recording and adjust the camera settings remotely, and also has advanced features on camera live preview. Camera Settings

• White balance: Auto, preset, manual (2300 to 7500K)
• Focus modes: MF, AF, CAF
• Image: Brightness, contrast, saturation, sharpness
• LUT: REC. 709, Z-Log2, FLAT, HLG
• Timecode: Current time, manual input

Camera Body

• Made from aluminum for strength and heat dissipation
• 2-pin LEMO 12 VDC power output
• Powers from separately available power adapter or optional L-series batteries

UPC: 841687100412

Sensor Size	37.09 x 24.75 mm (Full-Frame)
Sensor Type	CMOS
Sensor Resolution	Effective: 61.00 MP
ISO	400 to 125,000 (Expanded) 400 to 1250 (Native)
Advertised Dynamic Range	14 Stops

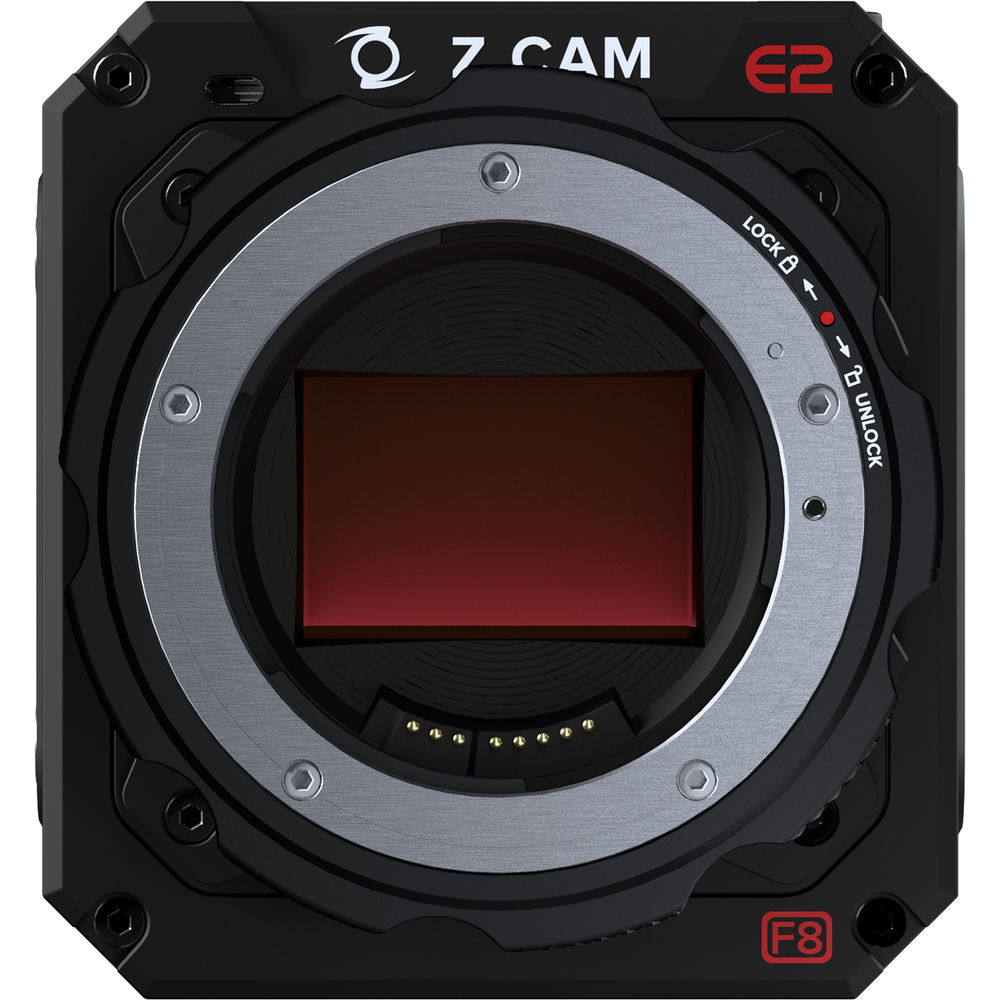

Lens Mount	Canon EF
Shutter Speed	1/1 to 1/8000 sec
Shutter Angle	1 to 360°
Built-In ND Filter	None
Built-In Microphone Type	Stereo
Recording Media	1 x CFast 2.0 Card Slot
Variable Frame Rates	Up to 60 fps

Raw Recording	Raw 12-Bit: 4096 x 2160 at 30 fps (300 Mb/s)
Recording Modes	H.265/MOV/MP4 4:2:0 10-Bit: 8192 x 3456p at 30 fps (300 Mb/s)  7680 x 4320p at 30 fps (300 Mb/s)  6144 x 3240p at 30 fps (300 Mb/s)  5760 x 3240p at 30 fps (300 Mb/s)  3840 x 2160p at 72 fps (300 Mb/s)  H.264/MOV/MP4 4:2:0 8-Bit: 8192 x 3456p at 30 fps (300 Mb/s)  7680 x 4320p at 30 fps (300 Mb/s)  6144 x 3240p at 30 fps (300 Mb/s)  5760 x 3240p at 30 fps (300 Mb/s)  3840 x 2160p at 30 fps (300 Mb/s)
Audio Recording	MOV: 2-Channel 24-Bit 48 kHz LPCM Audio MP4: 2-Channel 24-Bit 48 kHz AAC Audio MOV: 2-Channel 24-Bit 48 kHz AAC Audio

Video Output

4:2:2 10-Bit via HDMI: 3840 x 2160p at 60 fps

Video Connectors	1 x HDMI (HDMI 2.0) Output
Audio Connectors	1 x 1/8" / 3.5 mm Stereo Input 1 x 5-Pin LEMO Input 1 x 1/8" / 3.5 mm Stereo Output

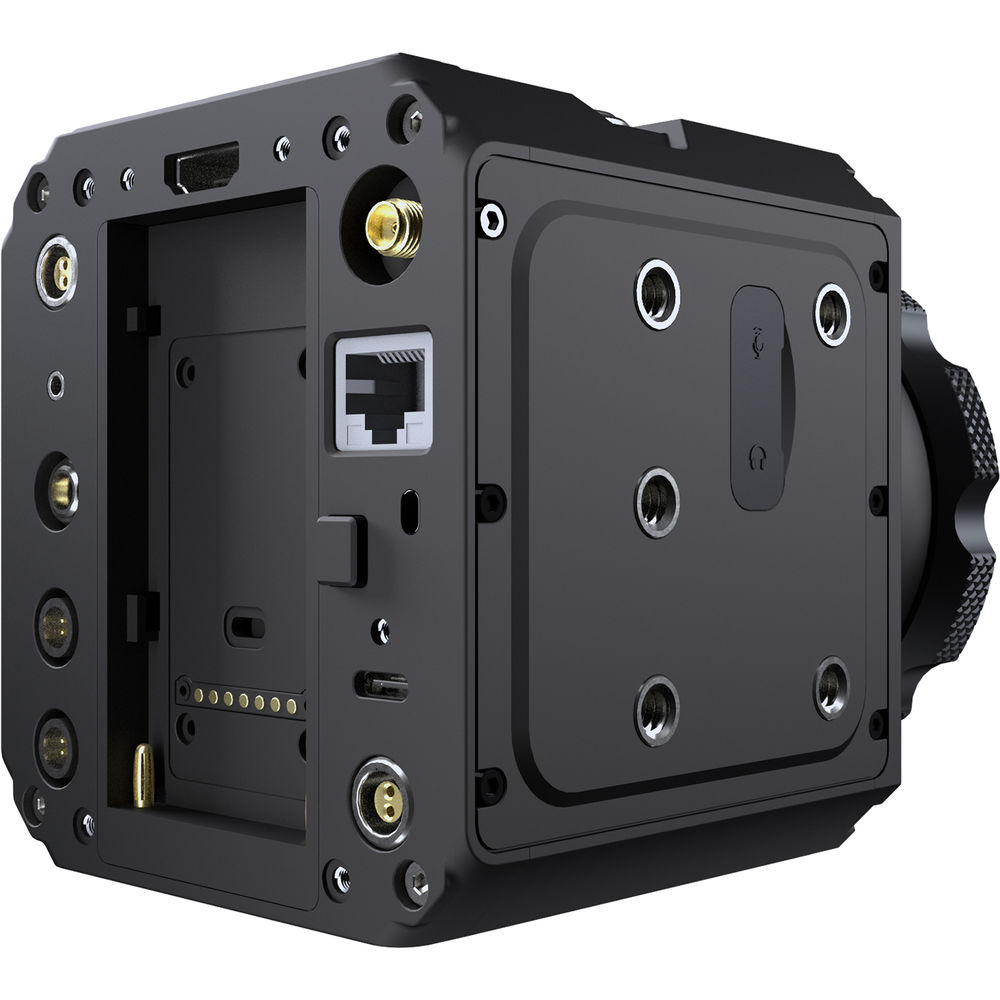

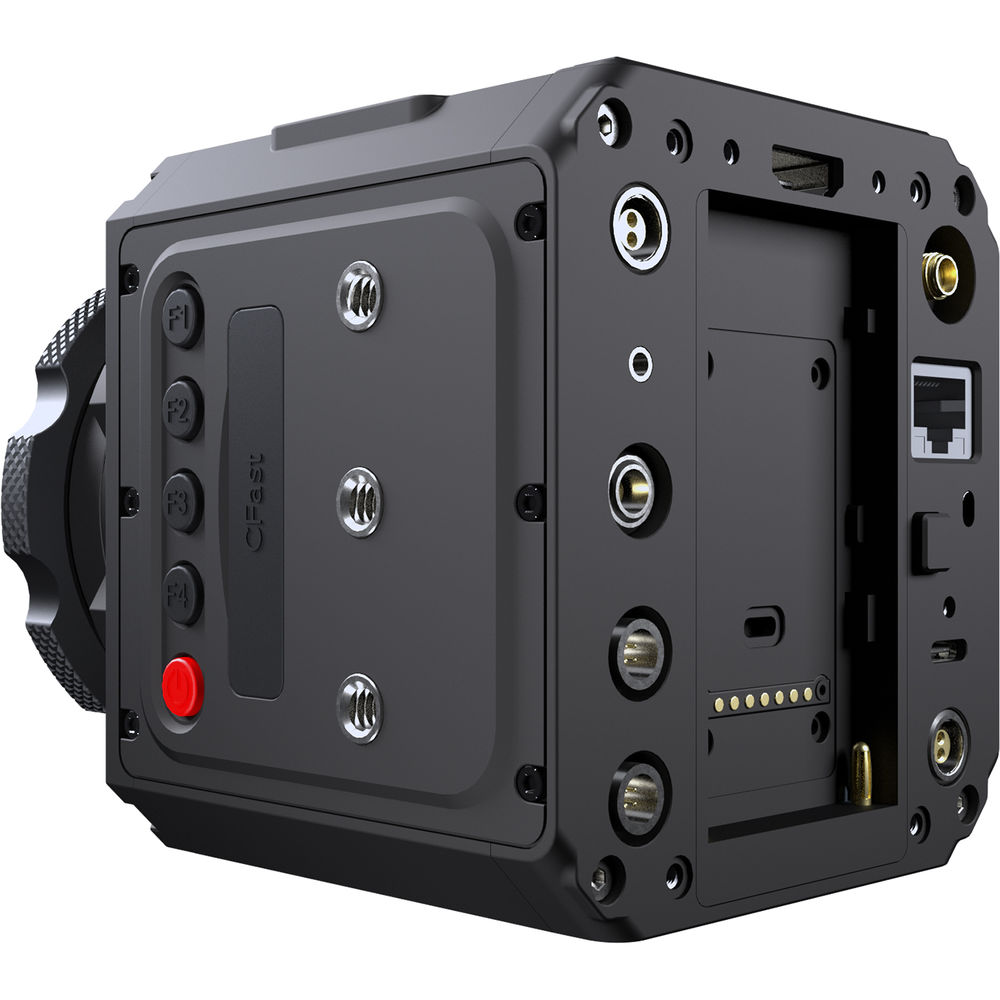

Other I/O	1 x USB Type-C Camera Interface Data, Control Input/Output 1 x 2.5 mm LANC Control Input 1 x RJ45 GIG-E 1000BASE-T, LAN Data, Control, Monitor Input/Output 2 x 4-Pin LEMO Camera Interface Control Input/Output
Wireless Interfaces	2.4 GHz, 5 GHz Wi-Fi Control

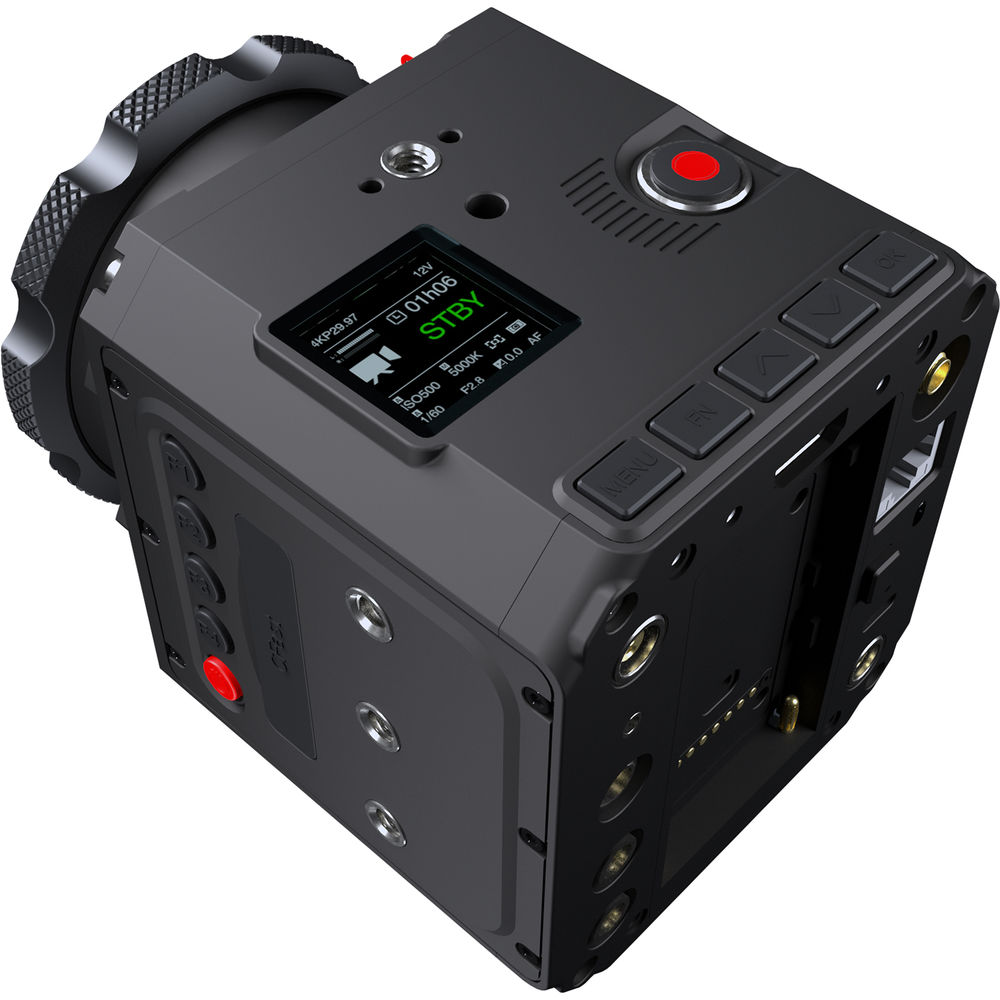

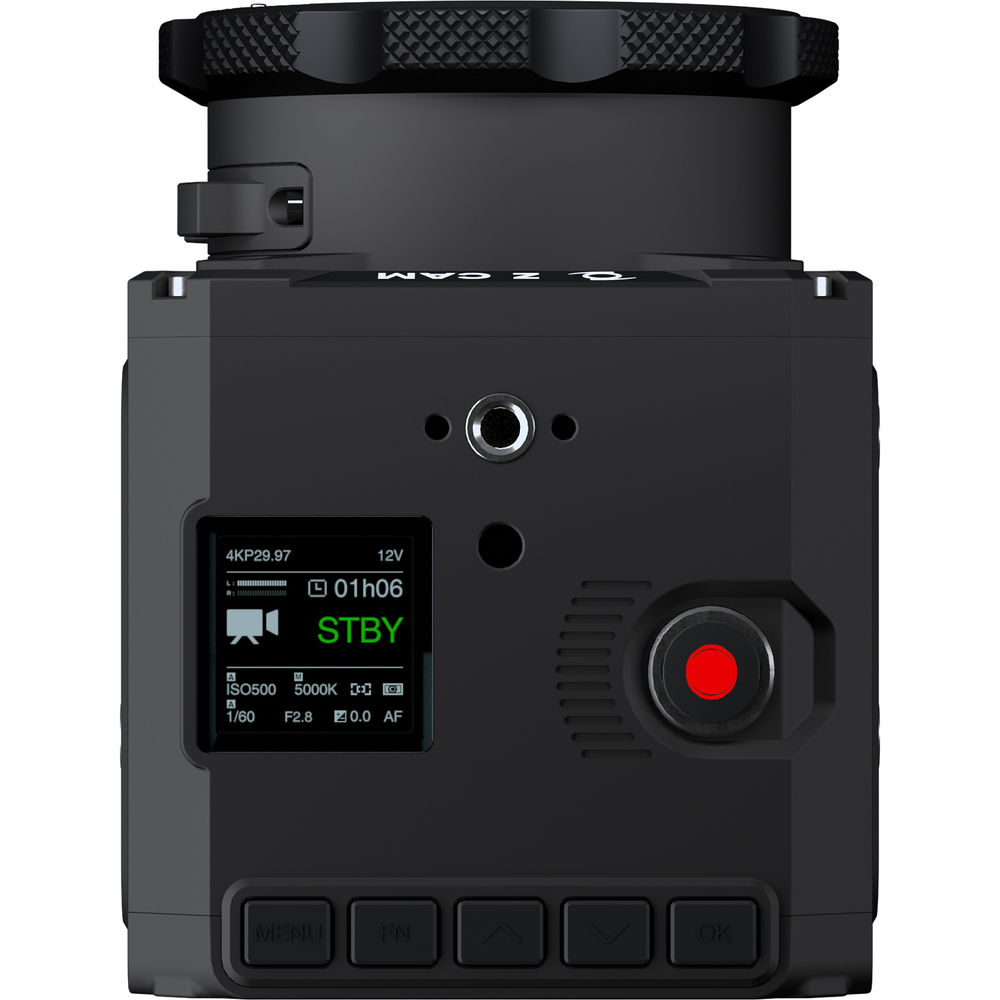

Display Type	Fixed LCD
Size	1.3"

EVF	Optional, Not Included

Battery Type	Sony L-Series
Power Connectors	1 x 2-Pin LEMO (12 VDC) Input 1 x 2-Pin LEMO (12 VDC) Output

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C

Accessory Mount	11 x 1/4"-20 Female

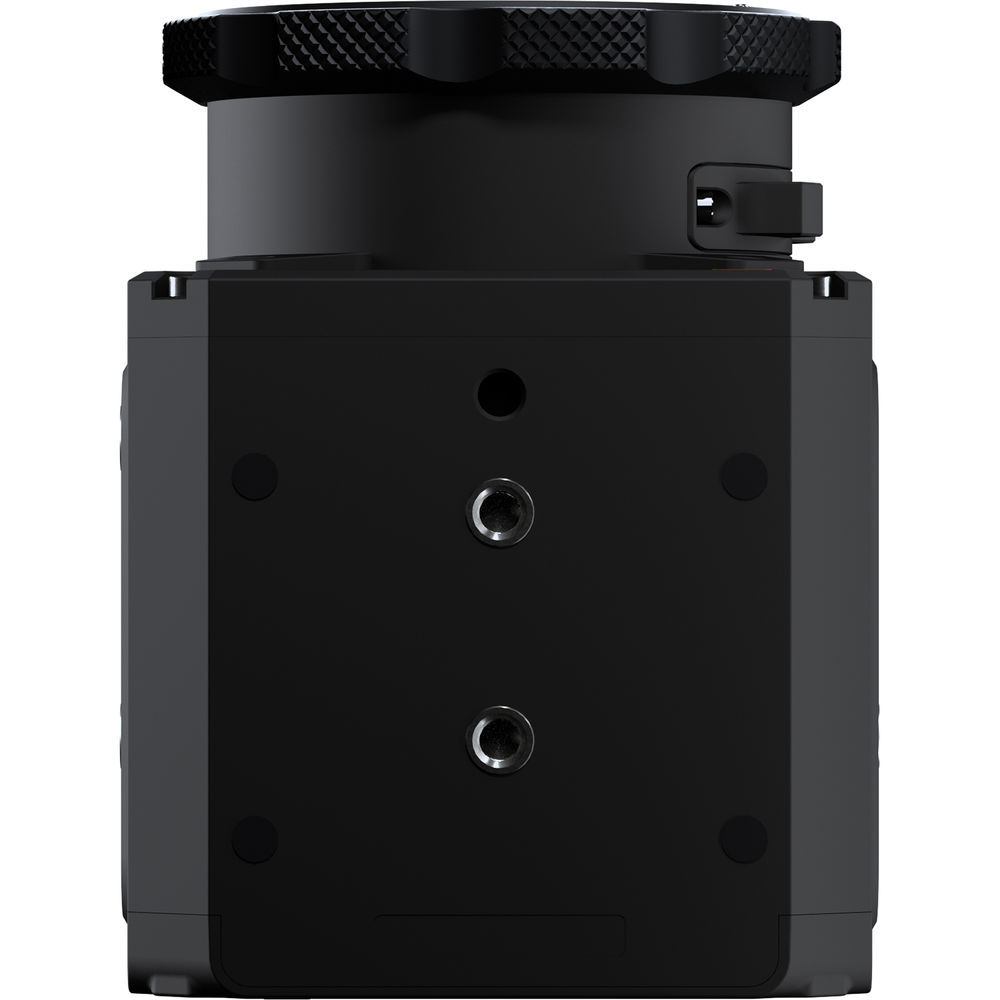

Tripod Mounting Thread	1/4"-20 Female
Material of Construction	Aluminum
Dimensions	3.91 x 3.9 x 3.59" / 99.2 x 99.1 x 91.2 mm
Weight	2.4 lb / 1090 g

Package Weight	4.45 lb
Box Dimensions (LxWxH)	9.9 x 9.2 x 4.9"
