| ₹ 90785.0 includes GST and import duties. | |
| B2B customers can avail ₹ 13844.71 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

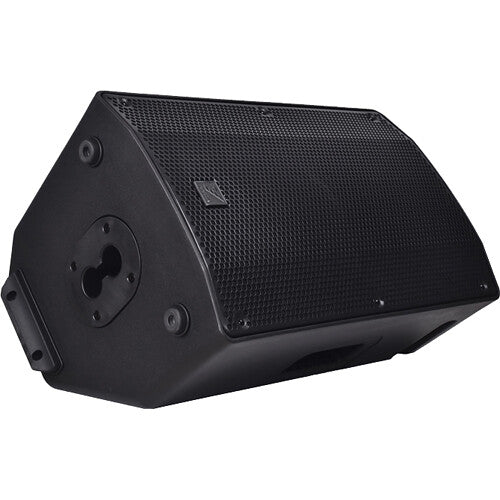

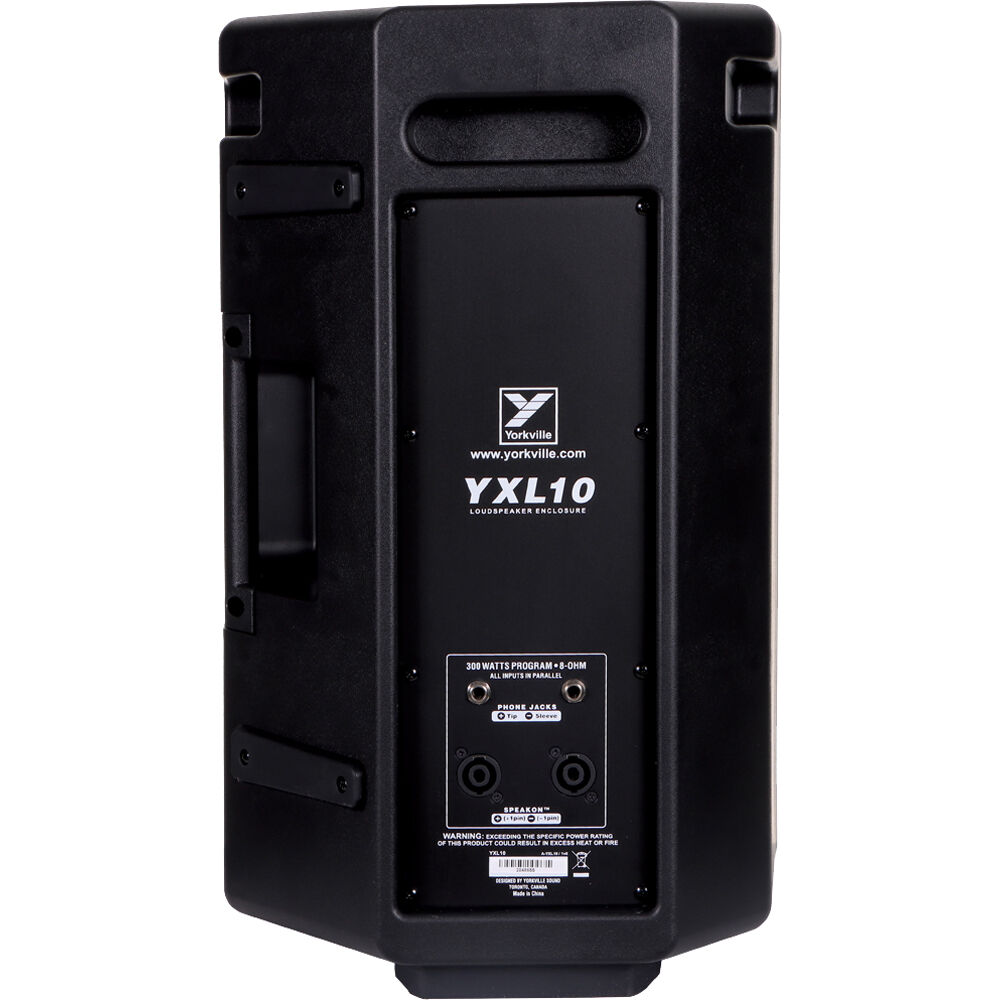

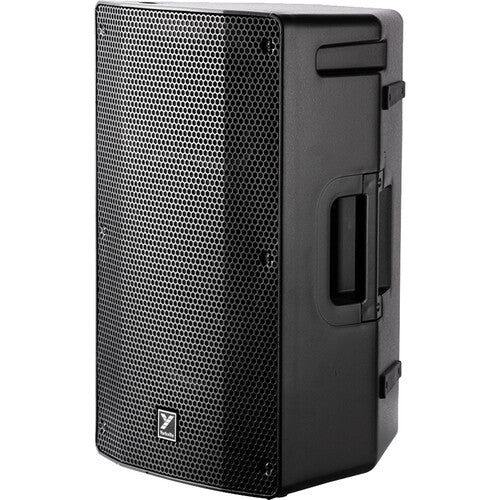

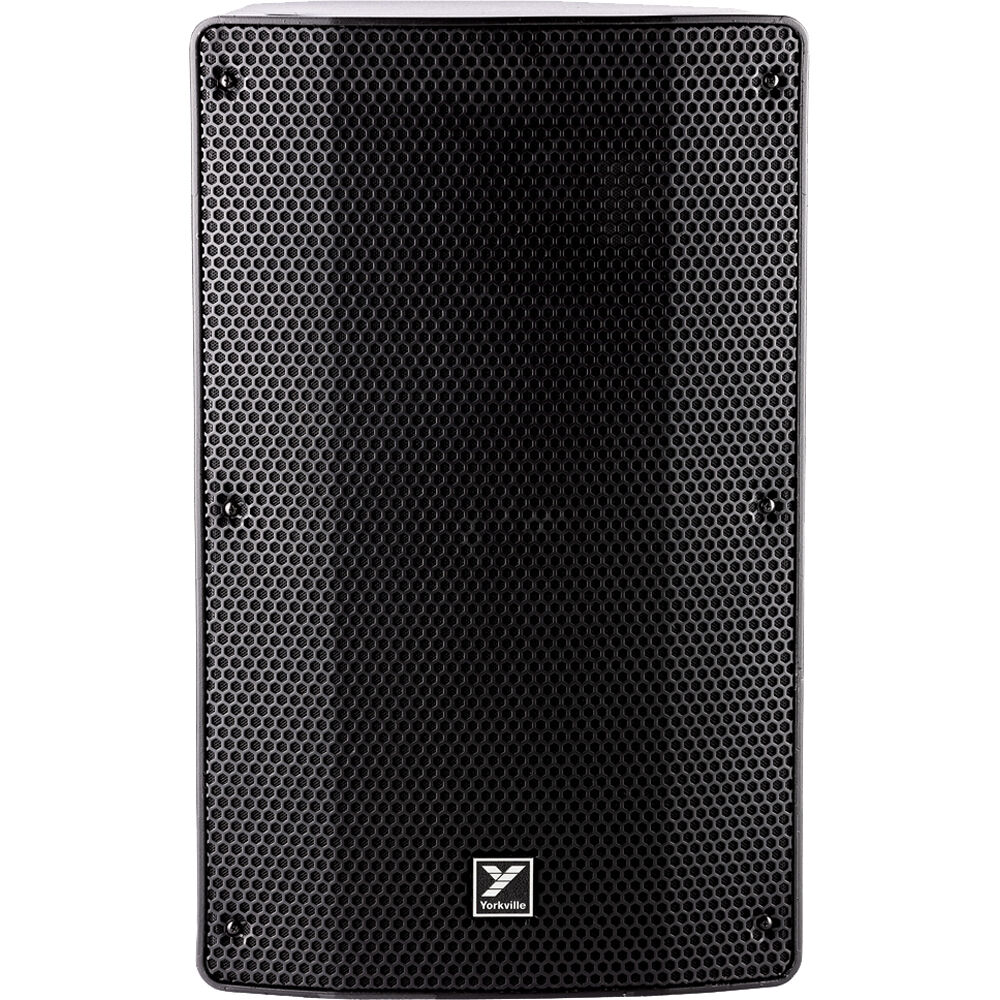

Yorkville Sound YXL10 Overview
Audio professionals looking for a compact passive loudspeaker should check out the Yorkville YXL10, a 10" 600W passive PA speaker that�s portable, versatile, and simple to use. It can function as a main PA or monitor wedge for a variety of applications. The speaker provides 90 x 40° (HxV) coverage and 122 dB of continuous SPL�plenty of volume for small-to-mid-sized venues, including houses of worship, conference centers, performance spaces, and meeting rooms. The 10" woofer and 1" horn-loaded compression driver provide crisp, detailed sound with a wide frequency range from 16 kHz down to 55 Hz (±3 dB). The polypropylene enclosure and metal grille are rugged enough to withstand the rigors of on-the-road wear and tear. At 29.9 lb and featuring integrated handles, the YXL10 is highly portable.
- 600W (Peak) 300W (Program)
- 10" woofer with 2" voice coil
- 1" horn-loaded compression driver
- 90 x 40° HF dispersion
- Polypropelene cabinet construction with metal grille
- Lightweight: 29.9 lb
- Main PA
- Suspended from above
- Placed on a tripod stand
- Placed on a pole mount on top of a subwoofer
- Floor Monitor
- Use on its side
In the Box
- Yorkville Sound YXL10 Two-Way 10" 600W Passive Portable PA Speaker
- Limited 2-Year Manufacturer Warranty
Yorkville Sound YXL10 Specs
| Configuration |
Passive 2-Way
|
| Enclosure Type |
Bass-Reflex Loudspeaker/Floor Monitor
|
| Total Power Capacity |
150 W RMS
300 W Program 600 W Peak |
| HF Driver |
1 x 1" / 25.4 mm Horn-Loaded Compression Driver with 1" / 25.4 mm Throat
|
| LF Driver |
1 x 10" / 25.4 cm Woofer
|
| Enclosure Type |
Bass-Reflex Loudspeaker/Floor Monitor
|
| Total Power Capacity |
150 W RMS
300 W Program 600 W Peak |
| System Impedance |
8 Ohms
|
| HF Driver |
1 x 1" / 25.4 mm Horn-Loaded Compression Driver with 1" / 25.4 mm Throat
|
| MF Driver |
No
|
| LF Driver |
1 x 10" / 25.4 cm Woofer
|
| LF Voice Coil |
2" / 50.8 mm
|
| Frequency Response |
55 Hz to 16 kHz ±3 dB
|
| Maximum SPL |
122 dB (Continuous)
|
| Coverage Angle |
90° H x 40° V
|
| Speaker Sensitivity |
97 dB
|
| Audio I/O |
2 x speakON NL4 Speaker Input/Thru
2 x 1/4" TS Female Speaker Input/Thru |
| Crossover |
1.6 kHz (Internal)
|
| Phase Adjustment |
No
|
| Mounting |
3 x M8 Fly Point (Top)
1 x 1.4" / 35 mm Pole Socket (Dual Angle, Bottom) |
| Handles |
1 x Top
1 x Side |
| Construction Material |
Metal Grille, Polypropylene
|
| Dimensions |
20.5 x 13.2 x 11" / 52.1 x 33.7 x 27.9 cm
|
| Weight |
29.9 lb / 13.6 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 88969.3 |
| 3-5 | ₹ 88061.45 |
| 5-10 | ₹ 86245.75 |
| 10+ | ₹ 84430.05 |
Bulk discount will be automatically applied during checkout based on quantity.
