Description

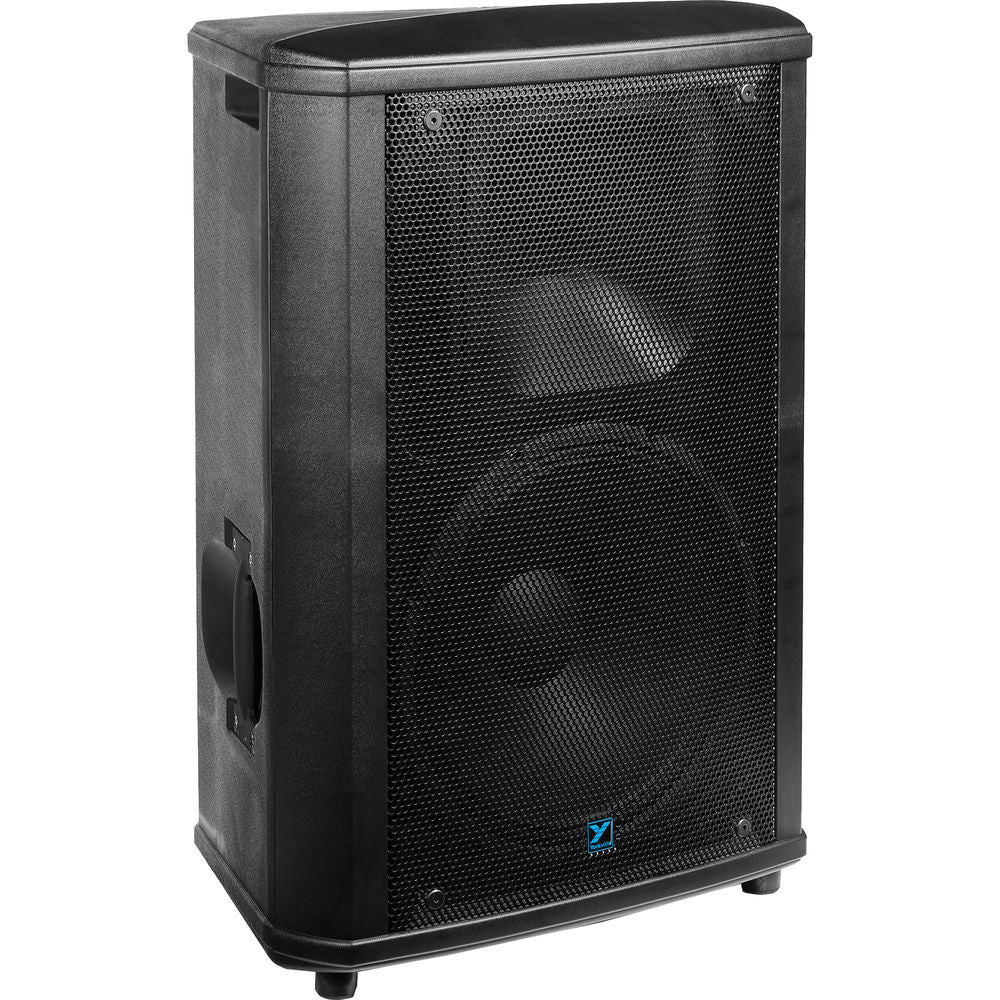

The NX750P-2 15" NX Series 2-Way Powered Loudspeaker from Yorkville Sound is an active speaker made of injection molded, internally multi-fin-braced enclosure that supports a high-performance 15" high-powered woofer and rotatable 80� x 50� custom ABS waveguide horn, all protected by a perforated metal grill. The NX750P-2 is equipped with a rugged carrying handle, speaker stand socket and reinforced threaded flypoints.
Innovative bi-amplified power module uses a two-tier class H linear technology to produce loud clean transients to match the high output of the woofer. The amplifier uses Class D switching technology. The NX750P-2 can easily be used in any orientation - vertical or horizontal (stand-mounted or as a floor monitor), close to walls in installations, or in arrays with multiple NX750P-2s. There is also a versatile direct input system and built-in mixer. The mixer allows the NX750P-2 to be used directly with a microphone and/or a line source.
A "loop" output allows multiple NX750P-2s to be interconnected with mic or patch cables and controlled by one cabinet's mixer stage or direct line input. Two NX750P-2's can be combined using the mixer inputs on each cabinet and coupling the loop outputs to provide a complete, easy-to-use PA with its own microphone inputs and line inputs for background music or other audio. It's ideal for duos in small clubs, also presentations or teaching applications. Many NX750P-2's can be linked together but a maximum of three "mixers" can be active at any one time making three mic sources and six line sources available in any three-or-more-cabinet arrays. The trim control allows looped cabinets to be individually adjusted in level. The microphone input has bass and treble equalization and a 100Hz selectable high-pass filter appropriate for vocal-only applications or to let you add NX or Elite powered subwoofers, without a crossover.
- Integrated 1600W amplifier (750W program)
- Max SPL 133dB peak (127dB continuous)
- Light injection molded Polypropylene construction

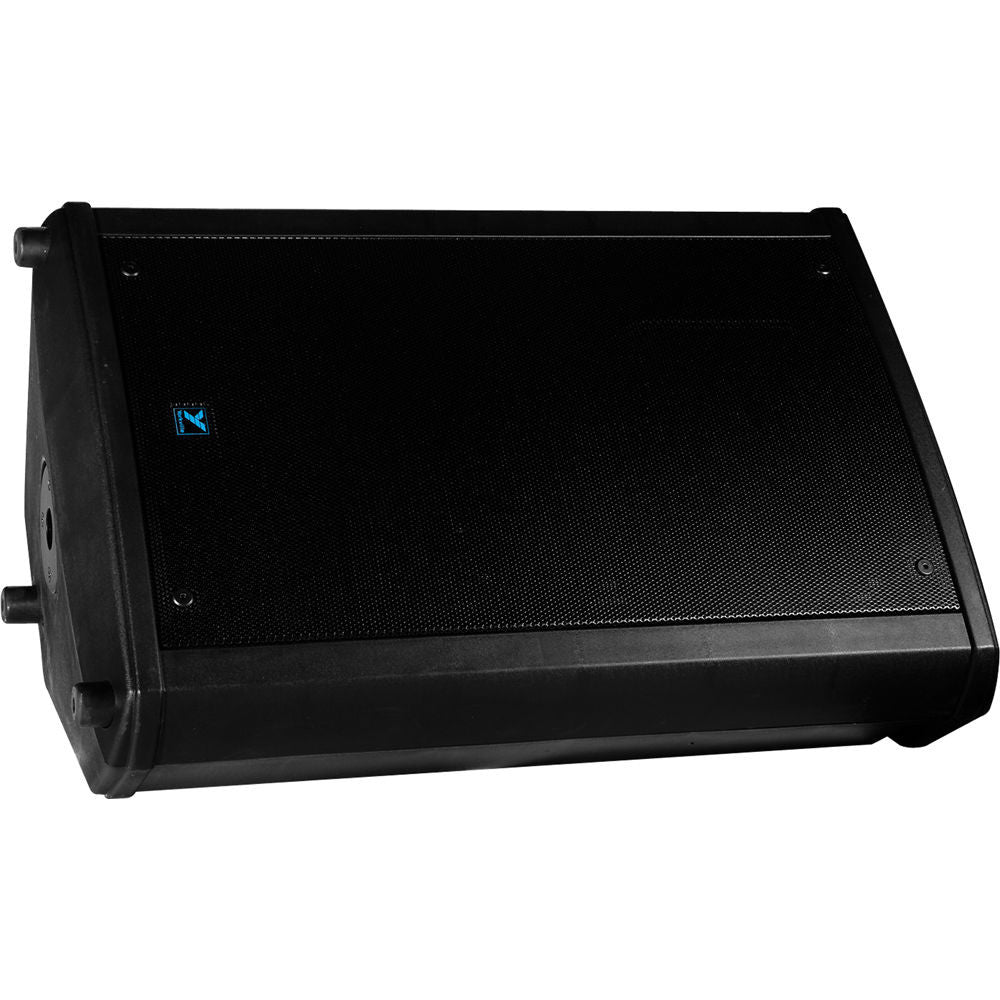

- Dual purpose full range and wedge monitor format enclosure
- Clear reproduction throughout bandwidth
- Proven TX style processing and component protection
- +6dB/- infinity input trim control for individual cabinet level adjustment
- XLR and TRS inputs and outputs for easy connection and looping
- Multi-input source mixer for direct inputs
- Direct microphone input with level control
- Two-way overall EQ controls
- High quality 1.5" high frequency driver
- Rotatable 80� x 50� horn
- Integrated flying hardware (1/4-20 threaded holes)
- Full length metal grille
- Recessed mixer panel
- Made in Canada
- Unlimited 2-Year Warranty
| System Type | 2-Way |
| Active or Passive | Active |
| Power | 750 W (1,600 W peak) |
| Max SPL Level | 133 dB Peak (127 dB continuous) |
| Frequency Response | 50 Hz - 26 kHz (+/- 3dB) |
| Crossover Frequency | 1,400 |
| Driver | 15" (38 cm) 1.5" (3.8 cm) |
| High Frequency Driver | 1.5" (3.8 cm) Polyester voice coil 1" (2.5 cm) Throat |
| Low Frequency Driver | 15" (38 cm) 3" (7.6 cm) voice coil |
| Dispersion | 80� H x 50� V rotatable |
| HF Amplifier | Two Tier Class H |
| LF Amplifier | Class D |

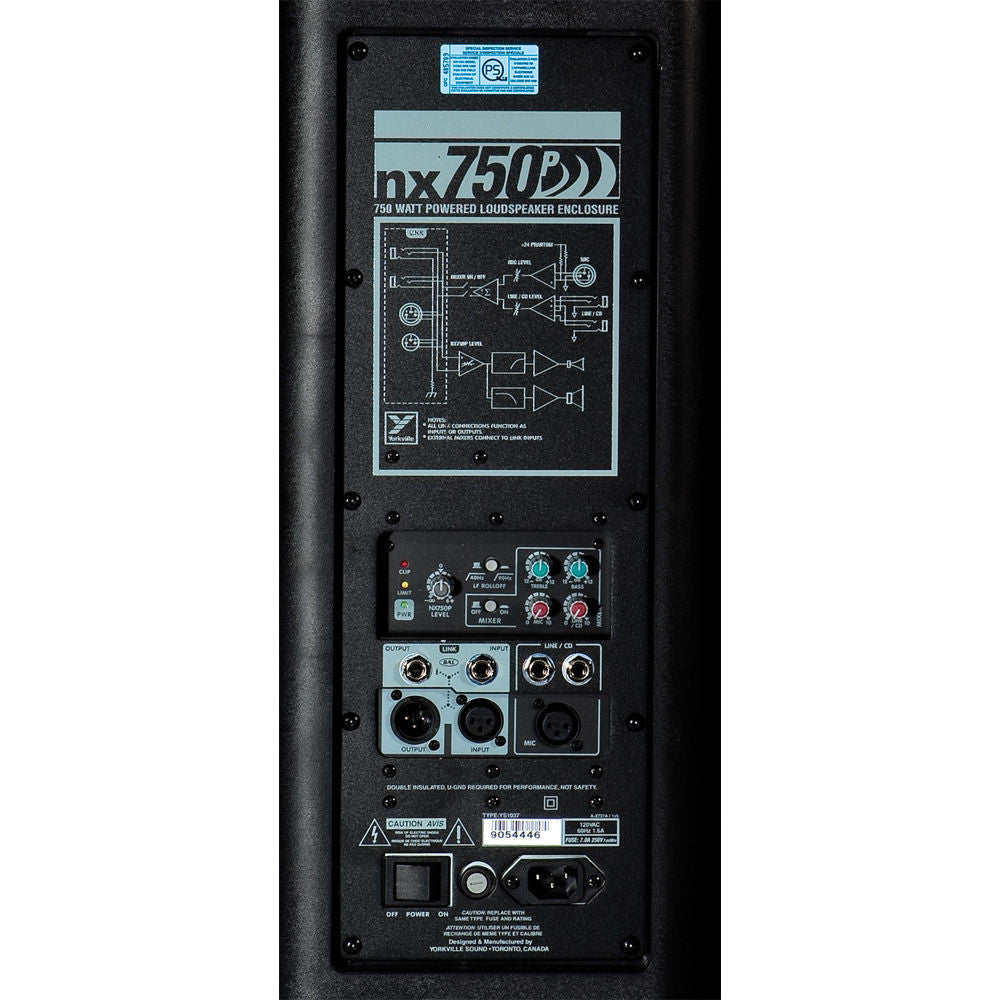

| Connectors | 2 x 1/4" phone jack, line input 2 x 1/4" phone jack, link input/output 1 x XLR, microphone input 1 x XLR, line input 1 x XLR, line output |
| Controls | Mixer on/off switch Mic Gain Line/CD Gain Treble/Bass Tweak Main Volume +6dB/-infinity EQ 100Hz HP Filter (LF Roll-off) |
| LED Indicators | Power Clip Limit |
| Mounting | 5 x 1/4"-20 threaded holes; 2 (Top), 2 (Bottom), 1 (Pullback) |
| Handle | 1 x Side bar handle |
| Enclosure Material | Injection molded Polypropylene |
| Grille Material | Perforated metal |
| Dimensions (D x W x H) | 15 x 22 x 32" (38 x 56 x 84 cm) Back: 9.5" (24 cm) |
| Weight | 62 lb (28 kg) |
