Description

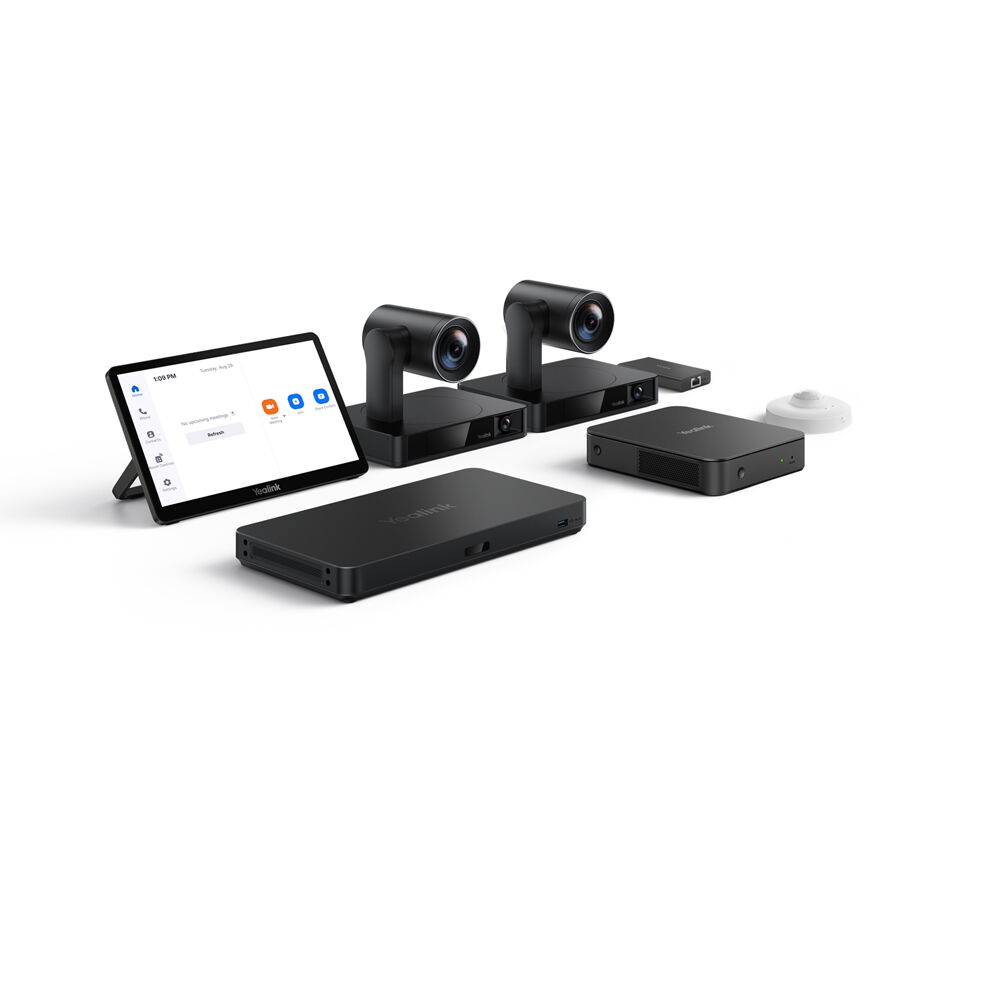

The ZVCS90-C5-004 Zoom Rooms Conferencing System for ProAV Rooms from Yealink includes the MCore Pro mini-PC, MTouch Plus touch panel, two UVC86 4K dual-eye intelligent tracking PTZ cameras, an MTouch Plus touch panel, the AVHub audio/video processor, a USB-to-Ethernet BYOD extender, and a RoomSensor meeting room motion sensor.

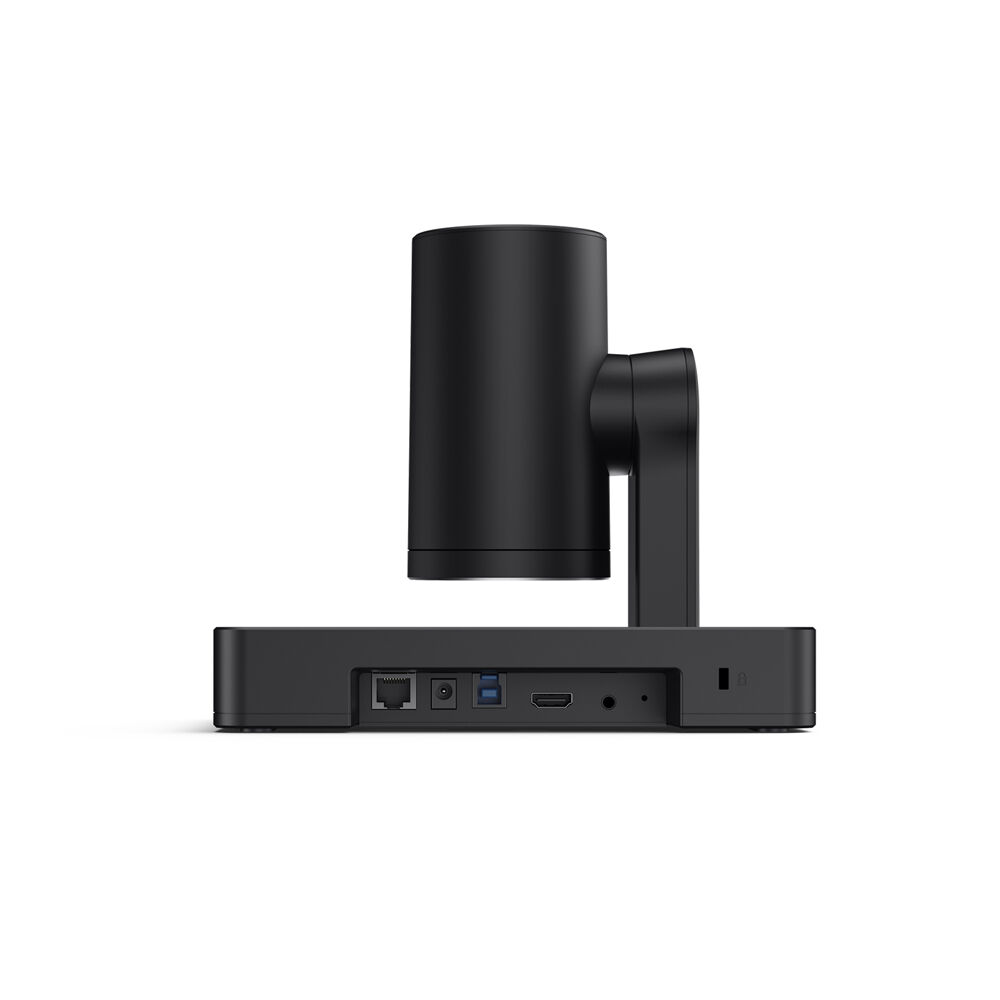

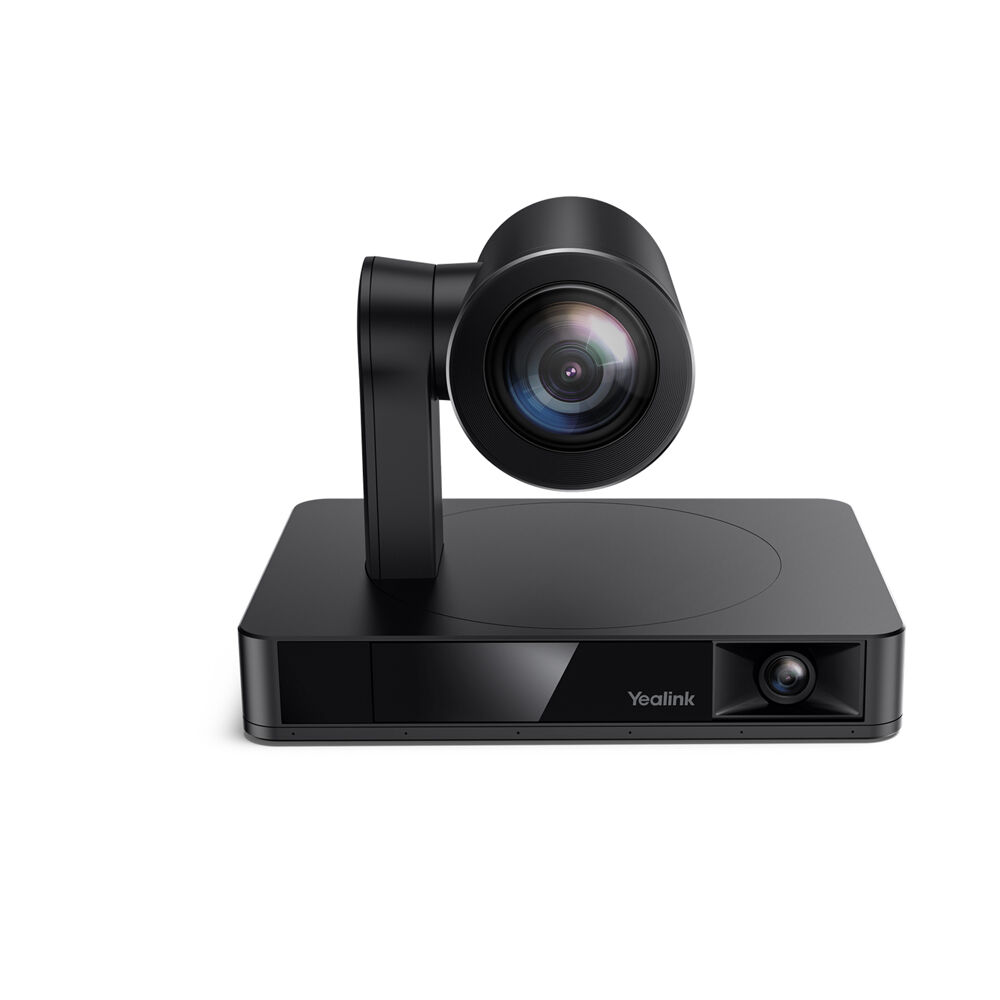

The 8MP UVC86 4K Dual-Eye Intelligent Tracking PTZ Camera from Yealink combines a PTZ camera with a 90? diagonal FOV and a panoramic lens with a 120? FOV to clearly display each participant in a meeting. Intelligent tracking functions include auto framing, speaker tracking, and presenter tracking. The UVC86 camera's 12x optical and 1.7x digital zoom combine to create a maximum 20x zoom for getting closeup views.

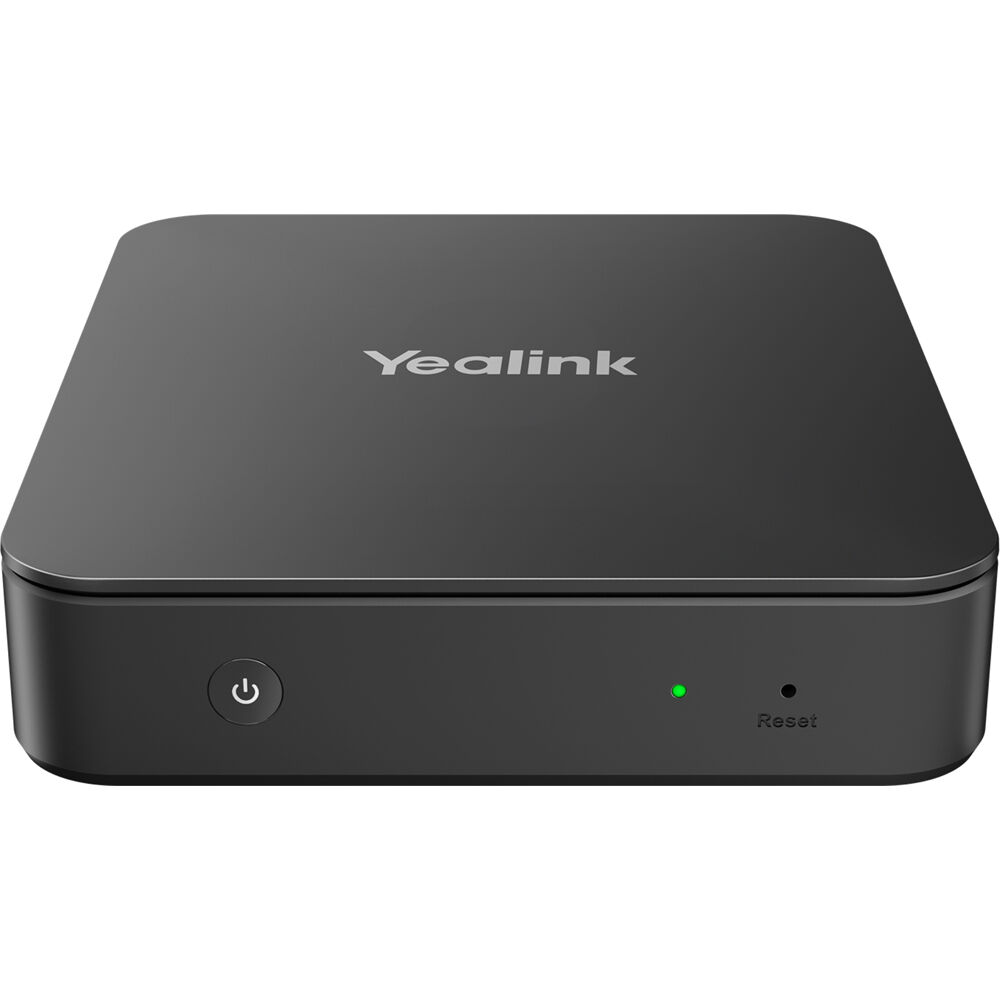

The Native Zoom Rooms Kit from Yealink features an MCore Pro compact computer, a RoomSensor meeting room sensor, and an MTouch E2 touchscreen control panel ready with pre-installed compatibility for Zoom Rooms. Meeting status and settings are displayed on the MTouch E2, allowing for streamlined and user-friendly collaborative conferencing.

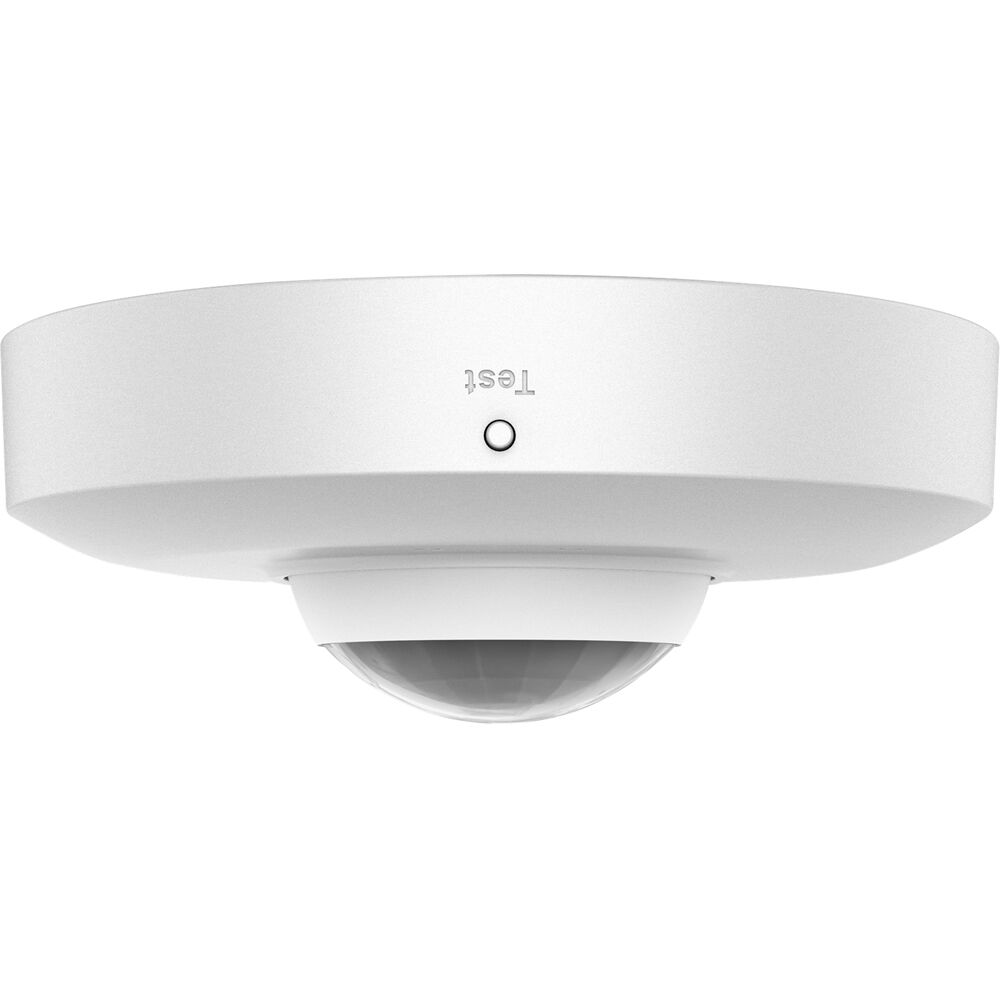

Both the miniature computer and touchscreen have multiple interface options and come packaged with mounting hardware, giving one the choice of tabletop and wall-mounted configuration. The RoomSensor works with the controller to detect when someone walks into a room to trigger a meeting. This kit is compatible with the optional UVC34 and UVC40 All-in-One USB video bars, the UVC84 USB PTZ Camera, and the UVC86 Dual-Eye intelligent tracking camera.
The Yealink AVHub Meeting Audio & Video Processor is designed for large and extra-large conference rooms/conference fields. AVHub supports multi-camera, multi-microphone, and multi-speaker use. Cameras, microphones, and speakers can be directly connected to the AVHub over PoE connectivity, reducing wiring and managing video and audio equipment uniformly. Users can adjust the camera layout with the Yealink plug-in before or during MTR meetings.
Quickly add your own device to your MVC conferencing system with this BYOD Extender from Yealink. This compact extender plugs into your laptop or computer to add it into your Microsoft Teams Rooms meeting and conferencing setup when using a Yealink MVC conferencing system.
It features an integrated USB-A cable to plug into your laptop, and an Ethernet port on the other end allows you to connect to your LAN to the conferencing system using the included Ethernet cable. It is easy to set up and provides plug-and-play operation from up to 328' from your main system.
Items Included
- 2 x Yealink UVC86 4K Dual-Eye Intelligent Tracking PTZ Camera
- USB Cable (23')
- Ethernet Cable (24.6)
- AC Power Adapter
- VCR20 Remote Control
- 2 x AAA Battery
- Velcro Patch
- 5 x Cable Tie
- Mounting Bracket & Accessories
- Mounting Screw Set
- Limited 2-Year Manufacturer Warranty
- Yealink Native Zoom Rooms Kit
- MCore Pro Mini PC
- Yealink MTouch E2 Touch Panel
- RoomSensor
- Mounting Bracket for MCore Pro
- Mounting Bracket for MTouch E2
- Mounting Bracket for RoomSensor
- 3 x HDMI Cable
- Power Supply
- Limited 1-Year Manufacturer Warranty
- Yealink AVHub Meeting Audio & Video Processor
- Yealink BYOD Extender for MVC Kits
- Ethernet Cable (24.6')
- Limited 3-Year Manufacturer Warranty
Additional Resources
Guides & Manuals
Yealink UVC86 4K Dual-Eye Intelligent Tracking PTZ Camera
| Image Sensor |
Size-Unspecified CMOS
|
| Sensor Resolution |
Effective: 8 Megapixel
|
| Max Optical Zoom |
12x
|
| Max Digital Zoom |
1.7x ( in 1080p)
|
| Video Output |
HDMI / RJ45 / USB
3840 x 2160 at 30.00 fps |
| Wireless |
IR
|
| PoE Support |
PoE 802.3af
|
| Image Sensor |
Size-Unspecified CMOS
|
| Sensor Resolution |
Effective: 8 Megapixel
|
| Focus Control |
Autofocus
|
| Precise Scan Rate Control |
No
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
| Max Optical Zoom |
12x
|
| Max Digital Zoom |
1.7x ( in 1080p)
|
| Field of View |
Diagonal: 90?
Horizontal: 81? Vertical: 50? |
| Video Output |
HDMI / RJ45 / USB
3840 x 2160 at 30.00 fps |
| Embedded Audio |
HDMI/LAN (RJ45) Output
|
| Presets |
9
|
| Pan/Tilt |
Pan: 200? (-100 to 100?)
Tilt: 130? (-90 to 40?) |
| Tally Light |
Yes
|
| Wireless |
IR
|
| Video I/O |
1x HDMI Output
1x USB-B 3.0 / 3.1/3.2 Gen 1 Output |
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input
|
| Other I/O |
1x RJ45 Output (Shared with Video Output)
|
| Built-In Microphone |
No
|
| Built-In Speaker |
No
|
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x Barrel (48VDC at 0.7 A)
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 10 to 90% Humidity
|
| Impact Resistance |
No
|
| Mounting |
1x 1/4"-20 Female
|
| OS Compatibility |
Windows 7 or Later / macOS 10.11 or Later
|
| Security Lock Support |
