Description
Yamaha ZG01 Overview
- 1Description
- 2Compact Design
- 3Voice Effects
- 4Sonic Realism
- 5Hear Them Coming
- 6Clear Up Chat Chaos
- 7Share It All
- 8Multi-Channel USB
- 9Powerful Software

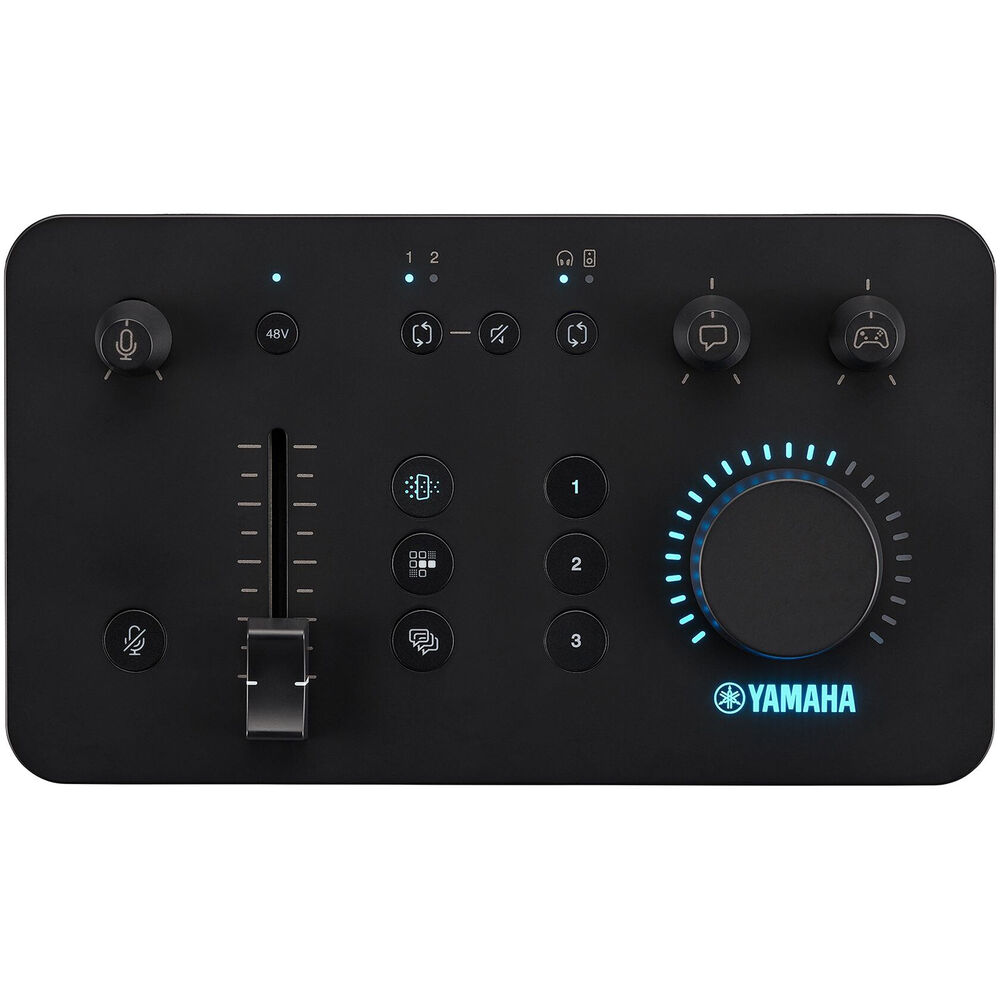

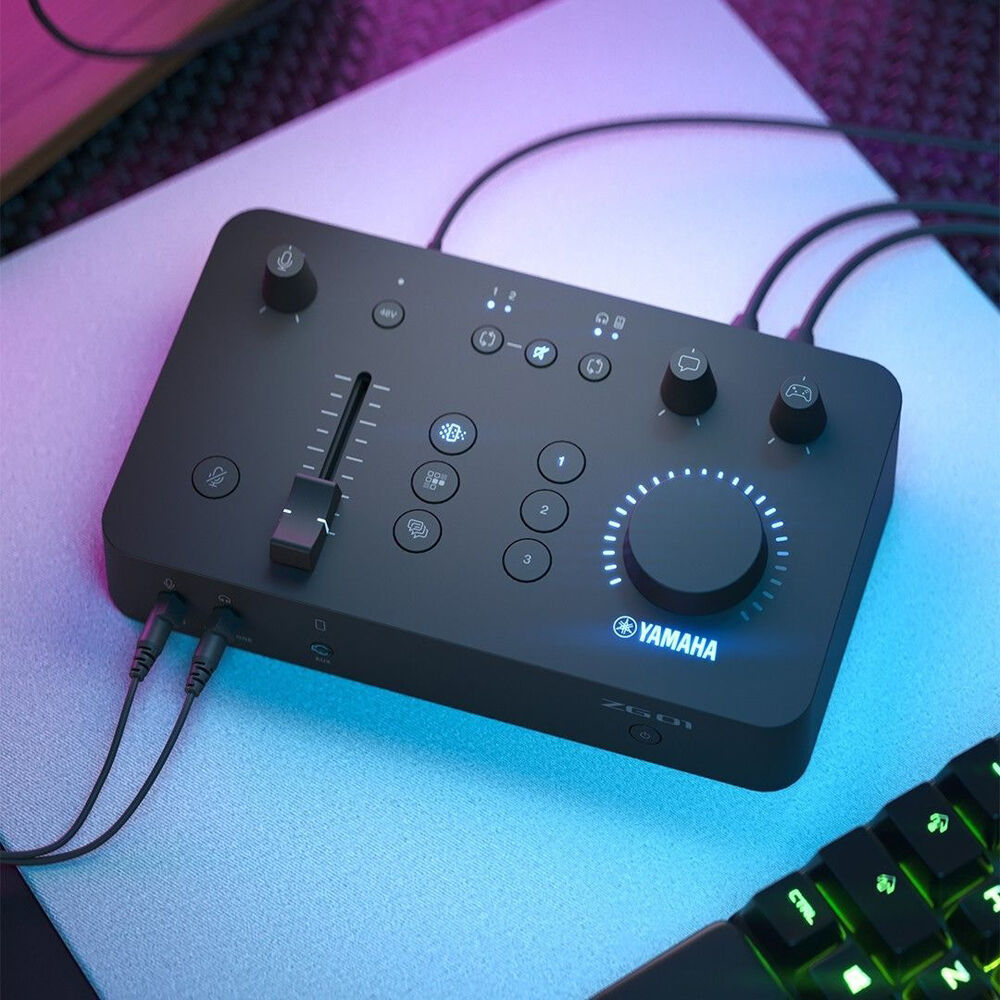

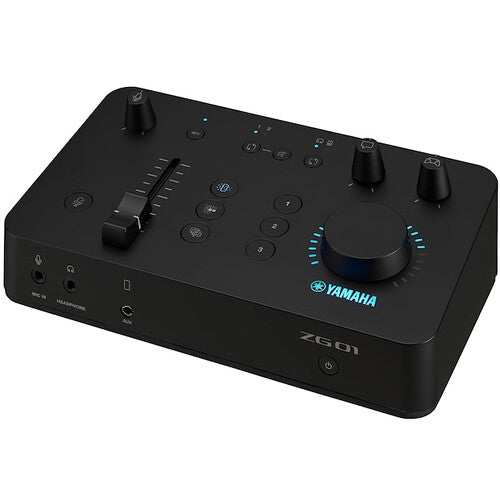

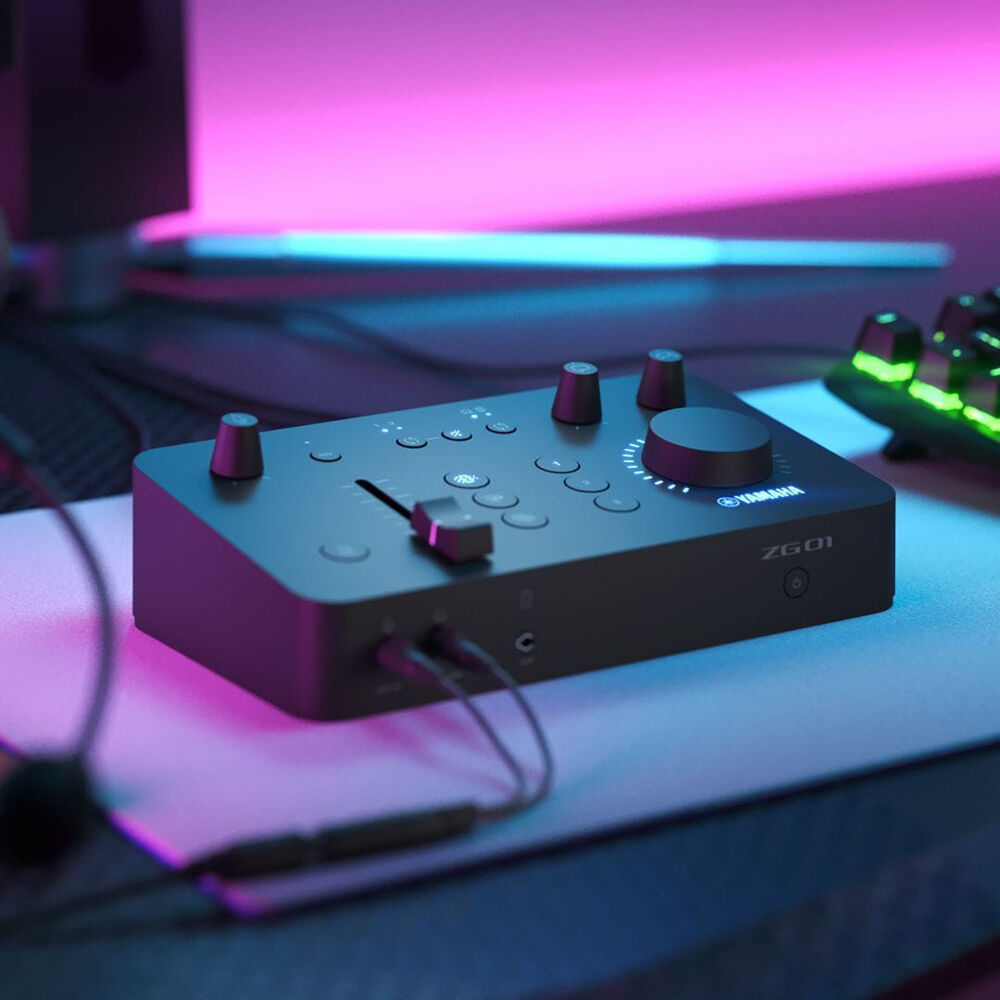

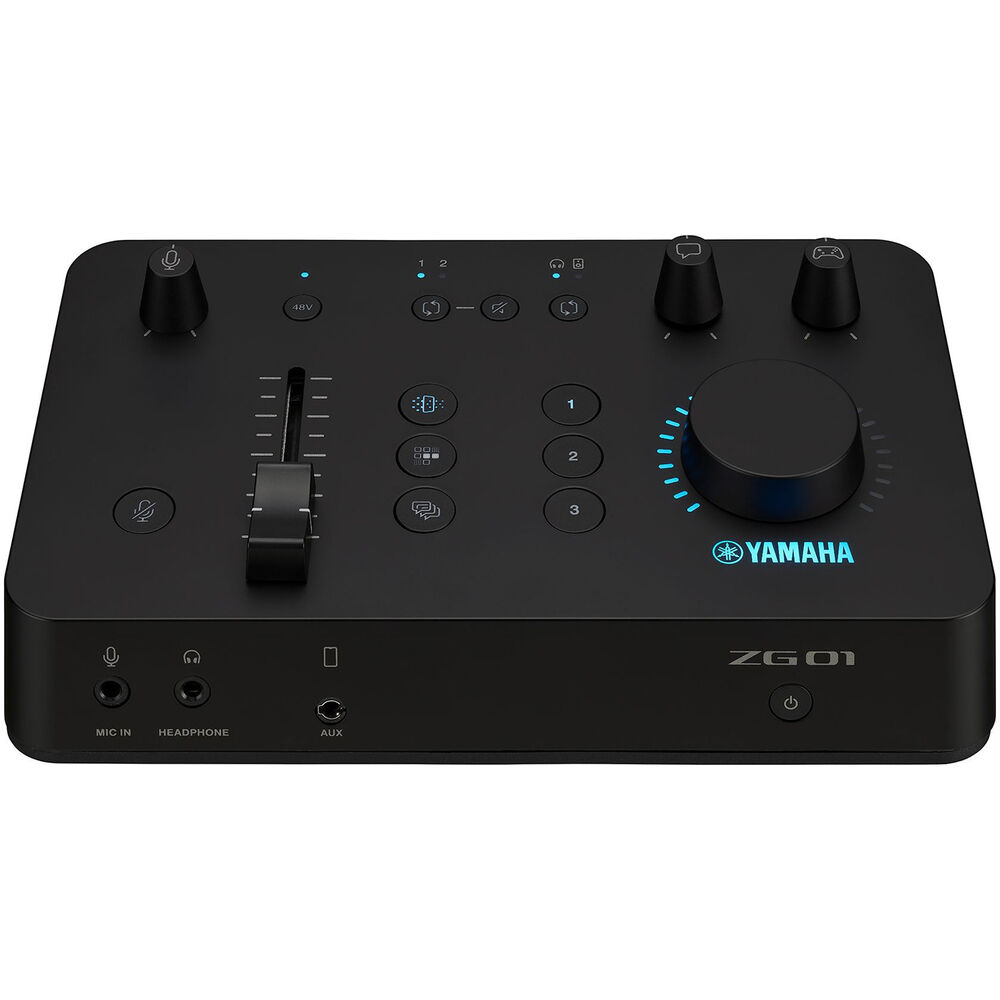

Take your live stream broadcasts, video recordings, and gaming audio experiences to the next level with the Yamaha ZG01 Gaming Mixer. Designed primarily for game streamers, this audio interface connects to your Windows or Mac computer's available USB-C or USB-A port with the included cables for real-time control over your voice and gaming sound levels.

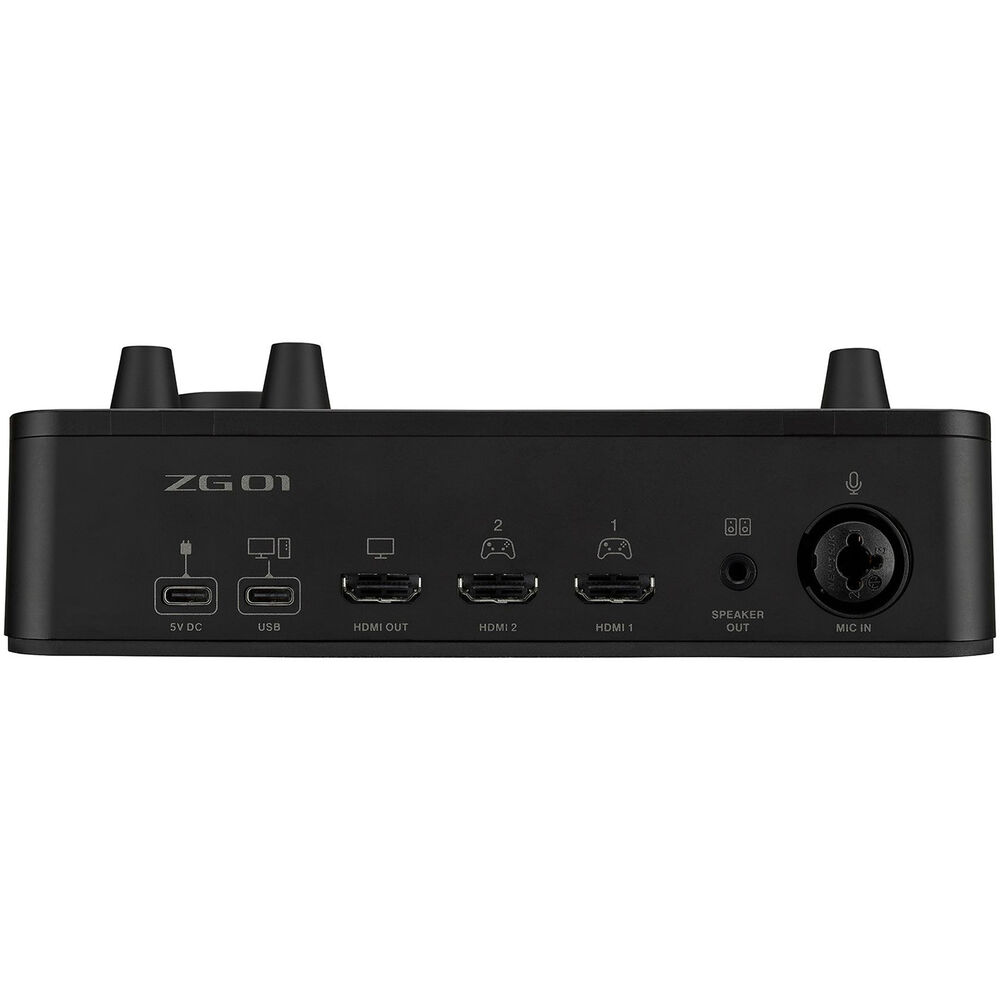

The ZG01 fits into almost any streaming setup with individual 3.5mm headphone and mic jacks for gaming headsets alongside a 3.5mm TRRS aux jack that also lets you connect your phone for voice chat audio. Additionally, its rear panel includes an XLR / 1/4" combo mic input with 48 V phantom power. A fader and a mic gain knob give you control over your input levels. Advanced mic settings allow you to personalize your vocals with various effects. You can also use the individual voice chat and game sound knobs to balance the audio mix. With two HDMI inputs, you can switch between your computer and gaming console at the touch of a button. The audio interface also can also immerse you and your live stream audience in games with 3D Surround Sound mode or give you an edge in competitive matches with its Focus modes.
In the Box
- Yamaha ZG01 Gaming Mixer
- USB-C 2.0 Cable (5.9')
- USB-A to USB-C 2.0 Cable (5.9')
- Limited 1-Year Manufacturer Warranty
- Description
- Compact Design
- Voice Effects
- Sonic Realism
- Hear Them Coming
- Clear Up Chat Chaos
- Share It All
- Multi-Channel USB
- Powerful Software
Yamaha ZG01 Specs
| USB I/O |
1 x USB-C 2.0 Female Input/Output
1 x USB-C (Charging Only) Female Input |
| Video I/O |
2x HDMI Input
1x HDMI Output |
| Audio I/O |
1x 1/8" / 3.5 mm Line/Speaker Output
1x 1/8" / 3.5 mm TRRS Aux Input/Output 1x 1/8" / 3.5 mm Headphone Output 1x 1/8" / 3.5 mm Mic Input 1x Combo XLR-1/4" Mic Input |
| Sampling Rate |
Sampling Frequency: 48 kHz (Max)
Bit-Depth: 24-Bit |
| Controls |
Mic Gain Knob
Phantom Power (48 V) HDMI Input Select HDMI Mute Audio Output Monitor Select Voice Chat Level Knob Game Sound Level Knob Mute Mic Mic Level Fader Mic Effect Game Effect Volume Knob |
| Power Source |
USB
|
| DC Input Power |
5 VDC at 1.5 A
|
| Power Consumption |
7.5 W (Maximum)
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Color |
Black
|
| Cable Length |
5.9' / 1.8 m
|
| Dimensions |
7.7 x 4.3 x 1.9" / 195 x 110 x 47.5 mm
|
| Weight |
1.8 lb / 0.8 kg
|
| Package Weight |
2.91 lb
|
| Box Dimensions (LxWxH) |
9.9 x 8 x 4.5"
|
