Description
Yamaha VXL1 Overview

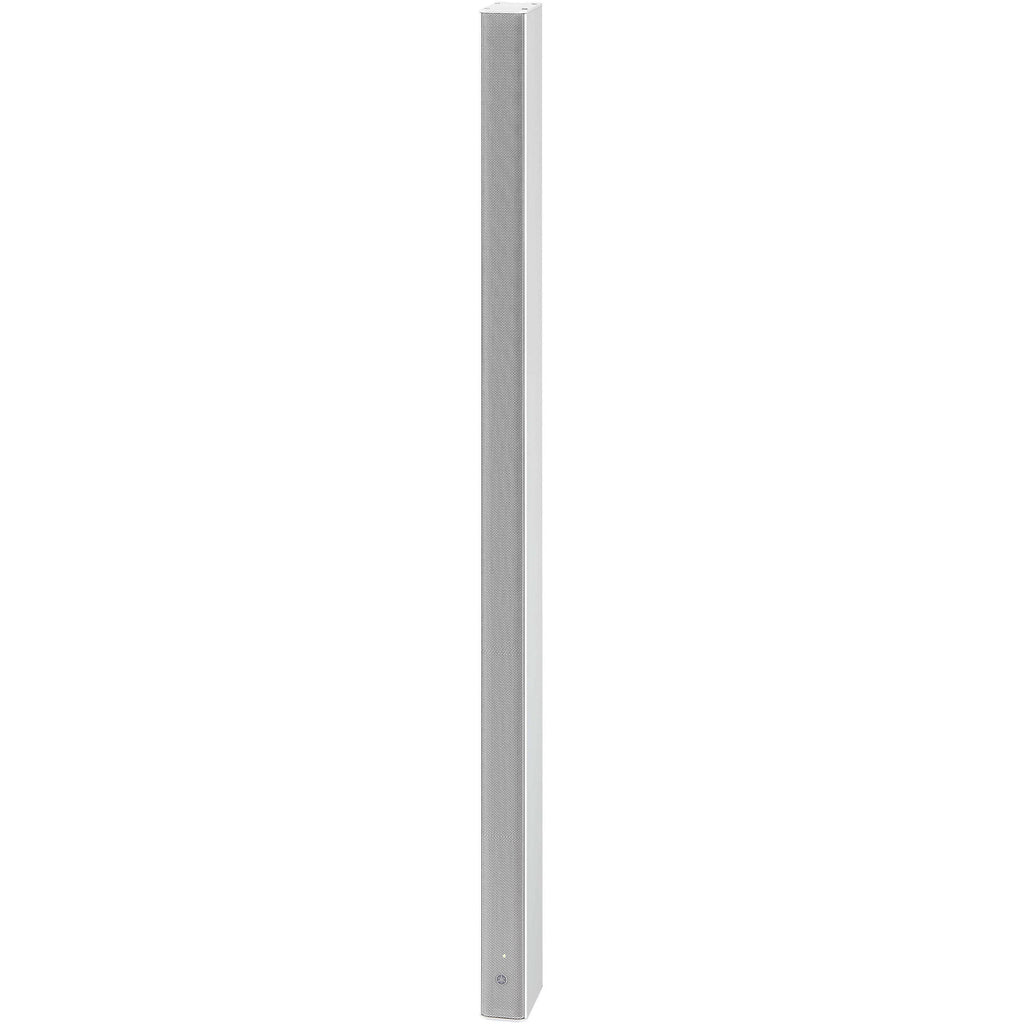

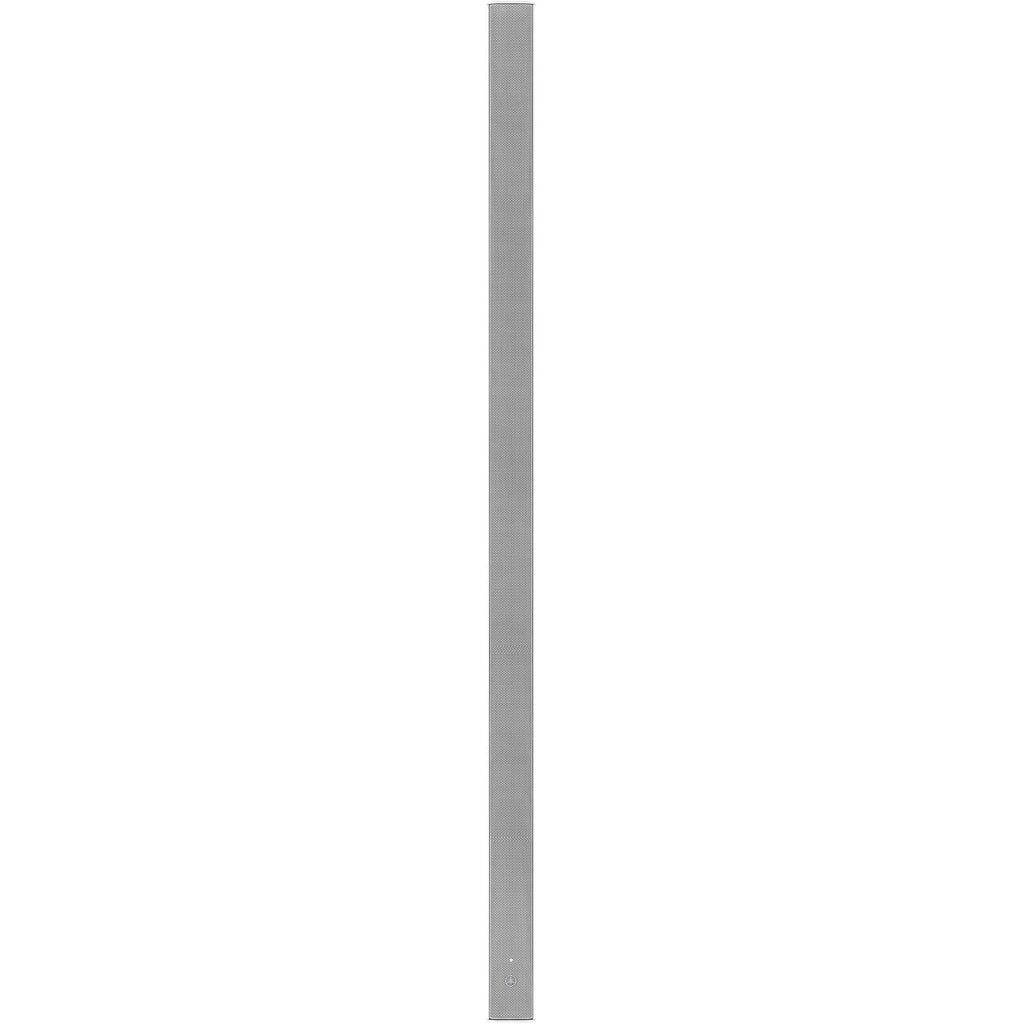

The white Yamaha VXL1W-16P is a full-range, line-array wallmount speaker for the ADECIA conferencing system. Equipped with sixteen, 1.5" drivers, it utilizes a line-array configuration to reduce sound dispersion in the vertical direction, limit reflections from the ceiling and walls, and prevent sound energy from being dispersed�providing clear sound distribution to all participants in the room.
The VXL1W-16P's slim, 2" wide design allows for easy installation in locations with limited space, while complementing the décor of your modern conference room (the enclosure can be easily painted to match surroundings). In addition to the supplied wallmount brackets, a comprehensive range of optional hardware is available separately for convenient speaker mounting and setup in just about any environment.
With audio distributed via Dante and PoE power supplied from the ADECIA switch, the speaker can be integrated in your network, allowing existing IT infrastructure to be effectively utilized.
In the Box
- Yamaha VXL1W-16P Line-Array Wallmount Speaker for ADECIA System (White, Not Sold Separately)

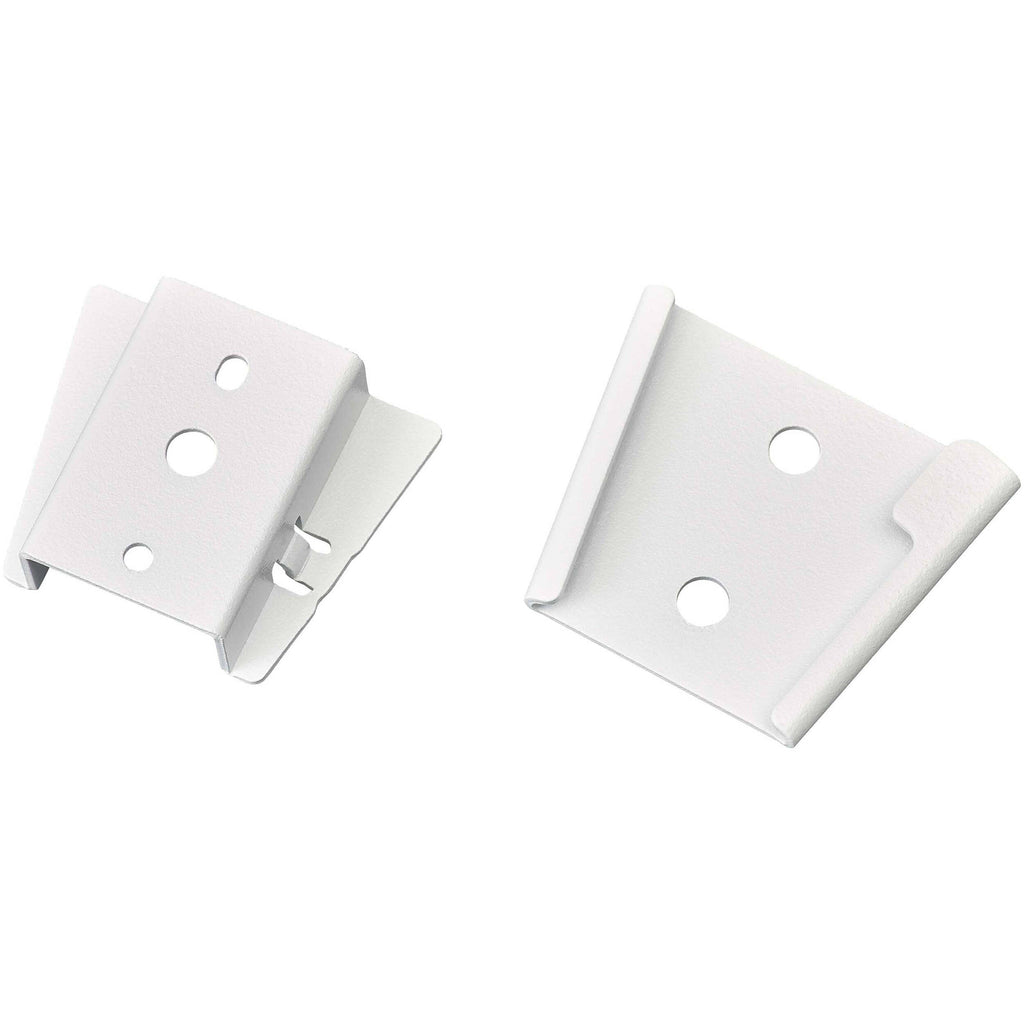

- 2 x Wallmount Bracket
- 2 x Bracket Base
- 2 x Machine Screw (M5x10)
- Safety Wire
- Template
- Limited 1-Year Manufacturer Warranty
Yamaha VXL1 Specs
| Speaker Type |
Full-Range, Powered Speaker, Bass Reflex
|
| Frequency Response |
80 Hz to 20 kHz
|
| Nominal Coverage Angle |
H: 170°
V: 25° (+12.5 to -12.5°) |
| Effective Coverage |
H: 180°
V: 30° (+15 to -15°) |
| Components |

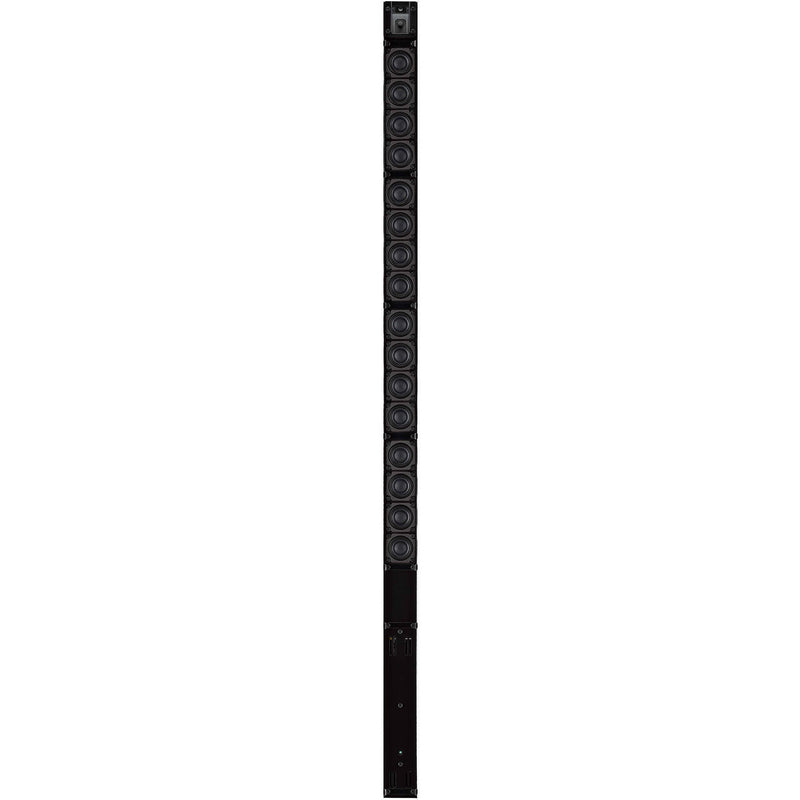

16 x 1.5" / 3.75 cm Cone
|
| Maximum Output Level |
102 dB SPL, when Using PoE+(IEEE 802.3at)
|
| Power Rating |
Dynamic: 15 W, PoE+ (IEEE 802.3 at), 6 W, PoE (IEEE 802.3 af)
Continuous: 15 W (PoE+, IEEE 802.3 at), 6 W, PoE (IEEE 802.3 af) |
| I/O Connector |

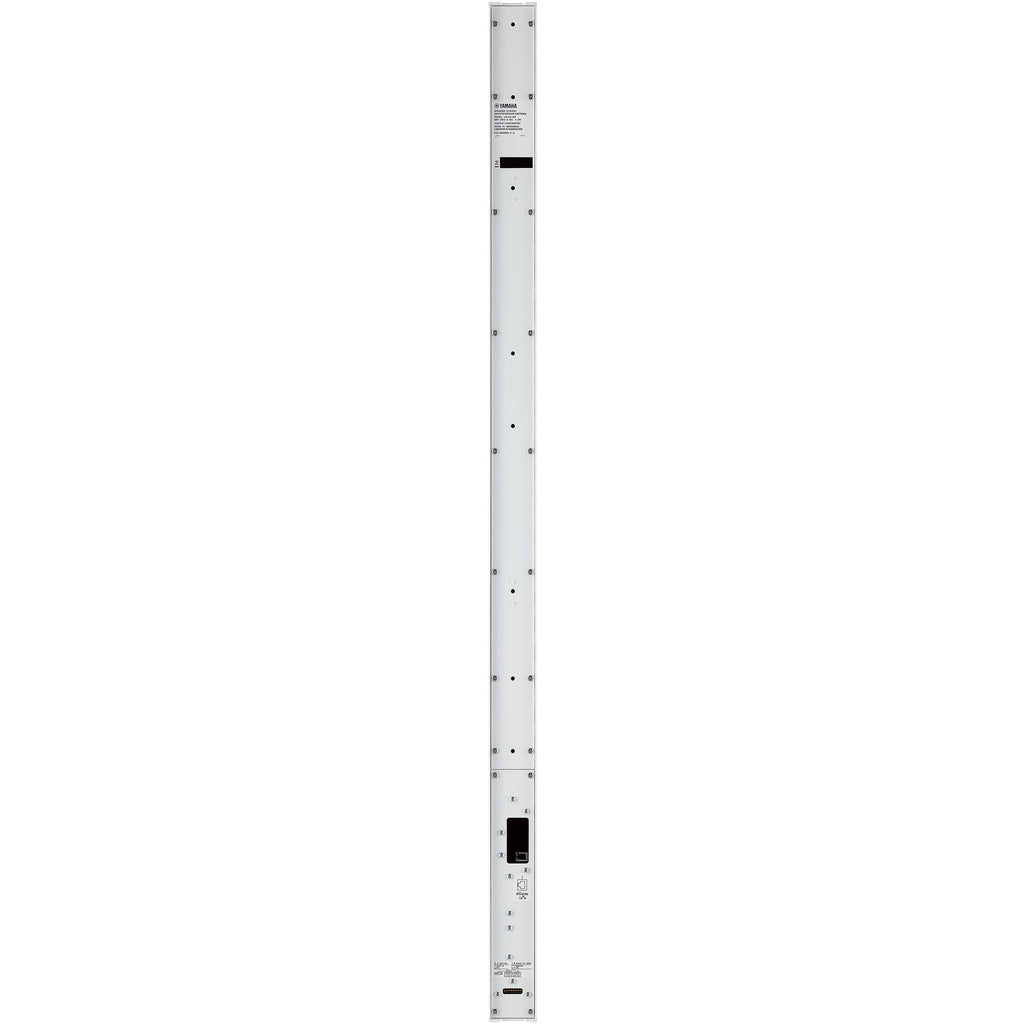

1 x RJ45 (Dante)
|
| Protection Circuits |
Speaker Processing: Clip Limiting, Integral Power Protection
Amplifier Protection: Overcurrent Protection, Over-Temperature Protection, Undervoltage Lock Out, DC Detection, Clock Detection Power Supply Protection: Overload Protection, Overvoltage Protection, Undervoltage Lock Out |
| Cooling |
Natural Convection
|
| Power Requirements |
PoE+ (IEEE 802.3at), PoE (IEEE 802.3af)
|
| Power Consumption |
Idle: 3 W with 1/8 (Pink Noise), 6 W with PoE+(IEEE 802.3at), 4.3 W with PoE(IEEE 802.3af)
|
| Finish and Grille Color |
White Painting (Approximate Value: Munsell N9.0)
|
| Magnetic Shielding |
No
|
| Dust and Water Resistant |
No
|
| Dimensions (W x H x D) |
2.1 x 44.1 x 4.1" / 54 x 1120 x 104 mm
|
| Weight |
11 lb / 5 kg
|
| Package Weight |
15.5 lb
|
| Box Dimensions (LxWxH) |
48.5 x 9.25 x 6.5"
|
