- Plays 33 1/3 and 45 rpm Vinyl Records
- Built-In Phono Preamp

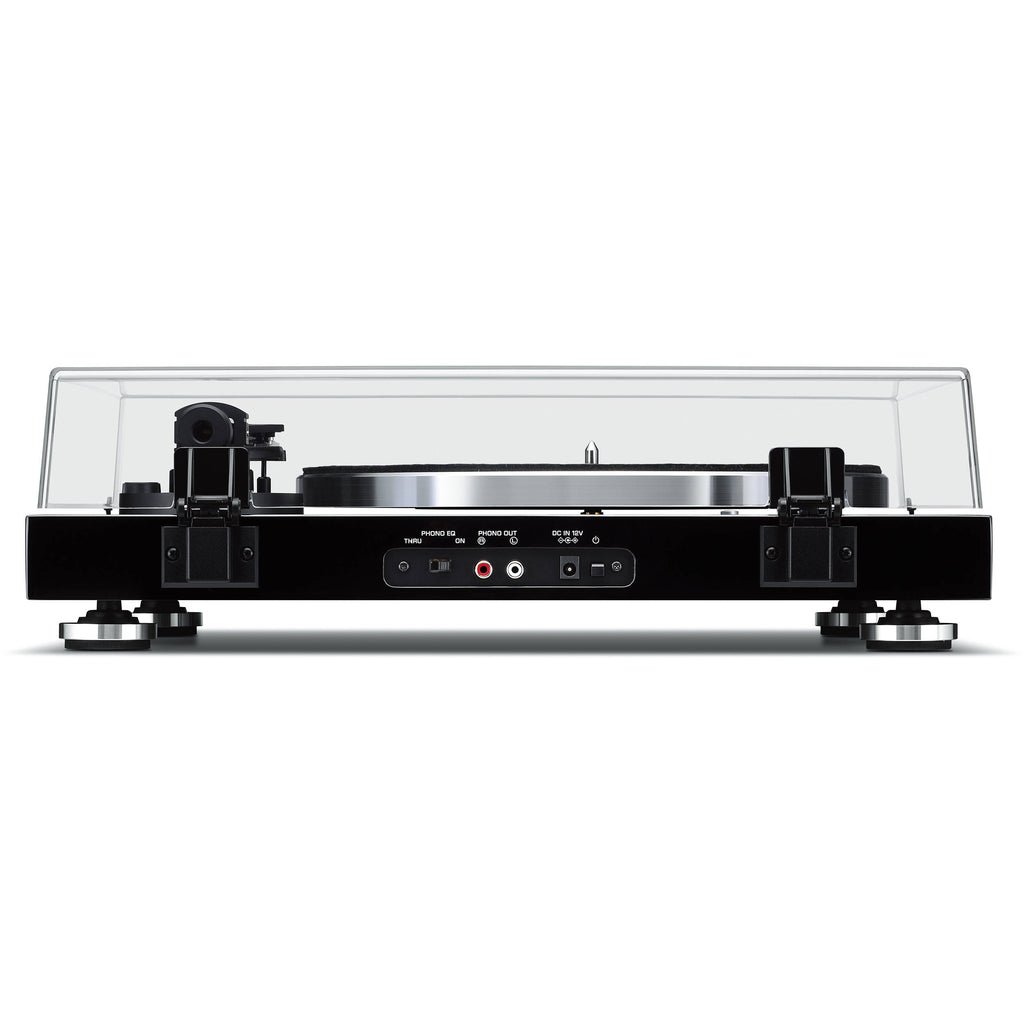

- RCA Phono/Line Output
- Die-Cast Aluminum Platter
- Includes MM Cartridge

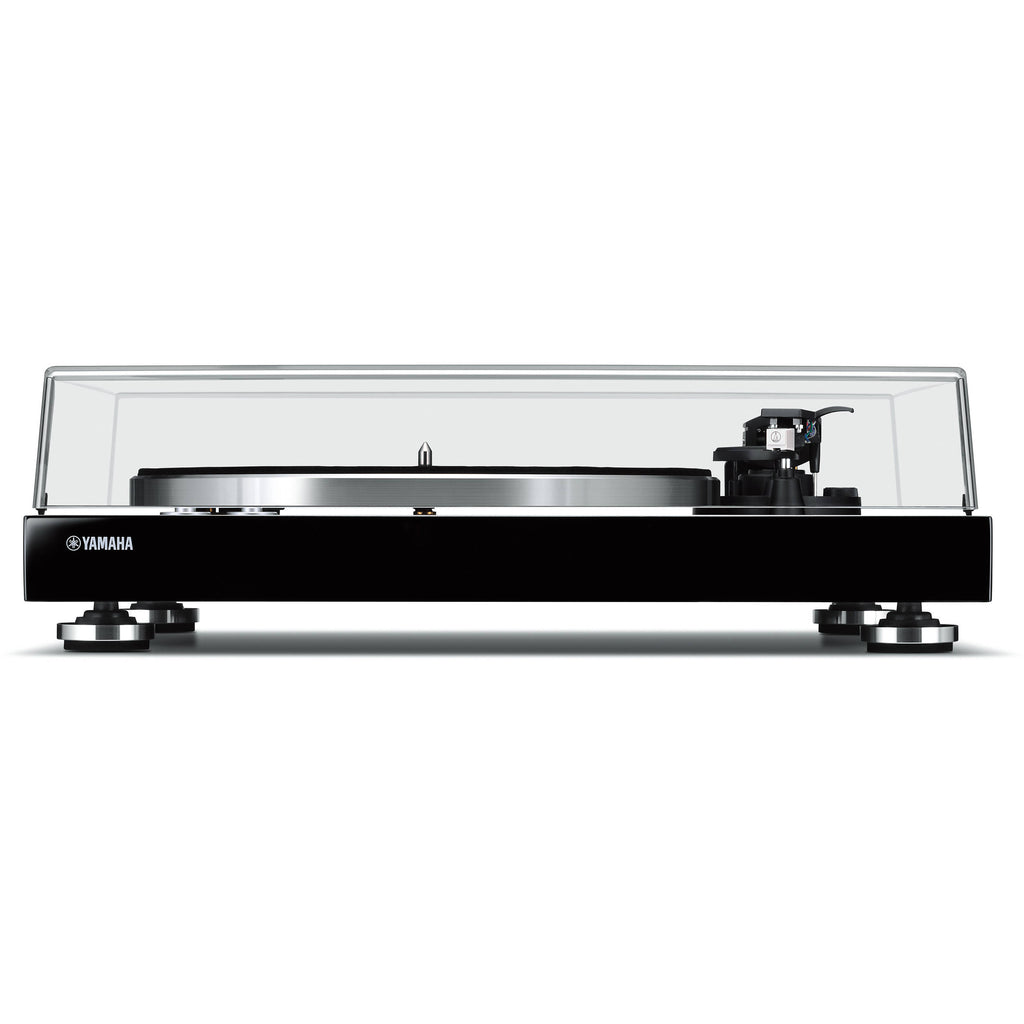

Enjoy your vinyl 33 1/3 and 45 rpm records through your stereo system with the piano black Yamaha TT-S303 Stereo Turntable . It features an 8.8" tonearm tipped with a moving magnet (MM) cartridge. Its RCA phono output and built-in preamp allow you to connect it to nearly any audio system.
-
- Static-balanced straight tonearm helps provide accurate stylus pressure for accurate tracking and sound reproduction
- Rigid cabinet design helps suppress unnecessary vibration
- Belt-driven platter engineered for high inertia with a DC motor for stable rotation
- Built-in phono preamp for line or phono output
UPC: 027108957937
Yamaha TT-S303BL specs
| Turntable |
| Rotation Speed | 33 1/3, 45 rpm |
| Drive Method | Belt-drive |
| Motor | DC |
| Wow and Flutter | 0.2% |
| Signal to Noise Ratio | geq;67 dB (A-weighted, 20 kHz, LPF) |
| Speed Drift | pm;2% |
| Turntable Platter | 11.8" / 30 cm die-cast aluminum |
| Tonearm |
| Material | Not specified by manufacturer |
| Design | Static-balance straight |
| Effective Arm Length | 8.8" / 223.5 mm |
| Arm Weight | Not specified by manufacturer |
| Overhang | 0.75" / 19 mm |
| Cartridge Weight | Acceptable: 0.55 to 0.67 oz / 15.5 to 19 g (including headshell) |
| Cartridge Specifications |
| Cartridge Type | MM-type |
| Frequency Range | Not specified by manufacturer |
| Output Voltage | 2.5 mV @ 1 kHz, 3.54 cm/sec |
| Output Level | 140 mV (-17 dBV with RIAA EQ)
2.5 mV (pm;3 dBV, without RIAA EQ, 1 kHz, 3.54 cm/sec) |
| Height | 17 pm; 0.7 mm |
| Weight | Cartridge: 5 pm;0.3 g
Headshell: 10 g (including hardware) |
| Stylus |
| Replacement | Not specified by manufacturer |
| Pressure Level | 3.5 pm; 0.5 g |
| Stylus Pressure Adjustment | 0 to 4 g |
| General |
| Power Requirements | Not specified by manufacturer |
| Operating Power Consumption | Typical: 1.5 W |
| Standby Power Consumption | 0.1 W |
| Dimensions (W x H x D) | 17.75 x 5.38 x 14.5" / 45.09 x 13.65 x 36.83 cm |
| Weight | 10.6 lb / 4.8 kg |
| Packaging Info |
| Package Weight | 15.0 lb |
| Box Dimensions (LxWxH) | 21.0 x 17.0 x 8.5" |
