Description
Yamaha SWR-2311P-10G Overview
- 1Description
- 2Complete Network Overview
- 3Snapshot Function
- 4Enhanced Device ID with Icons, Labels, and Comments
- 5Intelligent Security Management
- 6Network Visualization
- 7microSD Card Slot

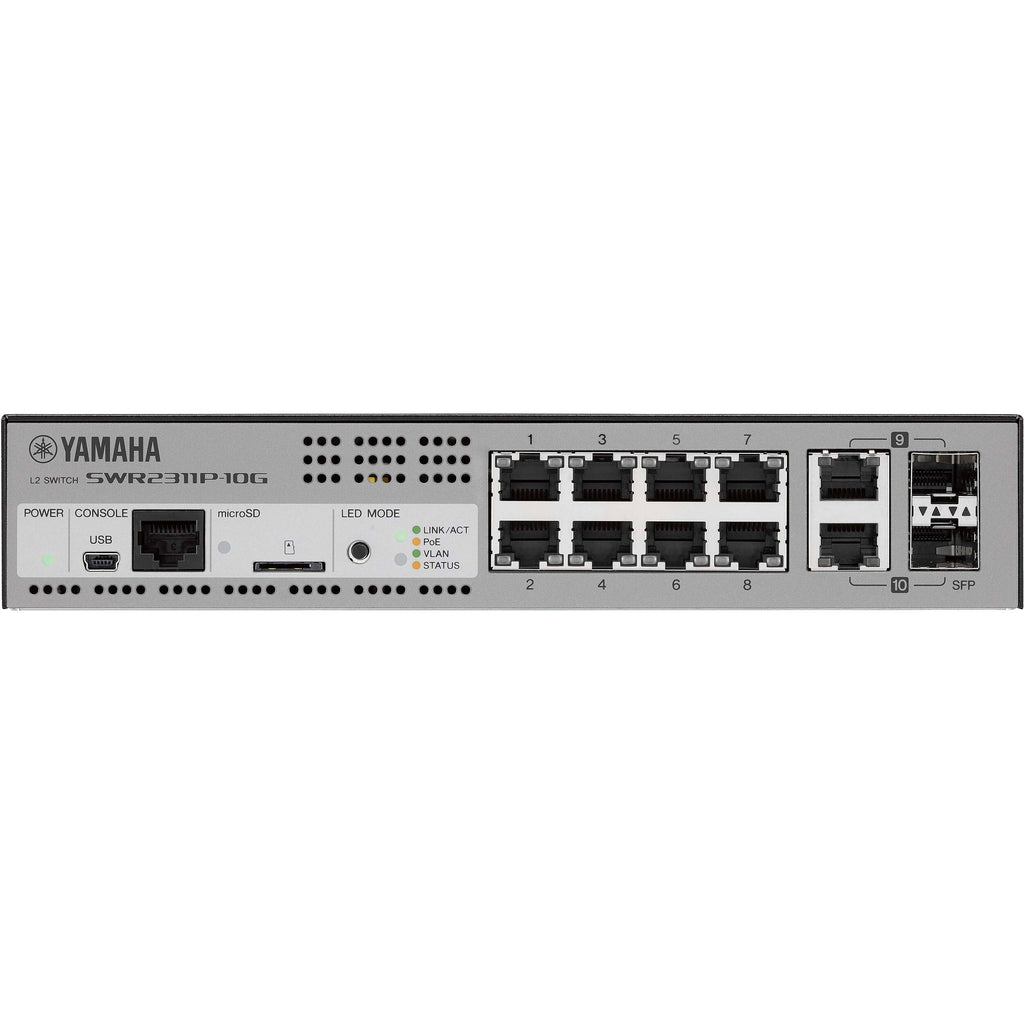

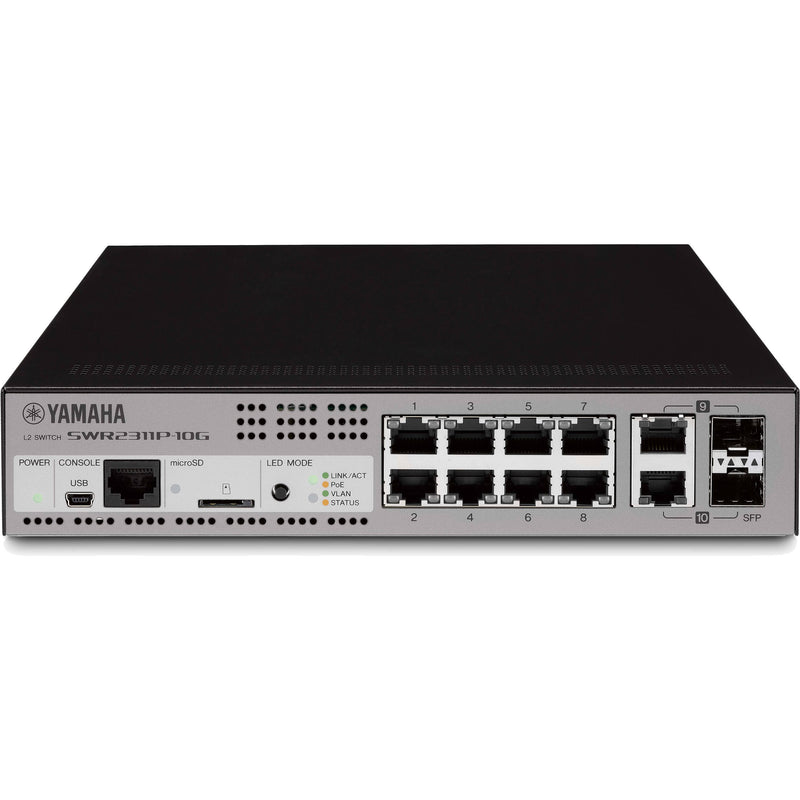

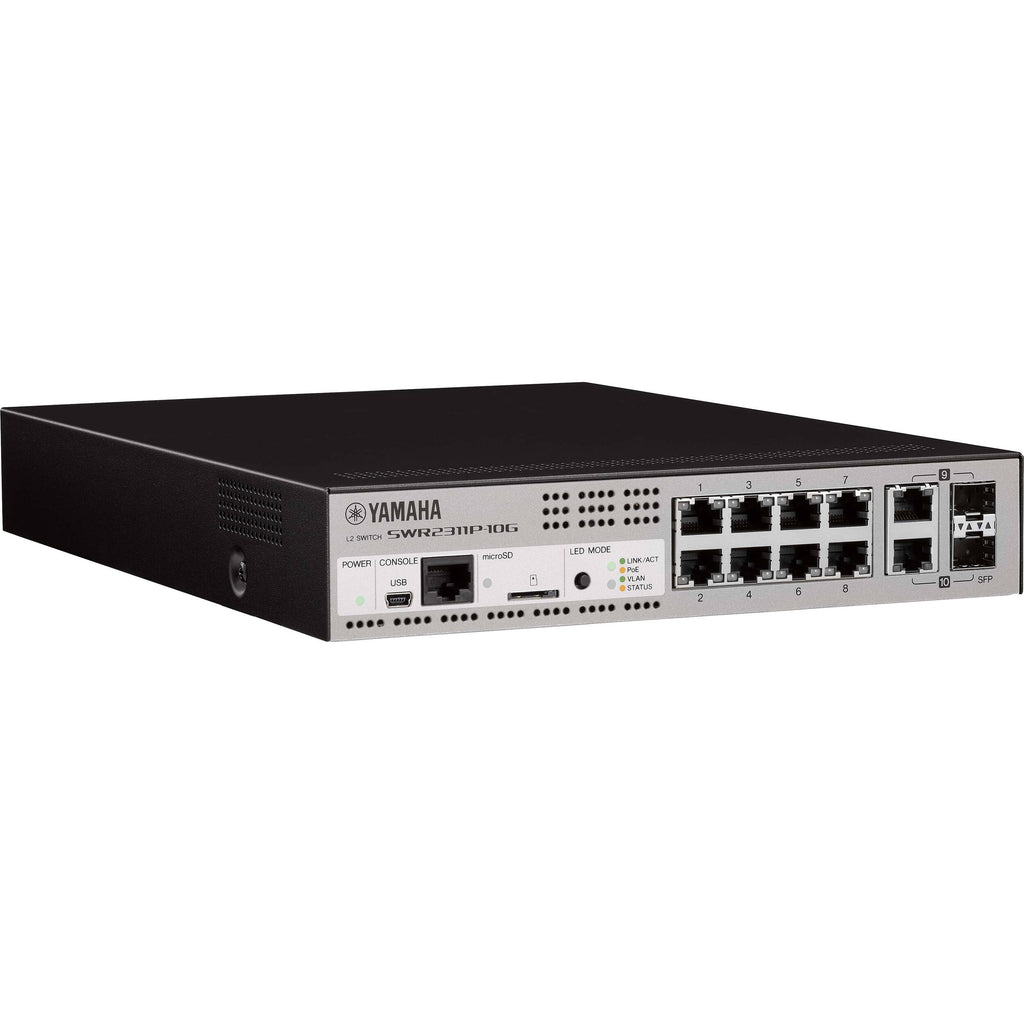

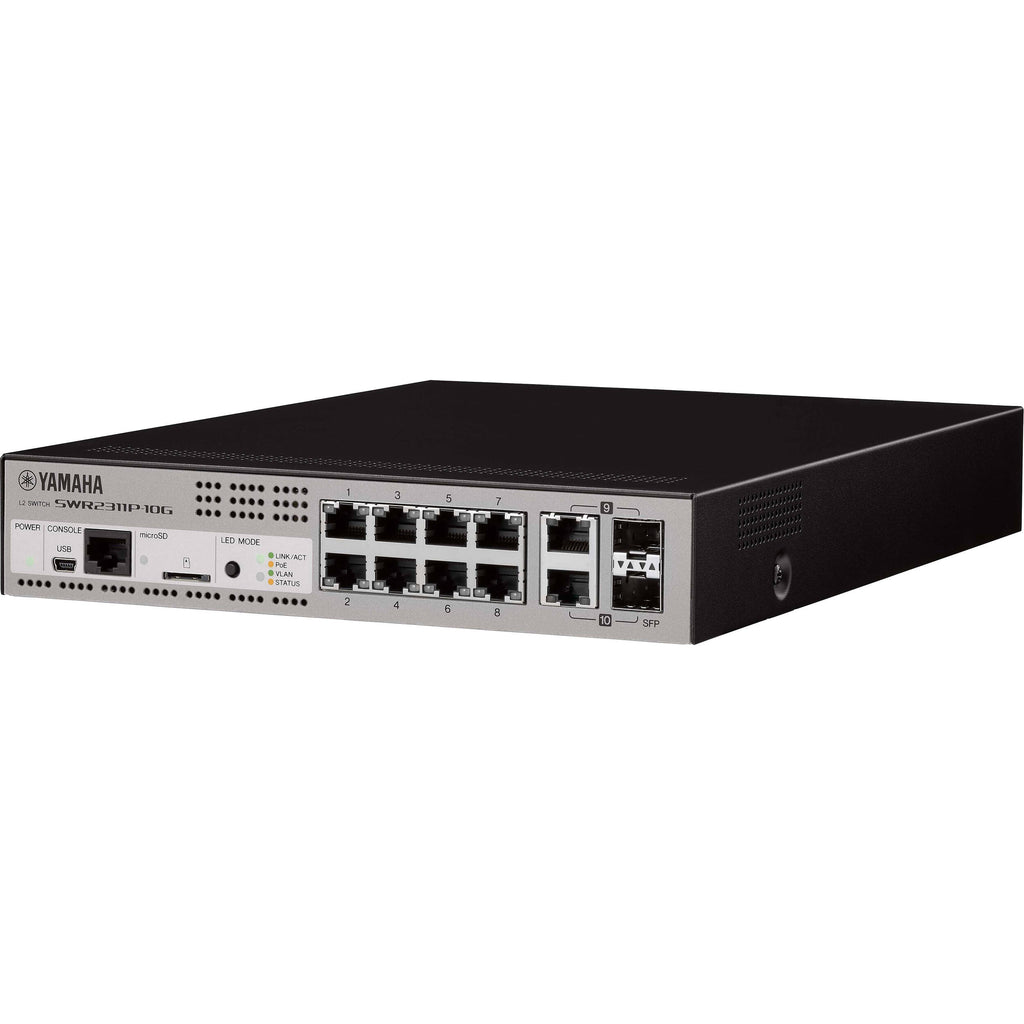

Optimized for Dante digital audio networks, the SWR2311P-10G 10-Port PoE+ Compliant Gigabit Dante Managed Switch from Yamaha allows you to quickly operate and manage PoE-compatible equipment such as speakers, microphones, access points, and more. Dante settings are automatically transferred to compatible devices, which helps to simplify installation and management for large conference rooms and other environments. The SWR2311P-10G offers eight PoE-compliant Gigabit Ethernet ports, each capable of delivering up to 30W of power, with a total budget of 240W. Configure the Gigabit combo ports to support additional RJ45 copper line connections or as SFP fiber uplinks.
Complete Network Overview
Using the dedicated Yamaha LAN Monitor software allows quick troubleshooting; you can check the PoE power supply status, turn the PoE power supply on or off, and use the snapshot function to inform you whether a fault has occurred by detecting any difference in the state of the network since it was set up. The web GUI provides a full range of monitoring functionalities, including dead/alive monitoring settings for PoE devices, allowing you to restart the PoE device if a fault occurs, or informing you via email of a fault.
Snapshot Function
You can take a snapshot of the network status when set up as required. The software can then automatically keep track of settings and alert you to any changes. For example, you could take a snapshot of the network, and be alerted if a cable is disconnected, if a device is turned off, or if a wrong connection is made prior to the performance.
Enhanced Device ID with Icons, Labels, and Comments
Identifying devices connected to a switch by only their IP or MAC address can be difficult and prone to errors. Connected Dante devices are identified by a Dante icon as well as a device ID previously set up via the Dante Controller software. You can also enter additional info, such as the location of the device, in the Label and Comment fields.
Intelligent Security Management
Augmenting the VLAN functionality included in the SWR2311P-10G is a built-in RADIUS server function. By setting up one switch as a RADIUS server and linking other switches to it, unauthorized network access can be effectively blocked for enhanced security, even in complex large-scale installations. Device authentication can be set up quickly and easily via a web-based GUI.
Network Visualization
The SWR2311P-10G supports the LAN Map Light visualization function by WebGUI. Switch settings can be made on graphical screens, not by command entry. By utilizing WebGUI, it has extensive monitoring functions, such as PoE device monitoring, restarting PoE devices in case of trouble, setting email error notifications, and more. With Yamaha's proprietary L2MS communication protocol, you can check the IP addresses of Yamaha network devices and the network devices connected to them. It can be used widely from system design to maintenance.
microSD Card Slot
A microSD card can be used for backing up accumulated data in addition to activating and updating firmware.
UPC: 889025116237
In the Box
- Yamaha SWR2311P-10G 10-Port PoE+ Compliant Gigabit Dante Managed Switch
- Power Cable
- Clamp
- Legs
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Complete Network Overview
- Snapshot Function
- Enhanced Device ID with Icons, Labels, and Comments
- Intelligent Security Management
- Network Visualization
- microSD Card Slot
Yamaha SWR-2311P-10G Specs
Interfaces
| Inputs/Outputs | 8 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) PoE+ 2 x 10/100/1000 Mb/s Gigabit Combo (Ethernet/SFP) 1 x Ethernet (RJ45) (Console) 1 x Mini-USB (Console) |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC |
Protocols
| Layer Services Supported | Layer 2 Support |
| Supported Protocols | Auto-MDIX/MDI RADIUS |
Security
| Security Features | RADIUS Authentication |
Standards
| Supported IEEE Standards | 802.3at |
Electrical
| Power Draw | 280.00 W (Max) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| PoE Power Budget | 240 W |
| PoE per Port | 30 W |
| Power Supply Type | Internal |
Environmental
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
General
| Cooling System | Fan |
| Dimensions | 11.6 x 8.7 x 1.7" / 294 x 220 x 42.4 mm |
| Weight | 5.1 lb / 2.3 kg |
Packaging Info
| Package Weight | 7.51 lb |
| Box Dimensions (LxWxH) | 16.9 x 15.1 x 5.1" |
