Yamaha RM Wireless Microphone Overview
Add up to eight RM series wireless microphones to your ADECIA conferencing system with the RM-WAP-8 Wireless Access Point from Yamaha. The unit connects to your Dante network via an RJ45 port, which also supplies the unit with PoE (Power over Ethernet), and allows you to quickly and easily configure your mics using the automated setup wizard. The RM-WAP-8 offers integrated digital signal processing (DSP) to ensure clear, intelligible speech for your meetings without taxing your computer's processor and can be used in conjunction with the RM-CR signal processor (available separately) for comprehensive control with Auto Tuning functions to ensure optimal sound quality.
Access up to 8 Wireless RM Microphones
- PoE+ powered access point for up to 8 RM series wireless microphones
- Supports DECT wireless technology
- Dante networking allows you to distribute audio throughout your facility
- Use on desktop or mount to wall or ceiling with included bracket

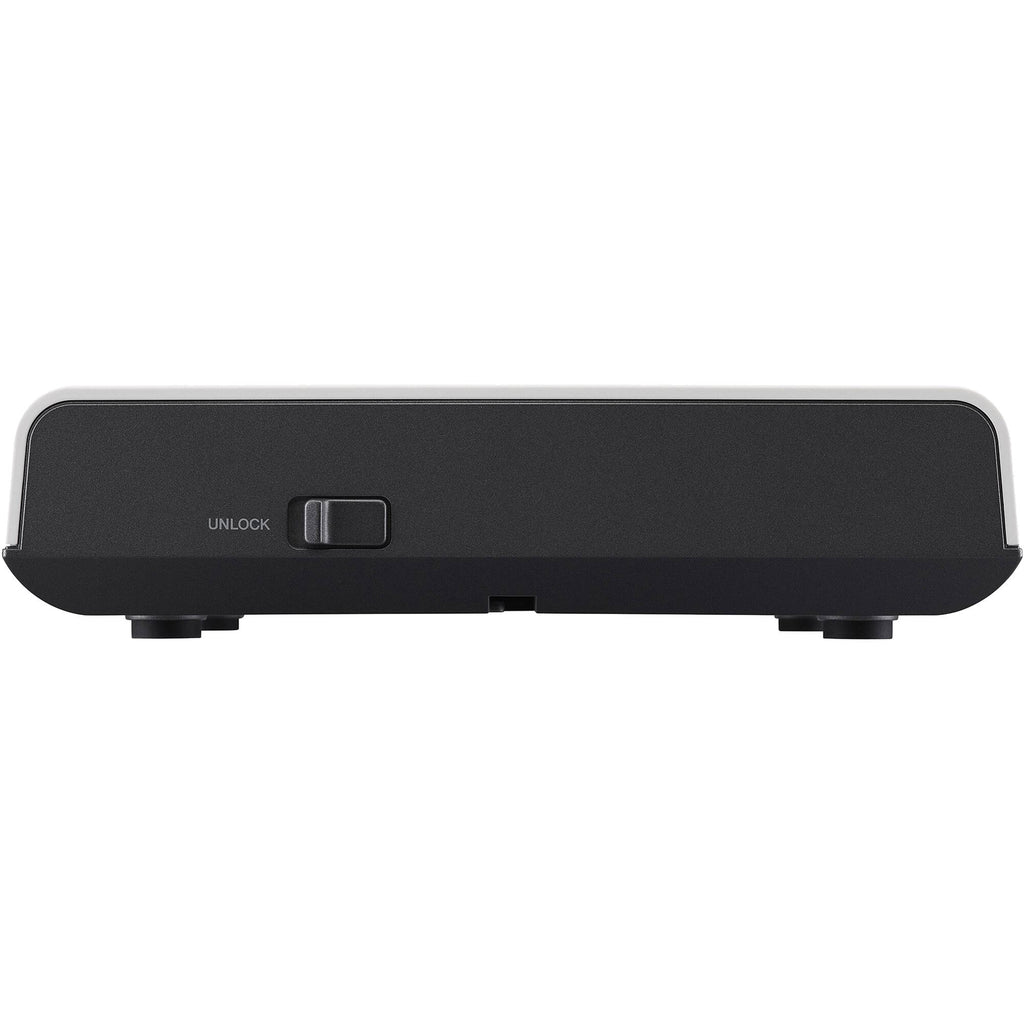

- Unlock switch for easy removal from mounting bracket
- Up to 164' wireless range
- Mix and match microphone types for optimal flexibility; with omnidirectional, directional, short-gooseneck, and long-gooseneck models all available separately
- Wireless Access Point Wizard allows users to control up to 8 microphones at a time, pair microphones to chargers (available separately), and mute sync if needed
- Easily integrated with ADECIA RM-CR, Yamaha MRX7-D, or third-party DSPs
- Integrated DSP functions require no processing power from your computer
Integrated DSP for Clear, Intelligible Speech
- High-speed adaptive Acoustic Echo Cancelation
- Noise reduction
- Human Voice Detection
- De-reverberation
- Automatic Gain Control
- Full 6-channel equalizer for each microphone
In the Box
- Yamaha RM-WAP-8 Wireless Access Point for 8 ADECIA RM Series DECT Microphones (1.9 GHz)
- Mounting Bracket
Yamaha RM Wireless Microphone Specs
Microphone
| Primary Applications |
Corporate Presentation |
| Form Factor |
Desktop |
| Intended Sound Sources |
Speech/Voice Over |
| Sound Field |
Mono |
| Capsule |
None |
| Pad |
None |
| High-Pass Filter |
None |
| Tone Adjustment |
None |
| Gain Adjustment |
None |
| Indicators |
Single LED (Power, Status) |
| On-Board Controls |
On/Off |
| Windscreen |
None |
Connectivity
| Output Connectors (Analog) |
None |
| Output Connectors (Digital) |
1 x RJ45 |
| Headphone Connector |
None |
| Wireless Connectivity |
Proprietary (Audio Streaming) |
| Bluetooth |
None |
| Wi-Fi |
None |
| Wireless Range |
164' / 50 m |
Digital Audio
| OS Compatibility |
None |
| Mobile App Compatible |
No
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Power
| Bus Power |
None |
| Operating Voltage |
48 V |
| Operating Current Consumption |
200 mA |
Physical
| Color |
Black |
| Mounting |
Surface-Mount, Tabletop (with Included Hardware) |
| Mounting Thread Size |
Not Specified by Manufacturer |
| Included Case |
None |
| Included Filters |
None |
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Operating Humidity |
20 to 85% |
| Storage Temperature |
-4 to 140°F / -20 to 60°C |
| Dimensions |
H: 1.7 x W: 6.7 x L: 6.8" / H: 42.8 x W: 171.2 x L: 172.5 mm |
| Weight |
22.9 oz / 650 g |
