Description
- 120W x 2 (RMS) Power Output
- Optical and Coaxial Inputs
- Speaker A, B or A+B Selection
- Subwoofer Out
- Continuously Variable Loudness Control
- CD Mode and Pure Direct Mode
- Power Management (Auto Power Off)
- Reinforced Chassis
- Symmetrical Layout
- Brushed Aluminum Front Panel

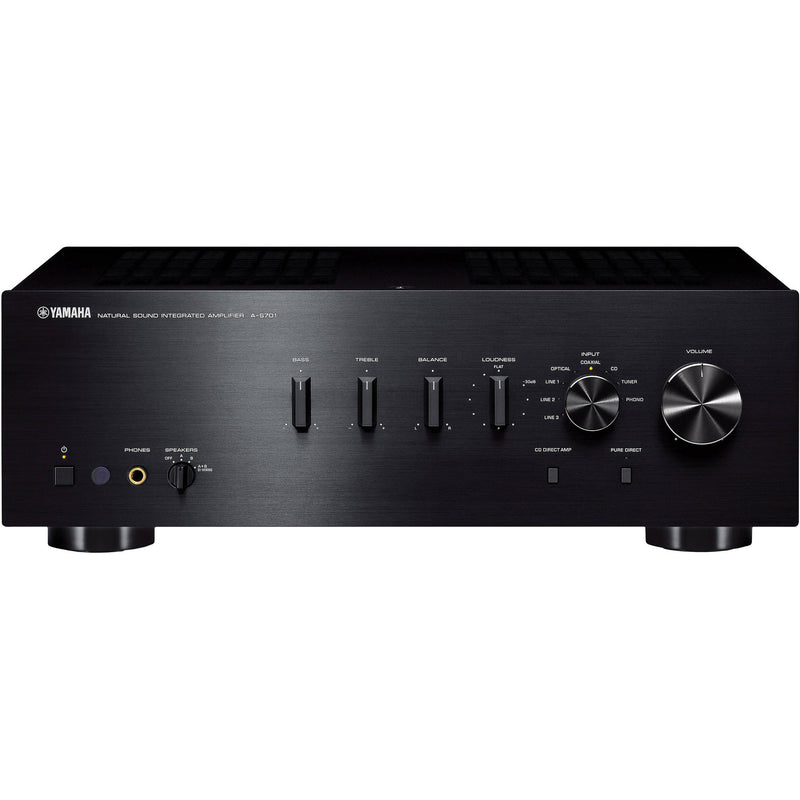

Expand your listening horizons with the black A-S701 Integrated Amplifier from Yamaha . Featuring up to 120W per channel of RMS power at 6 ohms, this amp is equipped with digital inputs for connecting devices like televisions and Blu-ray/DVD players. It offers dual stereo outputs, giving you the ability to power two sets of speakers in different rooms and switch between them, or have them both playing at the same time. To increase the bass output of your sound system, there's also a terminal for connecting a subwoofer.
To reduce distortion and degradation and produce the cleanest possible sound, the A-S701 employs Pure Direct mode and CD Direct mode. Activated via buttons on the front of the unit, these modes cause input signals to bypass unused circuits and cuts off those circuits' power supply. To further ensure quality sound, the amplifier's continuously variable loudness control allows you to balance low and high frequency sounds so you can hear a full tonal range at any volume.
Built to be energy efficient, the amp uses a power management system to switch itself to idle mode when not in use. The A-S701's internal circuitry mirrors itself symmetrically to produce higher signal purity and lower degradation. The chassis is reinforced with a solid center bar to reduce vibration and features a brushed aluminum front panel and knobs. The system comes with a remote control for easy operation.
- CD Direct Mode
- Engaged by a front panel switch, it matches CD signal levels so each stage produces less noise, resulting in improved signal-to-noise ratio and maintenance of the amp's total gain balance.
- Pure Direct Mode
- The Pure Direct mode causes the music signals to travel the shortest possible circuit route, bypassing the buffer amp and the tone, loudness and balance controls to virtually eliminate any signal degradation for the purest sound quality.
- Continuously Variable Loudness Control
- The A-S701 features an analog loudness control on the front panel which lets you adjust the loudness effect as desired. Separate from the overall volume, this controls the balance of the low- and high-frequency sounds, providing full tonal range at any volume level, compensating for the natural loss in the human ear of high and low frequencies at soft levels.
- Direct Symmetrical Design
- This amplifier's left and right channels are organized in a straight, symmetrical layout for limiting distortion and increasing signal purity.
- Anti-Resonance Chassis
- The base of the A-S701's chassis is reinforced with a solid center bar to increase rigidity support and vibration damping, which limits resonance.
- Dual System Capable
- You can connect two separate speaker systems in different rooms and switch between them or have them both play at the same time by switching the dial on the front of the unit.
- Phono MM Terminal
- You can connect a turntable with an MM phono cartridge to play vinyl records, allowing you to enjoy records in addition to modern media sources.
- Auto Power Standby Function
- This amplifier puts itself into standby mode when it detects that it hasn't been used in approximately 8 hours, minimizing power consumption.

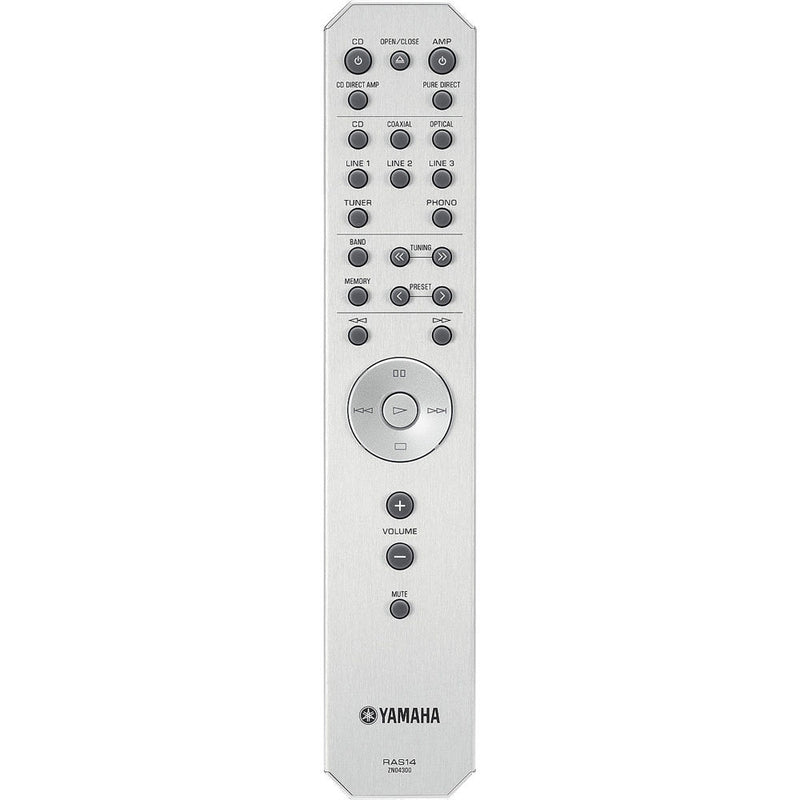

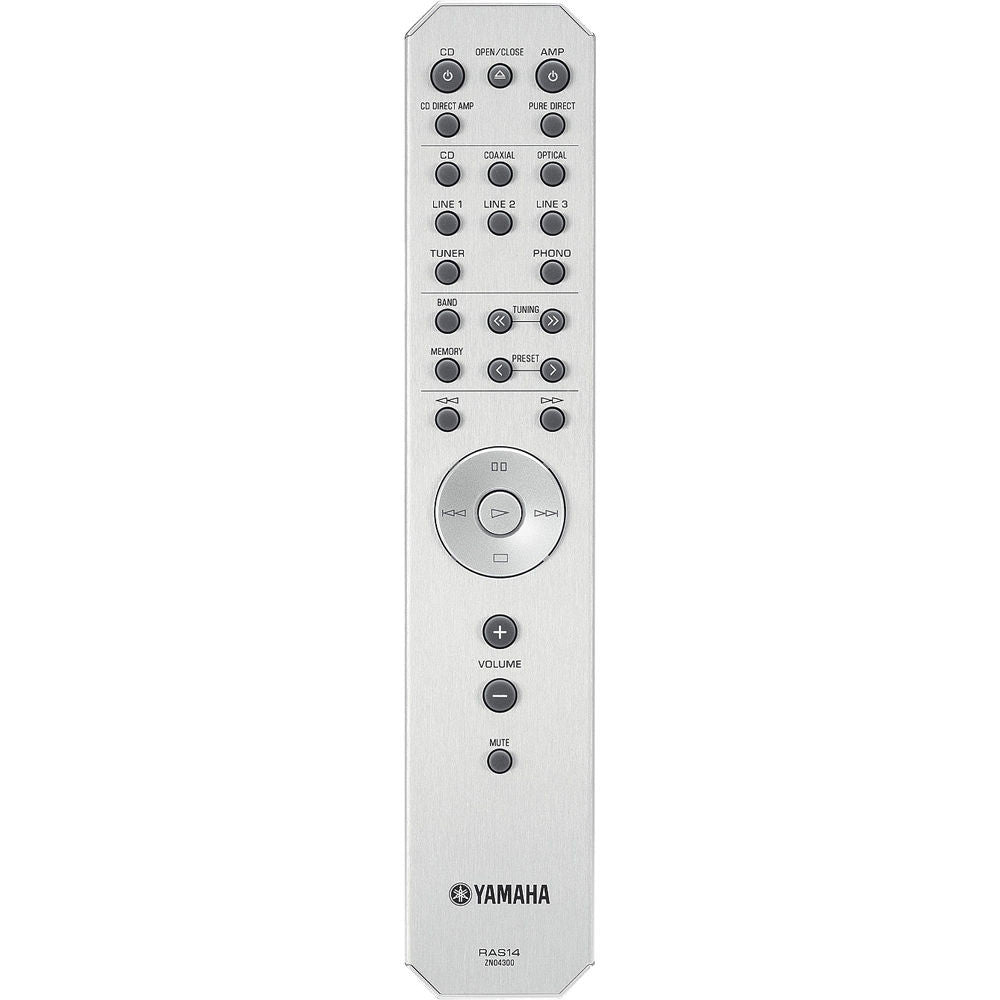

- Remote Control
- Control your music from afar with the included remote, finished to match the design of the amplifier. The remote comes with batteries and can also be used to control a Yamaha CD player.
- Connection for Bluetooth Wireless Adapter
- With the optional YBA-11 Bluetooth Wireless Adapter, you'll be able to stream music wirelessly from a Bluetooth capable mobile phone or a PC to the network receiver. This amplifier features a DC-out connection on the rear panel to power the adapter.
- Rotary Encoder Input Selector
- The rotary encoder makes it quick and easy to select input sources, and the LEDs clearly show which source is selected so you can easily switch between them, even in a dark room.
| System | |
|---|---|
| RMS Output Power | 6 Ohms, 20 Hz to 20 kHz, 0.038% THD: 120 W + 120 W 8 Ohms, 20 Hz to 20 kHz, 0.019% THD: 100 W + 100 W |
| Dynamic Power per Channel | 8 Ohms: 140 W 6 Ohms: 170 W 4 Ohms: 220 W 2 Ohms: 290 W |
| Power Bandwidth | 0.04% THD, 50 W, 8 Ohms: 10 Hz to 50 kHz |
| Damping Factor | 1 kHz, 8 Ohms: ?240 |
| Input Sensitivity/Impedance | Phono (MM): 3.0 mV / 47 kOhms CD, etc.: 200 mV / 47 kOhms |
| Maximum Input Voltage | Phono (MM) (1 kHz, 0.03% THD): ?45 mV CD etc. (1 kHz, 0.5% THD): ?2.2 V |
| Output Level and Impedance | Rec Out: ?200 mV / 1.0 kOhms Subwoofer Out (Cut-Off Frequency: 100 Hz): 3.5 V / 1.2 kOhms |
| Headphone Output Impedance | CD, etc. (Input 1 kHz, 200 mV, 8 Ohms): 470 mV / 470 ohms |
| Frequency Response | With Pure Direct: 20 Hz to 20 kHz, 0±0.5 dB Without Pure Direct: 10 Hz to 100 kHz, 0±1.0 dB |
| RIAA Equalization Deviation | ±0.5 dB |
| Total Harmonic Distortion (THD) | Phono (MM) to Rec Out (20 Hz to 20 kHz, 2.5 V) ?0.03% CD, etc. to Speakers (20 Hz to 20 kHz, 50 W, 8 Ohms): 0.019% |
| Signal-to-Noise Ratio | Phono (MM) (5 mV Input Shorted): ?82 dB CD, etc., with Pure Direct On (200 mV Input Shorted): ?99 dB CD Direct Amp On: ?104 dB |
| Residual Noise | 40 ?V (IHF-A Network) |
| Channel Separation | CD, etc. (5.1 kOhms Input Shorted, 1 kHz): 65 dB or more CD, etc. (5.1 kOhms Input Shorted, 10 kHz): 50 dB or more |
| Tone Control | Bass Boost/Cut (20 Hz): ± 10 dB Turnover Frequency: 400 Hz Treble Boost/Cut (20 kHz): ± 10 dB Turnover Frequency: 3.5 kHz |
| Loudness Control | Attenuation (1 kHz, Continuous): -30 dB |
| Digital Audio Format | PCM (2-channel), 192/176.4/96/88.2/48/44.1/32 kHz |
| PCM Word Depth | 24-bit / 16-bit |
| Connectors | |
|---|---|
| Input | 5 x RCA 1 x Phono for turntable 1 x Optical 1 x Coaxial |

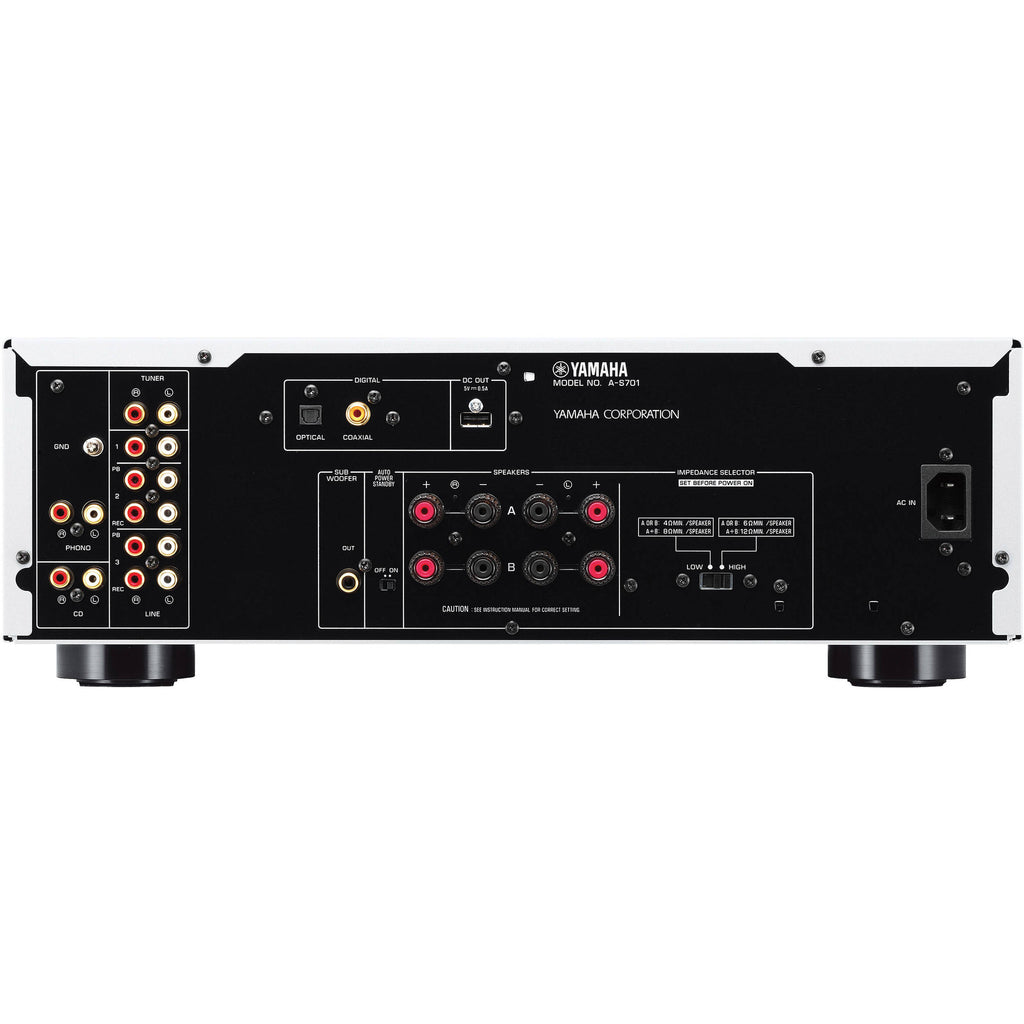

| Output | 2 x RCA 4 x Speaker terminal 1 x Subwoofer 1 x Headphone 1 x DC (accessory power) |
| Terminals | Gold-plated RCA (CD, phono, coaxial) and speaker terminals |
| Other Connectors | 1 x AC power |
| General | |
|---|---|
| Cabinet (Chassis) | Design: Reinforced with solid center bar Finish: Brushed aluminum |
| Power Supply | 120 VAC, 60 Hz |
| Power Consumption | In Use: 270 W Maximum: 580 W Standby: 0.5 W |
| Capacitors | 12,000 ?F block capacitors |
| Dimensions (W x H x D) | 17.1 x 5.9 x 15.2" (43.5 x 15.1 x 38.7 cm) |
| Weight | 24.7 lb (11.2 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 29.15 lb |
| Box Dimensions (LxWxH) | 21.2 x 17.5 x 8.4" |
- Remote Control
- 2 x AA Batteries
- AC Power Cord
- Limited 2-Year Warranty
