Description
Yamaha A-S3200 Overview
- 1Description
- 2Toroidal Transformer
- 3High Quality Component Selection
- 4Dedicated Phono Amp
- 5Low Impedance Design
- 6Brass Screws and Copper Terminals for Block Capacitors
- 7Fully Balanced Circuitry from Input to Speaker
- 8Pure Brass Speaker Terminals
- 9Mechanical Ground Concept
- 10Chrome-Plated Pinpoint Brass
- 11Front-Panel Switches
- 12Level Meters
- 13Additional Features

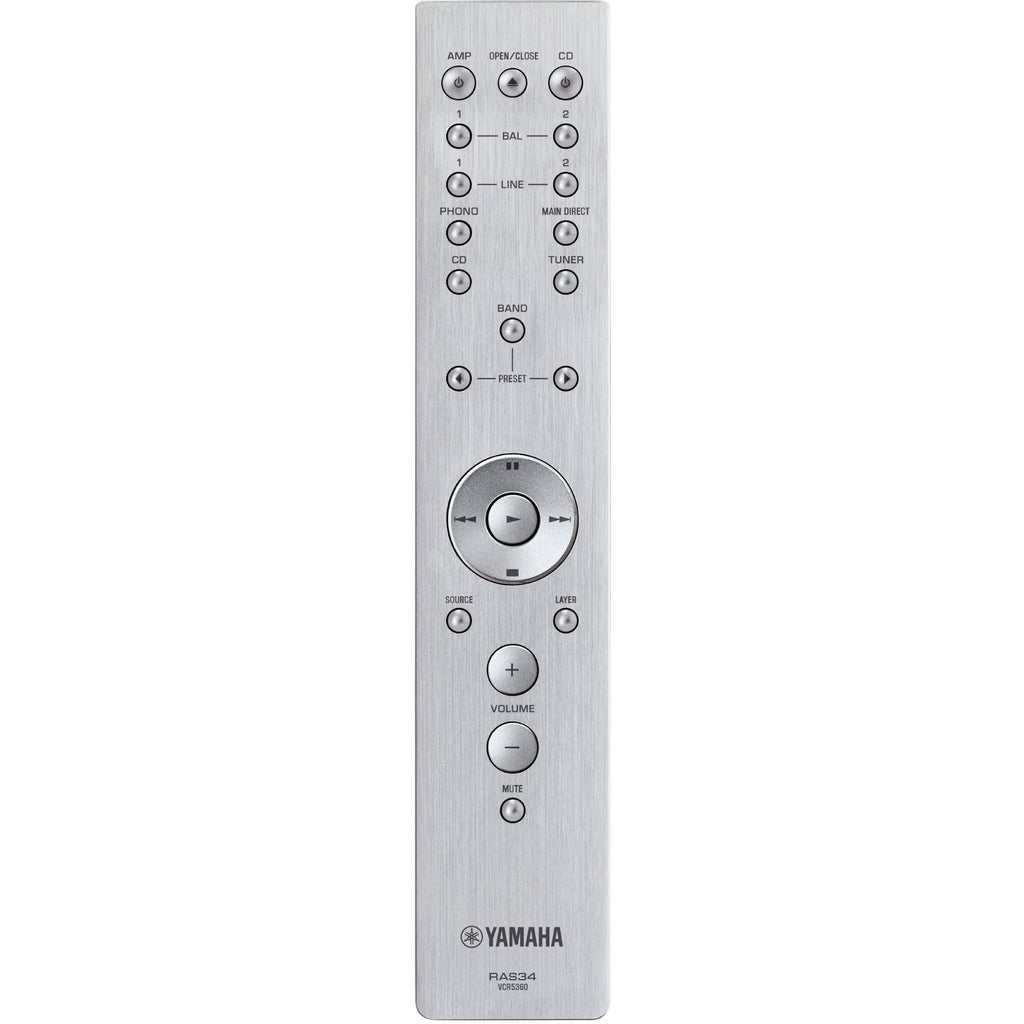

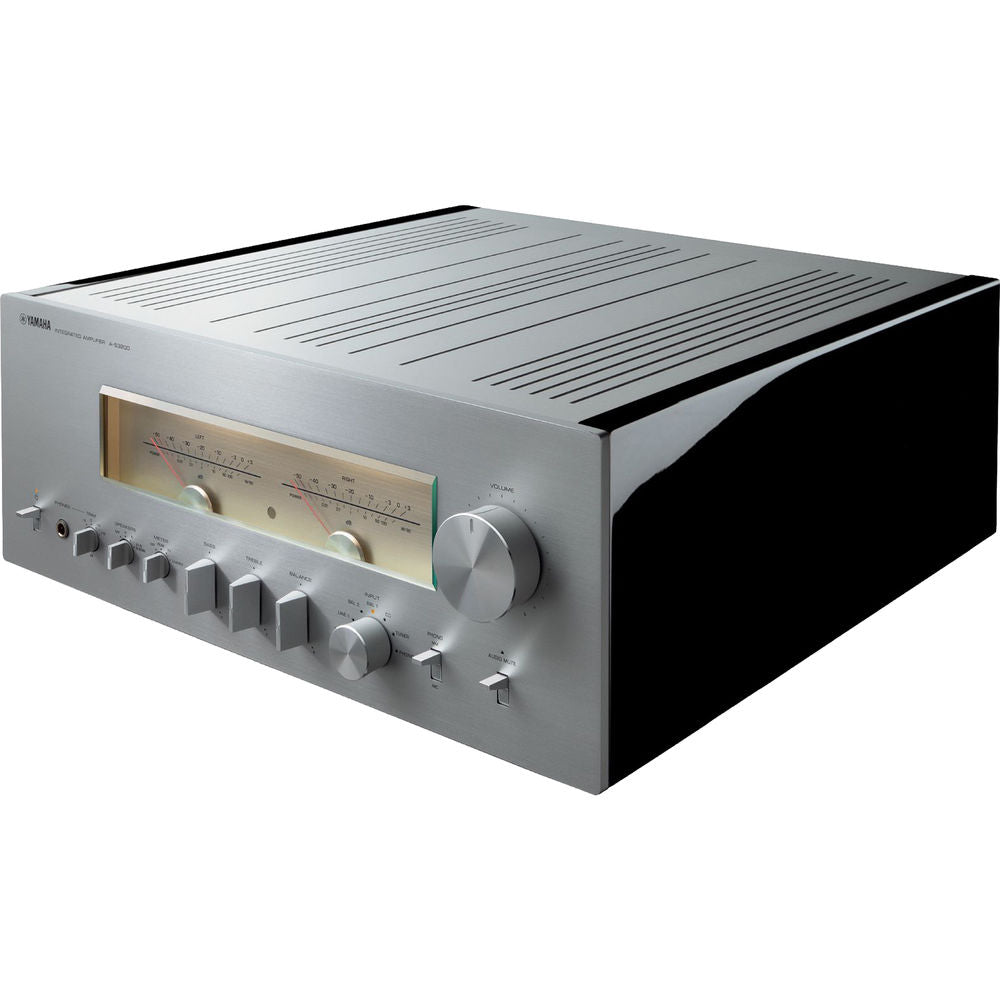

Enjoy enhanced stereo sound with your favorite pair of speakers and the silver Yamaha A-S3200 Stereo 200W Integrated Amplifier. It outputs up to 100W per channel at 8 ohms and features an MM/MC phono input and two balanced XLR stereo pairs in addition to its five stereo RCA inputs. A 1/4" headphone jack with discrete amplification enables private listening. The A-S3200 includes a remote control as an added convenience.

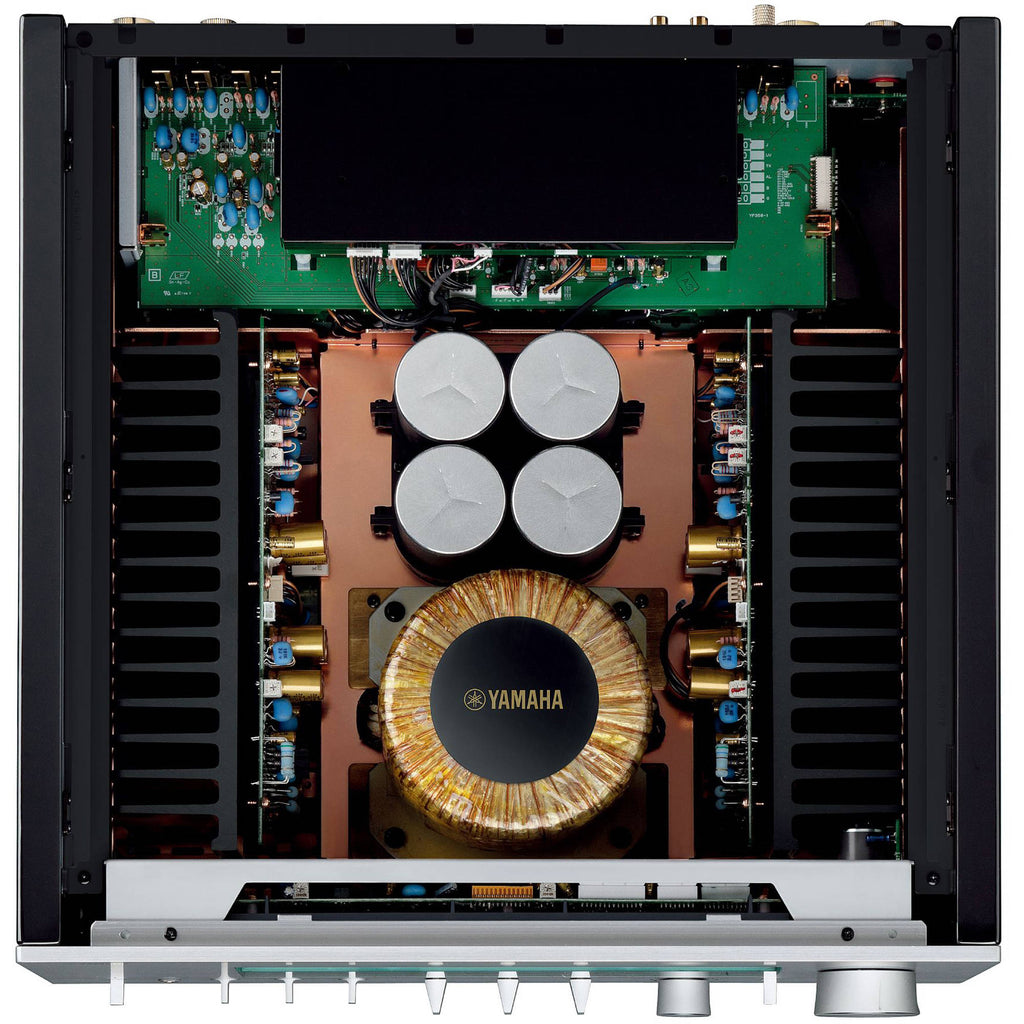

Toroidal Transformer
The toroidal transformer in the A-S3200 is designed to provide technical proficiency and musicality. With less flux leakage, there is no negative impact on other sensitive audio circuits. Copper wire is directly drawn from the winded core to help minimize energy loss, allowing the full emotional energy in your music to be expressed.
High Quality Component Selection
The PC-Triple C speaker wire is designed with a more linear structure to allow for smoother signal transmission to more accurately present the original music recording. High quality capacitors are also used for an authentic musical sound.
Dedicated Phono Amp
The phono amp is comprised of an MC head amp and an equalizer amp, each of which are discretely configured to help achieve a rich sound with pronounced musicality when playing vinyl records through either an MC or MM cartridge.
Low Impedance Design
Using the low impedance design concept helps minimize energy loss while maintaining integrity in the audio signal to help produce an open, natural soundstage.
Brass Screws and Copper Terminals for Block Capacitors
Using brass screws and oxygen-free copper terminals for the block capacitors helps to deliver additional headroom available in the four 22,000 μF capacitors to produce an open soundstage.
Fully Balanced Circuitry from Input to Speaker
The fully balanced circuitry design helps the amplifier deliver a low signal-to-noise ratio for virtually perfect silence gaps in your music and moments between movements. This design also enhances channel separation to produce a soundstage that almost makes the system disappear, making you feel more like you're at a live performance.
Pure Brass Speaker Terminals
Cut directly from pure brass, the speaker terminals are designed to comfortably fit in your hand for simple tightening to provide a secure connection.
Mechanical Ground Concept
The A-S3200 adopts a Mechanical Ground Concept, with the bolts of the feet welded directly to the main chassis, and the large heat sink, power transformer, and block capacitors bolted directly to the chassis. This design helps maximize rigidity and avoid unwanted vibration to achieve expressive and rhythmic bass, presenting you with the groove of the music. The A-S3200 also has a Rigid Streamlined Construction to further suppress vibration.
Chrome-Plated Pinpoint Brass
Completing the rigidity of the amplifier are the brass feet that can be used with either spikes or a scratch-resistant base for delicate surfaces.

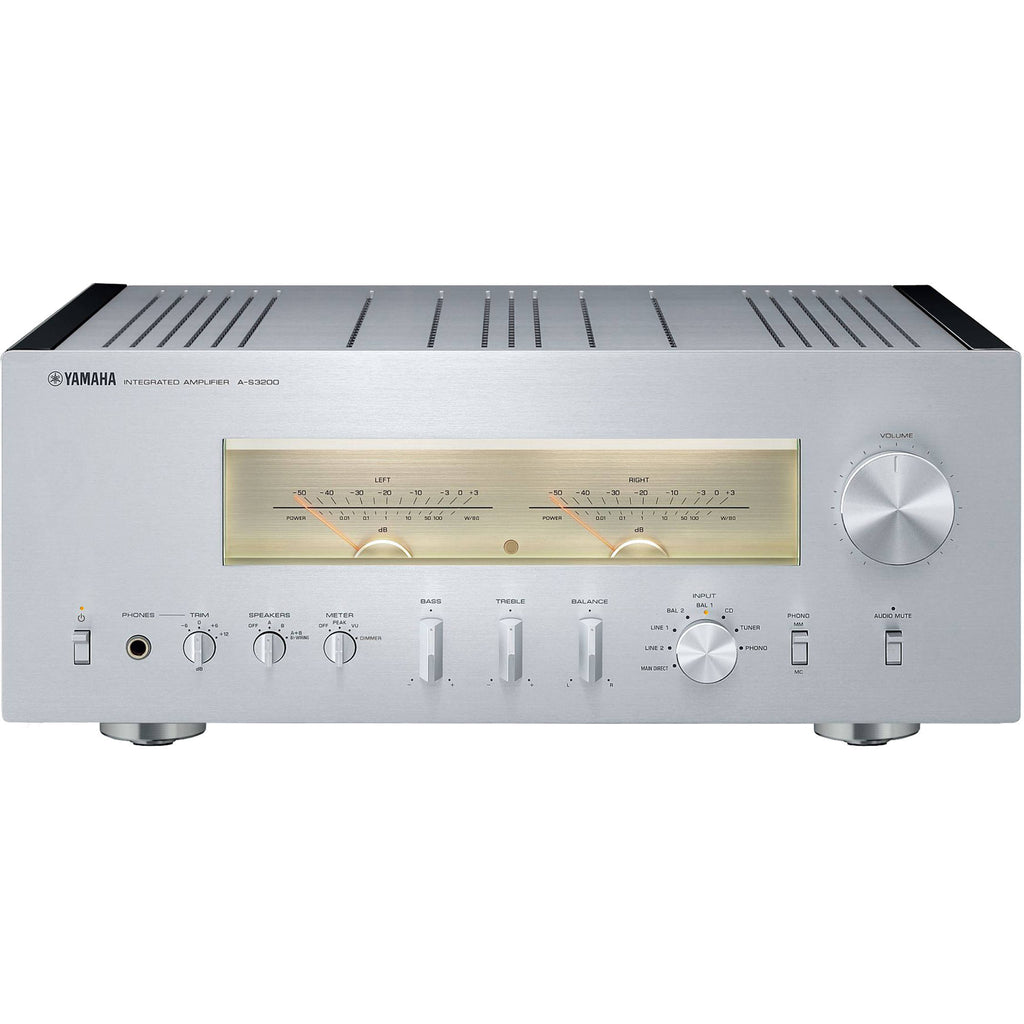

Front-Panel Switches
Use of the switches and knobs serve as a connection between you and the engineer, providing a tactile surface reflecting the meticulous nature of the engineers.
Level Meters
The level meters are both a nod to the nostalgic era of hi-fi and demonstrate the return of pure hi-fi for today's enthusiasts. Visually presenting the dynamics and pulse of the music, the level meters are designed to provide a warm feeling through their softly illuminated LEDs. The glass window is cut diagonally and precision-fit to the back surface of the front panel, leaving no gaps or screws for connection.
Additional Features
- Floating balanced circuit for power amplifier
- Tone control circuit with a parallel volume system
- Large power supply with four separate circuits
- Low impedance, high performance headphone amp
- High-rigidity lever selectors
UPC: 027108958361
In the Box
- Yamaha A-S3200 Stereo 200W Integrated Amplifier (Silver)
- Remote Control
- 2 x AAA Batteries
- Power Cable
- Limited 2-Year Warranty
Table of Contents
- Description
- Toroidal Transformer
- High Quality Component Selection
- Dedicated Phono Amp
- Low Impedance Design
- Brass Screws and Copper Terminals for Block Capacitors
- Fully Balanced Circuitry from Input to Speaker
- Pure Brass Speaker Terminals
- Mechanical Ground Concept
- Chrome-Plated Pinpoint Brass
- Front-Panel Switches
- Level Meters
- Additional Features
Yamaha A-S3200 Specs
Amplifier
| Amplifier Type | Integrated Amplifier (Preamp/Power Amp Combo) |
| Channels | 2.0 |
| Power Output per Channel | 100 W at 8 Ohms / 20 Hz to 20 kHz / 0.07% THD (RMS) 150 W at 4 Ohms (RMS) 130 W at 8 Ohms / 1 Hz / 10% THD (Peak) 210 W at 4 Ohms / 1 Hz / 10% THD (Peak) |
| Dynamic Power per Channel | 120 W at 8 Ohms 150 W at 6 Ohms 200 W at 4 Ohms 300 W at 2 Ohms |
| Frequency Response | 5 Hz to 100 kHz +0/-3 dB 20 Hz to 20 kHz +0/-0.3 dB |
| Residual Output Noise | 33 µV (IHF-A) |
| Tone Control | Bass (50 Hz): ±9.0 dB Treble (20 kHz): ±9.0 dB |
| Damping Factor | � 250 (8 Ohms, 1 kHz) |
Connectivity

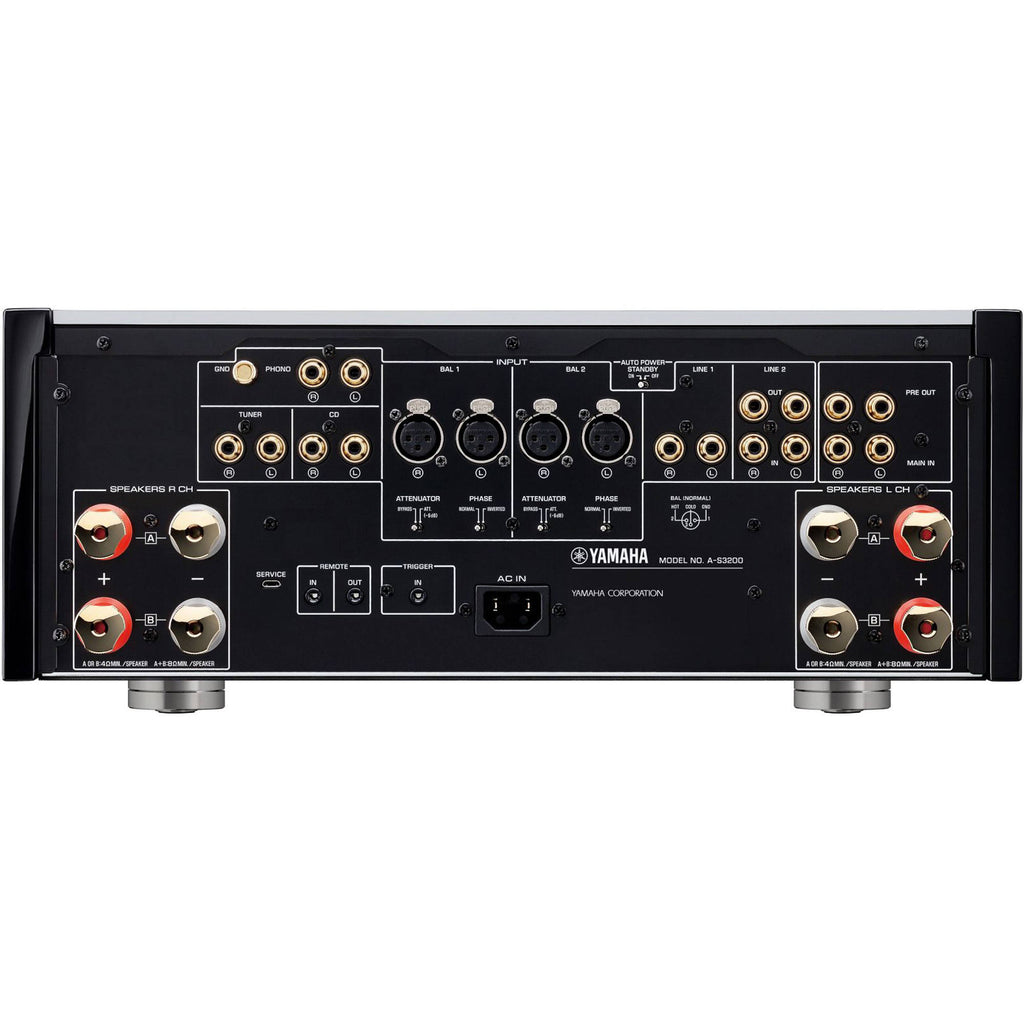

| Rear A/V Inputs | 5 x Stereo RCA 1 x Stereo RCA (Phono) with Ground Screw 2 x Stereo XLR |
| Rear A/V Outputs | 1 x Stereo RCA 1 x Stereo RCA Pre-Out |
| Front I/O | 1 x 1/4" / 6.35 mm Headphone Output |
| Headphone Output Power | 25 mW per Channel into 32 Ohms (1 kHz, 0.2% THD) |
| Other Rear I/O | 1 x 1/8" / 3.5 mm (12 V Trigger) Input 1 x 1/8" / 3.5 mm (Remote) Input 1 x 1/8" / 3.5 mm (Remote) Output 1 x Micro-USB (Service) |
| Speaker Connectors | 4 x Binding Post Pair |
| Input Impedance | Phono (MC): 50 Ohms Phono (MM): 47 Kilohms Line: 47 Kilohms XLR: 100 Kilohms |
| Input Sensitivity | Phono (MC): 150 µVrms Phono (MM): 3.5 mVrms RCA: 1 Vrms XLR: 200 mVrms Line: 200 mVrms |
| Max Input Level | Phono (MC): 2 mVrms (1 kHz / 0.5% THD) Phono (MM): 50 mVrms (1 kHz / 0.5% THD) XLR: 2.8 Vrms (1 kHz / 0.5% THD) XLR (Attenuator On): 5.6 Vrms (1 kHz / 0.5% THD) Line: 2.8 Vrms (1 kHz / 0.5% THD) |
| Phono RIAA EQ Deviation | ±0.5 dB |
| Rated Output / Impedance | Line: 200 mVrms / 1.5 Kilohms Pre-Out: 1 Vrms / 1.5 Kilohms |
| Signal to Noise Ratio | Phono (MC): 90 dB (JEITA / IHF-A) Phono (MM): 96 dB (JEITA / IHF-A) XLR: 114 dB (JEITA / IHF-A) Line: 110 dB (JEITA / IHF-A) |
| Total Harmonic Distortion (THD) | Phono (MC) to Line Out: 0.02% (1.2 V Input) Phono to Line Out: 0.005% (1.2 V Input) Line to Speaker Out: 0.035% (50 W Output, 8 Ohms) |
| Channel Separation | Phono (MC): ± 66 dB (1 kHz / JEITA) ± 77 dB (10 kHz / JEITA) Phono (MM): ± 90 dB (1 kHz / JEITA) ± 77 dB (10 kHz / JEITA) XLR, RCA, Tuner, Line: ± 74 dB (1 kHz / JEITA) ± 54 dB (10 kHz / JEITA) |
Wireless Connectivity
| Wi-Fi | None |
| Bluetooth | None |
Power
| AC Input Power | 120 VAC, 60 Hz |
| Power Consumption | Active: 350 W Standby: 0.2 W |
Physical
| Dimensions (W x H x D) | 17.1 x 7.1 x 18.3" / 435.0 x 180.0 x 464.0 mm |
| Weight | 54.5 lb / 24.7 kg |
