Xvive Audio MORE YOU HUB Expandable USB Audio Interface

The Xvive MORE YOU HUB Expandable USB Audio Interface is the foundation of an innovative expandable system designed to enhance creativity and collaboration. As the central component, the HUB connects effortlessly to your computer (DAW), headphones, and monitors, delivering crystal-clear audio through its two inputs. Perfect for both recording sessions and rehearsals, the system provides unmatched flexibility and scalability for musicians and creators.

With the MORE YOU HUB, you can grow your setup as needed by adding expansion units like the MORE YOU 2X, another HUB, or 4X and 8X units. This modular design allows up to eight users to work together seamlessly, each with individual control over their input levels and reverb settings. Whether you�re capturing tracks in the studio or rehearsing with your band, every participant can enjoy a personalized monitoring experience.

The system�s capacity for 8 inputs via ADAT In enables an impressive total of up to 24 inputs, making it ideal for even the most demanding creative sessions. Whether you�re a solo artist building a home studio or part of a larger ensemble, the MORE YOU HUB adapts to your needs, offering a professional-grade solution that grows with you.

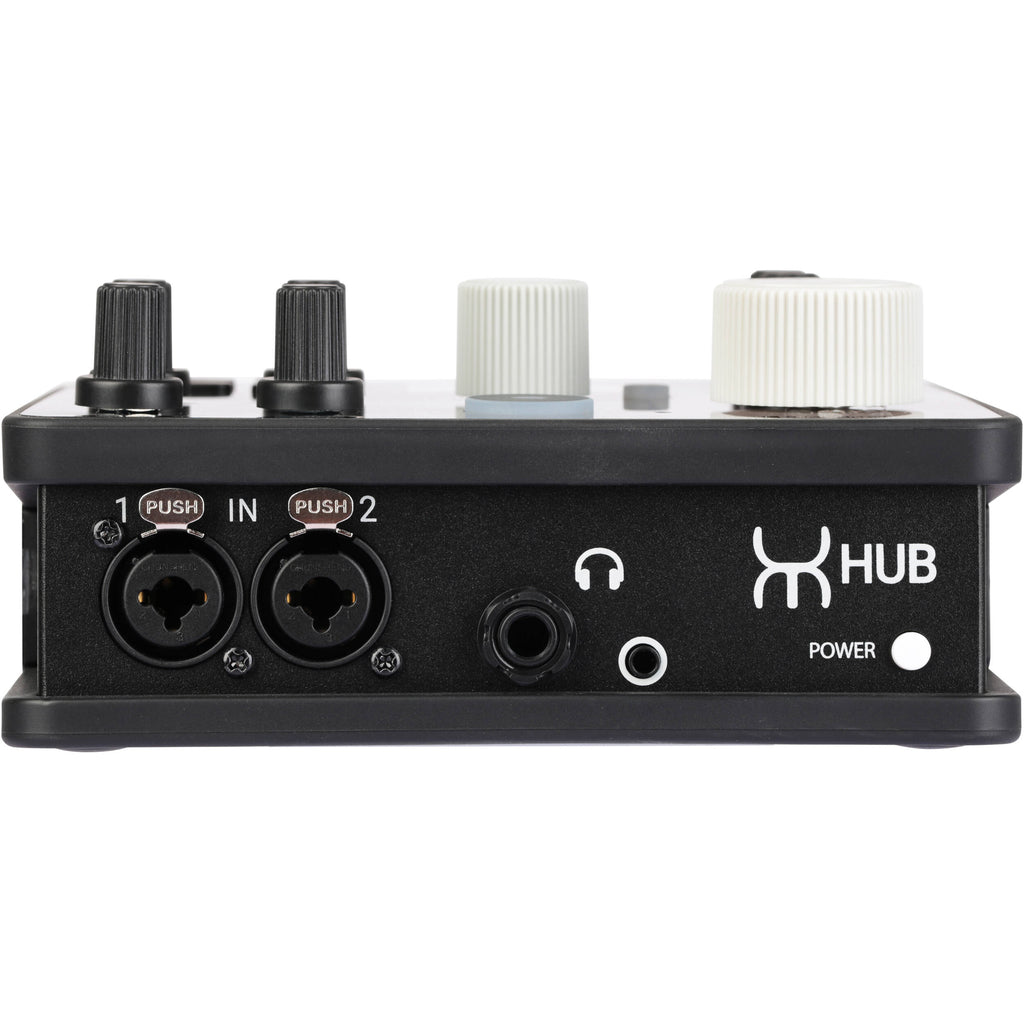

• Inputs: Two XLR/1/4� combo jacks for microphones or instruments; Mini-TRS MIDI input/output; 8 inputs per ADAT In for connecting optional external preamps/mixers

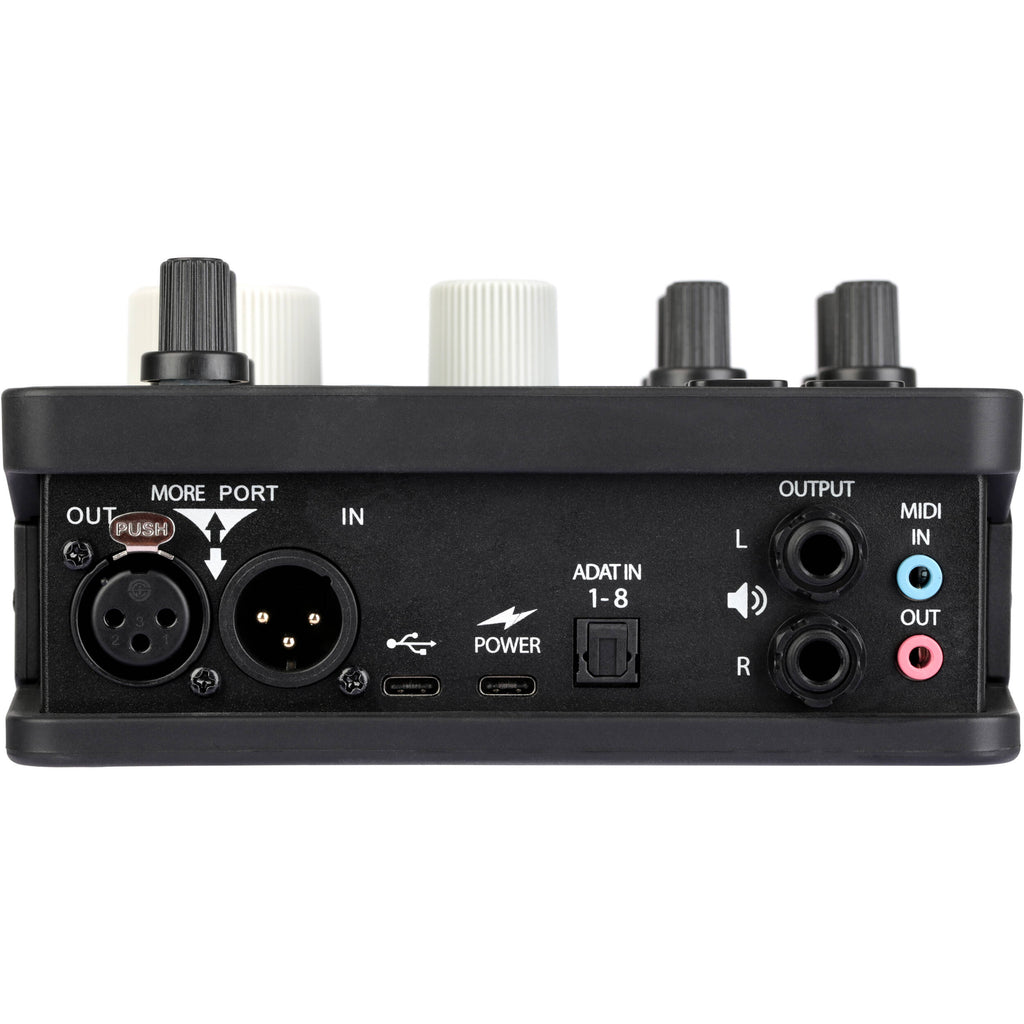

• Outputs: 1/4" and 3.5mm headphone / earbud / in-ear outputs; 1/4� TRS outputs for studio monitors; MORE YOU PORT XLR output for connecting to expansion units such as 2X units or additional Hubs
• True Gain mic preamps: 60 dB of gain in 1 dB steps for precise gain setting and recall, 48V Phantom Power (selectable on individual channels), phase and high-pass filter for each input.
• Connect to DAW: Data USB-C cable connects to your computer for recording and sends back effected signals in real time via the MORE PORT, so you can monitor your sounds with plug-ins applied

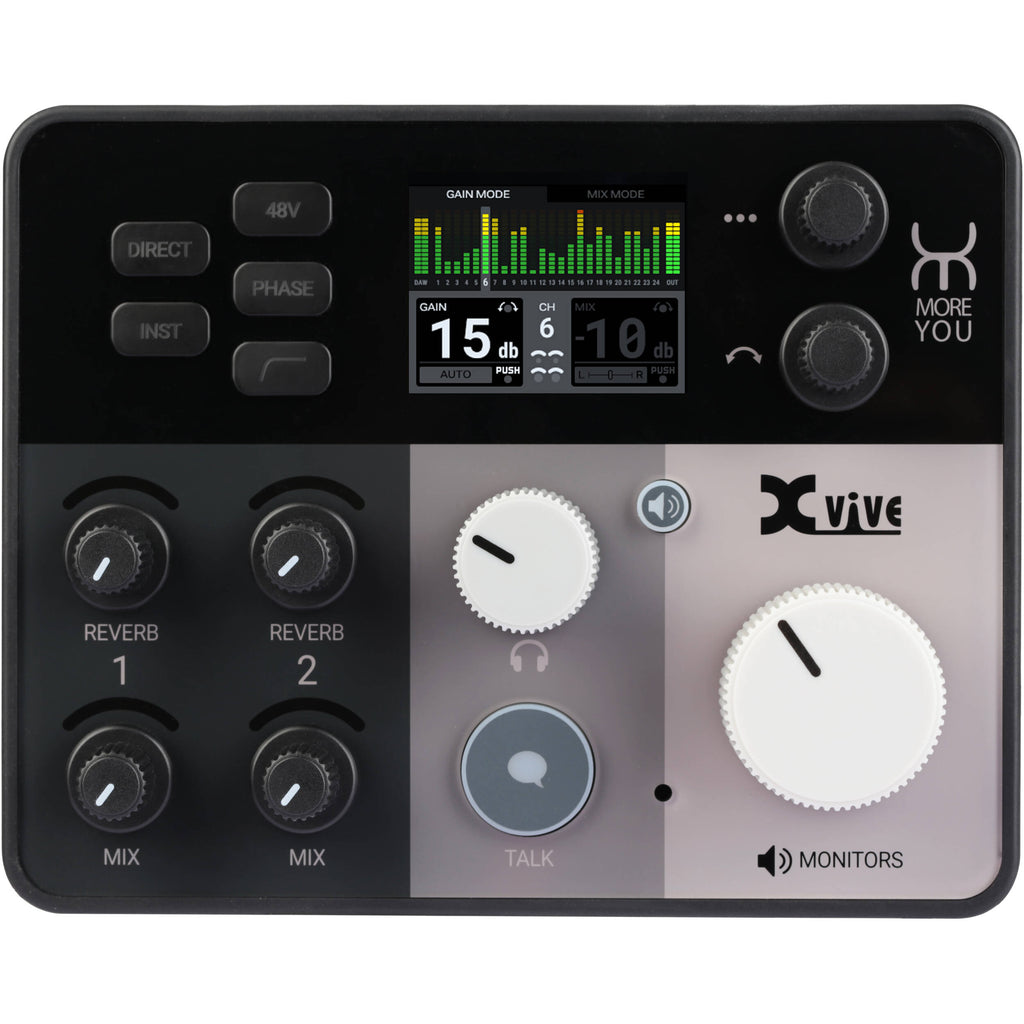

• Displays and controls: LCD screen shows audio levels and more
• Navigation is simple with two encoders and an efficient layout
• Power: The Hub�and all other 2X and Hub units connected�can be powered by one USB power supply via the Hub.
• All audio, talkback, and power is sent unit-to-unit digitally through standard XLR cables via the MORE PORT
• Auto Gain on individual channels or all channels
• Talkback: Microphone for communicating bidirectionally with the other musicians
• Recall: All settings automatically recalled after shutoff and restart
• Clip: Includes a custom clip for mounting the Hub on a mic stand for easy access

Xvive Audio MORE YOU HUB Specs

Channels of I/O	Analog: 2 Inputs / 4 Outputs Digital: 22 Inputs / 16 Outputs
Maximum Sampling Rate	96 kHz / 24-Bit
Number of Microphone Inputs	2
Analog Audio I/O	2x Combo XLR-1/4" TRS Mic/Hi-Z Input 2x 1/4" TRS Line Output 1x 1/4" TRS Headphone Output 1x 1/8" / 3.5 mm TRS Headphone Output
Digital Audio I/O	1x XLR 3-Pin AES3 Input 1x XLR 3-Pin AES3 Output
Host Connection	USB-C
Power Requirements	USB Bus Power, USB Power Adapter (Not Included)

Display	1x Color LCD
Channels of I/O	Analog: 2 Inputs / 4 Outputs Digital: 22 Inputs / 16 Outputs
Built-In DSP	Yes
Maximum Sampling Rate	96 kHz / 24-Bit
Number of Microphone Inputs	2
Built-In Microphone	Yes
Input Level Adjustment	1x Knob

Pad	No
Gain/Trim Range	60 dB
High-Pass Filter	Mic Input: 100 Hz
Solo/Mute	No

Analog Audio I/O	2x Combo XLR-1/4" TRS Mic/Hi-Z Input 2x 1/4" TRS Line Output 1x 1/4" TRS Headphone Output 1x 1/8" / 3.5 mm TRS Headphone Output
Phantom Power	48 V, Selectable On/Off
Digital Audio I/O	1x XLR 3-Pin AES3 Input 1x XLR 3-Pin AES3 Output
Host Connection	USB-C
Host Connection Protocol	Not Specified by Manufacturer
USB (Non-Host)	No
Sync I/O	No
Network I/O	No
MIDI I/O	1x 1/8" / 3.5 mm TRS Input 1x 1/8" / 3.5 mm TRS Output
Expansion Slots	No
Wireless	No

Sample Rates	44.1 / 48 / 96 kHz
Sample Rate Conversion	No
Bit Depths	24-Bit

Media/Memory Card Slot

No

OS Compatibility	macOS / Windows
Mobile Device Compatibility	No
Required Hardware	USB-C Port

Power Requirements	USB Bus Power, USB Power Adapter (Not Included)
Power Consumption	65 W (Maximum)

Package Weight	2.095 lb
Box Dimensions (LxWxH)	7.9 x 7 x 3.5"
