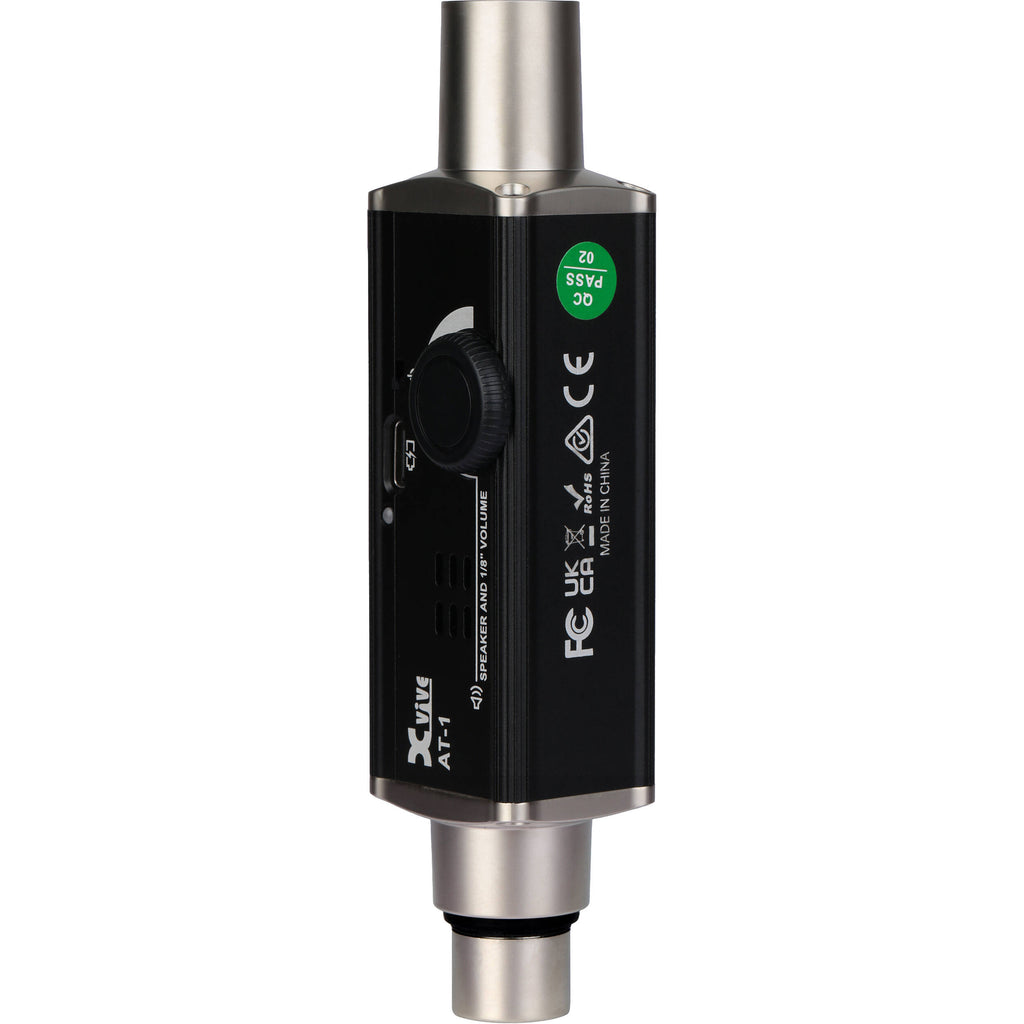

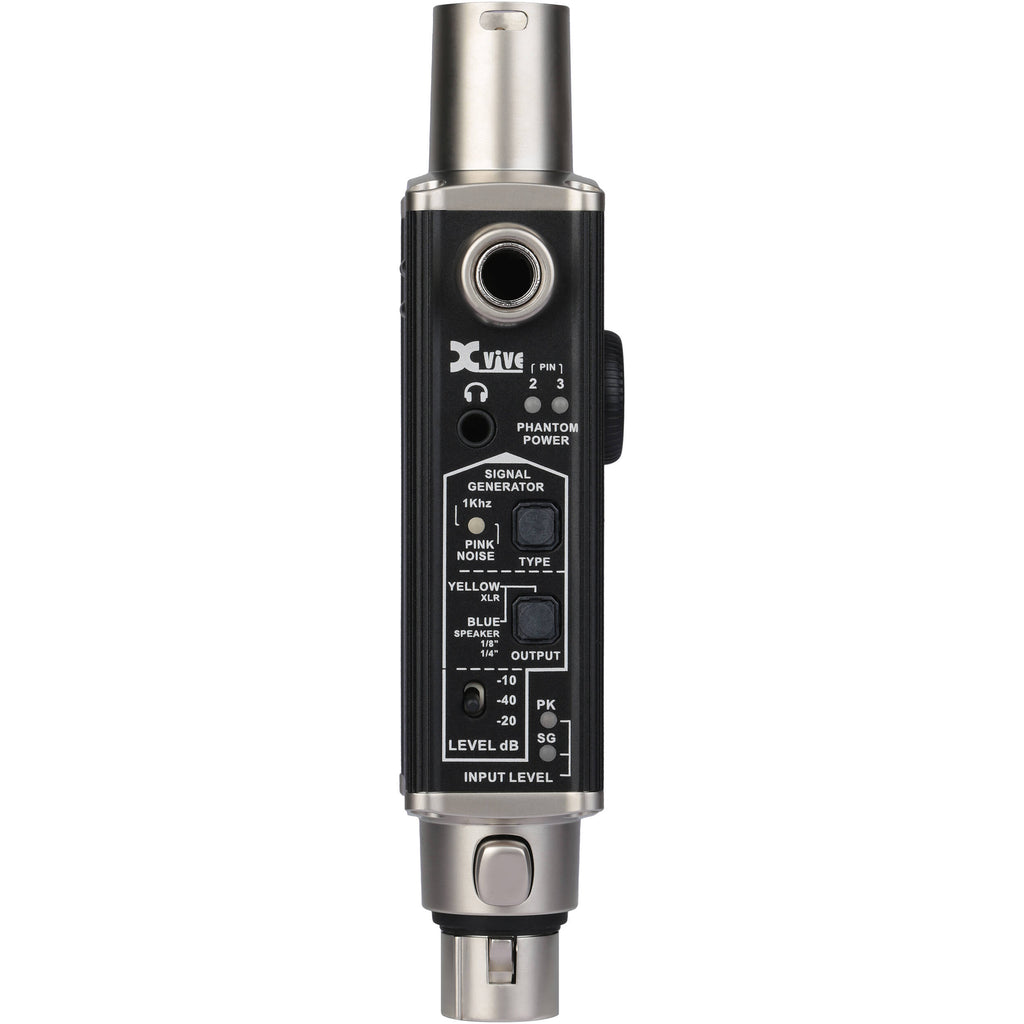

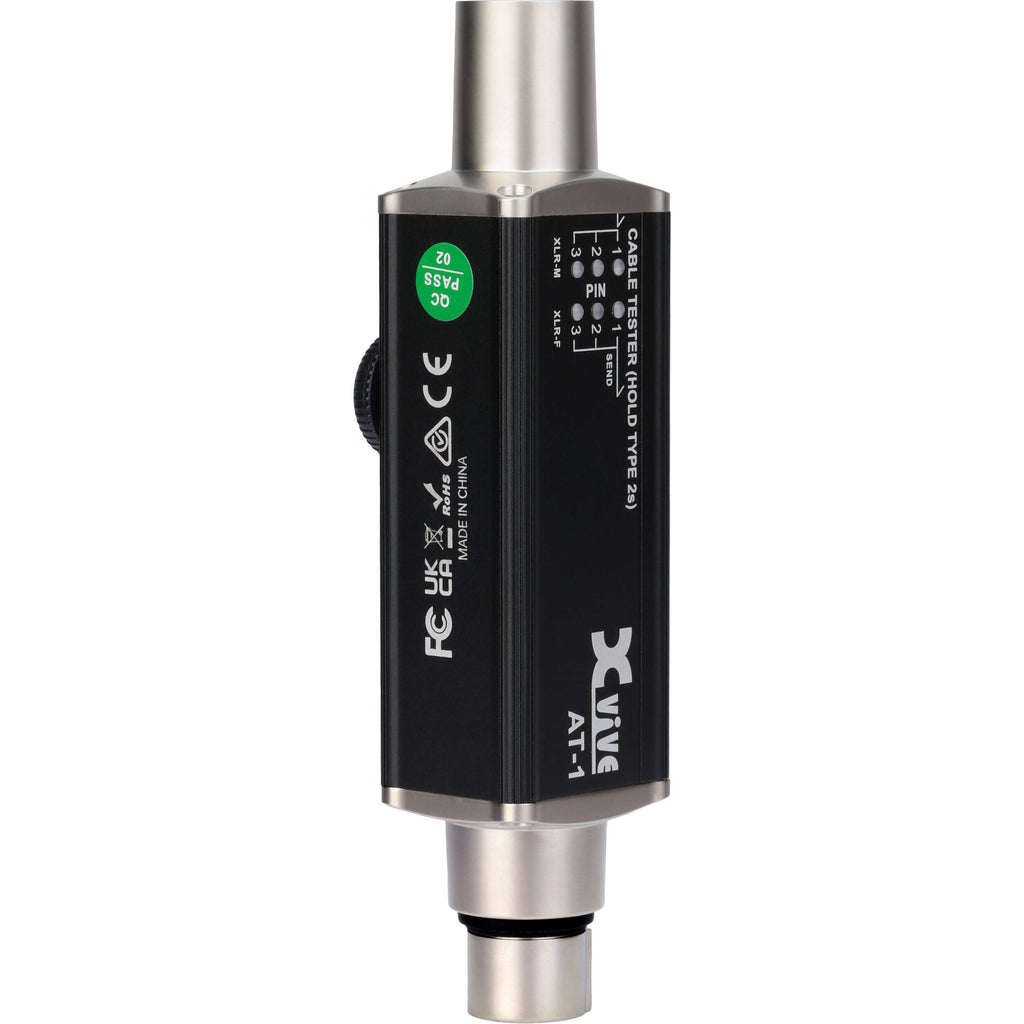

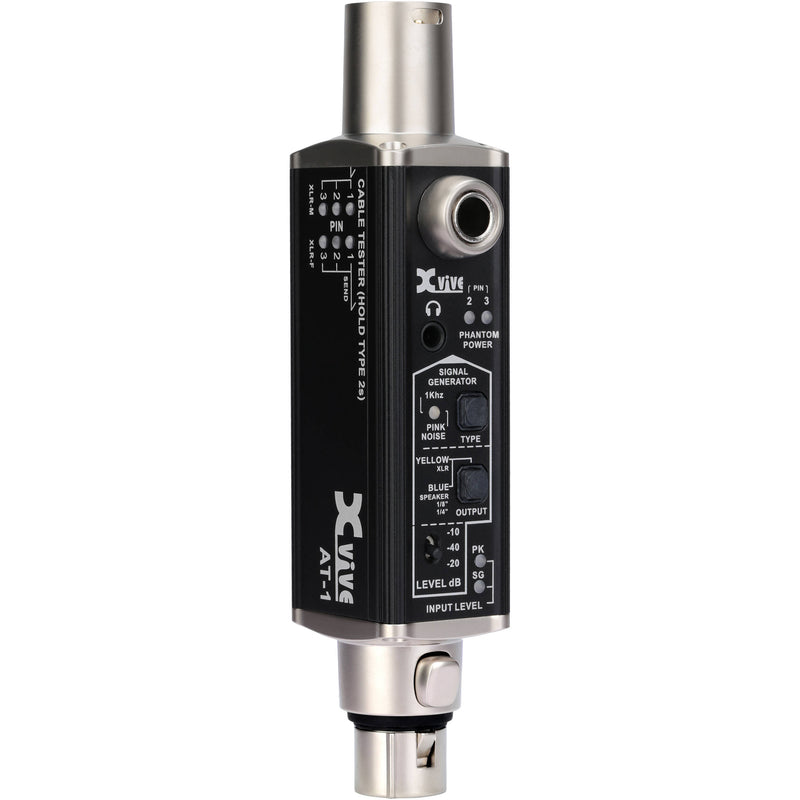

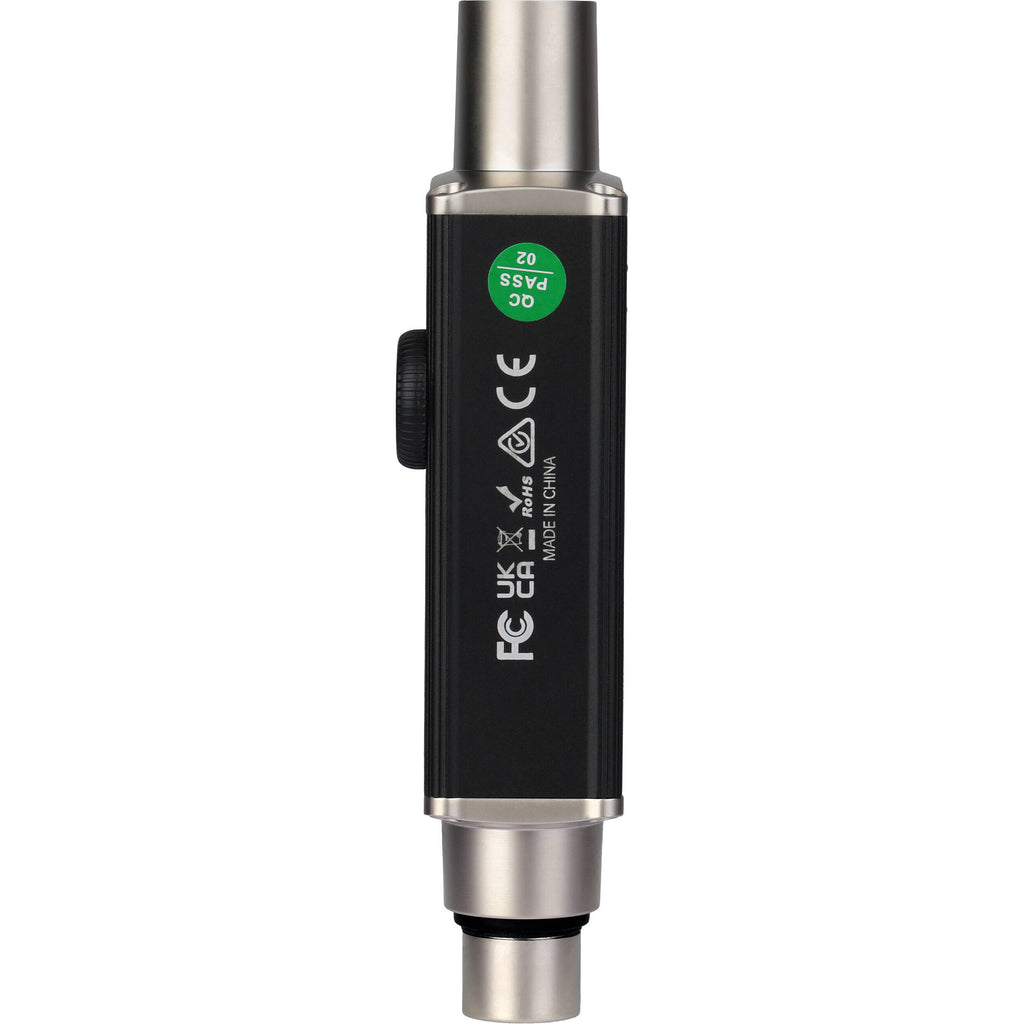

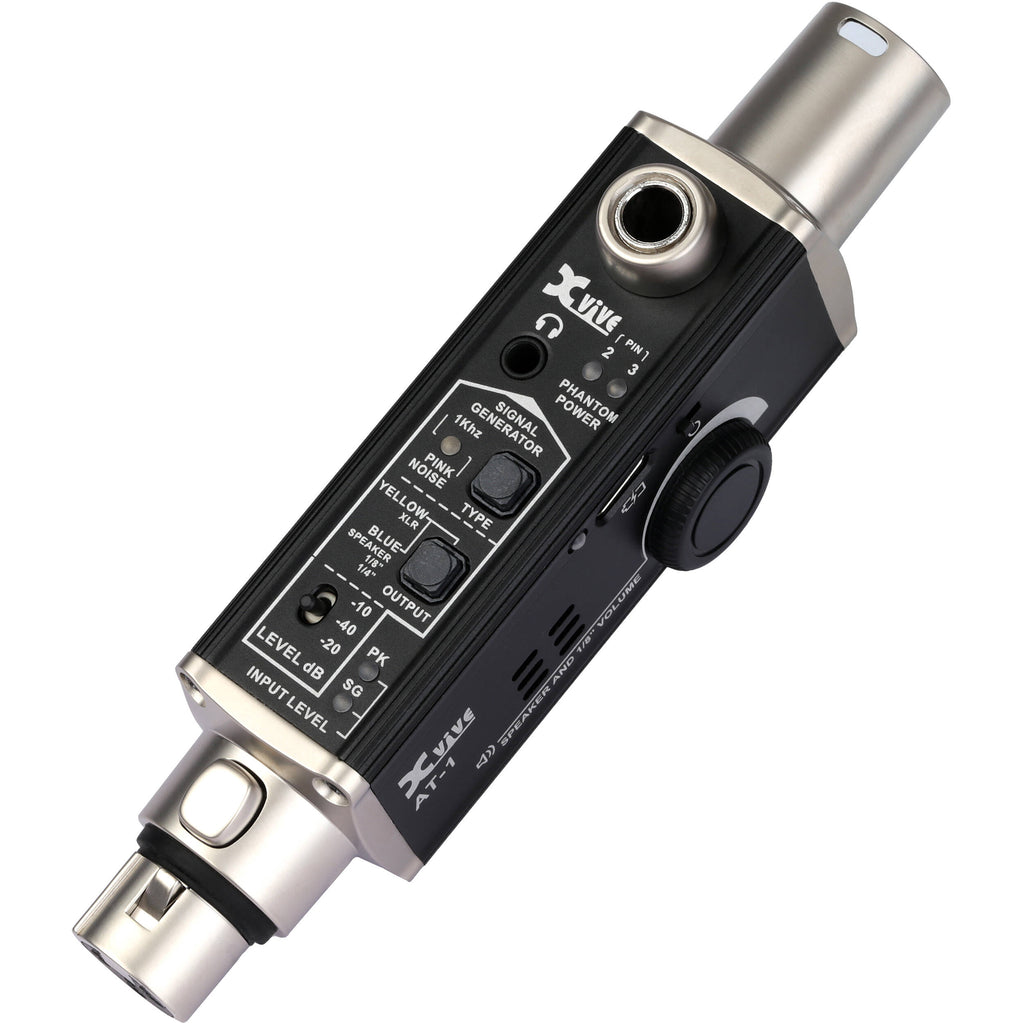

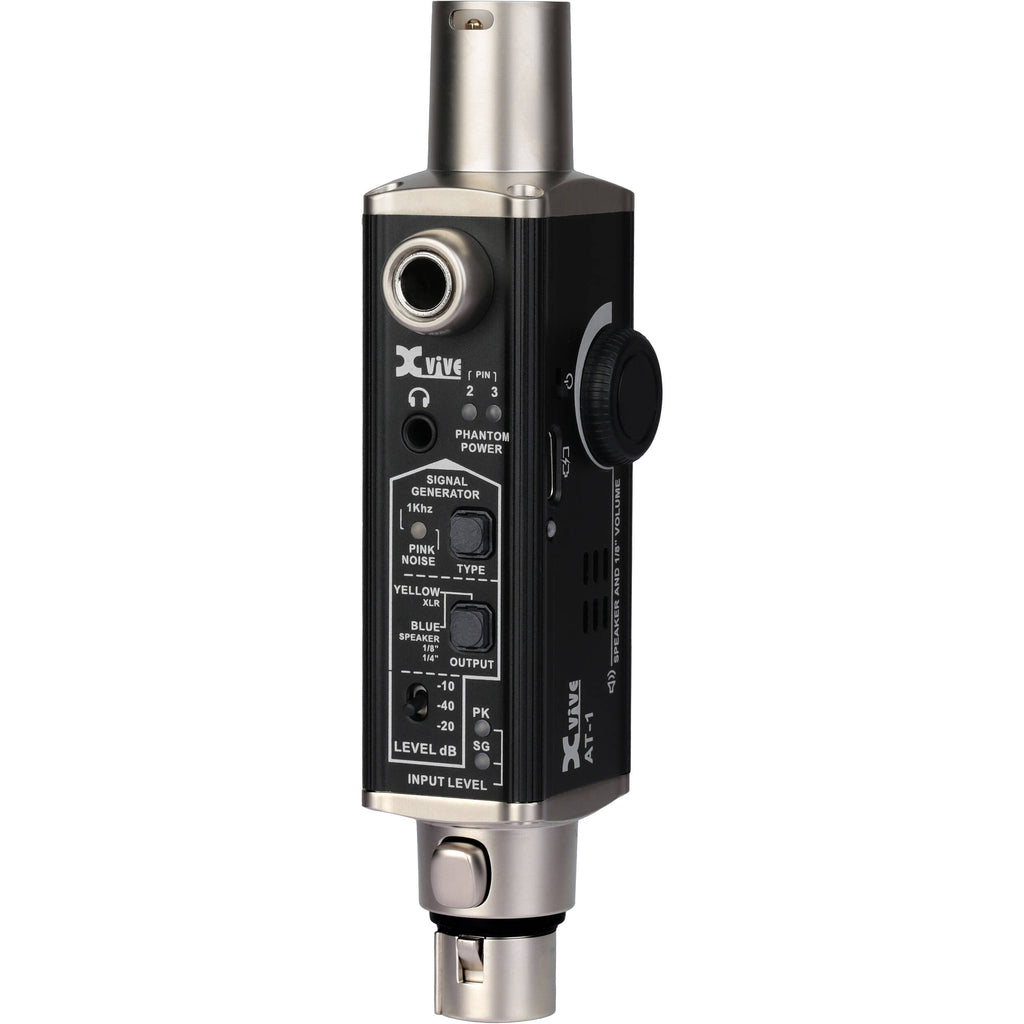

Xvive Audio AT-1 Portable Audio Tester

The Xvive AT-1 Portable Audio Tester is a compact, feature-packed utility tool designed to keep your audio equipment and cables performing flawlessly. Ideal for audio professionals, this versatile device ensures your gear is always up to the task, offering five essential functions to streamline testing and troubleshooting. It includes a signal generator that can emit 1 kHz tones or pink noise audio signals, an XLR cable tester for detecting whether XLR cables are damaged, XLR input metering to measure the strength of XLR input signals, a phantom power check to test voltage and ensure normal operation, and headphone and speaker monitoring to listen to input signals. The AT-1 is powered by a built-in rechargeable battery, which is recharged via a USB-C port.

• Signal generator: Outputs a 1 kHz sine wave or pink noise audio signal through XLR male, 1/4 and 1/8" connectors, with three output level options: -10, -20, and -40 dB
• XLR cable tester: Tests whether all three pins of the XLR cable are functioning properly
• XLR input metering: Measures the input volume level of the XLR female connector
• Phantom power check: Tests the output voltage of the phantom power and ensures both pins are functioning properly
• Headphone and speaker monitoring: When an audio source is connected to the XLR female or 1/4" input, you can monitor the signal with headphones or speakers via the 1/8" headphone jack
• Powered by built-in rechargeable battery, charges via USB-C port
• A full charge cycle takes about one hour and the device can be used while charging

Xvive Audio AT-1 Specs

Audio I/O

1x XLR Input 1x 1/4" Input 1x 1/8" / 3.5 mm Headphone Output 1x 1/8" / 3.5 mm Line/Speaker Output

Mobile App Compatible

No

Power Source	Battery (Built-In)
Battery Type	1x Internal Rechargeable Lithium-Ion
DC Input Power	5 VDC at 2 A

Color

Black Silver

Package Weight	0.84 lb
Box Dimensions (LxWxH)	7.1 x 3.7 x 2.5"
