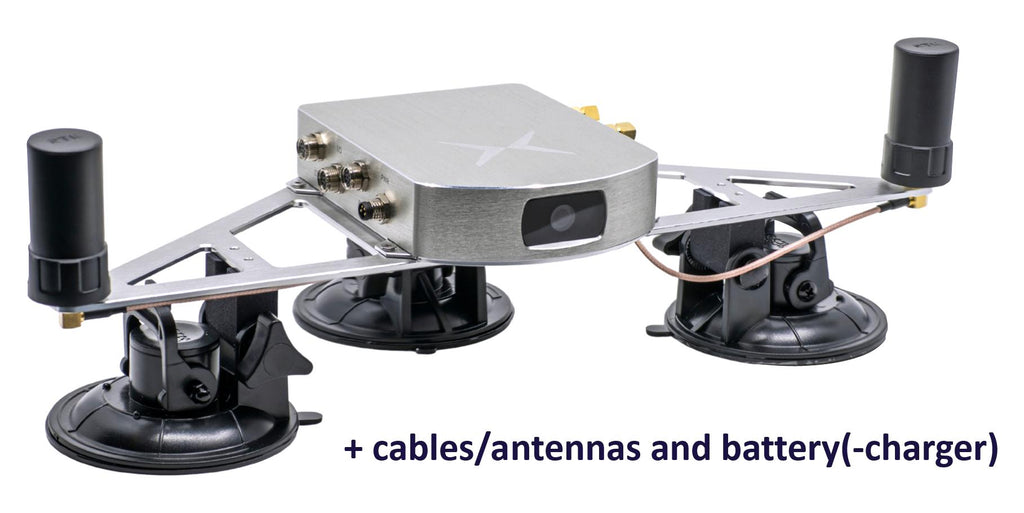

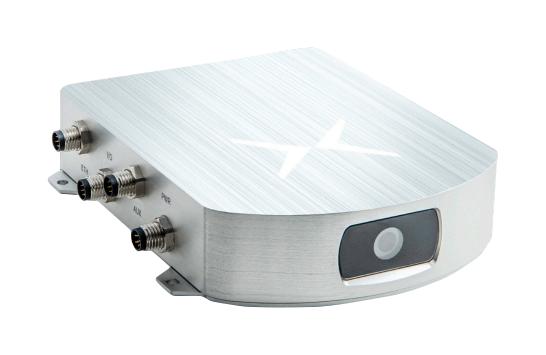

XVN-090D-1A-SK is a Xsens vision navigator starter kit. The Vision Navigator is a dual RTK GNSS/INS and vision- enabled navigation unit, for tracking accurate 3D position, velocity and orientation, in challenging outdoor- and GNSS-denied environments, supported by Visual Inertial Odometry technology. With the Vision Navigator, position drift is distance-dependent as opposed to time-dependent as commonly found in traditional GNSS/INS devices. The dual-antenna and built-in IMU provide reliable heading information even at low velocities or when standing still. Additionally, it can accept wheel odometry data and has internal recording memory. Vision Navigator has a browser-based GUI and is supported by ROS with resources in Github.
Other details
| Brand |
XSENS |
| Part Number |
XVN-090D-1B-SK |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
