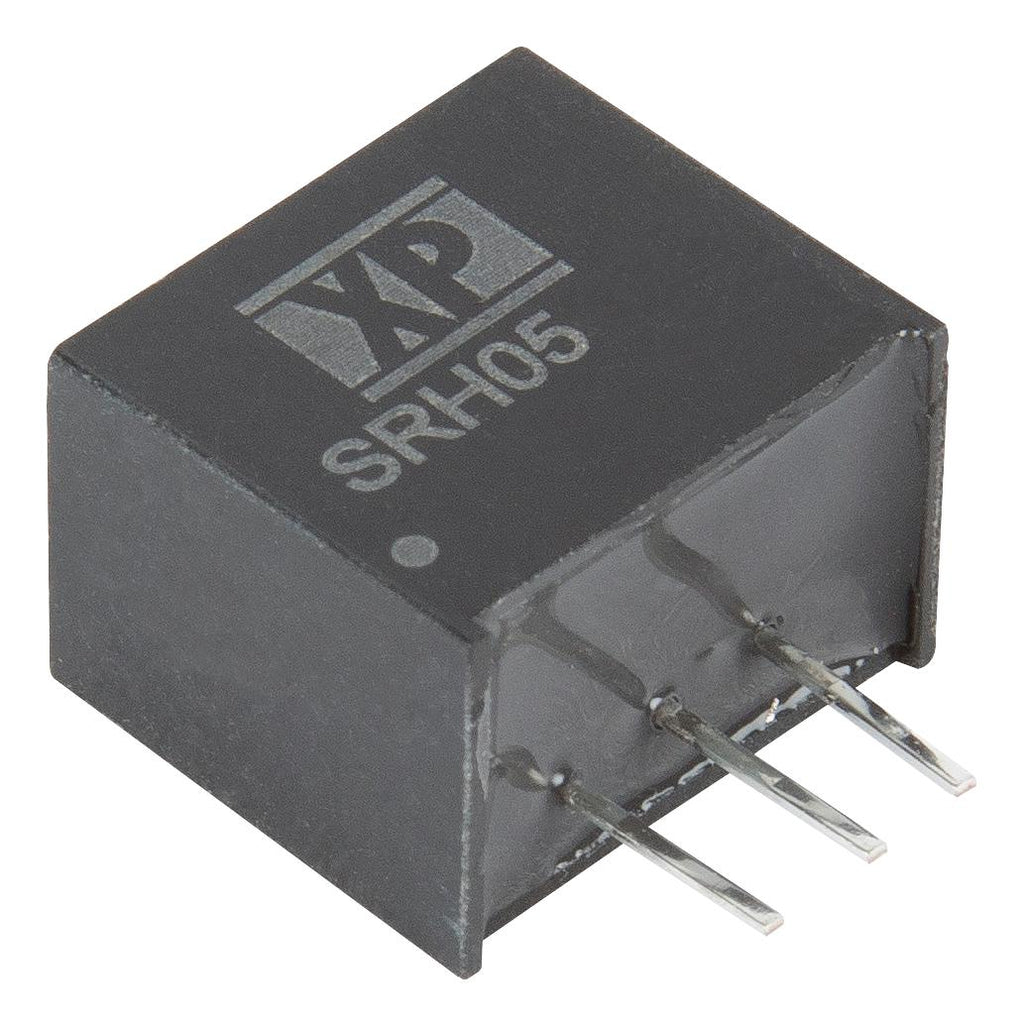

The SRH05 series ultra-wide input voltage switching regulator is pin compatible and ideally suited to replacing 78XX positive linear regulators. With efficiency up to 95%, very little energy is wasted as heat so there is no requirement for a heatsink, giving significant space saving and providing more flexibility for the PCB design. This non-isolated DC-DC converter offer a simple step-down voltage conversion and good line/load regulation, low ripple & noise with a low quiescent current (no load) of 5mA. The SRH05 provide a low-cost point of load (POL) solution for 24VDC or 48VDC distributed supply systems, sensors, robotics, telecommunications, test and measurement, portable and battery-operated equipment.
- 3 pin switching regulator
- SIP Package
- Ultra Wide Input Range to 72 V
- Minus 40 °C to +85 °C Operation
- Full Load to 60 °C Ambient
- Class B Conducted & Radiated Emissions
- See Technical Note for information about XP Power's plans for the UKCA Marking
Product details
| Power Supply Applications:
-
|
| No. of Outputs:
1 Output
|
| Output Power Max:
1.65W
|
| Output Voltage Nom:
3.3V
|
| Output Current Max:
500mA
|
| Product Range:
SRH Series
|
| DC / DC Converter Mounting:
Through Hole
|
| Input Voltage DC Min:
9V
|
| Input Voltage DC Max:
72V
|
Other details
| Brand |
XP POWER |
| Part Number |
SRH05S3V3 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
