- 4:1 Input Range
- Metal Case
- Efficiency up to 86%
- Continuous Short Circuit Protection
- 1500 VDC Isolation
- -40°C to +100°C Operating Temperature
- Industry standard pin out
Product details
| Output Power Max |
15W |
| Input Voltage DC Min |
9V |
| DC / DC Converter Mounting |
Through Hole |
| Output Voltage - Output 2 |
- |
| Output Current - Output 2 |
- |
| Depth |
50.8mm |
| Width |
25.4mm |
| Product Range |
XP 15W JTH Series |
| DC / DC Converter Type |
DIP |
| Approvals & Standards |
- |
| Output Voltage - Output 3 |
- |
| Output Voltage - Output 1 |
5V |
| Output Current - Output 3 |
- |
| No. of Outputs |
1 Output |
| DC / DC Converter Output Type |
Fixed |
| Input Voltage DC Max |
36V |
| Output Current - Output 1 |
3A |
| Height |
10.1mm |
Other details
| Brand |
XP POWER |
| Part Number |
JTH1524S05 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |

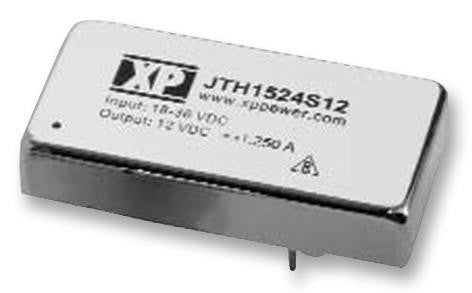

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
