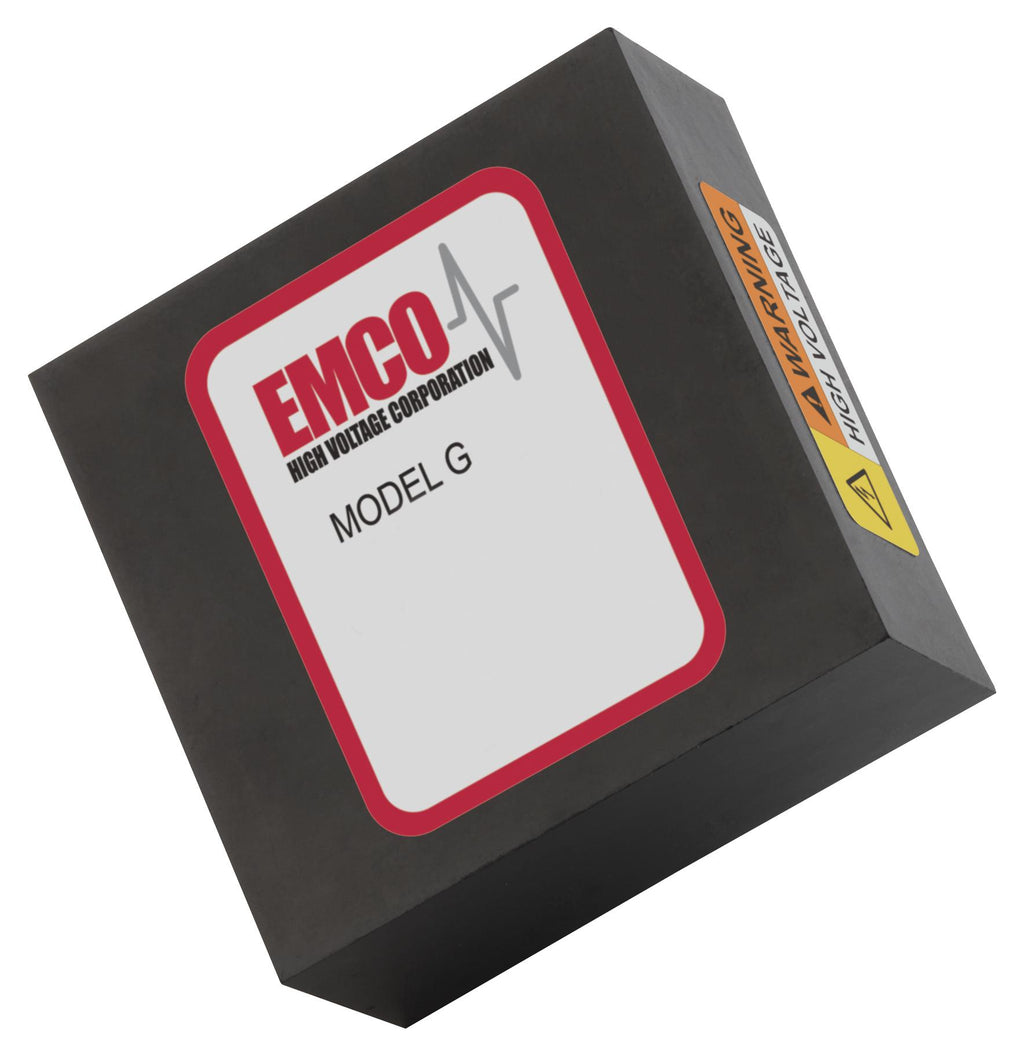

XP Power G60 G60 High Voltage DC/DC Converter Proportional Positive Output Fixed Adjustable 1.5 W 250 µA

The G Series is a line of miniature high voltage converters that provide up to 6kV output, positive or negative, in a compact PCB mount package. The isolated output is directly proportional to the input, and is linear from approximately 0.7 volts in. Excellent filtering techniques and a low noise quasi-sinewave oscillator provide clean, reliable DC to HV DC conversion with low ripple and low EMI/RFI. The isolated output allows for user selectable output polarity. When the optional center-tap pin is grounded, the unit provides both positive and negative outputs from one compact, low cost module. The pin pattern used on this model has become an industry standard for high voltage modules. The G Series units are component level converters that are easy to integrate, low cost, and come with decades of field proven reliability.

• Output Voltages from 100V to 6kV
• Output Voltage Proportional to Input
• Low Turn-on Voltage 0.7VDC
• nput to Output Isolation
• Dual Output Models
• No Minimum Load
• See Technical Note for information about XP Power's plans for the UKCA Marking

Applications

Power Management, DC, DC Converters

Other details

Brand	XP POWER
Part Number	G60
Quantity	Each
Technical Data Sheet EN
Technical Notes & Articles EN
Certificate of Conformity EN
CAD Multiple Formats EN
